مقدمة
Thank you for choosing the EVERCROSS EM3 26-inch Mountain Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new bicycle. Please read this manual thoroughly before your first ride and keep it for future reference. Proper assembly and regular maintenance are crucial for your safety and the longevity of your bike.
معلومات السلامة
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Ensure all components are correctly assembled and tightened before each ride. Familiarize yourself with local cycling laws and regulations.
- Always wear a certified bicycle helmet.
- Check tire pressure, brakes, and quick releases before every ride.
- Ensure reflectors are clean and visible.
- لا تركب تحت تأثير الكحول أو المخدرات.
- انتبه لما يحيط بك ولحركة المرور.
- Avoid riding in adverse weather conditions if visibility is poor.
- Maximum load capacity: 150 kg. Do not exceed this limit.
المنتج انتهىview
The EVERCROSS EM3 is a versatile 26-inch mountain bike designed for various terrains, featuring a lightweight aluminum frame, 21-speed gear system, front suspension, and reliable disc brakes.
الشكل 1: زيادةview of the EVERCROSS EM3 Mountain Bike.
المكونات الرئيسية:
- نظام تروس 21 سرعات: Provides a wide range of gears for various riding conditions, from urban commutes to moderate off-road trails.
- Lightweight Aluminum Frame: Durable and robust, supporting a maximum load of 150 kg.
- شوكة التعليق الأمامية: Absorbs shocks from uneven surfaces, enhancing comfort and stability.
- فرامل قرصية: Offers consistent and reliable stopping power in both dry and wet conditions.

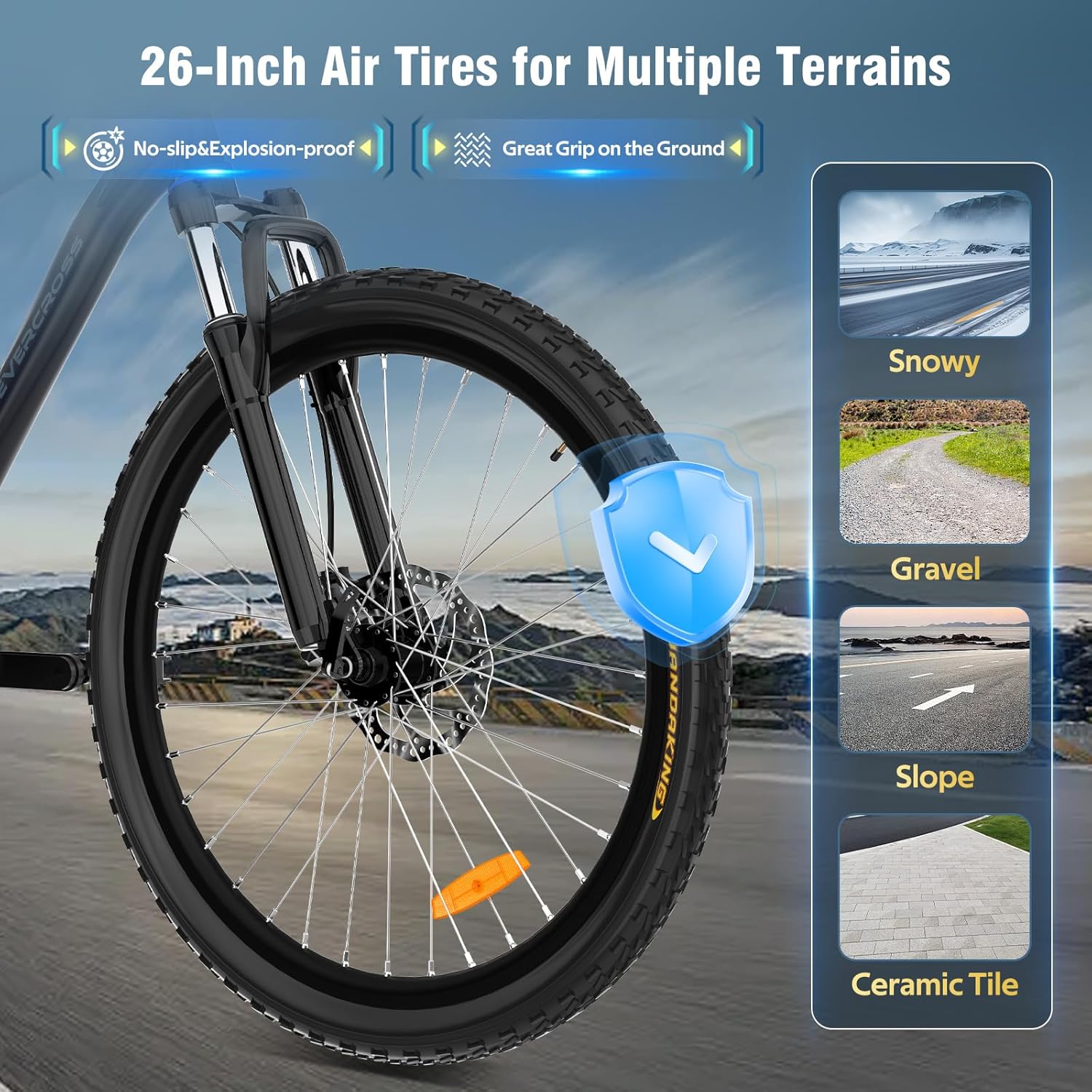

- إطارات هوائية مقاس 26 بوصة: Ensures good grip and effective shock absorption on asphalt, gravel, and light trails.
- مقعد قابل للتعديل: لراحة ركوب شخصية.
- Built-in Water Bottle Holder: Convenient access to hydration.
- دواسات مقاومة للانزلاق: لضمان وضع القدم بشكل آمن.
- الضوء الخلفي: Enhances visibility.
الشكل 2: مفصل view of key components including adjustable seat, water bottle holder, aluminum frame, non-slip pedals, tires, and taillight.
الإعداد والتجميع
Your EVERCROSS EM3 bike comes partially assembled. Follow these steps to complete the assembly and prepare for your first ride. It is recommended to have basic tools such as Allen wrenches and a pedal wrench.
- فك التعبئة: Carefully remove the bike and all components from the packaging. Retain packaging for potential returns or storage.
- تركيب المقود: قم بتثبيت المقود على جذع المقود. تأكد من أنه في المنتصف ومثبت بإحكام. اضبط الزاوية لركوب مريح.
- تركيب العجلة الأمامية: Install the front wheel into the fork dropouts. Ensure the quick-release skewer or axle nuts are properly tightened. Check that the wheel spins freely and is centered.
- تركيب الدواسة: Identify the left (L) and right (R) pedals. The left pedal has a reverse thread. Apply a small amount of grease to the threads and screw them into the crank arms. Tighten firmly with a pedal wrench.
- تعديل عمود المقعد والسرج: Insert the seat post into the frame. Adjust the saddle height so that your leg is slightly bent at the knee when the pedal is at its lowest point. Tighten the quick-release or bolt securely.
- ضبط الفرامل: Ensure both front and rear disc brakes are properly aligned and functioning. Squeeze the brake levers to check for firm and responsive braking. Adjust cable tension if necessary.
- ضبط التروس: Check that the 21-speed gear system shifts smoothly through all gears. Fine-tune the derailleur adjustments if shifting is rough or inconsistent.
- تضخم الإطارات: قم بنفخ الإطارات إلى الضغط الموصى به والموضح على الجدار الجانبي للإطار.
- التحقق النهائي للسلامة: Before riding, double-check all bolts, quick releases, and components for tightness and proper function.
تعليمات التشغيل
ركوب الدراجة:
- البداية: Mount the bike, place your feet on the pedals, and push off.
- الكبح: Use both front and rear brakes simultaneously for controlled stopping. Apply gentle pressure to the front brake and slightly more to the rear brake. Avoid sudden, hard braking, especially with the front brake, to prevent skidding.
- تغيير التروس: Use the shifters on the handlebar to change gears. Shift to a lower gear for climbing hills and a higher gear for flat terrain or descents. Shift smoothly and avoid shifting under heavy pedaling load.
- توجيه: Maintain a relaxed grip on the handlebars and steer gently.
الشكل 3: The 21-speed precision gear system allows for efficient riding across varied terrain.
الشكل 4: Reliable disc brakes provide consistent stopping power in various conditions.
صيانة
Regular maintenance ensures the safety and longevity of your EVERCROSS EM3 mountain bike.
Daily Checks (Before Each Ride):
- الإطارات: Check tire pressure and inspect for cuts or punctures.
- الفرامل: اختبر الفرامل الأمامية والخلفية للتأكد من عملها واستجابتها بشكل صحيح.
- فك سريع/مسامير: Ensure all quick releases and critical bolts (wheels, seat post, handlebars) are securely tightened.
- سلسلة: Check for proper tension and lubrication.
Weekly/Bi-Weekly Checks:
- تزييت السلسلة: Clean and lubricate the chain to prevent rust and ensure smooth shifting.
- تغيير التروس: Check for smooth and accurate gear changes. Adjust derailleurs if needed.
- وسادات الفرامل: افحص وسادات الفرامل للتأكد من عدم تآكلها. استبدلها إذا كانت متآكلة.
- محاذاة العجلات: Check if wheels are true (straight) and spokes are tensioned correctly.
Monthly/Seasonal Checks:
- رمان: Check wheel, bottom bracket, and headset bearings for play.
- الكابلات: Inspect brake and shifter cables for fraying or corrosion. Replace if necessary.
- إطار: Inspect the aluminum frame for any cracks or damage.
- شوكة التعليق: Clean and inspect the front suspension fork for proper function.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| تبدو الفرامل إسفنجية أو ضعيفة | Loose brake cable, worn brake pads, air in hydraulic system (if applicable) | Tighten brake cable, replace brake pads, consult a bike mechanic for hydraulic brake bleeding. |
| لا يتم تغيير التروس بسلاسة | Derailleur out of adjustment, bent derailleur hanger, dirty/dry chain, stretched cable | Adjust derailleur limit screws and barrel adjusters, clean and lubricate chain, replace cable if stretched. Consult a mechanic for bent hanger. |
| يفقد الإطار الهواء بسرعة | Puncture, leaky valve stem, improperly seated tire bead | Inspect tire for punctures and repair/replace inner tube, check valve stem, re-seat tire bead. |
| صوت صرير أو طحن | Lack of lubrication, loose components, worn bearings, brake rub | Lubricate chain/moving parts, tighten loose bolts, inspect bearings, adjust brake calipers. |
تحديد
| ميزة | التفاصيل |
|---|---|
| نموذج | اي ام 3 |
| ماركة | ايفركروس |
| نوع الدراجة | Mountain Bike (Multi-purpose) |
| حجم العجلة | 26 بوصة |
| مادة الإطار | الألومنيوم |
| نظام التروس | 21 سرعات |
| نوع الفرامل | فرامل القرص |
| تعليق | شوكة التعليق الأمامية |
| أبعاد المنتج (الطول × العرض × الارتفاع) | 172 × 72 × 100 سم |
| وزن العنصر | 18 كيلوغرام |
| الحد الأقصى لسعة التحميل | 150 كيلوغرام |
| اللون (كما هو الحالviewإد) | EM3-Noir (Black) |
الشكل 5: Detailed dimensions and recommended rider height for the EVERCROSS EM3 Mountain Bike.
الضمان والدعم
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official EVERCROSS webالموقع. احتفظ بإثبات الشراء الخاص بك لتقديم مطالبات الضمان.
- الإرجاعات: 30-day return policy (as per Amazon.fr).
- Legal Guarantees: Standard legal guarantees apply.
- دعم العملاء: Specialized customer support is available.
