1. انتهى المنتجview
The NGTeco SL01-A730N is a WiFi-enabled fingerprint smart lock designed for enhanced home and office security. It offers multiple access methods including fingerprint, password, RFID card, mechanical key, and remote unlocking via the NGTeco Home App. This manual provides essential information for installation, setup, operation, and maintenance of your smart lock.
الصورة 1.1: أمام view of the NGTeco SL01-A730N Smart Lock, showcasing لوحة المفاتيح والمقبض.
المميزات الرئيسية:
- طرق الوصول المتعددة: Fingerprint, Password, RFID Card, Mechanical Key, Mobile App.
- فتح عن بعد: Control and manage your lock from anywhere using the NGTeco Home App.
- اتصال واي فاي: Built-in Wi-Fi for seamless smart home integration without additional hubs.
- قوة الطوارئ: USB Type-C port for temporary power in case of battery depletion.
- التوجيه الصوتي: Audio instructions for simplified setup and operation.
- الوصول المؤقت: Generate time-limited access codes or app permissions for guests.
- مقبض قابل للعكس: Suitable for both right-hand and left-hand door installations.
- وظيفة الجرس: Integrated electronic doorbell.
الصورة 1.2: Visual representation of the smart lock's key features, including remote unlocking, Wi-Fi communication, capacitive fingerprint sensor, random passcode, audio instructions, temporary access, smart alerts, NFC, and emergency charging port.
2. محتويات العبوة
تأكد من وجود جميع المكونات في العبوة قبل المتابعة في عملية التثبيت.
- التجميع الخارجي
- التجميع الداخلي
- طقم مزلاج
- Mechanical Key (2x)
- IC Card (2x)
- Studs & Screws Kit
- قالب التثبيت
- Installation Guide & User Manual (this document)
الصورة 2.1: All components included in the NGTeco SL01-A730N smart lock package, laid out for verification.
3. Lock Overview والأبعاد
Familiarize yourself with the different parts of the smart lock and its dimensions to ensure compatibility with your door.

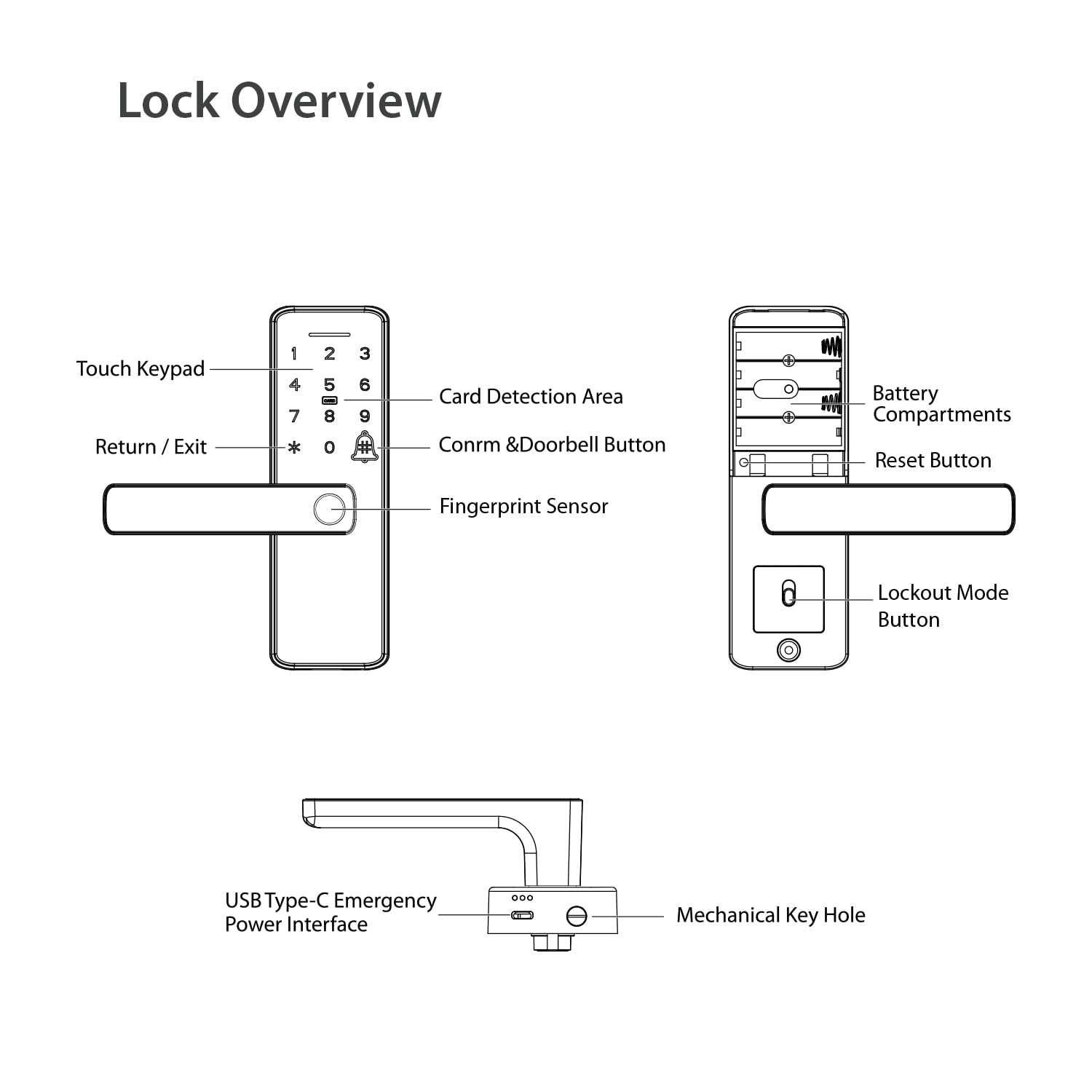

الصورة 3.1: Diagram illustrating the various components of the smart lock, including the touch keypad, card detection area, fingerprint sensor, battery compartments, reset button, USB Type-C emergency power interface, and mechanical keyhole.
الصورة 3.2: Detailed dimensions of the NGTeco SL01-A730N smart lock, indicating suitability for door thicknesses between 35-60 mm.
The lock is designed for doors with a thickness between 35 mm and 60 mm. Please refer to the detailed dimensions in Image 3.2 to confirm compatibility with your door.
4. التثبيت
يقدم هذا القسم أكثر من عامةview of the installation process. For detailed, step-by-step instructions, please refer to the dedicated دليل التثبيت included in your package.
- جهز الباب: Use the provided installation template to mark and drill necessary holes on your door. Ensure the door thickness is within the supported range (35-60 mm).
- تثبيت المزلاج: Insert the latch kit into the door edge and secure it with screws.
- تثبيت الجمعية الخارجية: Mount the exterior part of the lock, ensuring the spindle passes through the latch.
- تثبيت التجميع الداخلي: Connect the interior assembly to the exterior assembly using the provided screws and studs. Ensure all cables are properly connected and not pinched.
- أدخل البطاريات: Open the battery cover on the interior assembly and insert four AA alkaline batteries (not included).
- عملية الاختبار: After installation, test the mechanical key and handle operation to ensure smooth movement before proceeding with smart features setup.
ملحوظة: The handle design is reversible. Adjust the handle direction according to your door's opening direction (left-hand or right-hand) during installation if necessary. Refer to the Installation Guide for specific instructions on handle reversal.
5. الإعداد والتكوين الأولي
After physical installation, configure your smart lock using the NGTeco Home App and register your access credentials.
5.1. NGTeco Home App Installation
The NGTeco Home App is essential for managing your smart lock's features, including remote unlocking, user management, and access logs.
- Download the NGTeco Home App from the Google Play Store or Apple App Store. You can scan the QR code below or visit the provided link.
- قم بالتسجيل للحصول على حساب جديد أو قم بتسجيل الدخول باستخدام حساب موجود.
الصورة 5.1: Instructions for downloading the NGTeco Home App and its interface for controlling the smart lock.
Download the NGTeco Home App: https://a.smart321.com/ngtecongtecohome
5.2. Connecting the Lock to Wi-Fi
Follow the in-app instructions to add your SL01-A730N smart lock and connect it to your home Wi-Fi network (2.4GHz only). The lock provides audio instructions to guide you through the process.
- تأكد من أن هاتفك الذكي متصل بشبكة Wi-Fi بتردد 2.4 جيجاهرتز.
- In the NGTeco Home App, select "Add Device" and follow the prompts for smart lock setup.
- The lock will provide voice guidance during the pairing process.
5.3. Registering Access Credentials
Register fingerprints, passwords, and RFID cards for convenient access.
- إعداد المسؤول: The first user registered (fingerprint or password) will typically be designated as the administrator.
- تسجيل البصمة: On the lock's keypad, follow the voice prompts to place your finger on the sensor multiple times until registration is complete. You can also register fingerprints via the app.
- تسجيل كلمة المرور: Enter your desired password on the keypad, followed by the '#' key. Confirm the password. Ensure your password is between 6-10 digits.
- RFID Card Registration: Present the IC card to the card detection area on the lock when prompted during registration.
- Adding Users via App: Use the NGTeco Home App to add and manage multiple users, assign specific fingerprints, passwords, or RFID cards, and set access schedules.
6. تشغيل القفل الذكي
Learn how to use the various methods to unlock and manage your NGTeco SL01-A730N smart lock.
6.1. طرق فتح القفل
- بصمة: ضع إصبعك المسجل على مستشعر بصمة الإصبع. سيتم فتح القفل عند التحقق بنجاح.
- كلمة المرور: Enter your registered password on the touch keypad, then press '#'.
- بطاقة RFID: Present your registered IC card to the card detection area.
- المفتاح الميكانيكي: In case of emergency or battery failure, use the physical key to unlock the door.
- NGTeco Home App: Open the app, select your lock, and tap the unlock button.
الصورة 6.1: Visual guide to the various ways to unlock the NGTeco SL01-A730N smart lock: Fingerprint, Pass Code, Card, and Remote Control via app.
6.2. Remote Unlocking and Temporary Access
The NGTeco Home App allows for remote management and temporary access creation.
- فتح عن بعد: From the app, you can unlock your door from anywhere with an internet connection.
- Share Temporary Password: Generate time-sensitive passwords for guests or service providers. These passwords can be set to expire after a certain period or number of uses.
- Check Records: View a log of all lock and unlock events, including the method used and the user.
- إعداد القفل: Access advanced settings, manage users, and configure notifications directly from the app.
الصورة 6.2: Screenshots of the NGTeco Home App demonstrating features like App Control, Sharing Temporary Passwords, Checking Records, and Lock Setup.
6.3. Anti-Peeping Password
To prevent others from guessing your password, you can enter random digits before or after your actual password. For example, if your password is "123456", you can enter "987123456098#" and the lock will still recognize the correct sequence.
6.4. وظيفة جرس الباب
The lock includes a built-in electronic doorbell. Press the doorbell icon on the keypad to activate it.
7. الصيانة
Proper maintenance ensures the longevity and optimal performance of your smart lock.
- استبدال البطارية: The lock operates on four AA alkaline batteries. Replace them when the low battery indicator appears or when voice prompts indicate low power.
- الشحن في حالات الطوارئ: If batteries are completely drained, connect a power bank to the USB Type-C port on the exterior assembly for temporary power to unlock the door.
- تنظيف: امسح سطح القفل بقطعة قماش ناعمة وجافة. تجنب استخدام المنظفات الكاشطة أو المذيبات التي قد تتلف الطلاء أو المكونات الإلكترونية.
- ماسح البصمات: Keep the fingerprint sensor clean and dry for accurate readings.
8. استكشاف الأخطاء وإصلاحها
راجع هذا القسم للحصول على حلول للمشكلات الشائعة التي قد تواجهها.
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| القفل لا يستجيب. | البطاريات الميتة. | Replace batteries. Use USB Type-C for emergency power if needed. |
| لم يتم التعرف على بصمة الإصبع. | Finger is wet/dirty, sensor is dirty, or fingerprint not registered correctly. | Ensure finger and sensor are clean and dry. Re-register fingerprint if issue persists. |
| Password not working. | Incorrect password entered, or password not registered. | Verify the password. Ensure you are pressing '#' after the password. Re-register password if necessary. |
| لا يمكن الاتصال بشبكة Wi-Fi. | كلمة مرور Wi-Fi غير صحيحة، أو شبكة 5 جيجاهرتز، أو إشارة ضعيفة. | Ensure correct 2.4GHz Wi-Fi network and password. Move router closer or use a Wi-Fi extender. |
| لا يعمل فتح القفل عن بعد. | No internet connection on lock or phone, or app not properly configured. | Check Wi-Fi connection of the lock and internet connection of your phone. Ensure the app is updated and logged in. |
9. المواصفات
| ميزة | التفاصيل |
|---|---|
| ماركة | NGTeco |
| اسم الموديل | SL01-A730N |
| نوع القفل | قفل نقر |
| مادة | الألومنيوم |
| لون | أسود |
| أبعاد العنصر (الطول × العرض × الارتفاع) | 18.6 × 6 × 2 سنتيمتر |
| وزن العنصر | 1.25 كيلوغرام |
| بروتوكول الاتصال | واي فاي (2.4 جيجا هرتز) |
| طريقة التحكم | App, Fingerprint, Password, RFID Card, Key |
| ميزة خاصة | Anti-Peeping Password, Emergency USB Type-C Charging |
| الاستخدامات الموصى بها | Homes, Offices |
| توافق سمك الباب | 35 - 60 ملم |
10. الضمان والدعم
The NGTeco SL01-A730N Smart Lock comes with a ضمان لمدة 1 سنوات من تاريخ الشراء.
الصورة 10.1: The NGTeco SL01-A730N Smart Lock prominently displaying a "1 Year Warranty" badge.
دعم العملاء:
For any technical assistance, warranty claims, or product inquiries, please contact NGTeco customer support.
- Comprehensive Call Support: Assistance throughout your product journey, including pre-sales and after-sales support.
- Personalized Remote Assistance: Expert guidance for hardware and software configuration.
- Professional Training on Software: Unlock the full potential of software platforms with step-by-step training.
- Reliable Tech Support: Responsive technical team available on all working days.
الصورة 10.2: Information detailing the comprehensive customer care services provided by NGTeco.
الصورة 10.3: Contact information for NGTeco customer support, including phone numbers and email address.
بيانات الاتصال:
- Phone: 080-68281333/42, +91 80975 38492
- بريد إلكتروني: ecommerceindia@zkteco.in
- Support Hours: Mon-Sat 9:30 AM - 6:30 PM
