HICON Mondo Gaming Chair User Manual

1. معلومات السلامة

تحذير: Read this instruction manual carefully for safe assembly and use. Always pay attention to the user's weight and the stability of the chair. For more detailed information, please refer to the product packaging or the full instruction manual.

2. انتهى المنتجview

The HICON Mondo Gaming Chair is engineered to provide superior comfort and support for extended periods of use, whether for gaming, working, or relaxing. Its design integrates ergonomic principles with robust construction to ensure a healthy posture and long-lasting durability.

This gaming chair features a unique ergonomic design with a winged back that provides multi-point body contact, effectively distributing pressure and protecting your spine and lumbar region. It includes specialized head and lumbar pillows for comprehensive support, adapting to various body shapes.

The chair is highly versatile, offering a 360-degree swivel, smooth-rolling wheels for easy mobility, and a wide recline range from 90 to 170 degrees, suitable for working, playing, reading, or even napping. An adjustable, retractable footrest allows for comfortable relaxation. The seat and armrest heights are also adjustable to accommodate different desk heights and sitting preferences.

Constructed with a high-quality, hand-stitched PU leather covering an alloy frame and 12.5 cm high-density foam, the chair ensures both comfort and resilience. It is equipped with a state-of-the-art Class 4 gas lift and a solid mechanism, guaranteeing safety and stability. The chair has a robust maximum load capacity of 200 kg.

Figure 2.1: HICON Mondo Gaming Chair in pink and white.

3. الميزات المريحة

The HICON Mondo Gaming Chair is designed with your comfort and health in mind, incorporating several ergonomic features:

• Winged Backrest: Provides multi-point body contact to distribute pressure evenly and protect your spine and lumbar region.
• دعم قطني قابل للتعديل: Position the lumbar support to fit the natural curve of your lower back, ensuring optimal support and a relaxed, neutral posture.
• مسند رأس من إسفنج الذاكرة: The combination of memory foam and the headrest design adapts to your individual contours, providing comprehensive support and can help relieve pain.
• مساند للذراعين قابلة للتعديل: Ensure your arms are at approximately a 90-degree angle, aligning with your desk height to support your elbows comfortably. The width can also be adjusted to keep your elbows close to your body.
• مسند قدم قابل للسحب: Allows you to recline and relax in a comfortable position, taking pressure off your legs and feet.

Figure 3.1: Ergonomic Design highlighting neck, shoulder, back, and lumbar support.

Figure 3.2: Memory Foam Headrest and Lumbar Pillow, adapting to contours and providing comfort.

4. الإعداد والتجميع

While specific assembly instructions are typically provided with the product packaging, here is a general guide for setting up your HICON Mondo Gaming Chair:

1. فك مكونات الحزمة: Carefully remove all parts from the packaging and lay them out. Verify that all components listed in the product's assembly guide are present.
2. تجميع القاعدة: Insert the five caster wheels into the holes at the end of each leg of the chair's star base. Ensure they click securely into place.
3. تركيب رافعة الغاز: قم بوضع أسطوانة رفع الغاز في الفتحة المركزية لقاعدة النجمة المجمعة.
4. Attach the Mechanism: ثبّت آلية المقعد على الجانب السفلي من وسادة المقعد باستخدام البراغي المرفقة. تأكد من أن مقدمة الآلية مواجهة لمقدمة المقعد.
5. ربط المقعد بالقاعدة: Carefully place the assembled seat cushion (with mechanism) onto the gas lift cylinder.
6. قم بتثبيت مسند الظهر: Align the backrest with the mounting brackets on the seat mechanism. Secure it using the provided screws.
7. تركيب مساند الذراعين: Attach the armrests to the sides of the seat and backrest, following the specific instructions for your model.
8. أضف وسائد: Attach the headrest and lumbar support pillows using their straps.
9. التحقق النهائي: Once assembled, sit on the chair to test its stability and functionality. Ensure all screws are tightened and adjustments work smoothly.

5. التشغيل والتعديلات

To maximize comfort and ergonomic benefits, adjust your HICON Mondo Gaming Chair according to your body and preferences:

• تعديل ارتفاع المقعد: Locate the lever under the seat (usually on the right side). To raise the seat, lift the lever while taking your weight off the chair. To lower, lift the lever while seated. Adjust until your feet are flat on the floor and your knees are bent at a 90-110 degree angle. If your feet don't reach, consider using a footrest.
• ضبط عمق المقعد: Sit upright and adjust the seat depth so that there is approximately a 'fist distance' (four fingers) between the back of your knees and the front edge of the seat. This prevents pressure on blood vessels and nerves in your legs.
• مسند الظهر قابل للإمالة: Use the recline lever (typically on the left side) to adjust the backrest angle from 90 to 170 degrees. You can lock the backrest at your desired angle or set it to 'free float' for dynamic movement. When leaning back, ensure the chair moves smoothly. When sitting still, you should be able to sit upright without leaning on the backrest.
• تعديل مسند الذراع: Adjust the height of the armrests so that your forearms rest comfortably on them, ideally at the same height as your desk, forming a 90-degree angle at your elbows. Some models also allow for width adjustment to keep your elbows close to your body.
• تشغيل مسند القدمين: Pull out the retractable footrest from under the seat. You can adjust its angle by 15 degrees for optimal relaxation. Push it back in when not in use.

Figure 5.1: Recline angles for various activities: Working, Film Watching, and Rest.

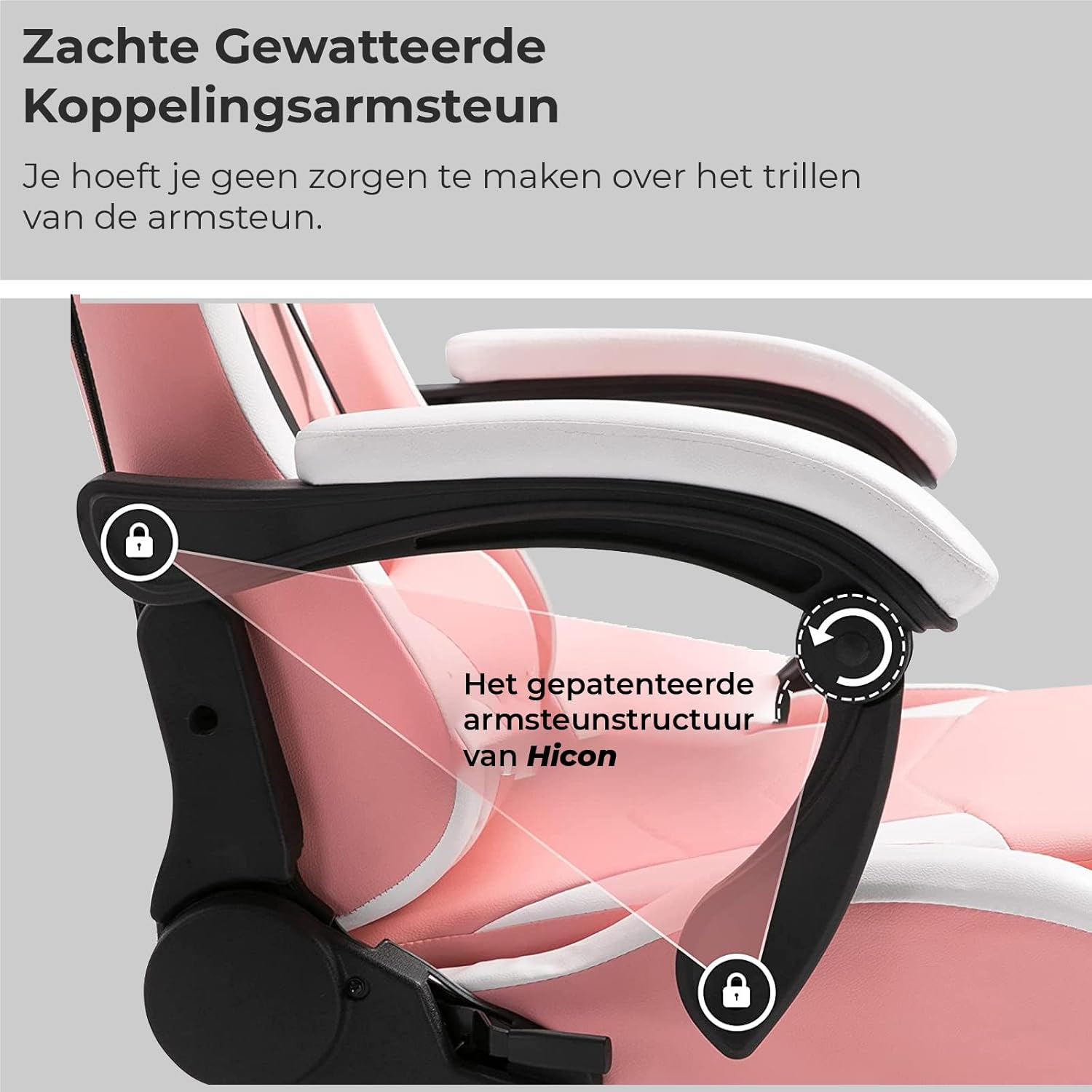

Figure 5.2: Detail of the soft padded linkage armrest, designed for stability and comfort.

6. الصيانة

Regular maintenance will extend the life and appearance of your HICON Mondo Gaming Chair:

• تنظيف الجلد الصناعي: امسح السطح بقطعة ناعمة ، دamp cloth. For tougher stains, use a mild soap solution and wipe dry immediately. Avoid harsh chemicals, abrasive cleaners, or solvents, as they can damage the material.
• الإطار والقاعدة: Periodically check and tighten all screws and bolts to ensure stability. Wipe metal parts with a dry cloth to prevent dust buildup.
• عجلات العجلات: Clean the wheels regularly to remove hair, dust, and debris that can impede smooth movement. You can use a small brush or vacuum cleaner.
• أجزاء متحركة: If any moving parts (like the gas lift or recline mechanism) become stiff or squeaky, a small amount of silicone-based lubricant can be applied, but consult the manufacturer's guidelines if unsure.
• تجنب أشعة الشمس المباشرة: قد يؤدي التعرض المطول لأشعة الشمس المباشرة إلى بهتان لون الجلد الصناعي أو تشققه. لذا، يُنصح بوضع الكرسي بعيدًا عن أشعة الشمس المباشرة قدر الإمكان.

7. استكشاف الأخطاء وإصلاحها

فيما يلي بعض المشكلات الشائعة وحلولها المحتملة:

8. المواصفات

Detailed specifications for the HICON Mondo Gaming Chair:

Figure 8.1: Detailed dimensions of the HICON Mondo Gaming Chair.

Figure 8.2: Comparison illustrating the enlarged backrest and seat of the HICON chair.

Figure 8.3: Illustration of the robust metal frame and updated PU wheels for enhanced safety and durability.

9. الضمان والدعم

Specific warranty details for the HICON Mondo Gaming Chair are not provided in this manual. Please refer to the product packaging, purchase documentation, or the manufacturer's official webالموقع الإلكتروني للاطلاع على معلومات حول تغطية الضمان وشروطه.

For technical support, spare parts, or any inquiries not covered in this manual, please contact HICON customer service through the contact information provided with your purchase or on the official HICON webموقع.
