Lumisky BRISA LED Outdoor Wall Light Instruction Manual

1. انتهى المنتجview

The Lumisky BRISA LED Outdoor Wall Light is designed to provide reliable and constant illumination for outdoor spaces such as entrances, patios, or driveways. Featuring a durable stainless steel structure with a corten-colored finish, it adds a modern and warm aesthetic to any facade. This fixture includes an integrated LED that emits a powerful 700 lumens of warm white light at 3000 K. It is designed for direct connection to a 220-240 V mains power supply and boasts an IP54 certification, ensuring excellent resistance to weather conditions and water splashes for long-lasting outdoor use.

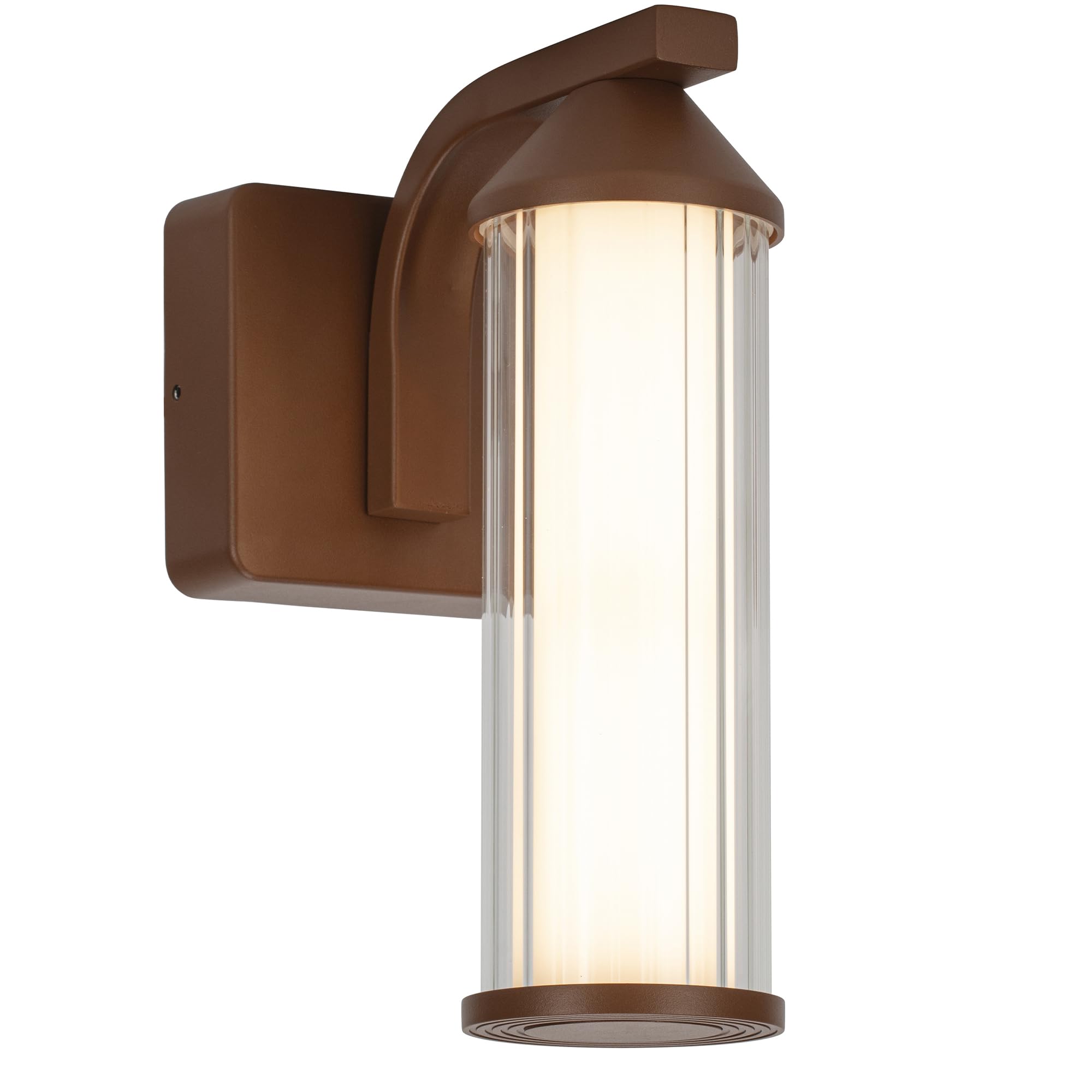

Image 1.1: Lumisky BRISA LED Outdoor Wall Light, showcasing its design and warm illumination.

المميزات الرئيسية:

• التيار الكهربائي: Provides continuous high-performance lighting independent of daylight.
• بنية متينة: Designed for durability against rain and temperature variations.
• الرؤية المثالية: Stable luminous flux for effective night access illumination.
• أسلوب أنيق: Modern design that harmoniously adapts to any wall surface.
• سهولة التركيب: Simplified mains installation for immediate wall lighting.

2. تعليمات السلامة

يرجى قراءة جميع تعليمات السلامة بعناية قبل التركيب والاستخدام. قد يؤدي عدم اتباع هذه التعليمات إلى حدوث صدمة كهربائية أو حريق أو مخاطر أخرى.

• السلامة الكهربائية: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations. Always disconnect power at the main circuit breaker before installation, maintenance, or cleaning.
• الاستخدام الخارجي: This fixture is rated IP54 for outdoor use, providing protection against dust and splashing water. Ensure all connections are properly sealed to maintain this rating.
• التركيب: Mount the fixture securely to a solid surface that can support its weight. Do not install on unstable or vibrating surfaces.
• حرارة: The LED light source may become warm during operation. Do not touch the fixture immediately after prolonged use.
• ضرر: Do not operate the fixture if any part is damaged. Contact customer support for replacement parts or service.

3. محتويات العبوة

تأكد من أن جميع المكونات موجودة وغير تالفة قبل الشروع في التثبيت.

• Lumisky BRISA LED Outdoor Wall Light Fixture (with integrated LED)
• أدوات التثبيت (مسامير، مثبتات جدارية)
• دليل التعليمات

4. الإعداد والتثبيت

Professional installation by a qualified electrician is highly recommended for this mains-powered fixture.

خطوات التثبيت:

1. تحضير منطقة التثبيت: Choose a suitable outdoor location on a wall. Ensure the surface is clean, dry, and structurally sound.
2. فصل الطاقة: IMPORTANT! Turn off the main power supply to the installation area at the circuit breaker. Verify that the power is off using a voltagه اختبار.
3. نقاط تثبيت العلامة: Hold the fixture's mounting bracket against the wall at the desired installation height. Use a pencil to mark the positions for drilling holes.
4. ثقوب الحفر: Drill pilot holes at the marked positions. Insert appropriate wall anchors if necessary (e.g., for masonry walls).
5. قوس التركيب الآمن: قم بتثبيت دعامة التثبيت على الحائط باستخدام البراغي المرفقة. تأكد من تثبيتها بإحكام.
6. قم بتوصيل التركيبات: Carefully connect the electrical wires from the wall to the fixture's wiring terminals. Follow standard wiring color codes: Live (Brown/Black), Neutral (Blue/White), Earth (Green/Yellow). Ensure all connections are tight and secure.
7. قم بتثبيت الجهاز: Align the fixture with the mounting bracket and secure it in place using the provided screws or fasteners. Ensure a tight seal against the wall to maintain the IP54 rating.
8. اعادة الطاقة: Once the fixture is securely installed and all connections are checked, restore power at the main circuit breaker.

Image 4.1: The BRISA wall light illuminating a patio area, demonstrating typical installation.

Image 4.2: The BRISA wall light providing warm illumination on a darker exterior wall.

5. تعليمات التشغيل

The Lumisky BRISA LED Outdoor Wall Light operates simply by connecting to your mains power supply. Once installed and power is restored, the light can be controlled via your existing wall switch or an external timer/sensor connected to the circuit.

• تشغيل/إيقاف التشغيل: استخدم مفتاح الحائط المتصل بدائرة المصباح لتشغيل الضوء أو إطفائه.
• Continuous Illumination: The integrated LED provides consistent warm white light when powered.

6. الصيانة

Regular maintenance ensures the longevity and optimal performance of your Lumisky BRISA LED Outdoor Wall Light.

• تنظيف: افصل التيار الكهربائي قبل التنظيف. امسح الجهاز بقطعة قماش ناعمة.amp لا تستخدم المنظفات الكاشطة أو المذيبات أو المواد الكيميائية القاسية، لأنها قد تؤدي إلى إتلاف الطبقة النهائية أو المكونات الكهربائية.
• LED متكامل: This fixture uses an integrated LED light source, which is designed for long life and is not user-replaceable. Do not attempt to open or replace the LED module.
• تقتيش: Periodically inspect the fixture for any signs of damage, loose connections, or wear. Ensure the seal against the wall remains intact to maintain its weather resistance.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your Lumisky BRISA LED Outdoor Wall Light, refer to the following common problems and solutions:

• الضوء لا يضيء:
  • تحقق مما إذا كان مصدر الطاقة الخاص بالجهاز نشطًا عند قاطع الدائرة.
  • تأكد من أن مفتاح الحائط في وضع "التشغيل".
  • Verify all electrical connections are secure (consult a qualified electrician if unsure).
• الضوء خافت أو متذبذب:
  • Ensure the fixture is receiving the correct voltagهـ (220-240 فولت).
  • التحقق من توصيلات الأسلاك الفضفاضة.
  • If the issue persists, the integrated LED module may be faulty, requiring professional inspection or replacement of the entire fixture.
• تركيبات المياه الداخلية:
  • افصل الطاقة على الفور.
  • Inspect the installation for proper sealing against the wall and ensure all components are correctly assembled to maintain the IP54 rating.
  • If water ingress occurs, the fixture may be damaged and should be replaced.

For issues not covered here, please contact Lumisky customer support or a qualified electrician.

8. المواصفات

9. الضمان والدعم

Specific warranty information for the Lumisky BRISA LED Outdoor Wall Light is not provided in the product data. For details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact the seller/manufacturer directly.

For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact Lumisky customer service through their official webالموقع أو البائع الذي اشتريت منه المنتج.
