دليل مستخدم مجموعة مفكات براغي كهربائية سريعة الحركة من ANEX طراز AZM-US4S

1. المقدمة

This manual provides instructions for the safe and effective use of the ANEX AZM-US4S Electrician's Speed Ratchet Screwdriver Set. This tool is designed for electrical work, offering insulation up to 1000V for user protection. Please read this manual thoroughly before operation.

Image 1.1: The ANEX AZM-US4S Electrician's Speed Ratchet Screwdriver Set, showing the handle and three insulated Phillips bits.

2. معلومات السلامة

تحذير: Always prioritize safety when working with electrical systems. Failure to follow these instructions may result in serious injury or death.

• This tool set is designed for electrical work and provides insulation up to 1000V. However, always verify that power is disconnected before working on electrical circuits.
• Do not use this tool if any part of the insulation is damaged, cracked, or compromised. Inspect the handle and bits before each use.
• Wear appropriate personal protective equipment (PPE), including insulated gloves and eye protection, when performing electrical work.
• Do not expose the tool to excessive heat, moisture, or corrosive substances.
• يحفظ بعيدًا عن متناول الأطفال.
• The bits are designed to be non-conductive with a plastic shield. Do not modify or remove this shielding.

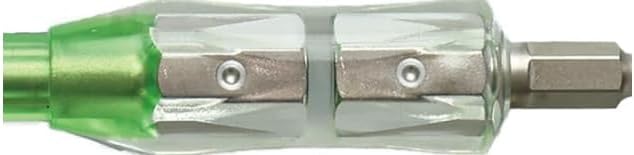

Image 2.1: Detail of an insulated bit, highlighting the protective plastic shielding.

3. مكونات المنتج

The ANEX AZM-US4S set includes the following components:

• 1 x Speed Ratchet Screwdriver Handle (ANEX No.387)
• 1 x Insulated Phillips (JIS) #1 Bit (Red)
• 1 x Insulated Phillips (JIS) #2 Bit (Yellow)
• 1 x Insulated Phillips (JIS) #3 Bit (Green)

Image 3.1: Phillips #1 Bit

Image 3.2: Phillips #2 Bit

Image 3.3: Phillips #3 Bit

4. الإعداد

To prepare the screwdriver for use:

1. حدد القطعة الصحيحة: Choose the appropriate Phillips (JIS) bit (#1, #2, or #3) for your application.
2. أدخل البت: Firmly insert the hexagonal base of the chosen bit into the handle's bit holder. Ensure it clicks securely into place.
3. التحقق من الأمان: Gently pull on the bit to confirm it is properly seated and will not detach during use.

To remove a bit, pull the collar on the handle back and extract the bit.

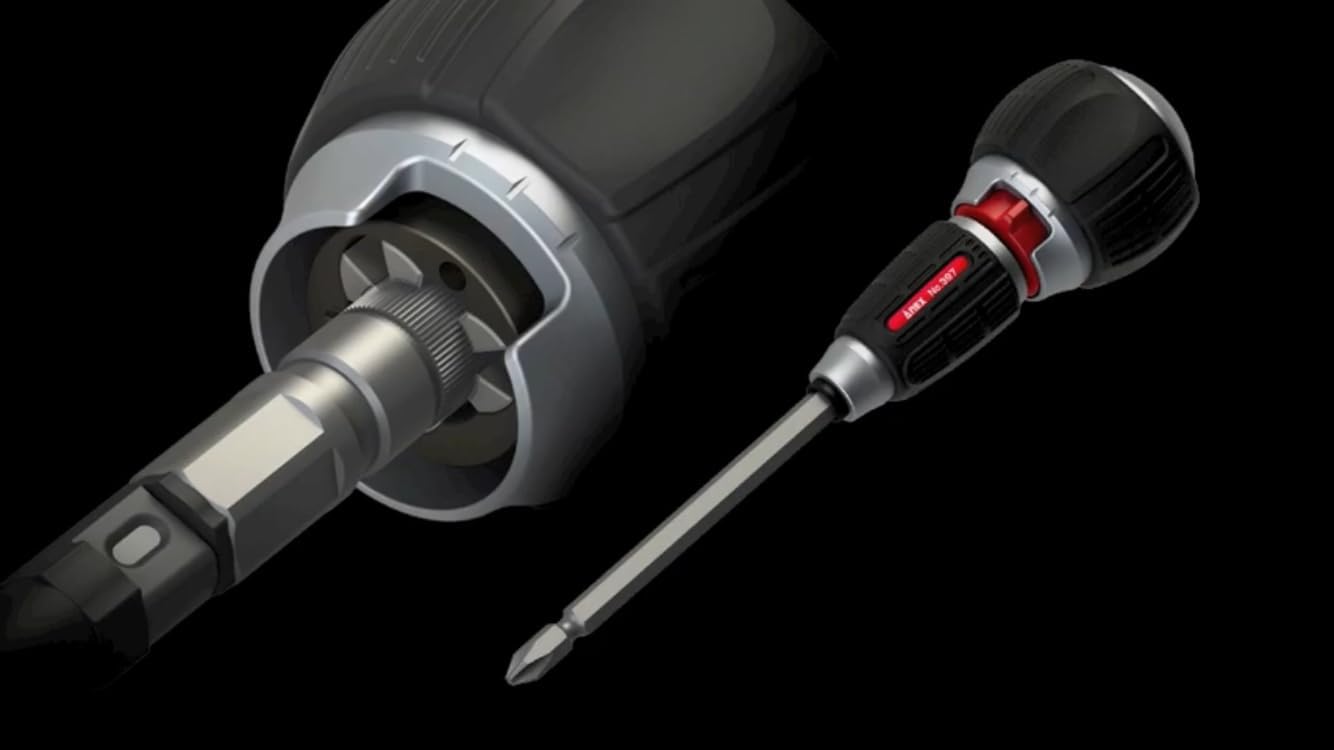

Image 4.1: The bit insertion mechanism of the screwdriver handle.

5. تعليمات التشغيل

The ANEX Speed Ratchet Screwdriver is designed for efficient and safe fastening and unfastening in electrical applications.

5.1 Ratchet Mechanism

The handle features a 72-gear ratchet mechanism with a switch for three modes:

• Forward (Tighten): Turn the switch to the 'F' or clockwise position. The handle will only engage when turning clockwise, allowing free rotation counter-clockwise.
• Reverse (Loosen): Turn the switch to the 'R' or counter-clockwise position. The handle will only engage when turning counter-clockwise, allowing free rotation clockwise.
• مُثَبَّت: Turn the switch to the center position. The handle will lock, functioning as a traditional fixed screwdriver. This is recommended for final tightening.

The switch can be operated with one hand for convenience.

5.2 Quick-Turn Handle

For rapid turning of fasteners with low resistance, utilize the quick-turn feature. This allows you to rotate the bit quickly with your fingertips, speeding up initial engagement or final loosening.

Image 5.1: Demonstrating the quick-turn handle for rapid rotation.

5.3 General Usage for Electrical Work

This tool is specifically designed for tasks such as electrical and communications equipment construction. Always ensure the selected bit matches the fastener head to prevent damage to the fastener or the bit.

Image 5.2: The screwdriver in use on an electrical panel.

5.4 Electric Screwdriver Compatibility

If using the ANEX bits with an electric screwdriver, it is recommended to use electric screwdrivers with a voltagهـ من 12 فولت أو أقل to prevent damage to the bits or compromise of insulation.

6. الصيانة

Proper maintenance ensures the longevity and safety of your ANEX screwdriver set.

• تنظيف: Wipe the handle and bits with a clean, dry cloth after each use. Do not use abrasive cleaners or solvents that could damage the insulation.
• تخزين: Store the screwdriver set in a dry, cool place, away from direct sunlight and corrosive materials. Keep the bits organized to prevent loss.
• تقتيش: Regularly inspect the handle and bits for any signs of wear, damage, or compromised insulation. Discontinue use immediately if any damage is found.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your ANEX screwdriver set, consider the following:

• بت لا يحمل: Ensure the bit is fully inserted into the handle until it clicks. Check for any debris in the bit holder.
• Ratchet Not Engaging: Verify the ratchet switch is set to either the 'Forward' or 'Reverse' position, not 'Fixed'.
• Stripping Fasteners: Ensure you are using the correct size Phillips bit for the fastener. Apply appropriate pressure and rotation speed.

For persistent issues or concerns regarding the tool's safety or functionality, please contact ANEX customer support.

8. المواصفات

9. معلومات الضمان

ANEX products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty documentation included with your purchase or visit the official ANEX webالموقع. احتفظ بإثبات الشراء الخاص بك لتقديم مطالبات الضمان.

10. دعم العملاء

If you have any questions, require technical assistance, or need to report an issue with your ANEX AZM-US4S Electrician's Speed Ratchet Screwdriver Set, please contact ANEX customer support through their official channels. You may also refer to the retailer where the product was purchased for support options.

For more information about ANEX products, visit: ANEX Official Webموقع
