DGYAO RLT-SYS-WB8 Red Light Therapy Belt User Manual

1. المقدمة

This manual provides essential information for the safe and effective operation of your DGYAO RLT-SYS-WB8 Red Light Therapy Belt. Please read these instructions thoroughly before first use and retain for future reference.

2. معلومات السلامة

Important: Statements regarding this product have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. Consult with a healthcare professional before using this device, especially if you have pre-existing medical conditions, are pregnant, or are taking medications.

• Do not use on broken skin or open wounds.
• Avoid direct eye exposure to the red light.
• يحفظ بعيدًا عن متناول الأطفال.
• لا تغمر الجهاز في الماء.
• استخدم فقط كابل الشحن والمحول المقدمين.
• توقف عن الاستخدام إذا شعرت بأي إزعاج أو ردود فعل سلبية.

3. محتويات العبوة

تأكد من وجود جميع العناصر في الحزمة الخاصة بك:

• DGYAO RLT-SYS-WB8 Red Light Therapy Belt
• كابل شحن من النوع C
• محول الطاقة
• دليل المستخدم

Image: The DGYAO Red Light Therapy Belt, its charging cable, power adapter, and user manual are shown alongside the product packaging.

4. انتهى المنتجview

The DGYAO RLT-SYS-WB8 Red Light Therapy Belt is a portable, rechargeable device designed for targeted light therapy. It features 180 high-quality 660nm red LEDs, integrated into a flexible, comfortable wrap made of 75% Neoprene and 25% Velvet. The belt includes a built-in controller and a 2000mAh rechargeable battery for cordless operation.

المميزات الرئيسية:

• 180 x 660nm Red LEDs: Provides deep penetration for muscle and joint support.
• 3 Intelligent Modes: Strong Red Light, Soft Red Light, and 10Hz Red Light Flash.
• لاسلكي وقابل للشحن: Integrated 2000mAh battery for convenient use anywhere.
• تصميم متعدد الاستخدامات: 51" x 7.6" size with strong Velcro closure, suitable for waist, back, knees, arms, and shoulders.
• مؤقت تلقائي: 30-minute auto shut-off for safe and consistent therapy sessions.

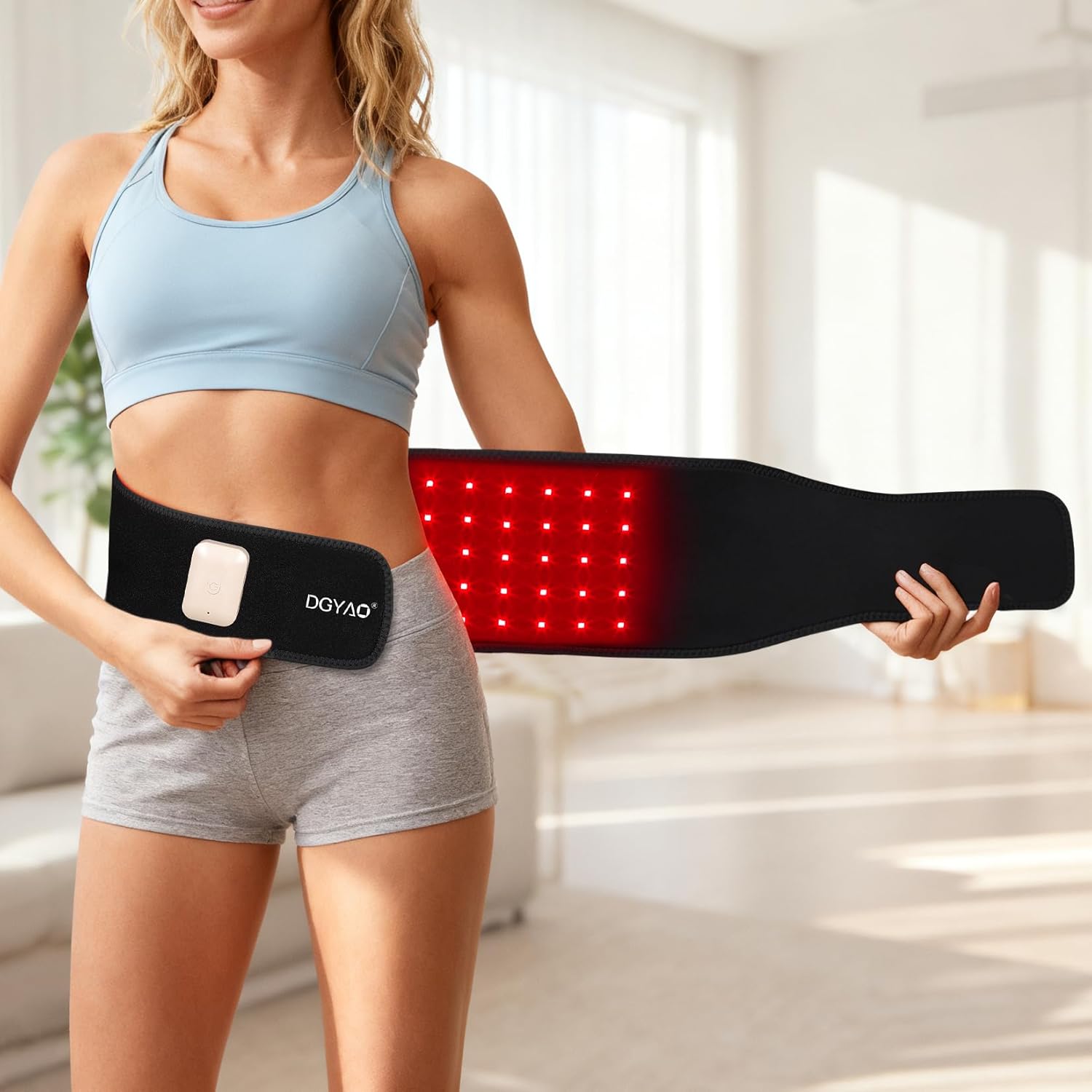

Image: A woman is shown wearing the DGYAO Red Light Therapy Belt around her lower back, demonstrating its application for waist and back areas.

الصورة: تفصيلية view of the DGYAO Red Light Therapy Belt, highlighting the individual 660nm LED bulbs and the integrated control unit.

5. الإعداد

شحن الجهاز:

1. Connect the Type-C charging cable to the charging port on the controller unit of the belt.
2. Plug the other end of the charging cable into the provided power adapter.
3. قم بإدخال محول الطاقة في منفذ كهربائي قياسي.
4. The indicator light on the controller will show charging status (e.g., blinking while charging, solid when fully charged).
5. A full charge typically takes approximately 2-3 hours. Ensure the device is fully charged before first use for optimal battery life.

6. تعليمات التشغيل

ارتداء الحزام:

1. Unroll the therapy belt.
2. Position the belt over the desired area of the body (e.g., lower back, waist, knee, shoulder).
3. Secure the belt firmly using the Velcro straps to ensure good contact with the skin. The belt should be snug but comfortable.

Image: Illustrations demonstrating the versatile application of the DGYAO Red Light Therapy Belt on different body areas such as the waist, shoulder, hip, and knee.

تشغيل/إيقاف التشغيل واختيار الوضع:

1. لتشغيل: Press and hold the power button on the controller for approximately 2 seconds. The device will turn on and automatically start in the default mode (Strong Red Light).
2. لتغيير الأوضاع: Briefly press the power button to cycle through the three available modes:
• Mode 1: Strong Red Light (for intense, focused therapy)
• Mode 2: Soft Red Light (for mild, soothing therapy)
• Mode 3: 10Hz Red Light Flash (designed to stimulate cells at a different frequency)
3. مؤقت تلقائي: Each therapy session is set for 30 minutes. The device will automatically shut off after 30 minutes.
4. لإيقاف التشغيل: Press and hold the power button for approximately 2 seconds until the lights turn off.

Image: A close-up of the DGYAO Red Light Therapy Belt's controller, illustrating the single button for power and mode selection, along with indicators for the three light therapy modes and the 30-minute auto shut-off feature.

الاستخدام الموصى به:

It is recommended to use the device for 15-30 minutes per session, once or twice daily. Consistency is key for optimal results. Do not exceed 30 minutes per session on the same body area.

7. الصيانة

تنظيف:

• تأكد من إيقاف تشغيل الجهاز وفصله قبل التنظيف.
• Wipe the surface of the belt with a soft, damp قماش. لا تستخدم مواد كيميائية قاسية أو منظفات كاشطة.
• Do not submerge the belt or controller in water.
• Allow the belt to air dry completely before storing or next use.

تخزين:

• قم بتخزين الجهاز في مكان بارد وجاف بعيدًا عن أشعة الشمس المباشرة.
• Keep the belt rolled or folded neatly to prevent damage to the LEDs or internal wiring.

8. استكشاف الأخطاء وإصلاحها

If you encounter any issues with your DGYAO Red Light Therapy Belt, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact DGYAO customer support.

9. المواصفات

• نموذج: RLT-SYS-WB8
• عدد المصابيح LED: 180 (60 bulbs, each with 3 x 660nm LEDs)
• الطول الموجي: 660nm الضوء الأحمر
• بطارية: بطارية قابلة لإعادة الشحن مدمجة بقوة 2000 مللي أمبير في الساعة
• مادة: 75% Neoprene, 25% Velvet
• أبعاد: 51" x 7.6" (approx.)
• مؤقت تلقائي: 30 دقائق
• مدخلات الطاقة: DC 5V / 3A (via Type-C)
• أبعاد الحزمة: 20 × 3 × 1 بوصة
• وزن الحزمة: 14.11 أونصات

10. الضمان والدعم

ضمان:

The DGYAO RLT-SYS-WB8 Red Light Therapy Belt comes with a 1-year limited warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear.

دعم العملاء:

For any questions, technical assistance, or warranty inquiries, please contact DGYAO customer support through the retailer where you purchased the product or visit the official DGYAO webموقع لمعلومات الاتصال.
