Zinus Nadia Queen Adjustable Bed Frame Instruction Manual

مقدمة

The Zinus Nadia Adjustable Bed Frame is designed to enhance comfort and provide versatile positioning for various activities such as reading, lounging, or sleeping. This electric adjustable bed base features independent head and foot incline adjustments, a quiet motor, and a user-friendly wireless remote. Its fabric-covered design integrates seamlessly into bedroom aesthetics. This manual provides essential information for assembly, operation, maintenance, and safety to ensure proper use of your adjustable bed frame.

The Zinus Nadia Adjustable Bed Frame with a mattress, showcasing its design and functionality in a bedroom environment.

ما هو المشمول

قبل البدء بالتجميع، تأكد من وجود جميع المكونات. تتضمن العبوة عادةً ما يلي:

• Adjustable Bed Frame (main unit)
• أرجل (6 قطع)
• وحدة إمداد الطاقة
• جهاز التحكم عن بعد اللاسلكي
• Mattress Retainer Bar (2 pieces)

Refer to the assembly video in the next section for a visual guide to included parts.

الإعداد والتجميع

The Zinus Nadia Adjustable Bed Frame is designed for easy, tool-free assembly. Follow these steps for proper setup:

1. افتح الإطار: Carefully remove the frame from its packaging. Unfold the bed frame completely on a flat, clear surface.
2. نعلق الساقين: Screw the six legs into the designated threaded holes on the underside of the frame. Ensure they are tightened securely.
3. توصيل الطاقة وجهاز التحكم عن بعد: Locate the power supply unit and the motor cables. Connect the motor cables to the power supply unit. Plug the power supply into a wall outlet. Pair the wireless remote control according to the instructions provided in the remote control guide.
4. Install Mattress Retainer Bars: Insert the mattress retainer bars into the designated slots at the foot of the bed frame. These bars prevent the mattress from sliding during adjustments.
5. Place Your Mattress: Carefully place your compatible Queen size mattress onto the adjustable bed frame.

For a visual demonstration of the assembly process, please watch the official Zinus assembly video below:

Key features of the Zinus Nadia Adjustable Bed Frame: Durable Steel Construction, Quiet Motor, and Tool-Free Assembly.

تعليمات التشغيل

The Zinus Nadia Adjustable Bed Frame is operated using a 5-button wireless remote control. This remote allows for independent adjustment of the head and foot sections.

وظائف التحكم عن بعد:

• رفع الرأس: Press and hold to raise the head section. The head section can adjust up to 63 degrees.
• الرأس السفلي: Press and hold to lower the head section.
• Lift Feet: Press and hold to raise the foot section. The foot section can adjust up to 35 degrees.
• Lower Feet: Press and hold to lower the foot section.
• مسطحة: Press to return both the head and foot sections to a completely flat position.

The 5-button wireless remote control for easy adjustment of the bed frame.

Illustration of the independent head and foot incline capabilities.

صيانة

To maintain the appearance and functionality of your Zinus Nadia Adjustable Bed Frame, follow these care instructions:

• تنظيف: التنظيف الموضعي فقط. استخدم منظفًا معتدلًا وأضفamp cloth to clean any soiled areas on the fabric. Avoid saturating the fabric.
• العناية بالمحرك: The motors are designed for long-term use and generally require no maintenance. Keep the motor area free from dust and debris.
• الاتصالات: Periodically check all electrical connections to ensure they are secure.

استكشاف الأخطاء وإصلاحها

If you encounter issues with your adjustable bed frame, consider the following troubleshooting steps:

• لا يوجد طاقة: Ensure the power cord is securely plugged into a working electrical outlet and the power supply unit. Check if the outlet is functional by plugging in another device.
• جهاز التحكم عن بعد لا يستجيب: Verify that the remote control batteries (2 AAA, included) are correctly installed and not depleted. Replace batteries if necessary. Ensure the remote is paired with the bed frame according to the initial setup instructions.
• المحرك لا يتحرك: Check for any obstructions under the bed frame that might be preventing movement. Ensure all motor cables are securely connected to the power supply.
• ضوضاء غير عادية: A quiet motor is standard. If you hear unusual or loud noises, check for loose connections or components. Do not attempt to disassemble the motor.

If problems persist after attempting these steps, contact Zinus customer support for further assistance.

تحديد

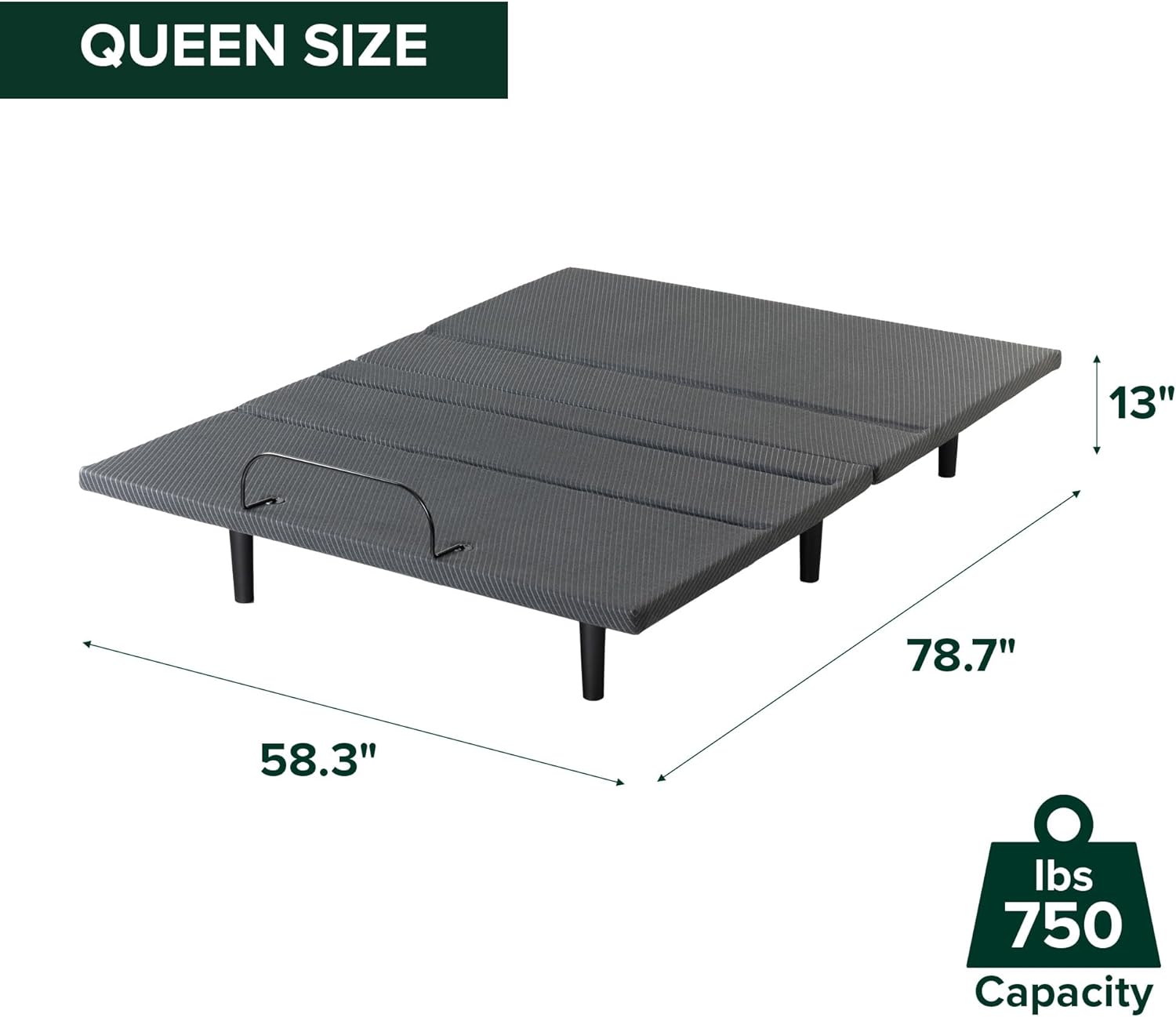

Dimensions and weight capacity for the Queen size Zinus Nadia Adjustable Bed Frame.

معلومات السلامة

Adhere to the following safety guidelines to ensure safe operation and prevent injury or damage:

• اتبع دائمًا تعليمات التجميع بعناية لمنع عدم الاستقرار.
• لا تتجاوز سعة الوزن القصوى البالغة 750 رطل.
• Keep children and pets away from the moving parts of the bed frame during operation.
• Ensure there are no obstructions under the bed frame that could interfere with its movement.
• Avoid placing hands or feet near the moving mechanisms to prevent pinching or injury.
• Do not sit on the head or foot sections while they are in motion.
• Disconnect the power cord from the electrical outlet before performing any maintenance or cleaning.

الضمان والدعم

Your Zinus Nadia Adjustable Bed Frame is covered by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your product or visit the official Zinus webموقع.

For technical support, replacement parts, or any questions regarding your product, please contact Zinus customer service. Contact information can typically be found on the Zinus webالموقع أو في عبوة منتجك.

الدعم عبر الإنترنت: Visit the Zinus webالموقع للأسئلة الشائعة وموارد الدعم.

خدمة العملاء: Refer to your product's packaging or the Zinus website for phone numbers and email contact options.
