1. المقدمة
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Garvee 50-inch Electric Fireplace Heater. This unit is designed for both recessed and wall-mounted installations, offering adjustable flame colors, speeds, and brightness, along with dual control options via WiFi and remote. It provides effective heating for areas up to 400 square feet.
2. معلومات السلامة
- Always ensure the fireplace is properly grounded.
- لا تقم بتشغيل المدفأة بسلك أو قابس تالف.
- أبقِ المواد القابلة للاشتعال على بعد 3 أقدام (0.9 متر) على الأقل من مقدمة المدفأة.
- لا تقم بإدخال أو السماح لأجسام غريبة بالدخول إلى أي فتحة تهوية أو فتحة عادم لأن هذا قد يسبب صدمة كهربائية أو حريقًا أو إتلاف الموقد.
- The glass panel remains cool to the touch during operation, enhancing safety, especially around children and pets.
- The unit features an automatic thermal cut-off to prevent overheating, ensuring safe operation.
- هذا الجهاز مخصص للاستخدام الداخلي فقط.
3. محتويات العبوة
تأكد من وجود كافة المكونات قبل التثبيت:
- Garvee 50-Inch Electric Fireplace Heater
- جهاز التحكم عن بعد
- كريستال ميديا
- Carbon Log Rocks
- أدوات التثبيت (براغي، مثبتات، أقواس)
- دليل المستخدم
4. التثبيت
The Garvee 50-inch Electric Fireplace Heater supports both recessed and wall-mounted installations.
4.1 التثبيت على الحائط
- اختيار موقع: Select a suitable wall location, ensuring it is away from curtains, furniture, and high-traffic areas. Ensure there is a power outlet nearby.
- العلامة: Use a measuring tape and pencil to mark the desired height and width for the fireplace on the wall. Ensure the marks are level.
- أقواس التثبيت الآمنة: Attach the provided mounting brackets to the back of the fireplace unit using the included screws.
- تثبيت قوس الجدار: Secure the wall mounting bracket to the wall studs using appropriate screws. If studs are not available, use wall anchors.
- Mount Fireplace: ارفع المدفأة بحرص وثبتها على دعامة التثبيت الجدارية. تأكد من تثبيتها بإحكام.
- توصيل الطاقة: Plug the fireplace into a standard 120V outlet.
4.2 التركيب المدمج
- تحضير الافتتاح: Create a wall opening with precise dimensions to accommodate the fireplace. Refer to the product specifications for exact measurements (e.g., 50 inches wide, 18 inches high, 4.6 inches deep). Ensure the opening is structurally sound.
- الوصول إلى الطاقة: Ensure a power outlet is available within the recessed area or can be routed to it safely.
- إدراج المدفأة: أدخل وحدة المدفأة بحرص في الفتحة المُجهزة.
- وحدة آمنة: Secure the fireplace to the wall framing using the provided screws through the designated mounting points on the unit.
- توصيل الطاقة: Plug the fireplace into the power outlet.
4.3 Media Placement
After installation, carefully place the decorative crystal media or carbon log rocks into the designated media tray at the bottom of the fireplace. Arrange them to your preference for optimal visual effect.
5. تعليمات التشغيل
Your Garvee Electric Fireplace can be controlled via the touch panel on the unit, the included remote control, or a WiFi-enabled app.
5.1 عناصر التحكم بلوحة اللمس
The touch panel is located on the front of the fireplace. Functions typically include:
- زر الطاقة: يقوم بتشغيل / إيقاف تشغيل الوحدة.
- زر لون اللهب: Cycles through 12 flame and LED color modes.
- زر باهتة: Adjusts flame brightness (5 levels).
- زر السخان: Activates the heater (750W/1500W) and adjusts temperature.
- زر المؤقت: Sets the automatic shut-off timer (1-8 hours).
5.2 تشغيل جهاز التحكم عن بعد
The remote control provides convenient access to all functions from a distance. Point the remote directly at the fireplace's receiver. Functions mirror those on the touch panel, including power, flame color, brightness, heat settings, and timer.
5.3 التحكم عبر تطبيق الواي فاي
For advanced control, download the dedicated Garvee app on your smartphone. Follow the in-app instructions to connect your fireplace to your home WiFi network. The app allows for seamless adjustment of all settings, including flame colors, speeds, brightness, heating modes, and timer functions. It may also offer additional features like scheduling and voice control integration (e.g., with Alexa).
5.4 Flame and Heating Features

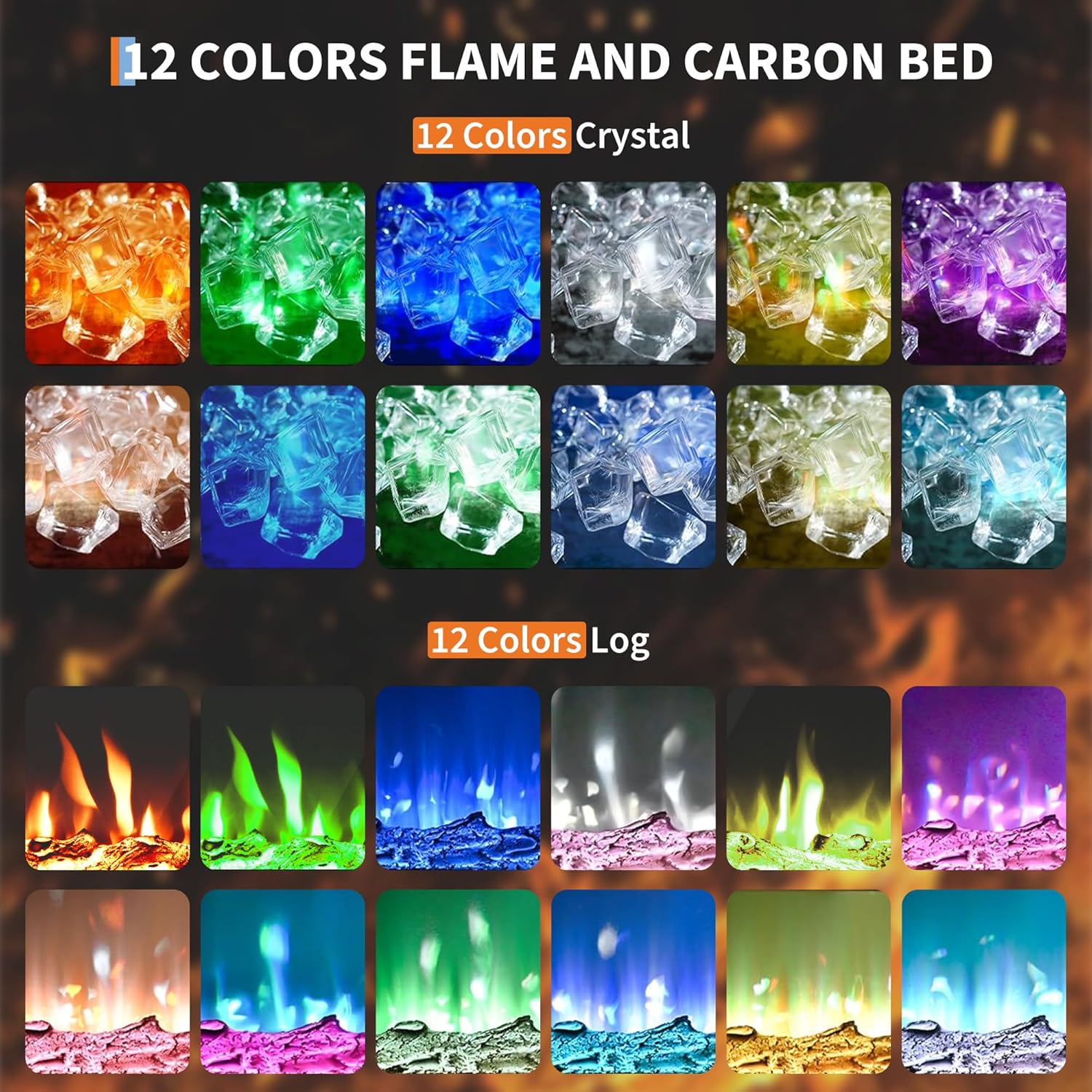

- ألوان اللهب: Choose from 12 distinct flame and LED color modes to match your ambiance. An automatic mode cycles through colors.
- سرعة اللهب: Adjust the flame speed to 5 different levels for a dynamic or subtle effect.
- سطوع: Select from 5 brightness levels for the flame and ember bed.
- أوضاع التدفئة: The heater offers 750W and 1500W settings, capable of warming rooms up to 400 square feet.
- تشغيل منخفض الضوضاء: The fireplace operates at less than 50 dB, ensuring a quiet environment.
- المؤقت: Set the timer for automatic shut-off between 1 and 8 hours.
6. الصيانة
تضمن الصيانة المنتظمة الأداء الأمثل وطول العمر لمدفأتك الكهربائية.
- تنظيف: Ensure the unit is turned OFF and unplugged before cleaning. Use a soft, damp استخدم قطعة قماش لتنظيف الأسطح الخارجية. لا تستخدم المنظفات الكاشطة أو البخاخات.
- لوحة من الزجاج: Clean the glass panel with a soft, lint-free cloth and a non-abrasive glass cleaner.
- فتحات التهوية: Periodically check and clean the air inlet and outlet vents to ensure they are free from dust and debris, which can obstruct airflow and reduce heating efficiency. Use a vacuum cleaner with a brush attachment if necessary.
- تخزين: If storing the fireplace for an extended period, unplug it and cover it to protect it from dust.
7. استكشاف الأخطاء وإصلاحها
If you encounter issues with your fireplace, refer to the following common solutions:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد طاقة/الجهاز لا يعمل | Power cord unplugged, circuit breaker tripped, power outlet malfunction. | Check power cord connection. Reset circuit breaker. Test outlet with another device. |
| السخان لا ينتج حرارة | Heater function not activated, temperature setting too low, air vents blocked, thermal cut-off activated. | Ensure heater is ON and set to desired temperature. Clear any obstructions from air vents. Allow unit to cool down if thermal cut-off engaged. |
| Flames not visible or flickering incorrectly | Flame effect OFF, brightness too low, LED malfunction. | Ensure flame effect is ON. Adjust brightness levels. If issue persists, contact customer support. |
| جهاز التحكم عن بعد لا يعمل | Dead batteries, remote not pointed correctly, obstruction between remote and unit. | Replace batteries. Ensure clear line of sight to the fireplace. |
| WiFi app not connecting | Incorrect WiFi password, weak signal, app not updated. | Verify WiFi credentials. Ensure strong WiFi signal. Update app to the latest version. Restart router and fireplace. |
If these solutions do not resolve the issue, please contact Garvee customer support.
8. المواصفات
| ميزة | التفاصيل |
|---|---|
| ماركة | غارفي |
| اسم الموديل | Fvedh90yN5tB7mIKisE0CwQlx8bO |
| أبعاد المنتج (العمق × العرض × الارتفاع) | 4.6"D x 50"W x 18"H (Unit dimensions, not shipping) |
| مادة | زجاج |
| نوع التثبيت | حامل جداري، غائر |
| مصدر الطاقة | كهرباء سلكية |
| إنتاج الحرارة | 750W / 1500W (5120 BTU) |
| تغطية التدفئة | تصل إلى 400 قدم مربع |
| ألوان اللهب | 12 وضعًا |
| Flame Speeds | 5 مستويات |
| مستويات السطوع | 5 مستويات |
| مستوى الضوضاء | أقل من 50 ديسيبل |
| الموقت | 1-8 ساعات |
| خيارات التحكم | WiFi App, Remote Control, Touch Panel |
| المكونات المضمنة | Log Rocks, Crystal Media |
| وزن العنصر | 53.6 رطل |
| رمز المنتج الموحد | 199641818713 |
9. الضمان والدعم
Garvee offers comprehensive support for your electric fireplace:
- دعم البريد الإلكتروني: Expect a response within 12 hours.
- سياسة العائدات: إمكانية الإرجاع بسهولة خلال 30 يوماً.
- Maintenance & Technical Support: 12 months of free maintenance and technology support.
For further assistance, please refer to the contact information provided with your product packaging or visit the official Garvee webموقع.
10. فيديو المنتج الرسمي
الفيديو 1: انتهىview of Wall Mounted Electric Fireplaces by Garvee Direct. This video demonstrates the aesthetic and installation flexibility of Garvee electric fireplaces.
