Feekaa Stainless Steel Humidifier FK-0114-US Instruction Manual

1. المقدمة وما فوقview

Thank you for choosing the Feekaa Stainless Steel Humidifier. This cool mist ultrasonic humidifier is designed to improve air quality and comfort in various environments, including bedrooms, nurseries, living rooms, offices, and for plant care. Featuring a 4-liter (1-gallon) capacity, it provides up to 30 hours of continuous operation, covering areas up to 500 sq. ft. Its food-grade stainless steel tank is dishwasher safe and filter-free, ensuring easy cleaning and maintenance. The humidifier operates quietly at just 24dB and includes convenient features such as adjustable mist levels, a 360° rotatable nozzle, a programmable timer, an optional night light, and automatic shut-off for safety.

Image: The Feekaa Stainless Steel Humidifier providing comfortable humidity in a home setting.

2. تعليمات السلامة

• افصل جهاز الترطيب دائمًا عن مأخذ الطاقة قبل ملئه أو تنظيفه أو إجراء أي صيانة عليه.
• Do not immerse the main body (electrical components) in water or other liquids.
• Ensure the humidifier is placed on a firm, flat, and water-resistant surface.
• احتفظ بجهاز الترطيب بعيدًا عن متناول الأطفال والحيوانات الأليفة.
• Do not block the air inlet or mist outlet during operation.
• The humidifier features an automatic shut-off function when the water tank runs dry.
• Operates with a 24V low-voltage system to prevent overheating or electric shock.
• Constructed with BPA-free materials, ensuring safe mist for babies and families.
• Use only clean, cool tap water. Do not add essential oils directly into the water tank.

Image: The humidifier's safety features, including 24V secure voltage, BPA-free materials, and auto shut-off, are highlighted for use around babies.

3. مكونات المنتج

The Feekaa Stainless Steel Humidifier consists of the following main components:

• النص الرئيسي: Contains the control panel, mist tube, and atomizer head.
• Stainless Steel Water Tank: 4L/1Gal capacity with a visible water level window.
• فوهة الرذاذ: Rotatable, allows for single or dual mist output.
• محول الطاقة: For connecting the humidifier to a power source.

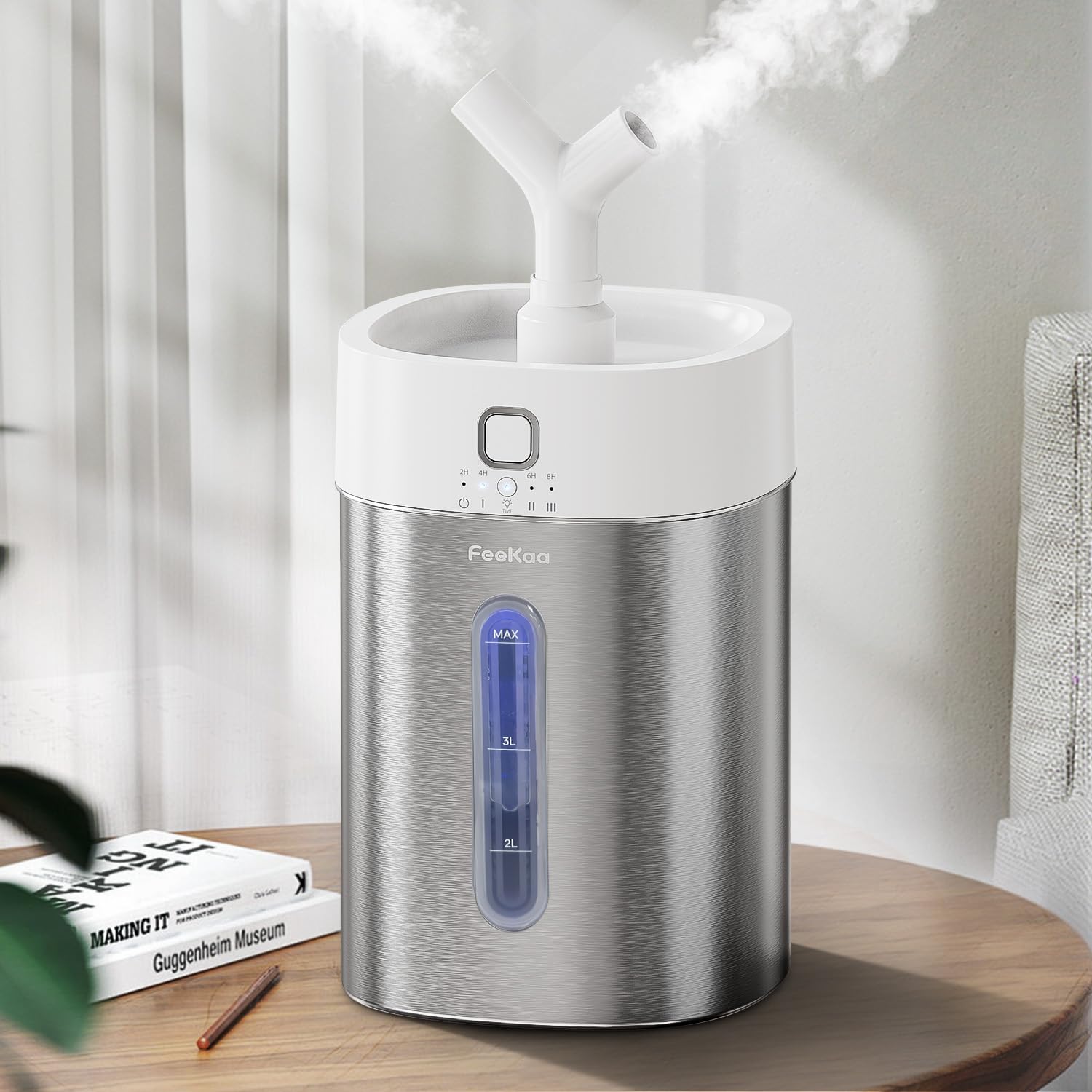

الصورة: كاملة view of the Feekaa Stainless Steel Humidifier, illustrating its assembled form.

4. الإعداد

1. أفرغ: Carefully remove all components from the packaging. Ensure all internal foam padding and protective materials are removed, especially from the mist tube and inside the main body.
2. تجمع: Place the main body securely onto the stainless steel water tank. Install the mist nozzle onto the top of the main body.
3. ملء خزان المياه: The humidifier features a convenient top-fill design. Pour clean, cool tap water directly into the water tank. Observe the water level window to ensure the water is above the minimum line and does not exceed the maximum line.
4. توصيل الطاقة: Plug the power adapter into the humidifier's power port, then plug the adapter into a suitable electrical outlet.

Image: The easy top-fill design of the humidifier, allowing for simple and spill-free refills.

5. تعليمات التشغيل

Power and Mist Level Control

Use the main power button to control the humidifier's mist output:

• 1st Tap: Turns on the humidifier with high mist level.
• 2nd Tap: Switches to medium mist level.
• 3rd Tap: Switches to low mist level.
• 4th Tap: Turns off the humidifier.

Timer and Night Light Control

Use the timer/light button to set the operating duration or activate the night light:

• صنبور قصير: Cycles through timer settings (2, 4, 6, or 8 hours). A 5th tap exits the timer mode.
• الضغط لفترة طويلة (3 ثوان): Enables or disables the soft blue night light.

Mist Nozzle Adjustment

The 360° rotatable nozzle allows you to direct the mist as needed. You can use both nozzles for wider coverage or block one nozzle with the provided rubber plug for a targeted stream.

Image: Visual representation of the three adjustable mist levels (Low, Medium, High) available on the humidifier.

Image: The humidifier operating in a bedroom, demonstrating its quiet function and night light feature for all-night comfort.

6. الصيانة والتنظيف

Regular cleaning is essential to ensure optimal performance and hygiene of your humidifier. The Feekaa humidifier is designed for easy cleaning with its detachable and filter-free components.

الصيانة اليومية

• قم بإفراغ أي مياه متبقية من الخزان.
• امسح السطح الخارجي بالإعلانamp soft cloth (below 104°F / 40°C).

Weekly Cleaning and Descaling

1. إيقاف التشغيل وفصله: Ensure the humidifier is turned off and unplugged from the power outlet.
2. تفكيك: Carefully lift the main body from the stainless steel water tank. Pour out any remaining water from the tank.
3. Remove Mist Tube: Rotate the mist tube counterclockwise to detach it from the main body.
4. خزان المياه النظيفة: The stainless steel water tank is dishwasher safe. Alternatively, you can hand wash it with warm water and mild soap. For descaling, fill the tank with diluted citric acid or white vinegar and let it soak for 15-20 minutes to loosen scale buildup, then rinse thoroughly.
5. Clean Mist Tube, Nozzle, and Atomizer Head: Rinse these components under running water. For stubborn mineral deposits, soak them in diluted citric acid or white vinegar for 15-20 minutes, then gently scrub with a soft brush. Ensure the atomizer head faces upward when reinstalling into the mist tube.
6. تنظيف الهيكل الرئيسي: امسح الجزء الخارجي من الجسم الرئيسي بالزيتamp قطعة قماش. Important: Do not let water splash into the air outlet or air inlet openings on the main body.
7. تجفيف جميع الأجزاء: Allow all cleaned parts to air dry completely before reassembly.
8. إعادة التجميع: Reinstall the mist tube by rotating it clockwise to lock it into place. Place the main body back onto the water tank.

Image: The humidifier's design features that simplify cleaning, including a dishwasher-safe stainless steel tank and detachable parts.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your Feekaa Humidifier, please refer to the following common troubleshooting steps:

• لا يوجد رذاذ:
  • Ensure the humidifier is plugged in and powered on.
  • Check the water level in the tank; refill if below the minimum line.
  • Verify that the main body is correctly seated on the water tank and the mist tube is properly installed.
  • Clean the atomizer head and mist tube for any mineral buildup.
• Red Light Blinking:
  • This typically indicates a low water level. Refill the water tank.
• ضوضاء غير عادية:
  • Ensure the humidifier is placed on a stable, flat surface.
  • Check for any foreign objects inside the water tank or mist tube.
• تسرب المياه:
  • Ensure the water tank and main body are correctly assembled and sealed.
  • Do not overfill the water tank beyond the maximum line.

إذا استمرت المشكلة بعد اتباع هذه الخطوات، يرجى الاتصال بدعم العملاء.

8. المواصفات

• ماركة: Feekaa
• اسم الموديل: FK-0114-US
• سعة: 4 لتر (1 جالون)
• منطقة التغطية: تصل إلى 500 قدم مربع.
• وضع التشغيل: ضباب بارد بالموجات فوق الصوتية
• المميزات الخاصة: Auto Shut Off, Leakproof, Night Light, Timer, Water Level Window, Dishwasher Safe Stainless Steel Tank
• مستوى الضوضاء: 24 ديسيبل
• وقت التشغيل: تصل إلى 30 ساعة
• نظام التشغيل: 24 فولت منخفض الحجمtage
• مادة: خالية من مادة BPA
• أبعاد المنتج: 12 بوصة عمق × 7 بوصة عرض × 8 بوصة ارتفاع
• وزن السلعة: 3.58 رطل

9. الضمان والدعم

Feekaa provides a ضمان لمدة سنة واحدة لهذا المنتج.

For any questions, concerns, or support needs, please feel free to contact us at:

Email: info@feekaa.com
