دليل تعليمات شاحن السياج الشمسي من VEVOR (1 جول 10 كيلو فولت)

مقدمة

This manual provides essential information for the safe and efficient operation of your VEVOR Solar Fence Charger (Model TT-P9). This device is designed to provide a powerful electric pulse to deter animals from entering or exiting a fenced area, ensuring the security of crops, livestock, and pets. Please read these instructions thoroughly before installation and use.

معلومات السلامة

• Always disconnect the energizer from the fence and power source before performing any maintenance or repairs.
• Do not connect the energizer to mains-operated equipment, including battery chargers, unless specifically instructed.
• Ensure proper grounding of the electric fence system. A dedicated grounding stake is crucial for effective operation and safety.
• Keep children and unauthorized personnel away from the electric fence. Post warning signs at appropriate intervals.
• Avoid touching the fence wires directly when the energizer is active.
• Do not install the energizer in areas prone to flooding or excessive moisture without adequate protection. The unit has an IP65 rating, but extreme conditions should be avoided.

محتويات الحزمة

The VEVOR Solar Fence Charger package includes the following items:

• 1 x Solar Fence Charger (Model TT-P9)
• Connection cables (red for fence, black for ground)
• Power adapter for initial charging (if applicable, check specific model)
• دليل التعليمات

تحديد

وصف الصورة: A detailed graphic displaying the dimensions of the VEVOR Solar Fence Charger and its solar panel, along with key specifications like model number, battery type, voltage, and materials.

الإعداد والتثبيت

Proper installation is crucial for the effective and safe operation of your solar fence charger. Follow these steps carefully:

1. الشحن الأولي

Before first use, fully charge the energizer using the provided DC adapter for 5-7 hours. This ensures the internal lithium battery is at optimal capacity.

2. Mounting the Energizer

Mount the charger on a sturdy post (e.g., Y/T post) in a location that receives maximum direct sunlight throughout the day. The solar panel can rotate 180° to optimize sun exposure.

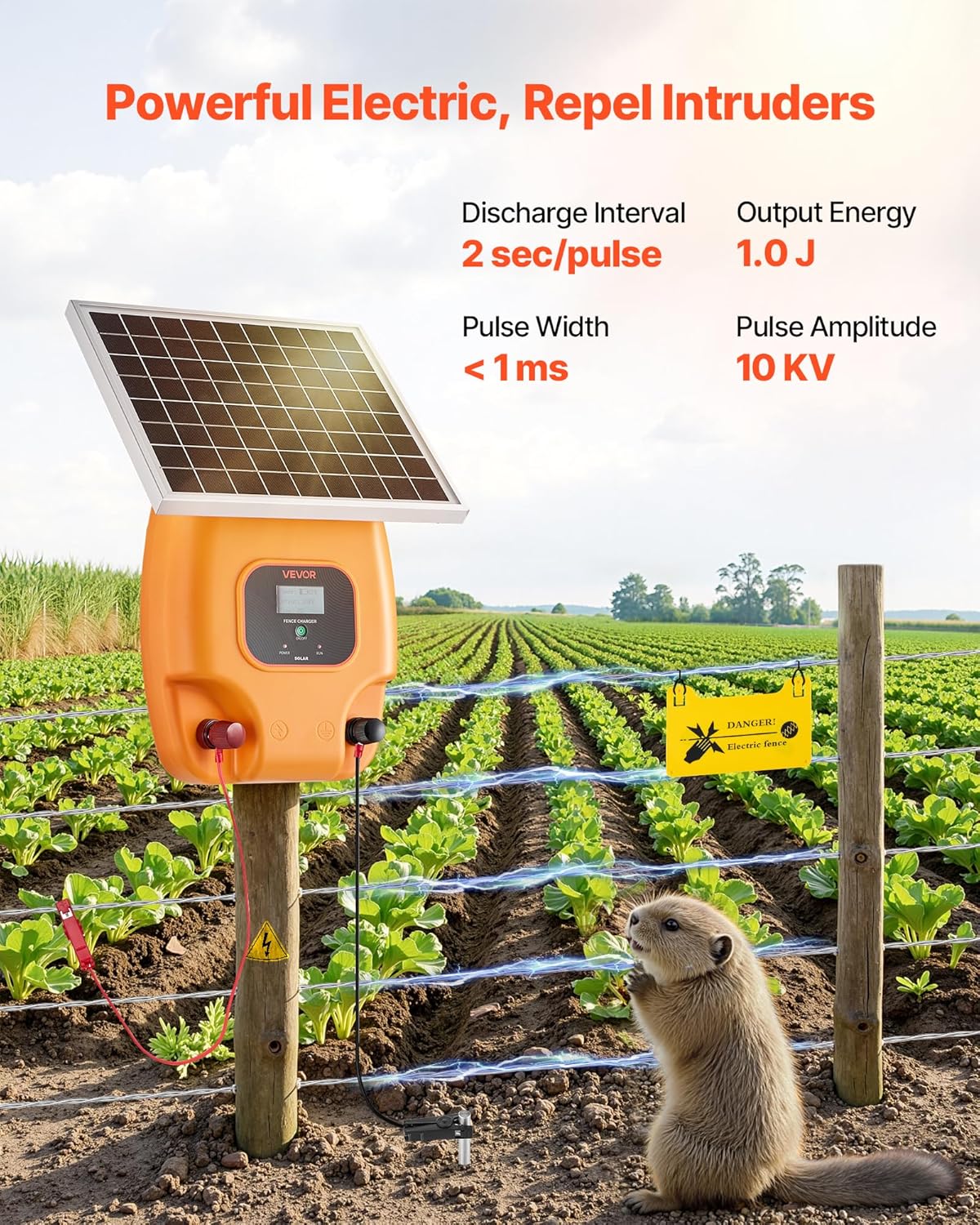

وصف الصورة: The VEVOR Solar Fence Charger is shown mounted on a wooden post, connected to an electric fence protecting a crop field from a gopher. This illustrates a typical installation scenario.

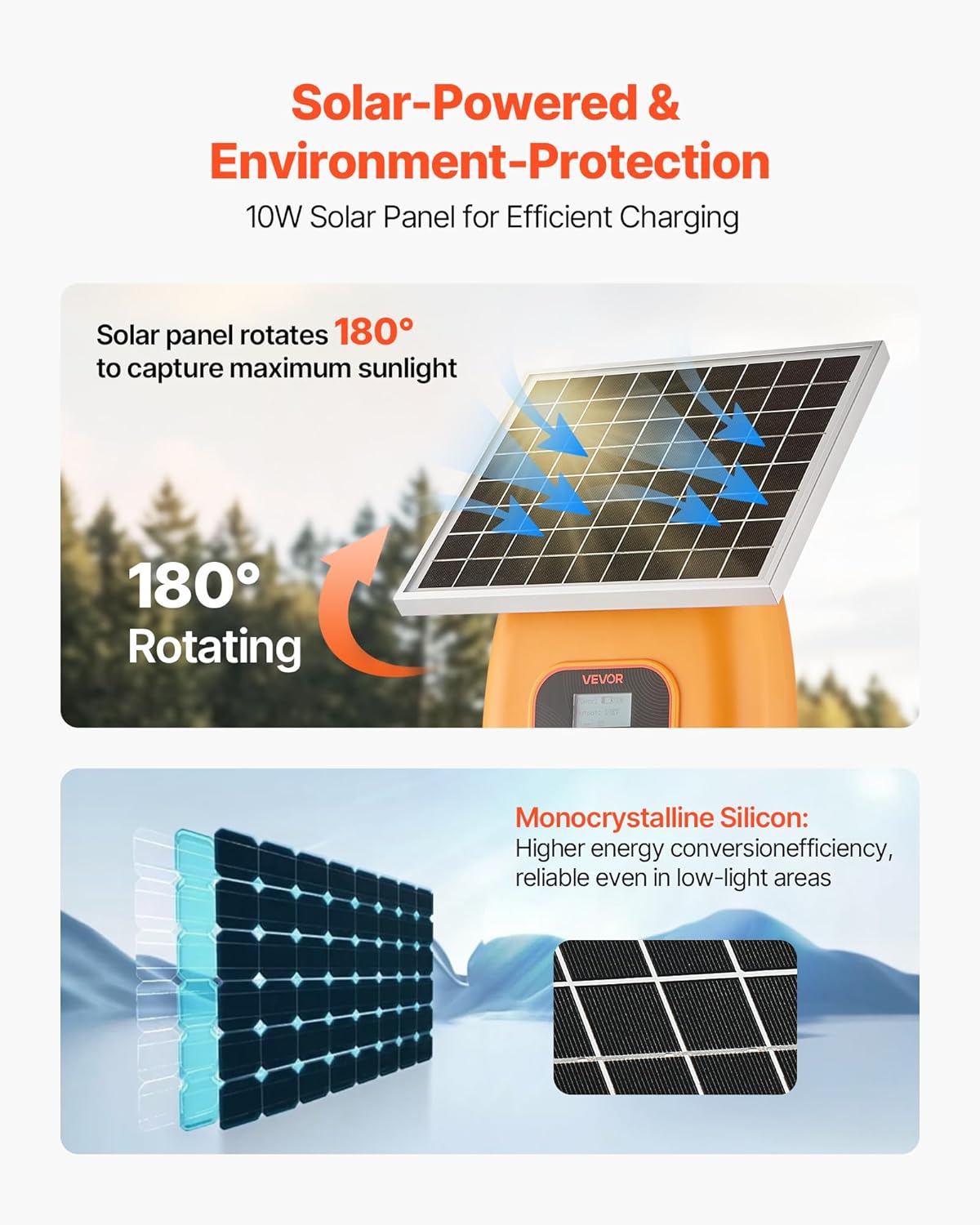

وصف الصورة: A visual representation highlighting the 180° rotation feature of the solar panel, allowing users to adjust its angle for maximum sunlight absorption and efficient charging.

3. التأريض

Proper grounding is essential. Place the grounding stake on moist ground for better conductivity. The recommended depth for stakes (copper/iron) is 31.5-39.37 inches (80-100 cm) for optimal grounding.

4. Connecting to the Fence

Connect the red output terminal of the energizer to the electric fence wire. Connect the black ground terminal to the grounding stake. Ensure all connections are secure.

تعليمات التشغيل

Once installed and connected, the VEVOR Solar Fence Charger operates automatically. The integrated solar panel charges the internal battery during the day, and the energizer delivers a consistent electric pulse to the fence.

• تشغيل الطاقة: Ensure the unit is switched on. The automatic pulse function will begin, delivering up to 10kV voltage and 1J of shock energy with a 2-second discharge interval.
• الشحن بالطاقة الشمسية: The 10W high-efficiency monocrystalline silicon solar panel charges the 8100mAh lithium battery. This allows for continuous operation without external power sources, even in low-light conditions.
• وقت التشغيل الممتد: The built-in battery provides 4-5 days of power, ensuring stable operation during cloudy or sunless periods.
• وظيفة النبض: The automatic pulse function provides a stable output designed to deter animals effectively without causing permanent harm.

وصف الصورة: The VEVOR Solar Fence Charger is shown in an outdoor setting with sheep, emphasizing its IP65 waterproof design and wide operating temperature range for reliable protection in various weather conditions.

وصف الصورة: A comparative image illustrating the advantages of the VEVOR Solar Fence Charger's lithium battery (lasts 4-5 days in rainy weather, longer lifespan, solar-powered & lightweight) over traditional lead-acid batteries.

وصف الصورة: This graphic presents various fence wiring configurations (single-wire, multi-wire) and recommended spacing (5-10m between posts) for effective wildlife deterrence using the VEVOR Solar Fence Charger.

صيانة

To ensure the longevity and optimal performance of your VEVOR Solar Fence Charger, regular maintenance is recommended:

• لوحة شمسية نظيفة: Periodically clean the solar panel surface to remove dust, dirt, or debris that may reduce charging efficiency. Use a soft, damp قطعة قماش.
• التحقق من الاتصالات: Regularly inspect all electrical connections (fence wire, ground wire, battery terminals) to ensure they are tight and free from corrosion.
• Inspect Fence Line: Keep the fence line clear of vegetation, which can reduce the effectiveness of the electric pulse by grounding the fence.
• صحة البطارية: While the lithium battery is designed for long life, monitor its performance. If the energizer's output weakens significantly or runtime decreases, ensure the solar panel is receiving adequate sunlight and consider a full charge via the DC adapter.

استكشاف الأخطاء وإصلاحها

If you encounter issues with your VEVOR Solar Fence Charger, consider the following common troubleshooting steps:

• No Pulse/Weak Pulse:
  • Check all connections: Ensure the fence wire, ground wire, and battery connections are secure.
  • Verify Grounding: Make sure the grounding stake is firmly in moist soil and adequately deep.
  • Inspect Fence Line: Clear any vegetation touching the fence wires.
  • Check Battery Charge: Ensure the battery is fully charged. Allow the solar panel to charge for a full day in direct sunlight or use the DC adapter.
  • Solar Panel Obstruction: Ensure the solar panel is clean and free from obstructions.
• وقت التشغيل القصير:
  • Insufficient Sunlight: Relocate the unit to an area with more direct sunlight or adjust the solar panel angle.
  • Excessive Load: Check for shorts or excessive current draw on the fence line.
  • Aging Battery: If the battery is old, its capacity may have diminished.

الضمان والدعم

For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase documentation or visit the official VEVOR webالموقع. احتفظ بإثبات الشراء الخاص بك لتقديم مطالبات الضمان.
