دليل تعليمات استخدام جيتار سونيكيك QGT-10 الكهربائي مقاس 39 بوصة

مقدمة

Thank you for choosing the SONICAKE QGT-10 39" Electric Guitar. This manual provides essential information for setting up, operating, and maintaining your instrument. Please read it thoroughly to ensure optimal performance and longevity of your guitar.

Image: The SONICAKE 39" Full-Size Electric Guitar, suitable for various skill levels.

المنتج انتهىview

The SONICAKE QGT-10 electric guitar features a classic double-cutaway design, equipped with three single-coil pickups for versatile tonal options. Its lightweight body and rounded fret ends are designed for comfortable playability.

Image: Labeled diagram highlighting key components of the SONICAKE QGT-10 Electric Guitar.

المميزات الرئيسية:

• جسم: Lightweight Paulownia wood body for extended playing comfort.
• رقبة: Slim C-shaped Birch neck with Purpleheart wood fretboard.
• الحنق: Rounded fret ends for smooth playability and reduced finger irritation.
• التقاطات: Classic SSS (Single-Single-Single) pickup configuration for a wide range of tones.
• كوبري: Synchronized tremolo bridge for expressive vibrato.
• الموالفات: Precision tuning stability machine heads.
• قضيب الجمالون: Heel adjustment truss rod for easy neck relief adjustments.

يثبت

1. التفريغ والتفتيش

Carefully remove the guitar from its packaging. Inspect the instrument for any signs of damage during transit. Ensure all accessories are present.

2. الضبط الأولي

Before playing, tune your guitar using an electronic tuner. Due to shipping and temperature changes, the strings may be out of tune. Gently stretch new strings to help them settle and hold tune better.

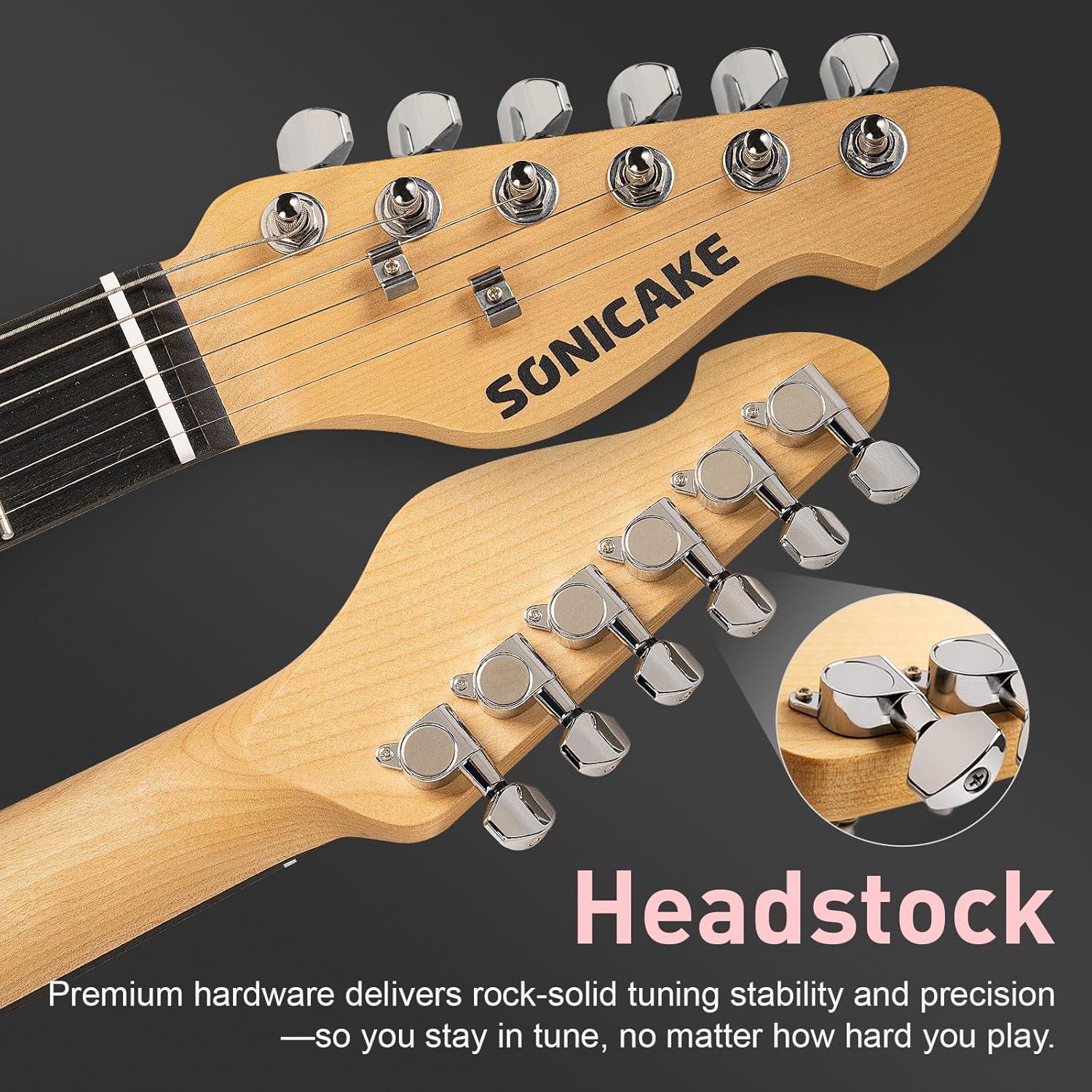

Image: The headstock of the Sonicake electric guitar, showing the tuning machines.

3. Adjusting the Truss Rod (if necessary)

The truss rod adjusts the neck's relief. If you experience fret buzz or high action, the neck may need adjustment. The QGT-10 features a heel adjustment truss rod for convenience. Use the appropriate hex wrench (not included) to make small, quarter-turn adjustments. Turn clockwise to reduce relief (straighten neck) and counter-clockwise to increase relief (add curve). Allow the neck to settle for a few hours after each adjustment.

Image: Detail of the heel adjustment truss rod nut, located at the base of the neck.

4. Action Adjustment

The string action (height of strings above the fretboard) can be adjusted at the bridge saddles. Use a small hex wrench to raise or lower individual saddles to achieve your preferred playing feel. Ensure proper intonation after adjusting action.

تعليمات التشغيل

1. الاتصال بـ Ampالقمامة

Connect one end of a standard 1/4" instrument cable to the output jack on your guitar and the other end to the input of your ampمكبر.

2. انتهت الضوابطview

Image: Diagram illustrating the 5-way pickup selector switch and the Volume and Tone control knobs.

• مقبض الصوت: يتحكم في مستوى الصوت الإجمالي للجيتار.
• مقابض النغمة: Adjust the treble response. Typically, one tone knob controls the neck pickup, and the other controls the middle pickup.
• مفتاح اختيار الالتقاط ثلاثي الاتجاهات: This switch allows you to select different pickup combinations:
1. Position 1 (Bridge): Activates the bridge pickup for a bright, cutting tone.
2. Position 2 (Bridge + Middle): Combines the bridge and middle pickups for a slightly scooped, quacky tone.
3. Position 3 (Middle): Activates the middle pickup for a balanced, clear tone.
4. Position 4 (Middle + Neck): Combines the middle and neck pickups for a warm, full tone with clarity.
5. Position 5 (Neck): Activates the neck pickup for a warm, round, and smooth tone.

3. Using the Tremolo Bridge

The synchronized tremolo bridge allows for pitch bending effects. Gently push or pull the tremolo arm to raise or lower the pitch of the notes. Excessive use or aggressive manipulation can affect tuning stability.

Image: The tremolo bridge and arm, used for pitch modulation.

4. فيديو المنتج الرسمي

صيانة

• تنظيف: Wipe down the guitar body, neck, and strings with a soft, dry cloth after each use to remove sweat and grime. Use guitar-specific cleaning products sparingly if needed.
• استبدال السلسلة: Replace strings regularly, especially if they sound dull, are corroded, or break frequently. Change one string at a time to maintain neck tension.
• رعاية الفريتس: Periodically clean and condition the Purpleheart fretboard with a suitable fretboard oil to prevent drying and cracking.
• تخزين: Store your guitar in a stable environment, away from extreme temperature changes and humidity fluctuations. A guitar case or gig bag is recommended for protection.

استكشاف الأخطاء وإصلاحها

• ضجيج الحنق: Check neck relief (truss rod adjustment) and string action. Ensure frets are level.
• ضعف استقرار الضبط: Ensure strings are properly stretched. Check tuning machine screws for tightness. Consider lubricating the nut slots.
• لا يوجد صوت/صوت ضعيف: Check instrument cable connections. Ensure volume knob on guitar and amplifier is turned up. Test with a different cable or ampالمزيل إذا كان ذلك ممكنا.
• مفاتيح/مقابض تصدر صوت خشخشة: Dust or dirt can accumulate in the control pots or selector switch. Contact a qualified technician for cleaning or replacement if necessary.

تحديد

الضمان والدعم

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official SONICAKE webالموقع. احتفظ بإثبات الشراء الخاص بك لتقديم مطالبات الضمان.
