دليل تعليمات استخدام إطار سرير مفرد من هوانو HNBEF20B-S

1. المقدمة

شكرا لك على الشراءasing the HUANUO Single Bed Frame. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before assembly and retain them for future reference.

الصورة 1.1: انتهىview of the HUANUO Single Bed Frame.

2. معلومات السلامة

• دائما اتبع تعليمات التجميع بعناية.
• تأكد من إحكام ربط جميع البراغي والصواميل قبل الاستخدام. افحصها دوريًا وأعد ربطها حسب الحاجة.
• لا تتجاوز الحمولة القصوى 300 كجم.
• احتفظ بالأجزاء الصغيرة ومواد التغليف بعيدًا عن متناول الأطفال لتجنب مخاطر الاختناق.
• Avoid jumping on the bed frame.
• If moving the bed frame, lift it rather than dragging to prevent damage to the frame or floor.

3. انتهى المنتجview

The HUANUO Single Bed Frame is designed for stability, comfort, and practicality. Key features include:

• High Load Capacity & Stable Design: Constructed from high-strength steel with a powder-coated finish and MDF wood grain boards. Features 15 steel slats and 6 support legs with longitudinal reinforcement bars, supporting up to 300 kg.
• Silent & Anti-Slip Design: U-shaped frame structure with central connection plates and fixing hardware ensures stability. Anti-slip caps on the legs protect floors and reduce noise. Lock-type slat structure prevents lateral movement, and an embedded mattress design prevents mattress shifting.
• Integrated Headboard & Ampالتخزين: A wood-grain headboard (approx. 12cm deep) provides convenient space for small items like phones, glasses, and alarm clocks. The 30cm under-bed clearance offers significant storage for clothing cases, bedding boxes, and allows for easy cleaning with vacuum cleaners or robotic vacuums.
• Excellent Breathability & Moisture/Mold Resistance: The steel pipe structure promotes airflow, preventing moisture buildup, mold, and dust mites, especially beneficial during humid seasons. The powder-coated steel is rust and moisture-resistant for long-term durability.

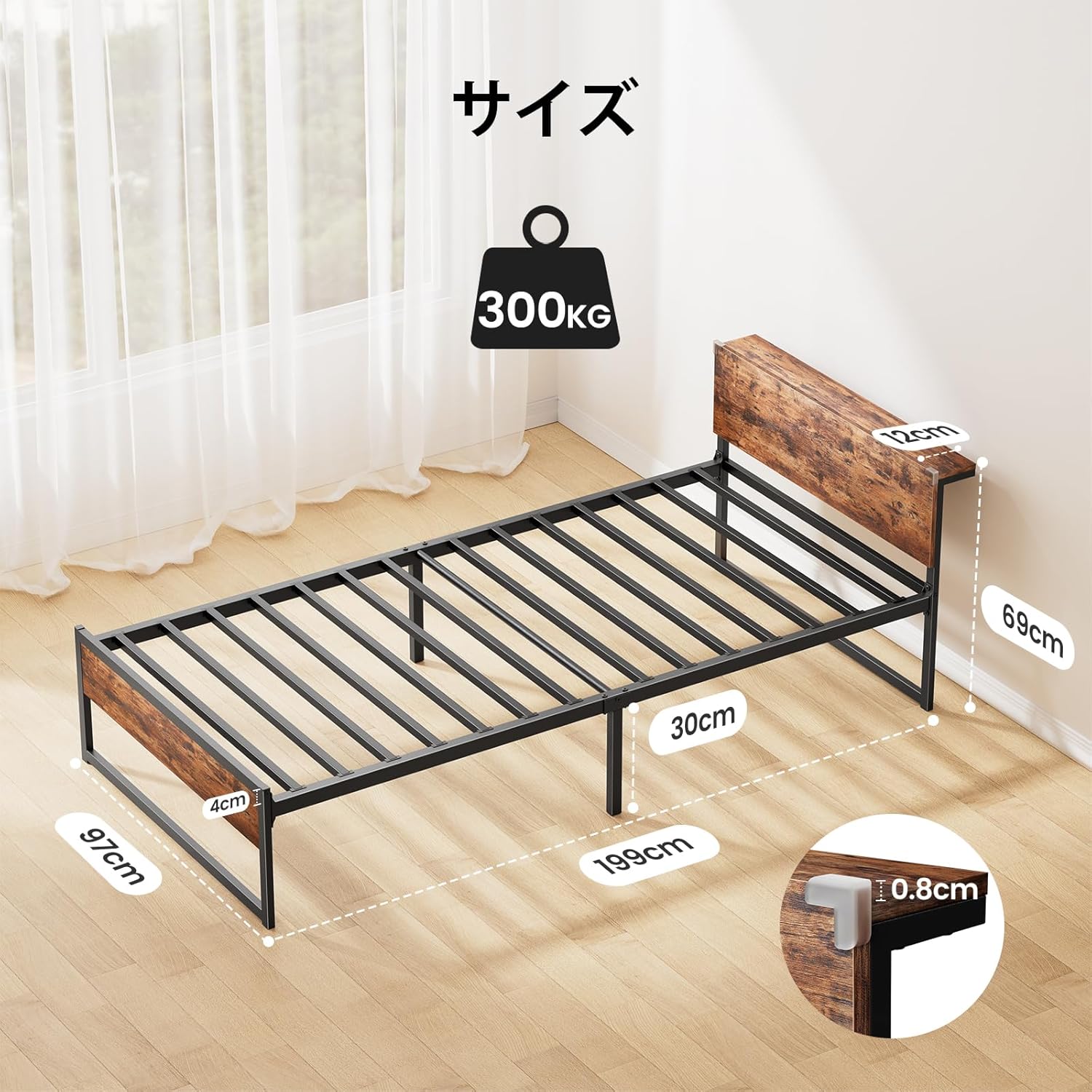

Image 3.1: Product dimensions and 300kg load capacity.

الصورة 3.2: تفصيلية view of the 300kg load capacity, U-shaped stable structure, secure connection, and anti-slip features.

Image 3.3: Illustration of the embedded mattress design for slip prevention.

4. الإعداد

Assembly of the HUANUO bed frame is designed to be straightforward. All parts are numbered, and the necessary tools are included. The process typically takes 30-40 minutes.

4.1. التحضير

• قم بفك جميع المكونات وتحقق من مطابقتها لقائمة الأجزاء الموجودة في الدليل المرفق.
• Clear a spacious area for assembly. It is recommended to assemble the bed frame in its final desired location due to its weight once assembled.
• While assembly is possible for one person, having two people is recommended for easier handling and stability during the process.

4.2. خطوات التجميع

The assembly is primarily divided into three main steps:

Image 4.1: Visual guide for the three-step assembly process.

1. بناء الإطار: Connect the main frame components using the provided bolts and tools. Ensure all connections are aligned.
2. Headboard and Footboard Attachment: Secure the headboard and footboard to the main frame.
3. تركيب الشرائح: Place and secure the steel slats into the designated slots on the frame.

مهم: When tightening bolts, initially hand-tighten all connections. Once all parts are in place and aligned, proceed to fully tighten all bolts, starting from the bottom up, to ensure a stable and squeak-free structure.

5. التشغيل

5.1. وضع المرتبة

Place your single-sized mattress directly onto the installed slats. The bed frame features an embedded design that helps prevent the mattress from slipping or shifting during use, ensuring a stable sleeping surface.

5.2. Headboard Functionality

The integrated wood-grain headboard serves as a convenient shelf. Use it to place small personal items such as your smartphone, glasses, alarm clock, or a book, keeping them within easy reach.

Image 5.1: Headboard storage for daily necessities, featuring an anti-drop baffle structure.

5.3. Under-Bed Storage

Utilize the generous 30cm clearance beneath the bed frame for storage. This space is ideal for storing seasonal clothing, extra bedding, or other items in storage boxes, helping to maximize space in smaller rooms.

الصورة 5.2: Ample under-bed storage with 30cm height for various items.

6. الصيانة

• تنظيف: Wipe the steel frame and MDF panels with a soft, damp القماش. تجنب المنظفات الكاشطة أو المواد الكيميائية القاسية التي قد تلحق الضرر بالطبقة النهائية.
• تهوية: The bed frame's design promotes air circulation. Ensure adequate room ventilation to further enhance mattress longevity and prevent moisture buildup.
• فحص المثبتات: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten any loose fasteners to maintain stability and prevent squeaking.
• حماية الأرضية: The bed legs are equipped with anti-slip caps. To further protect delicate flooring, consider placing additional felt pads or floor protectors under each leg.

Image 6.1: High breathability design for a clean sleeping environment, resisting moisture and mold.

7. استكشاف الأخطاء وإصلاحها

• Squeaking or Shaking: If the bed frame makes noise or feels unstable, re-check all assembly points. Ensure all bolts are fully tightened. The U-shaped frame and lock-type slat structure are designed to minimize noise and movement.


Image 7.1: Stable built-in structure designed to suppress shaking and squeaking for comfortable sleep.

• Mattress Fit Issues: If your mattress feels too snug or does not fit perfectly, verify its dimensions against the bed frame's internal dimensions (97cm width x 195cm length). Some mattress covers or thicker mattresses might reduce available space.
• خدوش الارضية: Although the bed legs have protective caps, if you notice floor marks, consider adding additional, softer floor protectors under each leg, especially on delicate surfaces.

8. المواصفات

9. الضمان والدعم

HUANUO is committed to product quality and user satisfaction. This product comes with a ضمان الشركة المصنعة لمدة عامين من تاريخ الشراء.

In case of defective parts, initial product defects, or any questions regarding assembly or use, please contact HUANUO customer support. Have your model number (HNBEF20B-S) and purchase information ready for faster service.

For support, please refer to the contact information provided on the product packaging or the official HUANUO webموقع.
