1. المقدمة
The Tiqvi 10-inch Digital Photo Frame is designed to help you easily store and share your most cherished memories. Featuring a vibrant IPS touch screen and seamless WiFi connectivity, this frame allows you to receive photos and videos directly from family and friends via the Frameo app. With ample internal storage and a rechargeable battery, it offers a convenient and elegant way to display your digital photos.
المميزات الرئيسية:
- WiFi & Frameo App Compatibility: Effortlessly share photos and videos through the Frameo application, supporting up to 500 users.
- سعة التخزين الكبيرة: Equipped with expandable internal memory, capable of storing thousands of photos and videos.
- شاشة واضحة ومشرقة: The IPS screen delivers vivid colors and sharp details for a beautiful viewing experience of your memories.
- التحكم باللمس البديهي: Provides easy and intuitive navigation for all users.
- تصميم أنيق وعملي: Includes a stand, offers wall-mounting options, and features an energy-efficient design.
2. ماذا يوجد في الصندوق
يرجى التحقق من محتويات الحزمة للتأكد من وجود جميع العناصر:
- Tiqvi 10-inch Digital Photo Frame (with WiFi and Frameo App)
- محول الطاقة
- حامل سطح المكتب
- دليل المستخدم (هذا المستند)
3. انتهى المنتجview
Familiarize yourself with the components of your digital photo frame.

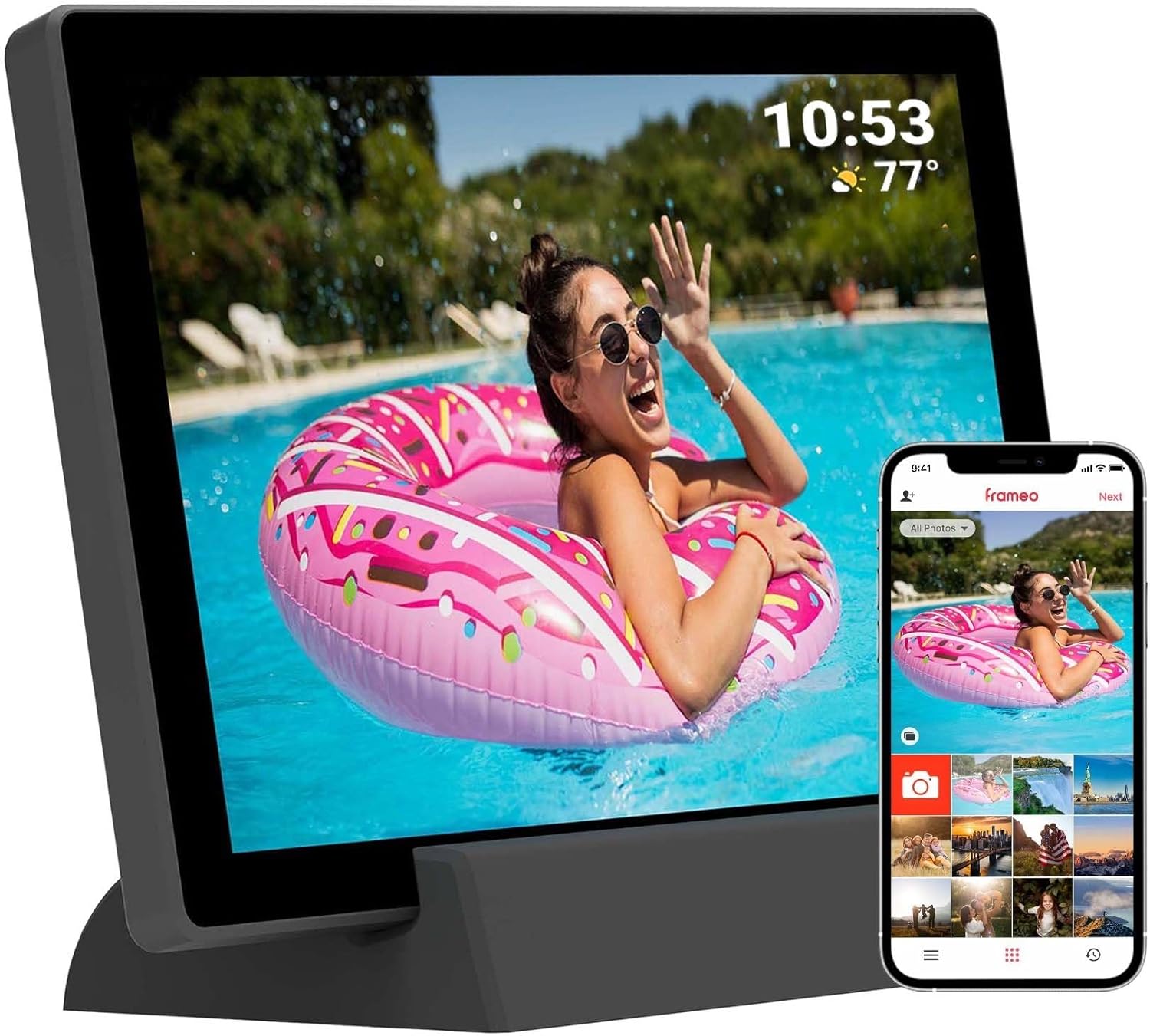

الشكل 3.1: الجبهة view of the Tiqvi 10-inch Digital Photo Frame, showcasing its display and the accompanying Frameo app on a smartphone. The frame is designed for easy photo sharing and display.
Figure 3.2: The Tiqvi 10-inch Digital Photo Frame positioned on a surface, illustrating its dimensions and how it fits into a home environment. A "10"" label indicates its screen size.
المكونات المادية:
- شاشة لمس IPS مقاس 10 بوصات: Main display for photos and videos, with touch functionality for navigation.
- زر الطاقة: Located on the back or side, used to turn the frame on/off or put it to sleep.
- منفذ الطاقة: لتوصيل محول الطاقة.
- منفذ كارت الذاكرة الصغيرة: For expanding storage or importing photos directly.
- إعادة ثقب: A small pinhole for factory reset.
- Built-in Stand/Mounting Holes: For desktop placement or wall mounting.
4. الإعداد
4.1 التشغيل الأولي والإعدادات الأساسية
- Charge the Frame: Before first use, connect the power adapter to the frame's power port and plug it into a wall outlet. Allow the frame to charge fully. The frame has a 3000mAh rechargeable battery.
- تشغيل الطاقة: Press and hold the power button on the back of the frame for a few seconds until the screen lights up.
- اختيار اللغة: اتبع التعليمات التي تظهر على الشاشة لتحديد اللغة المفضلة لديك.
- Time Zone and Date: اضبط المنطقة الزمنية والتاريخ والوقت بشكل صحيح.
4.2 الاتصال بشبكة Wi-Fi
- From the initial setup wizard or the settings menu, select "Wi-Fi".
- The frame will scan for available Wi-Fi networks. Select your network from the list.
- Enter your Wi-Fi password using the on-screen keyboard and tap "Connect".
- بمجرد الاتصال، سيظهر رمز Wi-Fi على شريط الحالة.
4.3 Setting Up the Frameo App
The Frameo app is essential for sending photos and videos to your digital frame.
- تنزيل التطبيق: On your smartphone or tablet, download the "Frameo" app from the App Store (iOS) or Google Play Store (Android).
- إنشاء حساب: Open the Frameo app and follow the instructions to create a new account or log in if you already have one.
- Connect to Your Frame:
- On your Tiqvi frame, go to "Add Friend" or "Connect to App" in the settings.
- A unique code will be displayed on the frame's screen.
- In the Frameo app on your phone, enter this code to link your device to the frame.
- Add Users/Friends: You can invite family and friends to send photos to your frame by sharing the unique code with them. The frame supports adding up to 500 users.
5. تعليمات التشغيل
5.1 التنقل في شاشة اللمس
The Tiqvi frame features an intuitive touch screen interface:
- مقبض: To select an item or open a menu.
- انتقاد: To scroll through photos or menu options.
- التكبير والتصغير: To zoom in or out on a photo (if supported by software).
5.2 إضافة الصور ومقاطع الفيديو
There are two primary ways to add media to your frame:
- Via Frameo App (Recommended):
- افتح تطبيق Frameo على هاتفك الذكي.
- Select the photos or videos you wish to send.
- Choose the recipient frame(s) and tap "Send". The media will appear on your frame once downloaded.
- Via MicroSD Card:
- Insert a MicroSD card containing your photos/videos into the frame's MicroSD card slot.
- The frame will prompt you to import the media. Follow the on-screen instructions to transfer files to the frame's internal memory.
- The frame has 32GB internal memory and supports expansion via microSD.
5.3 Managing Photos and Settings
Access the frame's settings by tapping the gear icon (⚙️) on the home screen or during a slideshow.
- My Photos: View all photos stored on the frame. You can delete individual photos or select multiple for deletion.
- أصدقاء: Manage connected users and add new ones.
- إعدادات:
- عرض: Adjust brightness, sleep mode, and slideshow interval.
- عرض الشرائح: Customize transition effects and display order.
- واي فاي: Change or reconnect to Wi-Fi networks.
- تخزين: View storage usage and manage imported media.
- عن: Check firmware version and device information.
- الدوران التلقائي: The frame supports automatic rotation, adjusting the display orientation based on how it's positioned.
6. الصيانة
Proper care will extend the life of your digital photo frame.
- تنظيف الشاشة: Use a soft, lint-free cloth (e.g., microfiber cloth) to gently wipe the screen. For stubborn smudges, slightly dampبللي قطعة القماش بالماء أو بمحلول تنظيف الشاشات. Do not spray liquids directly onto the screen.
- النظافة العامة: Wipe the frame's body with a dry, soft cloth. Avoid abrasive cleaners or solvents.
- تحديثات البرامج: Periodically check for software updates in the frame's settings menu (if available). Updates can improve performance and add new features.
- Battery Care (for Rechargeable Model): To prolong battery life, avoid fully discharging the battery frequently. If storing the frame for an extended period, charge it to about 50% before storage and recharge every few months.
- الظروف البيئية: Keep the frame away from extreme temperatures, direct sunlight, and high humidity. Ensure proper ventilation.
7. استكشاف الأخطاء وإصلاحها
If you encounter issues with your Tiqvi digital photo frame, refer to the following common problems and solutions:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| Frame does not turn on. | مشكلة انخفاض مستوى البطارية أو محول الطاقة. | Ensure the power adapter is securely connected and plugged into a working outlet. Allow the frame to charge for at least 30 minutes before attempting to power on again. |
| لا يمكن الاتصال بشبكة Wi-Fi. | كلمة مرور غير صحيحة، أو إشارة ضعيفة، أو مشكلة في جهاز التوجيه (الراوتر). | Double-check the Wi-Fi password. Move the frame closer to the Wi-Fi router. Restart your router and the frame. Ensure your Wi-Fi network is 2.4GHz (most frames do not support 5GHz). |
| Photos are not appearing on the frame. | Not sent correctly via app, or storage issues. | Verify that photos were successfully sent from the Frameo app. Check the frame's storage capacity in settings. Ensure the frame is connected to Wi-Fi to receive new photos. |
| شاشة اللمس لا تستجيب. | خلل مؤقت في البرنامج. | Restart the frame by holding the power button until it turns off, then power it back on. If the issue persists, perform a factory reset (refer to the manual for specific instructions, usually involves a pinhole reset button). |
| البطارية لا تشحن. | Faulty adapter or cable, or battery issue. | Ensure the power adapter and cable are not damaged. Try a different power outlet. If the issue persists, contact customer support. |
If the problem persists after trying these solutions, please contact Tiqvi customer support for further assistance.
8. المواصفات
| ميزة | التفاصيل |
|---|---|
| رقم الموديل | TVH10009 |
| حجم الشاشة | 10 بوصة |
| نوع العرض | إيبس شاشة تعمل باللمس |
| التخزين الداخلي | 32GB (stores up to 80,000 photos) |
| تخزين قابل للتوسيع | فتحة لبطاقة MicroSD |
| الاتصال | WiFi (Frameo App compatible) |
| بطارية | بطارية قابلة لإعادة الشحن بسعة 3000 مللي أمبير في الساعة |
| أبعاد | 29 × 19 × 2.51 سم |
| وزن | 7.1 جرام |
| لون | أسود |
| بلد المنشأ | الصين |
9. الضمان والدعم
معلومات الضمان: This product comes with a standard manufacturer's warranty. Please refer to the purchase documentation or contact your retailer for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.
دعم العملاء: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Tiqvi customer support. Contact information can typically be found on the product packaging, the manufacturer's official webالموقع، أو من خلال نقطة الشراء الخاصة بك.
We recommend visiting the official Frameo website for app-specific support and updates: https://frameo.net/
