دليل تعليمات سخان الحائط برايتاون UPH310M

معلومات هامة حول السلامة

يرجى قراءة جميع تعليمات السلامة وفهمها جيداً قبل استخدام هذا الجهاز. قد يؤدي عدم اتباع هذه التعليمات إلى حدوث صدمة كهربائية أو حريق أو إصابة خطيرة.

• ALCI Plug: This electric wall heater features an ALCI plug for enhanced safety, automatically cutting power if overheating occurs.
• حماية من الحرارة الزائدة: The ETL-listed system provides overheat protection, automatically shutting off the unit if internal temperatures exceed safe limits.
• Flame Retardant Material: Constructed with V-0 flame retardant material for increased safety.
• الحماية من الانقلاب: The heater includes a tip-over protection feature, which automatically turns off the unit if it is accidentally knocked over.
• قفل الطفل: استخدم خاصية قفل الأطفال لمنع التشغيل غير المقصود من قبل الأطفال.
• دائرة كهربائية: For optimal performance and safety, avoid using the wall-mounted heater on the same circuit as other high-power appliances.

المنتج انتهىview

The Brightown Wall Heater UPH310M is a versatile and efficient heating solution designed for indoor use. It features a powerful 1500W output with advanced PTC ceramic heating technology for rapid and stable heat distribution. Control options include a touchscreen, remote control, mobile app, and Alexa voice commands. Its sleek design allows for both wall-mounted and freestanding placement, making it suitable for various living spaces.

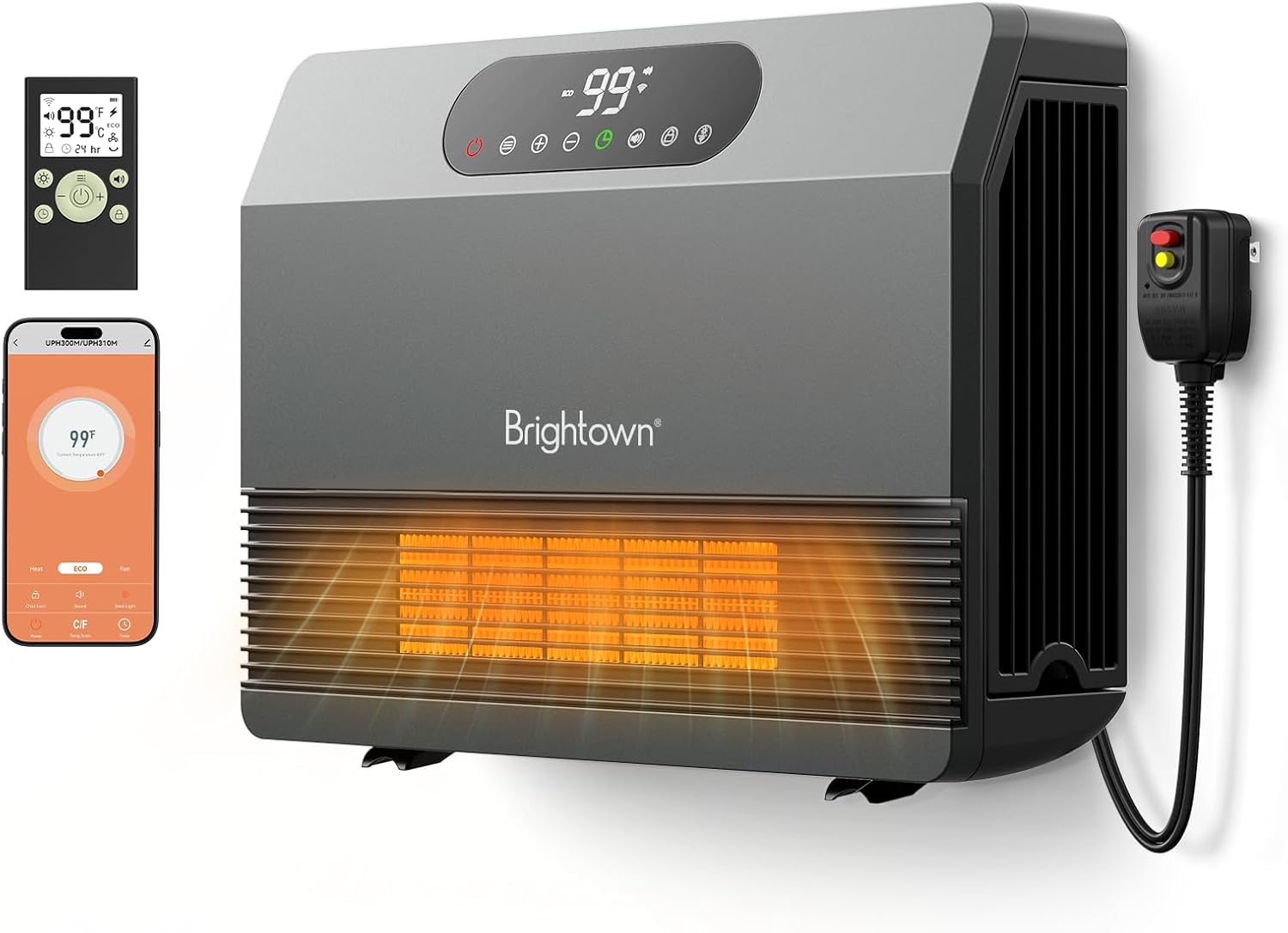

Brightown Wall Heater with remote control and smartphone app interface.

الإعداد والتثبيت

فتح الصندوق

عند فتح العبوة، تأكد من وجود جميع المكونات:

• Brightown Wall Heater Unit
• جهاز التحكم عن بعد
• Mounting Hardware (screws, anchors, template with level)
• دليل المستخدم

خيارات التركيب

The Brightown Wall Heater offers flexible placement options: wall-mounted or freestanding.

التثبيت على الحائط

For wall installation, use the provided template and hardware to ensure secure and level mounting. Mark the drill points accurately and use appropriate anchors for your wall type. Ensure the heater is positioned to allow for proper airflow and is not obstructed.

The Brightown Wall Heater mounted on a wall, showcasinبفضل تصميمه الموفر للمساحة.

وضع قائما بذاته

The heater can also be placed on a flat, stable surface. Ensure it is not covered and has adequate clearance from walls and other objects to prevent overheating and allow for efficient heat distribution.

The Brightown Wall Heater placed on a surface, illustrating its versatility.

تعليمات التشغيل

طرق التحكم

The Brightown Wall Heater offers multiple convenient control options:

• شاشة تعمل باللمس: Directly operate the heater using the integrated touch controls on the unit.
• جهاز التحكم عن بعد: Use the included remote for convenient adjustments from a distance.
• تطبيق الهاتف المحمول: Connect the heater to your smartphone via the dedicated mobile app for advanced control and scheduling.
• أوامر أليكسا الصوتية: Integrate with Alexa-compatible devices for hands-free operation.

Image showing the various control methods for the Brightown Wall Heater: touchscreen, remote, mobile app, and Alexa.

تشغيل/إيقاف الطاقة

Press the power button (red icon) on the unit's touchscreen or the remote control to turn the heater on or off. The display will illuminate when the unit is active.

اختيار الوضع

The heater features five flexible operating modes:

• نمط الصدى: This energy-efficient setting automatically modulates heating intensity to maintain your target temperature without unnecessary energy expenditure.
• Heating Levels (P1-P3):
  • P1: 600W (Low Heat)
  • P2: 1000W (Medium Heat)
  • P3: 1500W (High Heat)
• وضع المروحة فقط: Circulates air without engaging the heating element.

Close up of heater display showing ECO mode and temperature.

ضبط درجة الحرارة

Adjust the desired temperature from 40°F to 99°F in 1°F increments using the '+' and '-' buttons on the unit's touchscreen or the remote control. The heater will work to maintain this set temperature.

وظيفة المؤقت

To set the timer, press the timer icon. You can set the heater to automatically turn off after a period of 1 to 12 hours. The display will show the remaining time.

قفل الأطفال

To activate or deactivate the child lock, press and hold the lock icon on the touchscreen for 3 seconds. A lock symbol will appear/disappear on the display to indicate its status.

Sound and Display Control

You can turn the audible button press sounds on or off by pressing the speaker icon. To turn the screen display on or off, press the lightbulb icon. This is useful for nighttime use.

صيانة

تنظيف فلتر الهواء

Regularly cleaning the air filter is crucial for maintaining the heater's efficiency and prolonging its lifespan. The filter is removable and washable.

1. Ensure the heater is unplugged and cool before attempting to clean.
2. حدد موقع غطاء الفلتر على جانب الوحدة.
3. Gently pull the filter cover to remove it.
4. Remove the foam filter from the cover.
5. Rinse the foam filter under running water until clean.
6. اترك الفلتر ليجف تمامًا في الهواء قبل إعادة إدخاله.
7. Place the dry foam filter back into the cover and reattach the cover to the heater.

استكشاف الأخطاء وإصلاحها

If you encounter issues with your Brightown Wall Heater, please refer to the following common troubleshooting steps:

• عدم تشغيل السخان: Ensure the ALCI plug is reset (press the reset button on the plug). Check that the unit is securely plugged into a working electrical outlet. Verify that the power button on the unit or remote is pressed. Confirm there is no power outagهـ في منطقتك.
• تدفئة غير كافية: Check that the desired temperature setting is higher than the current room temperature. Ensure the air filter is clean and free of obstructions. Select a higher heating level (P2 or P3) if needed.
• Heater automatically shuts off: This may indicate that the overheat protection has been activated. Unplug the heater, allow it to cool down for at least 30 minutes, and inspect for any obstructions blocking the air intake or exhaust vents. Remove any blockages before restarting.
• جهاز التحكم عن بعد لا يعمل: Check and replace the batteries in the remote control. Ensure there are no obstructions between the remote and the heater's sensor.
• مشاكل الاتصال بشبكة Wi-Fi: Ensure your Wi-Fi network is active and the heater is within range of your router. Refer to the mobile app's specific instructions for troubleshooting connection problems or re-pairing the device.
• عناصر التحكم لا تستجيب: If the control panel is unresponsive, check if the child lock is engaged (a lock icon may be visible on the display). Press and hold the child lock button for 3 seconds to deactivate it.

تحديد
