LG FLD165NBMA Inverter Refrigerator Compressor User Manual

1. المقدمة

This manual provides essential information for the LG FLD165NBMA Inverter Refrigerator Compressor. This component is an original LG part designed for specific refrigerator models using R600a refrigerant. It is crucial to understand that this product requires professional installation by specialized technicians.

Important: This compressor must be installed exclusively by specialized Inverter compressor technicians. Attempting installation without proper expertise can lead to equipment damage, personal injury, or void the product warranty.

2. انتهى المنتجview والمواصفات

The LG FLD165NBMA is an original inverter compressor designed for LG refrigerators. It ensures efficient cooling and reliable performance when installed correctly.

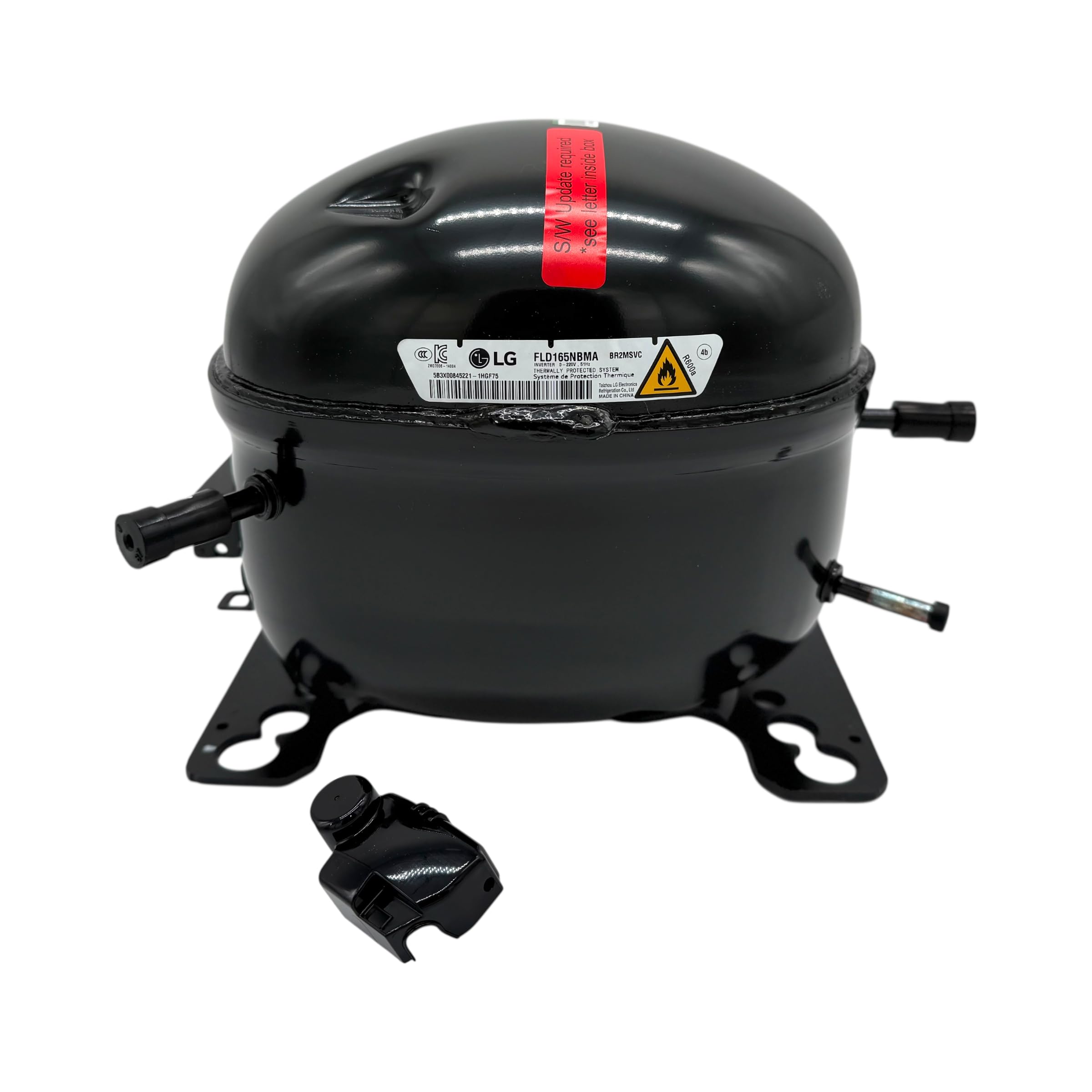

الشكل 1: الجبهة view of the LG FLD165NBMA Inverter Refrigerator Compressor. This image shows the main body of the compressor with its identification label.

2.1 الميزات الرئيسية

• Original LG Part: Ensures compatibility and optimal performance with LG refrigerators.
• تكنولوجيا العاكس: Provides energy-efficient and precise cooling control.
• نوع المبرد: Designed for use with R600a gas.
• المجلدtage: 0-220 فولت، 51 هرتز.

2.2 المواصفات الفنية

2.3 Reference Codes

The FLD165NBMA compressor may also be identified by the following reference codes:

• AGM30077605
• F872S30.AKOR
• TCA36811401, TCA36811403, TCA36811404, TCA36811406, TCA36811409, TCA36811411, TCA36811415, TCA36811417, TCA36811419, TCA36811422, TCA36811423, TCA36811431, TCA36811432, TCA36811436

3. موديلات الثلاجات المتوافقة

This LG FLD165NBMA Inverter Compressor is compatible with the following LG refrigerator models. If your model is not listed, please contact customer support with your refrigerator's model number to verify compatibility before purchase or installation.

• LM65SCS, LM65SGS, LM75SXT, LM80SXS, LM85SXD, LM89SXD
• LS65MDP, LS65SDP1, LS65SDT, LS65SXP, LS65SXT, LS74BXP, LS74SDP, LS74SXP, LS79SDN
• VS22JDP, VS22JNT, VS22JS, VS22XCT, VS27BIP, VS27BXQP, VS27GNIP, VS27JP, VS27JS, VS27JT, VS27XCS

4. التثبيت والإعداد

WARNING: Installation of this inverter compressor requires specialized knowledge and tools. It must only be performed by certified technicians experienced with inverter refrigeration systems and R600a refrigerant. Improper installation can result in serious injury, property damage, or system failure.

4.1 فحوصات ما قبل التثبيت

1. التحقق من التوافق: Ensure the FLD165NBMA is the correct replacement part for your refrigerator model. Check the refrigerator's serial number and consult LG's service documentation if unsure.
2. احتياطات السلامة: Disconnect the refrigerator from the power supply. Ensure proper ventilation in the work area.
3. التعامل مع المبردات: R600a is a flammable refrigerant. All procedures involving refrigerant must be performed in a well-ventilated area, away from ignition sources, and by technicians certified in handling flammable refrigerants.

4.2 Installation Procedure (Technician Only)

The following steps are a general outline. Technicians must follow LG's specific service manual for the refrigerator model being serviced.

1. استعادة المبرد: Safely recover the existing R600a refrigerant from the system using appropriate recovery equipment.
2. افصل التوصيلات الكهربائية: Carefully disconnect all electrical wiring from the old compressor.
3. إزالة الضاغط القديم: Desolder or unbolt the old compressor from the refrigeration system.
4. Prepare New Compressor: Inspect the new FLD165NBMA compressor for any shipping damage.
5. تركيب ضاغط جديد: Solder or bolt the new compressor into place, ensuring proper alignment and secure connections.
6. الإخلاء: قم بإخلاء نظام التبريد لإزالة جميع الغازات غير القابلة للتكثيف والرطوبة.
7. شحن المبردات: Charge the system with the precise amount of R600a refrigerant specified by the refrigerator manufacturer.
8. التوصيلات الكهربائية: Reconnect all electrical wiring to the new compressor, ensuring correct polarity and secure connections.
9. كشف التسرب: Perform thorough leak detection on all new connections.
10. عملية الاختبار: Restore power to the refrigerator and monitor the compressor's operation, pressures, and temperatures to ensure proper functioning.

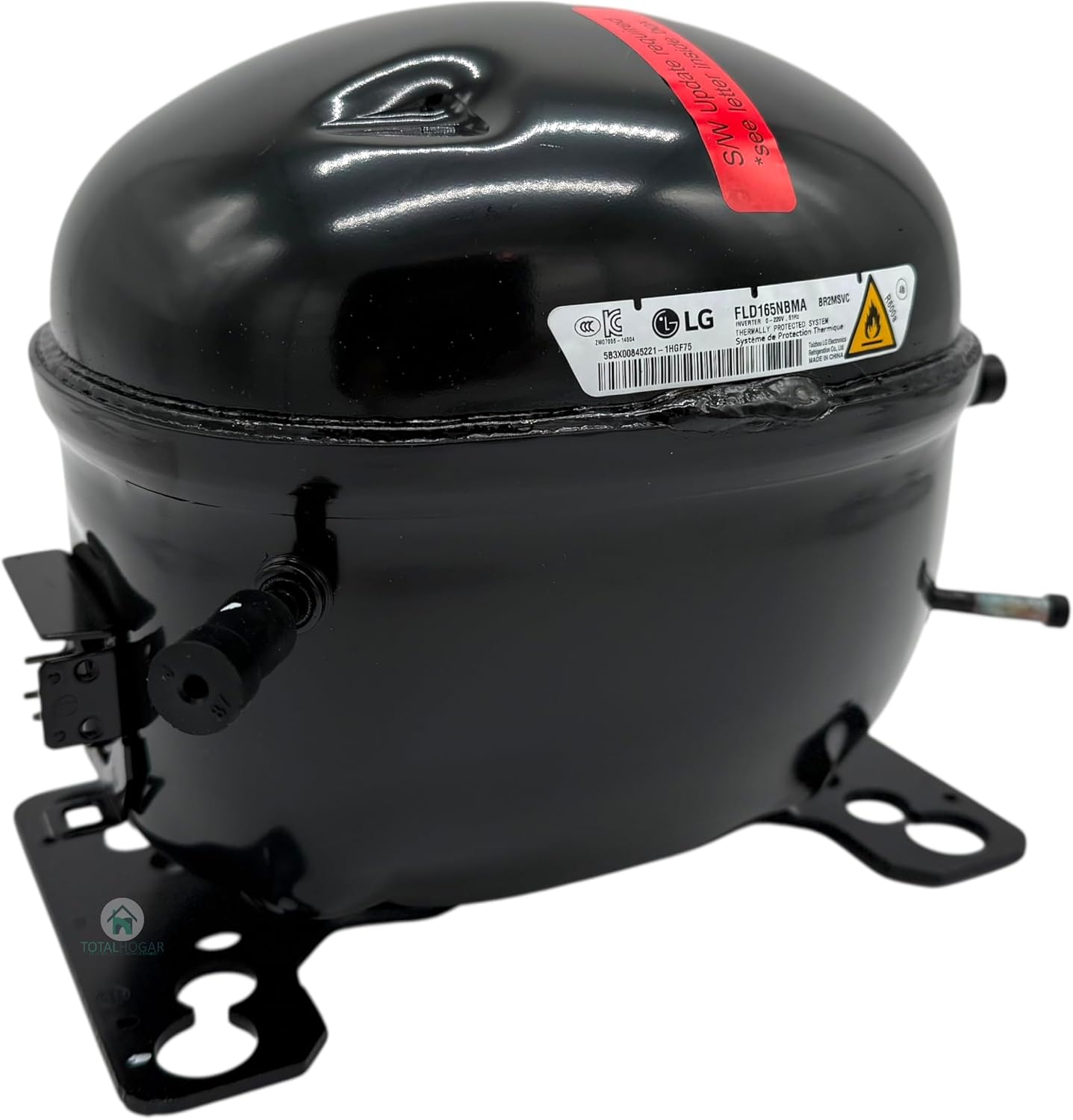

الشكل 2: الجانب view of the LG FLD165NBMA compressor, showing refrigerant line connections. Proper connection and sealing are critical during installation.

5. مبادئ التشغيل

The LG FLD165NBMA is an inverter compressor, meaning its operating speed can vary to match the cooling demand of the refrigerator. This results in more stable temperatures, reduced energy consumption, and quieter operation compared to traditional fixed-speed compressors.

Once installed and the refrigeration system is properly charged, the compressor will automatically regulate its speed based on the refrigerator's internal temperature sensors and control board signals. There are no user-adjustable operating settings directly on the compressor itself.

6. الصيانة

As a sealed component of the refrigeration system, the LG FLD165NBMA compressor itself requires no routine user maintenance. However, general refrigerator maintenance contributes to its longevity:

• حافظ على نظافة ملفات المكثف: Regularly clean the condenser coils (usually located at the back or underneath the refrigerator) to ensure efficient heat dissipation. Dirty coils force the compressor to work harder.
• تأكد من التهوية المناسبة: Maintain adequate space around the refrigerator for proper airflow.
• أختام أبواب الشاشة: Ensure refrigerator door seals are intact and sealing properly to prevent cold air loss, which can overwork the compressor.

Any internal system maintenance, such as refrigerant checks or repairs, must be performed by a qualified technician.

7. استكشاف الأخطاء وإصلاحها

If your refrigerator is experiencing issues after compressor replacement, consider the following common troubleshooting points. Remember, all diagnostics and repairs should be conducted by a qualified technician.

7.1 Compressor Runs but Does Not Cool (No Compression)

If the compressor is running (you can hear or feel it vibrate) but the refrigerator is not cooling, this indicates a lack of compression or refrigerant circulation. Possible causes include:

• Insufficient Refrigerant Charge: The system may be undercharged or have a leak.
• Overcharge of Refrigerant: Too much refrigerant can also hinder proper operation.
• System Blockage: A blockage in the capillary tube or filter drier can prevent refrigerant flow.
• Faulty Compressor: Although new, a compressor can rarely be defective, failing to build pressure.
• Electronic Control Issue: The inverter board or main control board might not be sending correct signals to the compressor.

Action: A technician must check refrigerant pressures, inspect for leaks, and diagnose the electronic control system.

7.2 Compressor Does Not Start

• لا يوجد طاقة: Check the refrigerator's power supply and circuit breaker.
• Faulty Control Board: The main control board or inverter board may be defective, failing to send a start signal.
• قضايا الأسلاك: Loose or incorrect electrical connections to the compressor.
• Overload Protector/Start Relay: While inverter compressors have integrated controls, issues with the power module can prevent starting.

Action: Verify power, then a technician should inspect wiring and test control boards.

7.3 Unusual Noises from Compressor

• تركيب فضفاض: The compressor might not be securely mounted, causing vibrations.
• Internal Mechanical Failure: Rare for a new unit, but possible.

Action: A technician should inspect mounting and diagnose internal compressor health.

8. الضمان والدعم

This LG FLD165NBMA Inverter Refrigerator Compressor is an original part, backed by the manufacturer's quality standards. Specific warranty terms are typically provided at the point of purchase. Please retain your purchase receipt for warranty claims.

Note: The warranty may be voided if the product is not installed by a qualified and certified technician, or if damage results from improper installation or misuse.

8.1 دعم العملاء

For any questions regarding product compatibility, installation procedures, or troubleshooting, please contact the seller or an authorized LG service center. Providing your refrigerator's full model and serial number will assist in faster support.

يمكنك أيضًا زيارة موقع إل جي الرسمي website for additional product information and service locator tools.
