مقدمة
This manual provides detailed instructions for the safe and efficient use of your Spider Farmer Auto-Cure Smart Jar. Please read this manual thoroughly before operating the device and retain it for future reference. The Smart Jar is designed for optimal preservation of various items by maintaining a controlled, low-oxygen environment and stable humidity levels.
معلومات السلامة
- Do not immerse the lid in water or any other liquid. The lid contains electronic components.
- Keep the device away from direct sunlight, high temperatures, and open flames.
- Ensure the charging port is dry before connecting the Type-C charging cable.
- هذا المنتج مخصص للاستخدام المنزلي فقط.
- يحفظ بعيدًا عن متناول الأطفال.
- لا تحاول تفكيك الجهاز أو إصلاحه بنفسك. اتصل بدعم العملاء للحصول على المساعدة.
محتويات الحزمة
تأكد من وجود جميع العناصر في الحزمة الخاصة بك:
- 1x Vacuum Jar (2L Capacity)
- 1x Type-C Charging Cable (0.8m)
- 4x 62% Two-Way Humidity Packs
- 1 × دليل المستخدم

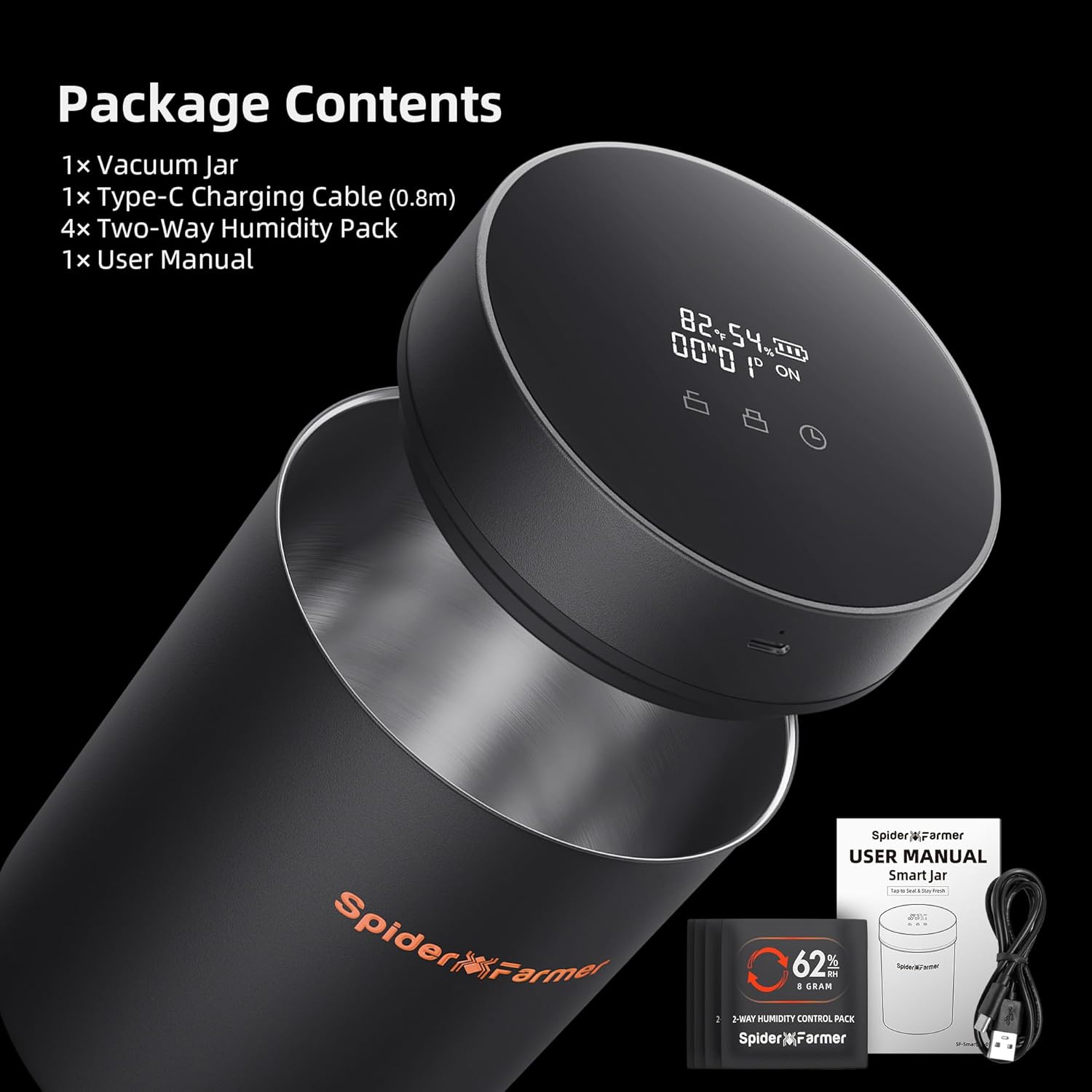

الشكل 1: محتويات العبوة
المنتج انتهىview
The Spider Farmer Auto-Cure Smart Jar features a robust design with intelligent controls for optimal storage.
عناصر:
- Jar Body: Made with a corrosion-resistant 304 stainless steel interior and a BPA-free ABS exterior.
- Smart Lid: Features an LED display, control buttons, and a Type-C charging port.
- Vacuum Seal System: Integrated into the lid to create a low-oxygen environment.
- Humidity Packs: 62% two-way humidity control packs to maintain stable internal humidity.
Figure 2: Jar Components and Materials
Smart Lid Display & Controls:
The LED screen on the lid provides real-time information and allows for easy control.
Figure 3: Smart Lid Controls and Display
- عرض درجة الحرارة: Shows current internal temperature.
- عرض الرطوبة: يعرض النسبة المئوية الحالية للرطوبة الداخليةtage.
- مستوى البطارية: يشير إلى شحن البطارية المتبقي.
- مدة التخزين: Tracks how many days items have been stored.
- رمز القفل: Initiates vacuum sealing.
- Unlock Icon: Releases vacuum seal.
- رمز الوقت: Toggles temperature units (°F/°C) and resets storage duration.
يثبت
- التهمة الاولية: Before first use, fully charge the Smart Jar lid using the provided Type-C charging cable. A full charge can last up to 180 days (based on 1 use/day). The battery icon will flash while charging and disappear when fully charged.
Figure 4: Charging the Smart Jar
- Prepare Humidity Packs: Open the transparent outer packaging of the 62% two-way humidity control pack. Do not open the humidity pack itself. Place one pack inside the jar with your items. Each pack lasts up to 90 days.
Figure 5: Two-Way Humidity Control
- Prepare Items for Storage: Ensure items like herbs are thoroughly dried to remove excess surface and internal moisture before placing them in the jar. This prevents mold or bacterial growth. Target moisture for herbs should be approximately 10-12% for optimal preservation.
تعليمات التشغيل
1. Power On/Off & Display Activation:
- Press and hold any button on the lid for 3 seconds to wake up the screen and power on the device.
- The display will show temperature, humidity, battery level, and storage duration.
2. Vacuum Sealing:
- Place your items into the jar, ensuring there is roughly 25% air space remaining to allow for proper air circulation and vacuum formation.
- ضع الغطاء بشكل آمن على الجرة.
- اضغط على قفل icon on the lid to initiate the automatic vacuum sealing process. The built-in smart vacuum system will monitor internal air pressure and maintain a low-oxygen environment.
Figure 6: Filling the Jar for Optimal Sealing
3. الإصدارasing the Vacuum Seal:
- To open the jar, press and hold the فتح icon for 3 seconds to release the air. You will hear a hissing sound as air enters the jar.
- Once the air is released, you can remove the lid.
4. وظائف العرض:
- تبديل وحدة درجة الحرارة: اضغط على وقت icon to switch between Fahrenheit (°F) and Celsius (°C) for temperature display.
- Reset Storage Timer: اضغط مع الاستمرار على وقت icon for 3 seconds to reset the storage duration timer.
5. Curing Process:
The Smart Jar actively balances O2, CO2, and moisture to facilitate the curing process. The LED display will show the storage time while monitoring humidity and temperature.
- When the jar has reached the perfect humidity range (55-62%), a humidity indicator will display.
- When the jar has reached the perfect temperature range (16-21°C), a temperature indicator will display.
Figure 7: Usage Steps and Curing Indicators
فيديوهات المنتج الرسمية:
Video 1: How to Use the Spider Farmer Smart Curing Jar | Vacuum Seal. This video demonstrates the basic vacuum sealing and unsealing functions of the jar.
Video 2: How to Use the Spider Farmer Smart Curing Jar. This video provides a comprehensive guide to using the Smart Curing Jar for various storage needs.
صيانة
تنظيف:
- The jar body (stainless steel interior and ABS exterior) is dishwasher safe.
- The lid, containing electronic components, should only be wiped clean with a damp cloth. Do not submerge the lid in water.
- تأكد من أن جميع الأجزاء جافة تمامًا قبل إعادة تجميعها أو تخزينها.
Humidity Pack Replacement:
- Each 62% two-way humidity pack lasts up to 90 days.
- Replace the humidity pack when it becomes hard or brittle, indicating it has absorbed its maximum moisture.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| Jar not vacuum sealing properly. | Lid not seated correctly; debris on seal; low battery. | Ensure lid is aligned and pressed down firmly. Check and clean the silicone seal for any obstructions. Charge the device fully. |
| الشاشة لا تعمل. | البطارية منخفضة؛ الجهاز مطفأ. | Charge the device. Press and hold any button for 3 seconds to activate the display. |
| Humidity/Temperature readings seem inaccurate. | External factors; sensor obstruction. | Ensure the jar is not exposed to extreme ambient temperatures or direct heat sources. Verify nothing is blocking the internal sensors. |
| Cannot open the jar after vacuum sealing. | Vacuum seal still active. | اضغط مع الاستمرار على فتح icon for 3 seconds to release the vacuum pressure before attempting to open. |
تحديد
- رقم الموديل: SF-SmartJar-US
- سعة: 2 لتر
- أبعاد المنتج: 12.6"L x 18.78"W x 19.69"H (Note: This seems to be package dimensions, actual jar dimensions are approx. 4.92" diameter x 6.69" height based on images)
- وزن السلعة: 1.72 رطل
- مادة: 304 Stainless Steel (interior), ABS (exterior), Food Grade Silicone Seal
- بطارية: 1 Nonstandard Lithium Ion Battery (included)
- الشحن: نوع C- أوسب
- التحكم في الرطوبة: 62% Two-Way Humidity Packs
- آمنة للاستخدام في غسالة الأطباق: Jar body only (lid is not)
- يمكن استخدامه في الميكروويف: لا
الضمان والدعم
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Spider Farmer webالموقع. احتفظ بإيصال الشراء كإثبات للشراء.
