دليل تعليمات مُعرّفات كابلات RJ45 من جونارد تولز CM-RJ45/8 لجهاز CM-100

مقدمة

This manual provides essential information for the proper use and maintenance of the Jonard Tools CM-RJ45/8 RJ45 Cable Identifiers. These identifiers are designed to work exclusively with the Jonard Tools CM-100 Cable Mapper Pro, facilitating efficient identification and mapping of RJ45 network cables.

المنتج انتهىview

The CM-RJ45/8 kit includes eight (8) numbered RJ45 network cable identifiers. These identifiers are passive devices that, when connected to network cables, allow the CM-100 Cable Mapper Pro to distinguish between multiple cables connected to a patch panel or wall plate.

المميزات الرئيسية:

Numbered Identification: Each identifier is clearly numbered from 1 to 8 for easy port mapping.
CM-100 Compatibility: Specifically designed to integrate with the Jonard Tools CM-100 Cable Mapper Pro.
Simultaneous Mapping: Enables mapping of up to 8 network cables concurrently.

Pack of 8 Jonard Tools RJ45 Cable Identifiers

Image: A set of eight numbered RJ45 cable identifiers, designed for use with the CM-100 Cable Mapper Pro.

يثبت

Ensure CM-100 is Ready: Verify that your Jonard Tools CM-100 Cable Mapper Pro is powered on and functioning correctly. Refer to the CM-100 manual for its specific setup instructions.
Connect Identifiers: Plug each CM-RJ45/8 identifier into the RJ45 ports of the network cables you wish to map. For example, if you are mapping cables from a patch panel, connect one identifier to each cable's end at the patch panel.
Prepare Remote End: At the remote end of the cable run (e.g., wall plate), ensure the CM-100 Cable Mapper Pro is ready to receive the signal.

Jonard Tools RJ45 Cable Identifier plugged into a wall plate

Image: A numbered RJ45 cable identifier inserted into a network wall plate, demonstrating its application for port identification.

تعليمات التشغيل

Follow these steps to use the CM-RJ45/8 identifiers with your CM-100 Cable Mapper Pro:

Connect CM-100: Connect the main unit of the CM-100 Cable Mapper Pro to the network cable at the testing location (e.g., the switch end or the other end of the cable run).
بدء الاختبار: On the CM-100, select the appropriate test mode for RJ45 cable mapping. The CM-100 will send a signal through the cable.
Identify Cable: The CM-100's display will show the identifier number corresponding to the cable it is connected to. This allows you to quickly match the remote end of the cable to its numbered identifier.
Repeat for All Cables: Repeat the process for each cable connected to an identifier until all desired cables are mapped.

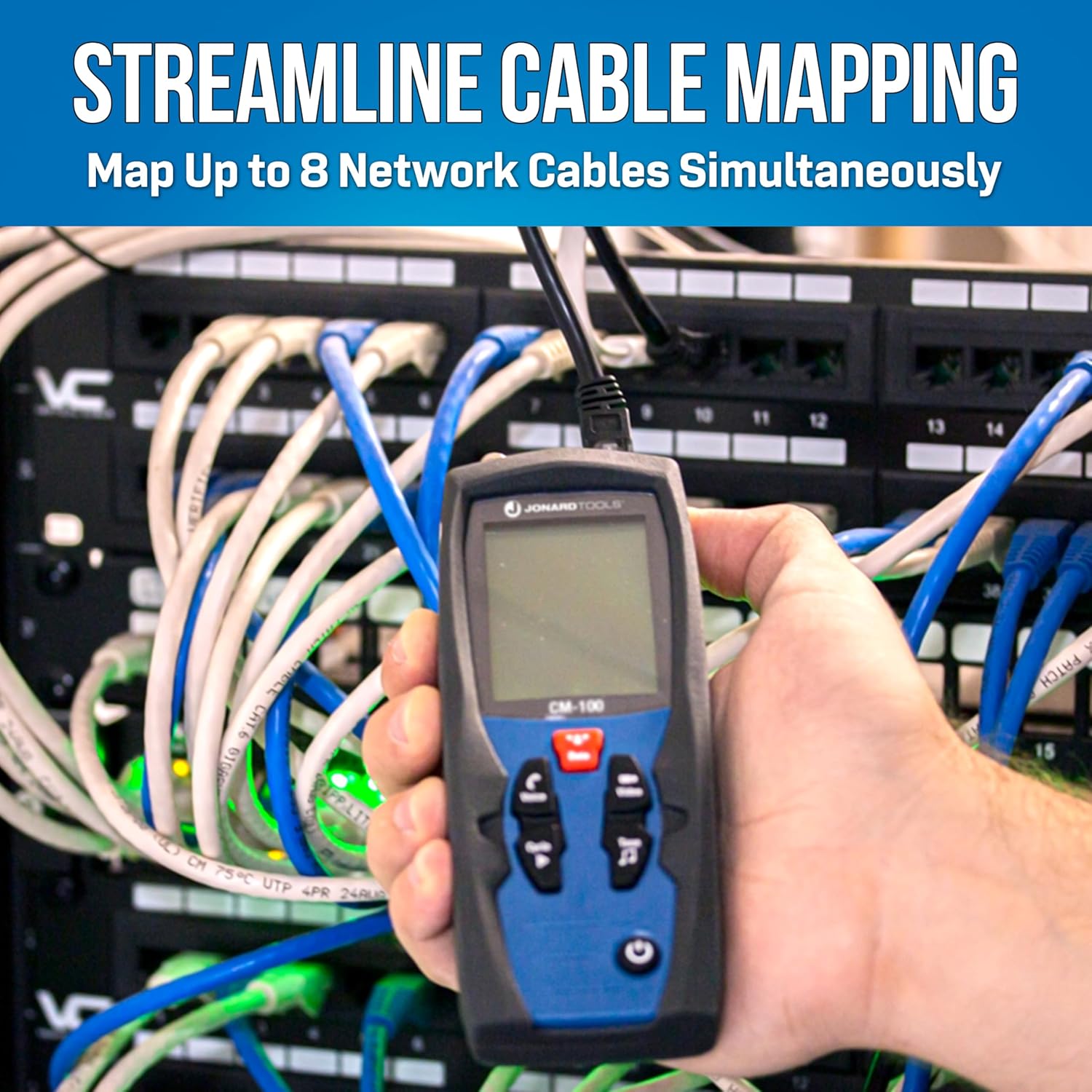

Hand holding Jonard Tools CM-100 Cable Mapper Pro connected to a network cable in a server rack

Image: A technician using the CM-100 Cable Mapper Pro to test a network cable connected within a server rack, demonstrating cable mapping in a live environment.

Jonard Tools CM-100 Cable Mapper Pro connected to a network cable with an identifier

Image: The CM-100 Cable Mapper Pro connected to a network cable, with an RJ45 identifier visible, illustrating the compatibility and function of the system.

صيانة

تنظيف: Keep the identifiers clean and free from dust and debris. Use a soft, dry cloth for cleaning. Avoid abrasive cleaners or solvents.
تخزين: Store the identifiers in a cool, dry place, away from direct sunlight and extreme temperatures. Keep them in their original packaging or a protective case to prevent damage.
تقتيش: Periodically inspect the RJ45 connectors for any signs of wear, bent pins, or damage. Replace any damaged identifiers to ensure accurate testing.

استكشاف الأخطاء وإصلاحها

مشكلة	السبب المحتمل	حل
CM-100 does not detect identifier.	Identifier not fully inserted. Damaged identifier. Cable fault (open, short). CM-100 not in correct test mode.	Ensure identifier is securely seated in the RJ45 port. Try a different identifier. Test the cable for faults using the CM-100's primary functions. Verify the CM-100 is set to the correct mapping or identification mode.
Incorrect identifier number displayed.	Multiple identifiers connected to the same cable. Identifier malfunction.	Ensure only one identifier is connected to each cable being tested. Try a different identifier to confirm if the issue is with the identifier itself.

تحديد

نموذج: CM-RJ45/8
التوافق: Jonard Tools CM-100 Cable Mapper Pro
نوع الموصل: آر جيه 45
نوع الكابل: إيثرنت
Number of Identifiers: 8 (numbered 1-8)
Dimensions (per identifier): حوالي 1.5 × 0.75 × 1.5 بوصة
الوزن (المجموعة الإجمالية): حوالي 0.81 أونصة
لون: Clear with blue accents

الضمان والدعم

For information regarding warranty coverage, technical support, or replacement parts for your Jonard Tools CM-RJ45/8 RJ45 Cable Identifiers, please refer to the documentation provided with your CM-100 Cable Mapper Pro or visit the official Jonard Tools website. Specific warranty details for this accessory are typically covered under the main CM-100 product warranty.

رسمي Webموقع: www.jonard.com
