1. المقدمة
This manual provides detailed instructions for the setup, operation, and maintenance of your Radiolink T12D ELRS 12-Channel RC Transmitter. The T12D is a 2.4GHz remote radio controller designed for a wide range of remote-controlled models, including airplanes, drones, cars, and boats. It features ELRS support, a 2.8-inch color screen, and comes with R12F and R16F receivers.

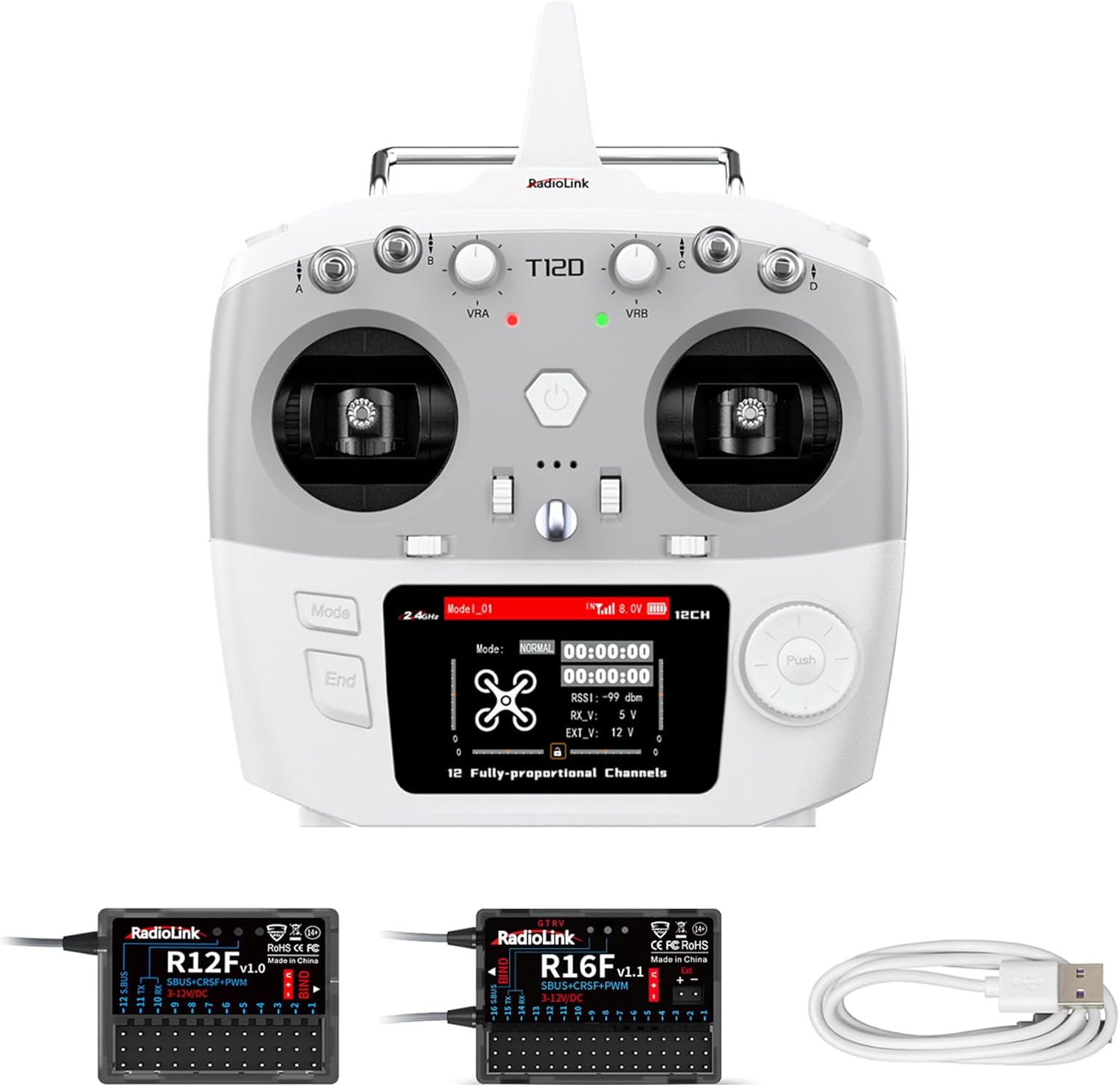

Image 1.1: Radiolink T12D Transmitter, R12F Receiver, R16F Receiver, and USB Type-C Cable.
الصورة 1.2: انتهىview of Radiolink T12D Key Features.
2. الإعداد
2.1 محتويات العبوة
تأكد من وجود جميع المكونات:
- Radiolink T12D ELRS 12-Channel RC Transmitter
- جهاز استقبال راديولينك R12F
- جهاز استقبال راديولينك R16F
- USB Type-C Cable (for data transmission)
2.2 تزويد جهاز الإرسال بالطاقة
The T12D transmitter supports multiple power sources:
- 2S-4S LiPo battery
- 8*بطاريات AA
- بطارية ليبو 18650
The transmitter includes built-in voltage protection software technology to prevent damage from reverse polarity connections. Ensure correct battery insertion according to the polarity markings.
Image 2.1: T12D Supported Battery Types and Power Connections.
2.3 توصيل جهاز الاستقبال وربطه
The R16F receiver supports PWM, SBUS, and CRSF signals, allowing for flexible configuration with various models. Refer to the diagrams below for signal output modes.
Image 2.2: R16F Receiver Signal Output Configurations.
To bind the receiver to the transmitter, locate the binding button on the R16F receiver. Follow the specific binding procedure outlined in the full user manual for your model.
Image 2.3: R16F Receiver Dimensions and Binding Button Location.
2.4 External Module Support
The T12D supports mainstream long-range modules such as ELRS (ExpressLRS) and TBS Crossfire. Modules like TBS Crossfire Nano TX and BETAFPV ELRS Nano TX can be inserted directly into the transmitter.
ملحوظة: TBS Crossfire TX and BETAFPV ELRS Micro TX may not support direct insertion due to their size.
Image 2.4: T12D External Module Support and Parameter Adjustment Screen.
3. تعليمات التشغيل
3.1 واجهة المستخدم والتنقل
The T12D features a 2.8-inch color screen with a user-friendly navigation menu. This allows for easy adjustment of settings and monitoring of model parameters.
- لغات متعددة: The menu supports various languages including English, German, French, Russian, Chinese, Japanese, Spanish, Korean, Thai, and Polish.
- Menu Theme Customization: Personalize the display with different menu themes.
- Model Information Telemetry: View real-time data from your model.
- معرف الشركة التابعة: Configure up to 16 groups of subsidiary IDs.
Image 3.1: T12D Additional Features and Menu Options.
Image 3.2: T12D Menu Multiple Language Options.
3.2 Controls and Ergonomics
The T12D is ergonomically designed for comfortable and precise control, featuring:
- Three 3-position switches
- One 2-position switch
- Two dials
- Two slider switches
- Bearing joysticks for smooth operation
- A trainer switch
Image 3.3: T12D Ergonomic Design and Control Features.
3.3 وظائف متقدمة
- Model Storage: Store settings for up to 50 different models.
- Programmable Mix Controls: Utilize 32 groups of programmable mix controls for complex setups.
- Trainer Function: Connect with another transmitter for training purposes.
- RC Simulator Support: Use the transmitter with RC flight simulators for practice.
- القياس عن بعد: Real-time built-in telemetry provides crucial flight data.
3.4 Wide Applicability
The T12D is suitable for controlling a diverse range of RC models, including:
- طائرات الهليكوبتر
- Fixed-wing aircraft
- الطائرات الشراعية
- Multi-rotors (drones)
- Racing drones
- Football drones
- Engineering vehicles
- Racing boats
- الروبوتات
- جزازات العشب
- Bait boats
- Mechas
Image 3.4: T12D Wide Applicability Across RC Models.
Image 3.5: T12D Application for Bait Boats with Advanced Features.
4. الصيانة
4.1 تحديثات البرامج الثابتة
The T12D and R12F/R16F receivers support online firmware upgrades. Connect the T12D or R12F/R16F to a computer using the provided Type-C cable to update to the latest firmware and access new features.
Image 4.1: T12D and R12F Receiver Online Upgrade Process.
4.2 العناية بالبطارية
- Always use recommended battery types (2S-4S LiPo, 8*AA, 18650 LiPo).
- Ensure proper polarity when inserting batteries.
- قم بتخزين البطاريات في مكان بارد وجاف عندما لا تكون قيد الاستعمال.
- Do not overcharge or over-discharge LiPo batteries.
4.3 التنظيف
Use a soft, dry cloth to clean the transmitter and receivers. Avoid using harsh chemicals or solvents that could damage the plastic or electronic components.
5. استكشاف الأخطاء وإصلاحها
If you encounter issues with your Radiolink T12D transmitter or receivers, consider the following general troubleshooting steps:
- قضايا الطاقة: Ensure batteries are fully charged and correctly inserted. Check for proper voltage.
- مشاكل الاتصال: تأكد من توصيل جميع الكابلات بإحكام.
- ملزم: Confirm that the transmitter and receiver are properly bound. Re-bind if necessary.
- Range Problems: Check for obstructions or sources of interference in your operating environment. Ensure antennas are correctly positioned.
- Control Response: Check servo connections and calibration in the transmitter settings.
For more detailed troubleshooting and FAQs, please refer to the official Radiolink support resources or contact customer service.
6. المواصفات
| ميزة | مواصفة |
|---|---|
| القنوات | 12 |
| تكرار | 2.4 جيجاهرتز |
| نطاق التحكم | Up to 2.5 miles (4km) |
| وقت الاستجابة | 3 مللي ثانية |
| شاشة العرض | 2.8-inch color screen, 320*240 pixels |
| البطاريات المدعومة | 2S-4S LiPo, 8*AA, 18650 LiPo |
| التوافق مع جهاز الاستقبال | R16F, R12F, R8EF, R8FM, R8XM, R8SM, R6FG, R8FGH, R7FG, R6F, R4FGM |
| External Module Support | ELRS (ExpressLRS), TBS Crossfire |
| حماية | حماية من التوصيل المضاد للقطبية |
| Model Storage | 50 مجموعة |
| Programmable Mix Controls | 32 مجموعة |
6.1 Compatible Radiolink Transmitters
The R16F receiver is compatible with a range of Radiolink transmitters:
- T12D, T16D, RC8X, RC6GS V3, RC4GS V3, RC4GS V2, RC6GS V2, T8FB, T8S.
Image 6.1: Compatible Radiolink Transmitters.
Image 6.2: T12D Receiver Compatibility Chart.
7. الضمان والدعم
Radiolink products are manufactured to high-quality standards. For warranty information, please refer to the official Radiolink webالموقع أو وثائق الشراء الخاصة بك.
7.1 دعم العملاء
For quick support, contact Radiolink after-sales service. You can find assistance through the Radiolink Direct store or by accessing online user instructions. Comprehensive user manuals and FAQ troubleshooting files are also available on product sales pages.
قم بزيارة الموقع الرسمي Radiolink Store لمزيد من الموارد ومعلومات المنتج.
