مقدمة
شكرا لك على الشراءasing the HOMCOM 36 Inch Electric Fireplace. This appliance is designed to provide supplemental heat and a realistic flame effect, enhancing the ambiance of your living space. It can be installed as a recessed unit or wall-mounted. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of your fireplace.

Image: The HOMCOM 36 Inch Electric Fireplace seamlessly integrated into a modern living room setting, showcasinجاذبيتها الجمالية.
معلومات السلامة
اتبع دائمًا احتياطات السلامة الأساسية عند استخدام الأجهزة الكهربائية لتقليل خطر الحريق والصدمة الكهربائية وإصابة الأشخاص.
- اقرأ جميع التعليمات قبل استخدام هذا السخان.
- هذا الموقد مزود بـ automatic shut-off feature for overheating protection. If the heater overheats, it will automatically turn off. Unplug the unit and allow it to cool for at least 15 minutes before restarting.
- لا تقم بتشغيل أي سخان بسلك أو قابس تالف، أو بعد تعطل السخان، أو سقوطه أو تعرضه للتلف بأي شكل من الأشكال.
- لا تمرر السلك تحت السجاد. لا تغطي السلك بسجاد أو أغطية أو أغطية مماثلة. ضع السلك بعيدًا عن منطقة المرور حيث لن يتعثر.
- قم دائمًا بتوصيل السخانات مباشرة بمأخذ/مقبس الحائط. لا تستخدمها أبدًا مع سلك تمديد أو صنبور طاقة قابل للتحريك (مأخذ/مقبس طاقة).
- لا تقم بإدخال أو السماح لأجسام غريبة بالدخول إلى أي فتحة تهوية أو فتحة عادم حيث قد يؤدي ذلك إلى حدوث صدمة كهربائية أو حريق أو تلف السخان.
- لتجنب نشوب حريق محتمل، لا تقم بسد مداخل أو منافذ الهواء بأي شكل من الأشكال. لا تستخدم المنتج على الأسطح الناعمة، مثل السرير، حيث قد تصبح الفتحات مسدودة.
- استخدم هذا السخان فقط كما هو موضح في هذا الدليل. أي استخدام آخر غير الموصى به من قبل الشركة المصنعة قد يتسبب في نشوب حريق أو حدوث صدمة كهربائية أو إصابة الأشخاص.

Image: Diagram illustrating the air outlet design, which helps prevent overheating and ensures safe operation of the fireplace.
محتويات الحزمة
Upon opening the package, please ensure all components are present and undamaged. If any parts are missing or damaged, contact customer service immediately.
- وحدة مدفأة كهربائية
- جهاز التحكم عن بعد
- Log and Crystal Media (for flame bed)
- Mounting Hardware (for wall-mount/recessed installation)
- دليل المستخدم

Image: A cardboard box with the HOMCOM logo, indicating the product is shipped as a single package.
الإعداد والتثبيت
This electric fireplace offers two installation options: wall-mounted or recessed (insert into a cabinet/mantle frame). Choose the method that best suits your space.
اعتبارات ما قبل التثبيت:
- Ensure the chosen location is near a grounded electrical outlet and away from drapes, furniture, and high-traffic areas.
- Maintain proper clearances from combustible materials as specified in local building codes.
- The fireplace dimensions are 36" W x 6.2" D x 17.7" H. For recessed installation, ensure the opening is appropriately sized.

Image: A diagram illustrating the overall dimensions of the fireplace (36" W x 6.2" D x 17.7" H) and how to measure a wall opening for recessed installation.
طرق التثبيت:
Refer to the detailed diagrams for each installation type:
- معلقة على الحائط: Secure the mounting bracket to a wall stud using the provided hardware. Hang the fireplace unit onto the bracket.
- Recessed (Insert): Prepare a cabinet or mantle frame opening with the correct dimensions. Slide the fireplace unit into the opening and secure it.

Image: Two diagrams illustrating the installation options: one for recessed mounting into a cabinet or mantle frame, and another for direct wall mounting.
تعليمات التشغيل
Your HOMCOM electric fireplace can be controlled using the panel on the unit or the included remote control.
وظائف لوحة التحكم وجهاز التحكم عن بعد:
- تشغيل/إيقاف: يقوم بتشغيل الوحدة أو إيقاف تشغيلها.
- لون اللهب: يتنقل بين 10 لونًا مختلفًا للهب.
- سطوع اللهب: Adjusts the intensity of the flame effect with 6 adjustable brightness levels.
- التحكم في الحرارة: Activates or deactivates the heating function. Adjusts temperature (41-99°F) and switches between Celsius/Fahrenheit.
- المؤقت: Sets an automatic shut-off timer for up to 8 hours.

Image: A visual representation of the 6 adjustable brightness levels and 10 distinct flame colors available for customization.

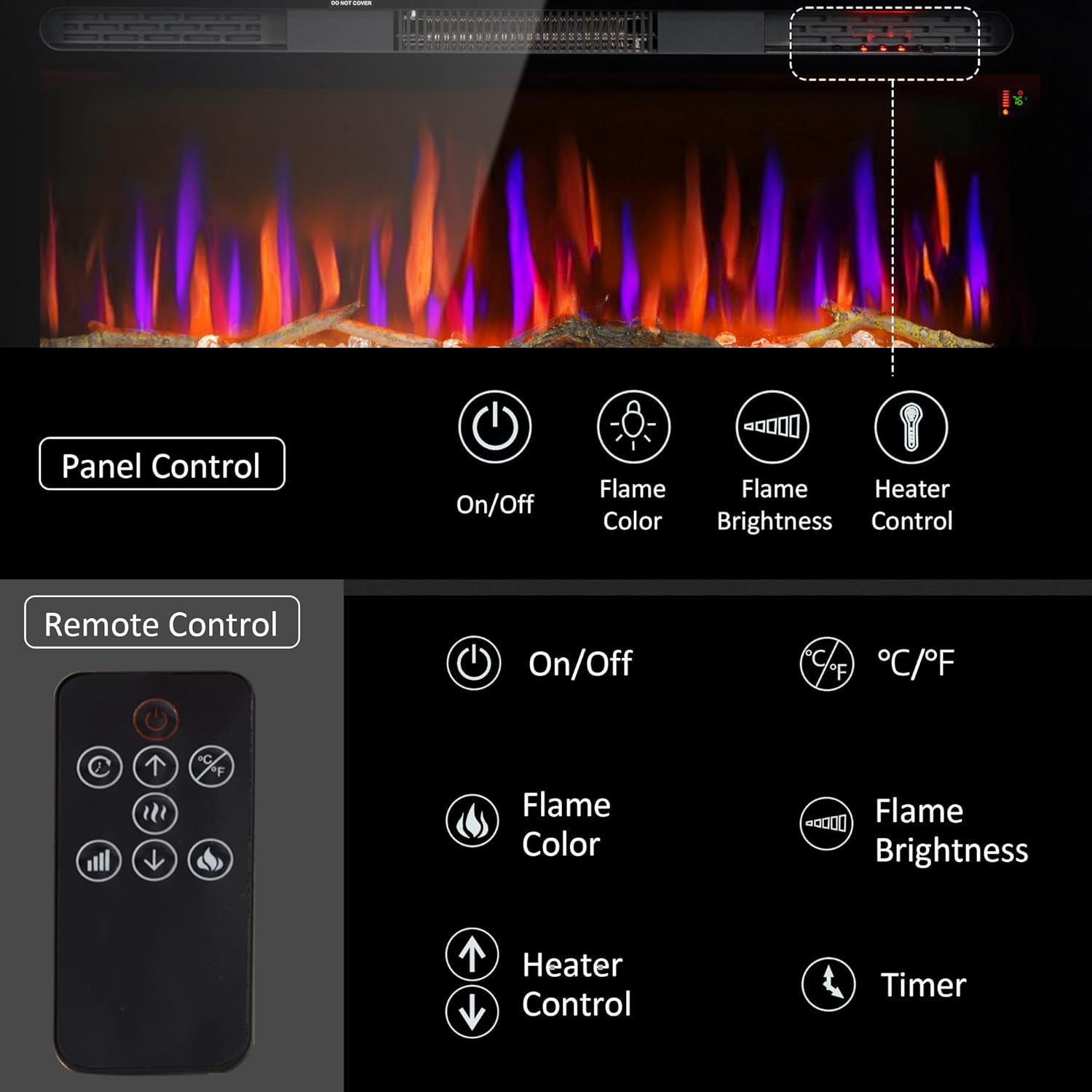

الصورة: تفصيلية view of the fireplace's on-unit control panel and the remote control, highlighting their respective buttons and functions for easy operation.
وظيفة التدفئة:
The 1500W heater provides supplemental heat for areas between 161-431 sq ft. The temperature can be set between 41-99°F. The heater includes an automatic on/off control based on the ambient temperature to maintain your desired setting.
The fireplace operates quietly, with noise levels below 55dB, similar to a gentle fan, ensuring it does not disturb your peace.

Image: A person relaxing in a living room with the fireplace, illustrating its heating coverage area (161-431 sq ft), low noise level (55dB), 1500W power, and overheat protection feature.
صيانة
تضمن الصيانة الدورية طول عمر المدفأة الكهربائية وأدائها الأمثل.
- تنظيف: افصل المدفأة دائمًا قبل التنظيف. استخدم قطعة قماش ناعمة.amp استخدم قطعة قماش لمسح الأسطح الخارجية. لا تستخدم منظفات أو بخاخات كاشطة.
- لوحة من الزجاج: نظّف اللوح الزجاجي بقطعة قماش ناعمة ومنظف زجاج. لا تخدش السطح.
- فتحات التهوية: قم بفحص وتنظيف فتحات سحب الهواء والعادم بشكل دوري للتأكد من خلوها من الغبار والحطام، والتي يمكن أن تعيق تدفق الهواء وتسبب ارتفاع درجة الحرارة.
- تخزين: إذا كنت ستخزن المدفأة لفترة طويلة، فتأكد من أنها نظيفة وجافة. خزّنها في مكان بارد وجاف.
استكشاف الأخطاء وإصلاحها
إذا واجهت مشاكل مع مدفأتك، راجع المشاكل والحلول الشائعة التالية:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| المدفأة لا تعمل. | لا يوجد تيار كهربائي، أو تم إيقاف تشغيل مفتاح الطاقة، أو تعطل قاطع الدائرة. | Ensure unit is plugged into a working outlet. Check the main power switch on the unit. Reset the household circuit breaker if necessary. |
| لا يوجد مخرج للحرارة. | Heater function off, temperature set too low, or overheat protection activated. | Activate heater function. Increase desired temperature. If overheat protection is active, unplug the unit, wait 15 minutes, then plug back in. |
| تأثير اللهب لا يعمل. | تم إيقاف تأثير اللهب. | تأكد من تشغيل تأثير اللهب عبر لوحة التحكم أو جهاز التحكم عن بعد. |
| جهاز التحكم عن بعد لا يعمل. | بطاريات فارغة أو عائق. | Replace the CR2 battery in the remote control. Ensure no obstructions between the remote and the fireplace sensor. |
| ضجيج غير عادي أثناء التشغيل. | Fan obstruction or internal issue. | Turn off and unplug the unit. Check for any visible obstructions in the air vents. If noise persists, contact customer support. |
تحديد
| ماركة | هومكوم |
| اسم الموديل | Electric Fireplace (Model: 820-422V80BK) |
| أبعاد المنتج | 36 بوصة عرض × 6.2 بوصة عمق × 17.7 بوصة ارتفاع |
| مادة | زجاج مقسّى |
| لون | أسود |
| نوع التثبيت | حامل جداري، غائر |
| مصدر الطاقة | كهرباء سلكية |
| استهلاك الطاقة | 1500 واط |
| إنتاج الحرارة | 5115 وحدة حرارية بريطانية في الساعة |
| منطقة تغطية التدفئة | 161-431 قدم مربع |
| مدى درجة الحرارة | 41-99 درجة فهرنهايت |
| المميزات الخاصة | Adjustable Flame, Adjustable Thermostat, Overheat Protection, 8H Timer, Remote Control, LED Display |
| وزن العنصر | 33 رطل |
| البطاريات المطلوبة | 1 CR2 battery (for remote control) |
| رمز المنتج الموحد | 196393231333 |
الضمان والدعم
تأتي هذه المدفأة الكهربائية من هومكوم مع... ضمان محدوديرجى الرجوع إلى بطاقة الضمان المرفقة في العبوة للاطلاع على الشروط والأحكام المحددة.
For technical support, missing parts, or warranty claims, please contact the seller or manufacturer directly. Keep your purchase receipt and model number (820-422V80BK) handy for faster service.
