Havion K1-D1 Wireless Video Doorbell and Smart Lock Set Instruction Manual

1. المقدمة

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Havion K1-D1 Wireless Video Doorbell and Smart Lock Set. Please read this guide thoroughly before using the product to ensure optimal performance and security.

2. انتهى المنتجview

The Havion K1-D1 set combines a wireless video doorbell with a smart lock, offering enhanced home security and convenience. Key components include the video doorbell, smart lock, and an indoor chime.

2.1. Video Doorbell Features

• كاميرات مزدوجة: Features a 5MP (3K QHD) main camera with a 160° ultra-wide viewing angle and a 2MP sub-camera for head-to-toe view على عتبة داركم.
• العرض التفاعلي: Built-in 2'' OLED screen for instant feedback and interaction.
• الكشف الذكي: Advanced AI technology recognizes people, packages, vehicles, and pets. An additional radar sensor combined with PIR dual motion sensors reduces false alarms by 95%.
• صوت ثنائي الاتجاه: Communicate with visitors in real-time via the Havion app.
• التخزين المحلي: Built-in 32GB eMMC local storage eliminates the need for subscription fees.
• الشحن السريع: 3.0 USB fast charging reduces charging time by 40% for the 5200mAh battery.
• الرؤية الليلية: Dual-light infrared and white-light cameras provide unmatched night vision for 24/7 monitoring.
• مقاومة الطقس: يضمن تصنيف IP66 المقاوم للماء المتانة في مختلف الظروف الجوية.

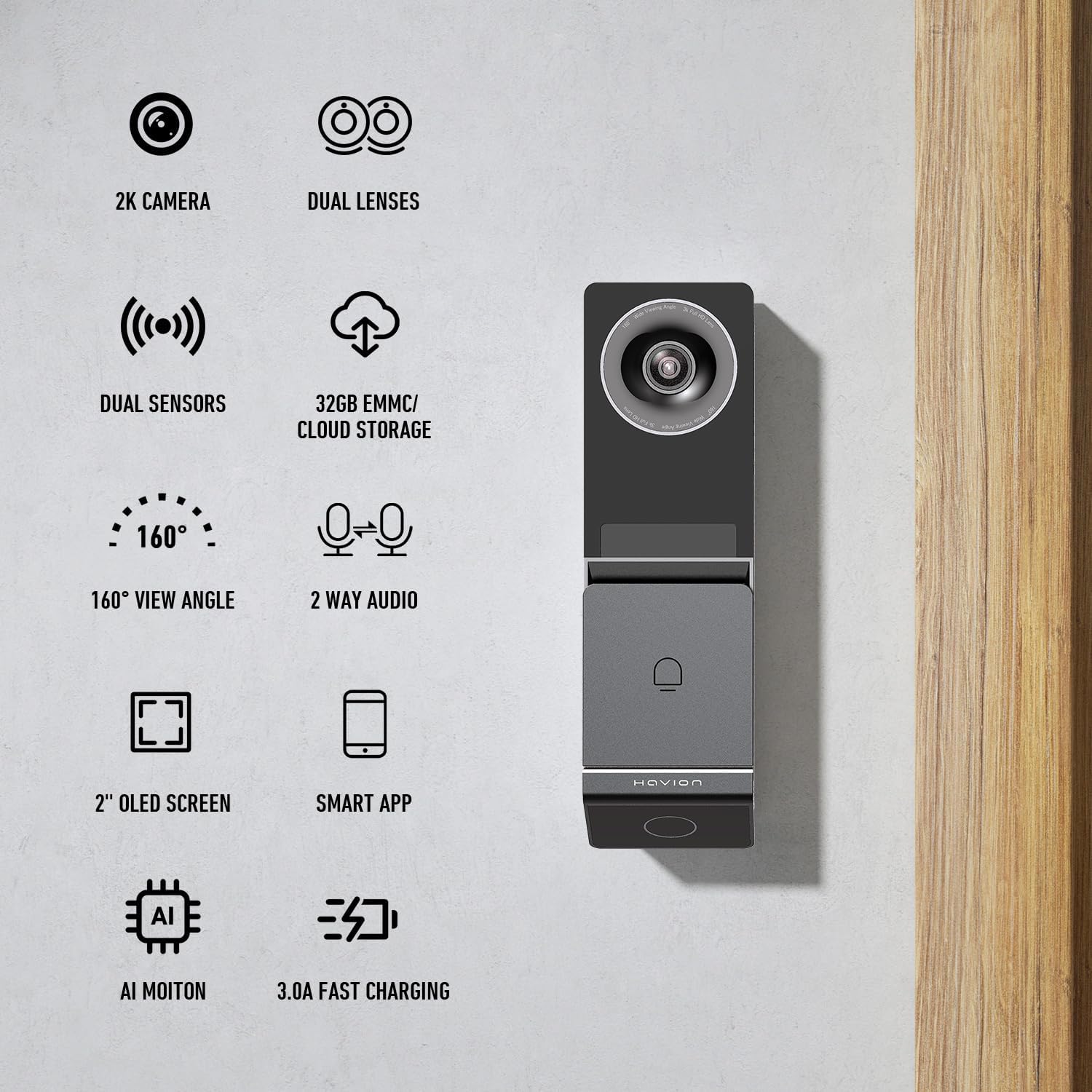

Image: Havion K1-D1 Video Doorbell showcasing its dual cameras and 2-inch OLED screen.

الصورة: انقسام view from the Havion K1-D1 doorbell, demonstrating the wide-angle main camera and the lower sub-camera for a full head-to-toe view of a person at the door.

2.2. Smart Lock Features

• اندماج: Seamlessly integrates with the Havion doorbell for enhanced security and remote access management.
• طرق فتح متعددة: Unlock via the Smart APP, a customizable password on the digital keypad, or a traditional physical key.
• إدارة كلمة المرور: Store up to 50 sets of passwords, including one-time or timed passwords for visitors. Features extra digits to prevent guessing.
• قفل تلقائي: Adjustable auto-lock duration (10s-40s) for added security.
• مقاومة الطقس: IP54 waterproof rating, suitable for temperatures from -31°F to 158°F.

Image: The Havion K1 Smart Lock displaying its digital keypad and the three primary unlock methods: Smart App, Password, and Physical Key.

3. الإعداد

3.1. Smart Lock Installation

The K1 Smart Lock is designed for easy installation on standard doors, fitting both left and right door directions. It requires 4 AA batteries (not included) for operation.

1. Ensure the deadbolt backset is 60mm or 70mm.
2. Insert the deadbolt into the door edge, ensuring the "Top" marking faces upwards. Secure with screws.
3. Rotate the tail of the lock cylinder to the horizontal position before inserting the exterior assembly.
4. Pass the connection wire through the bottom-left hole of the mounting plate.
5. Align the protruding position of the latch with the concave position of the lock body and insert.
6. Secure the exterior assembly to the door using the provided screws.
7. Connect the RF antenna and power cord to the interior assembly.
8. Adjust the knob on the interior assembly to the vertical position.
9. Hide excess wires inside the door.
10. Secure the interior assembly with screws.
11. Install 4 AA batteries into the battery pack.
12. قم بتركيب غطاء البطارية.

Image: A person installing the Havion K1 Smart Lock, showing the internal components and battery compartment.

3.2. Video Doorbell Installation

The Havion K1-D1 Video Doorbell can be installed using the provided mounting bracket. It supports both wired and wireless battery-operated models.

1. Choose a suitable mounting location on your door frame.
2. استخدم دعامة التثبيت كقالب لتحديد أماكن ثقوب الحفر.
3. Secure the mounting bracket to the door frame using screws. The bracket allows for a flat mount or a 15-degree angle adjustment.
4. If using the wired option, connect the doorbell wires to your existing doorbell wiring.
5. Attach the doorbell unit to the mounting bracket.
6. Ensure the doorbell is securely fastened.

Image: The Havion K1-D1 Video Doorbell being mounted onto a door frame, showing the secure attachment to the bracket.

3.3. اتصال التطبيق

Connect your Havion devices to the Havion app for full functionality and remote control. The app uses Bluetooth for faster and simpler setup than traditional QR code methods.

1. Download the Havion app from your device's app store.
2. إنشاء حساب أو تسجيل الدخول.
3. Select "Add Device" and choose the K1-D1 Wireless Doorbell + Smart Lock Set.
4. Follow the on-screen instructions to pair the devices via Bluetooth. Ensure your device is within 30 feet of the router for good signal strength.
5. Configure Wi-Fi settings (supports 2.4GHz Wi-Fi).
6. Once connected, you can name your device and begin using its smart features.

4. تعليمات التشغيل

4.1. وظائف التطبيق

• فتح عن بعد: Unlock your door with one click on your phone from anywhere.
• إدارة كلمة المرور: Add, modify, or delete administrator, user, and guest passwords. Generate offline passwords for temporary access.
• إعدادات القفل التلقائي: Adjust the auto-lock duration (10s-40s) to automatically lock the door after a set period.
• Lock Volume: Adjust the lock's sound volume (Mute, Low, Middle, High).
• Doorlock Records: View unlock records and status alerts anytime, anywhere. Receive low battery alerts.
• مركز الرسائل: Access alarm messages and system messages.

Image: The Havion K1 Smart Lock showing its app-connected features, including one-click unlock, auto-lock duration settings, and access to unlock records and status alerts.

4.2. طرق فتح القفل

• لوحة المفاتيح الرقمية: Enter your programmed password on the illuminated keypad.
• المفتاح المادي: Use the provided traditional key for manual unlocking, especially useful if batteries are depleted or in case of network issues.
• التطبيق الذكي: Utilize the Havion app for remote unlocking.

Image: A hand using a traditional key to unlock the Havion K1 Smart Lock, demonstrating the physical key override option.

5. الصيانة

• Doorbell Battery: The 5200mAh battery can be charged via USB-C. The doorbell unit can be easily removed for indoor charging.
• Smart Lock Batteries: The smart lock operates on 4 AA batteries. Replace them when the app indicates a low battery alert.
• تنظيف: Use a soft, dry cloth to clean the exterior surfaces of both devices. Avoid abrasive cleaners or solvents.

6. استكشاف الأخطاء وإصلاحها

• مشاكل الاتصال: Ensure devices are within 30 feet of your Wi-Fi router. Re-pair devices via the Havion app if connection is lost.
• الإنذارات الكاذبة: The dual motion sensors (AI and radar) are designed to minimize false alarms. If persistent, check sensor sensitivity settings in the app.
• Unlocking Failure: If the digital keypad fails, try using the offline password or the physical key. Check battery levels for the smart lock.
• جرس الباب لا يرن: Ensure the indoor chime is plugged in and connected. Check app notification settings.

7. المواصفات

8. الضمان والدعم

The Havion K1-D1 Wireless Video Doorbell and Smart Lock Set comes with a ضمان لمدة 2 سنوات. Havion offers reliable after-sales support with a "replace only" policy in exchange for repairs. For detailed warranty information or further assistance, please refer to the product page or contact Havion customer service.
