PURPLE LEAF 3 x 4.25 m Louvered Roof Pergola with LED Light Bar User Manual

1. المقدمة

Thank you for choosing the PURPLE LEAF Louvered Roof Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read these instructions carefully before installation and retain them for future reference.

2. تحذيرات السلامة

• التثبيت الآمن: Ensure the pergola is securely fastened to a stable and level base to prevent movement or collapse due to wind or snow.
• حالة الطقس: This pergola is designed to withstand winds of 40 to 70 mph and snow loads up to 6 cm. In extreme weather conditions (heavy snow, strong winds, hurricanes), it is recommended to open the louvers to reduce wind resistance and snow accumulation, or to take additional protective measures.
• شريط ضوء LED: Exercise caution when handling the integrated LED light bar during assembly and disassembly. Ensure all electrical connections are secure and protected from moisture.
• موظفو الجمعية: Assembly is recommended for at least two people to ensure safety and proper installation.
• لا تسلق: Do not climb on the pergola structure or roof.
• الوزن المحدد: Do not hang heavy objects from the pergola frame or louvers.

3. مواصفات المنتج

The PURPLE LEAF Louvered Roof Pergola offers a modern and functional design for your outdoor space.

• بناء متين: Made entirely from compacted aluminum for the frame and roof, ensuring rust-resistance and weather durability. Total weight approximately 175.1 kg.
• Adjustable Louvered Roof: Features two independently adjustable roof sections. Louvers can be adjusted from 0° to 85° to control sunlight, shade, and rain protection.
• إضاءة LED متكاملة: A built-in LED light bar provides 3000K warm lighting for evening activities. It is remote-controlled and offers light and night modes. The LED system is powered by solar energy or via USB.
• Efficient Drainage System: Rainwater is channeled through integrated grooves in the rails, down the beams, and out through the base of the pillars, keeping the area beneath the pergola dry.
• Robust Columns: Equipped with wide 12 x 12 cm aluminum columns for enhanced stability and wind resistance.

4. التجميع والتركيب

Assembly of the PURPLE LEAF Pergola requires careful attention to detail. It is recommended that two people perform the installation. A clear user manual and an assembly video are provided to guide you through the process.

4.1 قائمة التحقق قبل التجميع

• تأكد من وجود جميع الأجزاء وعدم تلفها بالرجوع إلى قائمة التعبئة.
• Ensure you have the necessary tools (e.g., wrenches, screwdrivers, level).
• اختر موقعًا مستويًا وثابتًا للتركيب.

4.2 خطوات التجميعview

1. قم بتجميع الهيكل الرئيسي، مع التأكد من أن جميع الوصلات آمنة.
2. Attach the roof beams and support components.
3. Install the louvered roof sections, ensuring they operate smoothly.
4. Connect the LED light bar and its power source (solar panel or USB).
5. Secure the pergola to the ground using appropriate anchors (not included).

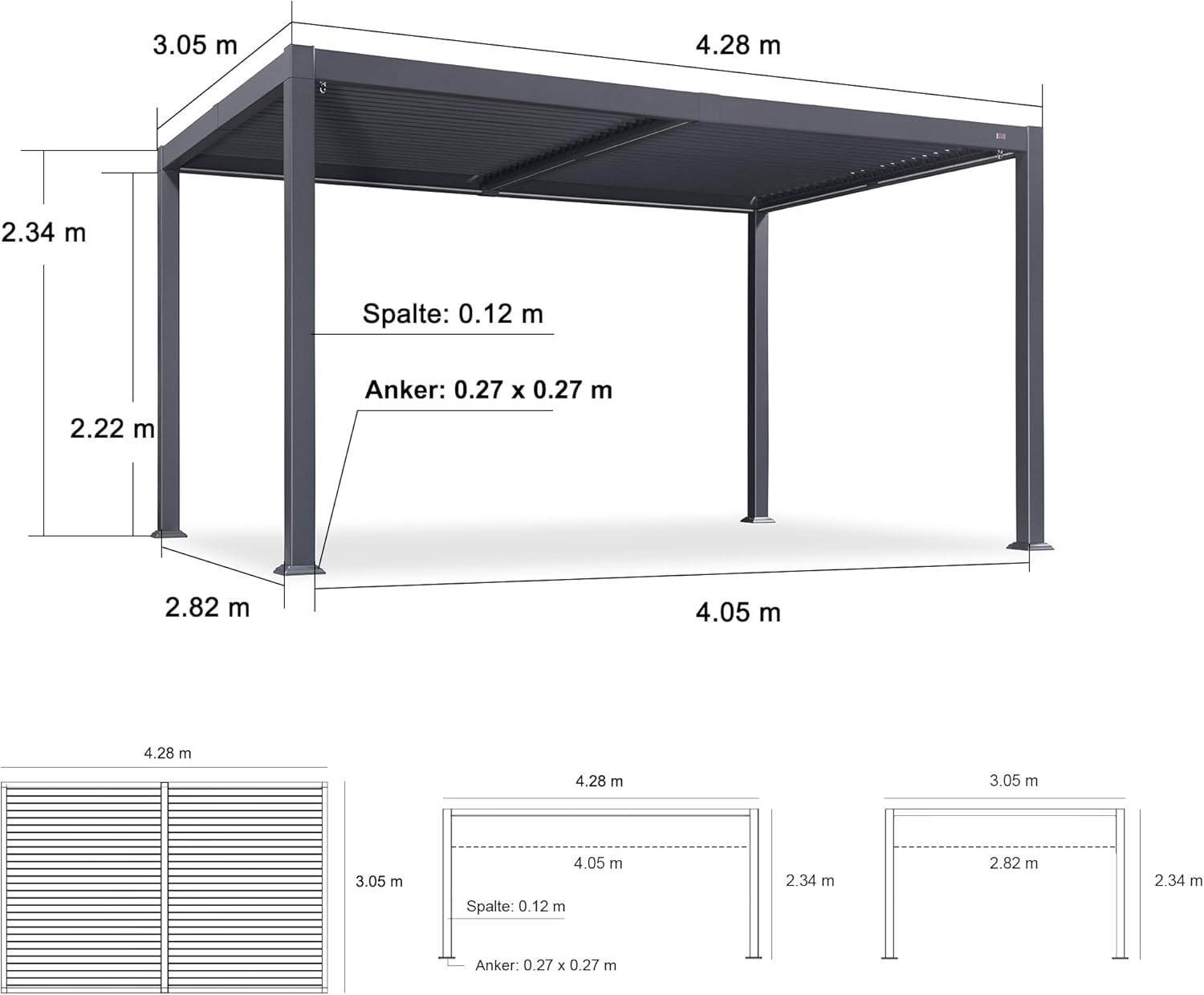

Figure 1: Detailed dimensions of the PURPLE LEAF Pergola. The overall dimensions are 4.28m (length) x 3.05m (width) x 2.35m (height). Columns are 0.12m wide.

Figure 2: Illustration of the efficient drainage system. Rainwater flows through internal channels in the roof and columns, exiting at the base.

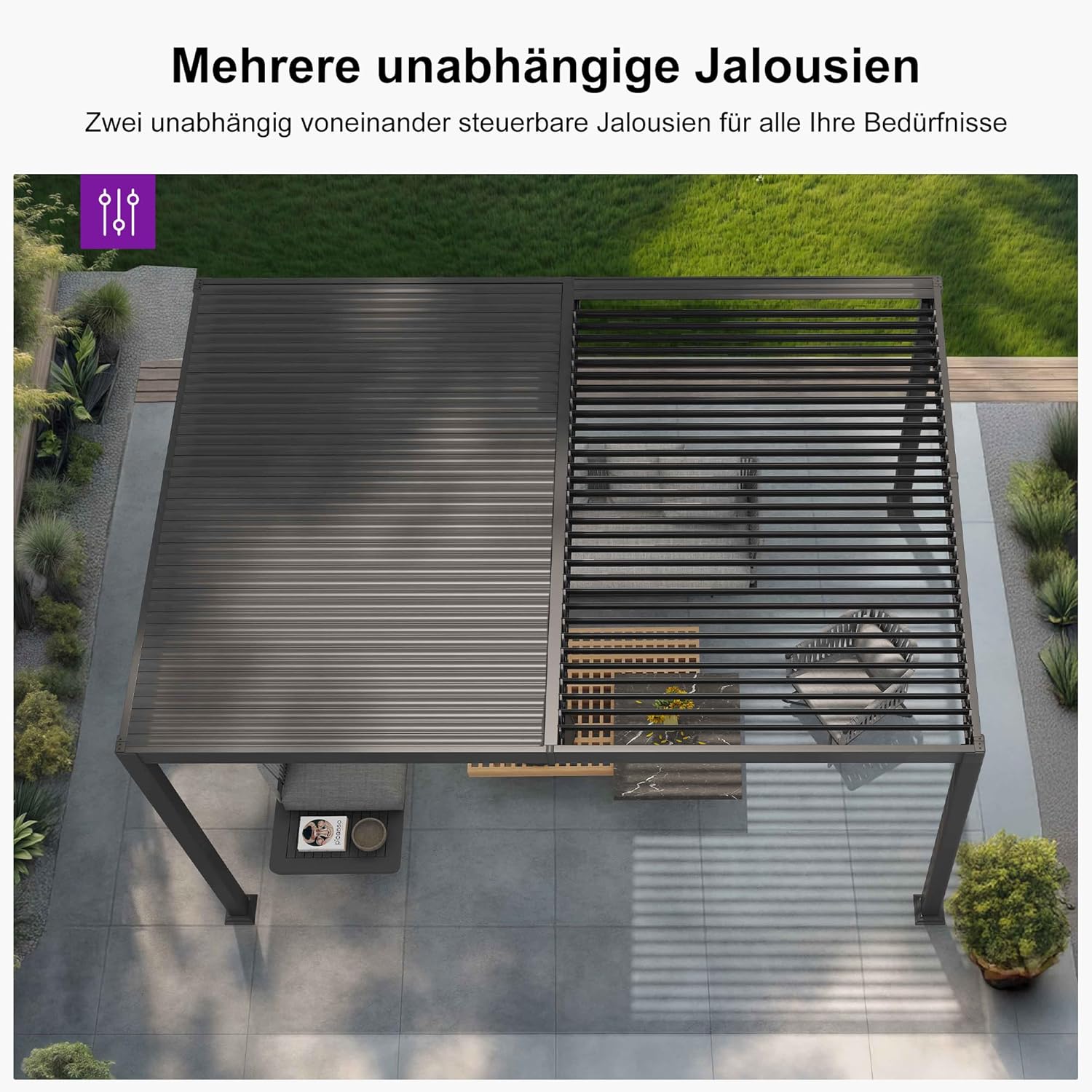

الشكل 3: صورة جوية view of the pergola demonstrating the two independently adjustable louver sections, allowing for varied light and shade control.

5. تعليمات التشغيل

5.1 Louvered Roof Adjustment

The pergola features two independent louvered roof sections. Each section can be adjusted manually using the integrated mechanism.

• To open the louvers, rotate the adjustment bar in the direction indicated to allow sunlight and airflow.
• To close the louvers, rotate the adjustment bar in the opposite direction to create shade and provide rain protection.
• The louvers can be set at any angle between 0° (fully closed) and 85° (fully open).

Figure 4: Close-up of the louver adjustment mechanism, showing the range of motion from 0 to 85 degrees.

5.2 LED Light Bar Operation

The integrated LED light bar provides ambient lighting for your outdoor space.

• تشغيل/إيقاف التشغيل: Use the provided remote control or the control panel on the column to turn the LED lights on or off.
• اختيار الوضع: Switch between "Light Mode" (full brightness) and "Night Mode" (dimmed light) using the remote control.
• مصدر الطاقة: The LED system is primarily solar-powered. Ensure the solar panel on the roof is clean and exposed to direct sunlight for optimal charging. A USB port is also available for alternative charging or continuous power if needed.

Figure 5: The LED light control panel on the column, showing power, mode, and dimming options. The solar panel on the roof is also visible, providing power to the LED lights.

6. الصيانة

Regular maintenance will ensure the longevity and optimal performance of your PURPLE LEAF Pergola.

• تنظيف: Clean the aluminum frame and louvers periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly with clean water.
• نظام الصرف الصحي: Regularly inspect the drainage channels for any debris (leaves, dirt) that might obstruct water flow. Clear any blockages to ensure efficient water drainage.
• المثبتات: افحص جميع البراغي والصواميل والوصلات بشكل دوري للتأكد من إحكام ربطها. أعد ربطها إذا لزم الأمر.
• نظام الصمام: Keep the solar panel clean to maximize charging efficiency. If using the USB power option, ensure the port is free from moisture and debris.
• العناية بالشتاء: In areas with heavy snowfall, it is advisable to keep the louvers open to prevent excessive snow accumulation on the roof, which could exceed the design load.

7. استكشاف الأخطاء وإصلاحها

8. المواصفات

9. الضمان والدعم

For information regarding warranty coverage, please refer to the purchase documentation or contact your retailer.

If you encounter any issues or require assistance with your PURPLE LEAF Pergola, please contact the seller, PurpleLeafGarden, through your purchase platform for support.
