Insta360 Connect TV Mount Instruction Manual

1. المقدمة

This manual provides essential instructions for the proper installation, operation, and maintenance of your Insta360 Connect TV Mount. Please read this manual thoroughly before use to ensure safe and efficient operation. Keep this manual for future reference.

2. انتهى المنتجview

The Insta360 Connect TV Mount is designed to securely position your Insta360 Connect device either above or below your television. It features VESA-compatible support and a multifunctional arm for versatile placement and adjustment.

الشكل 1: كامل view of the Insta360 Connect TV Mount, showcasing its V-shaped design and adjustable arms.

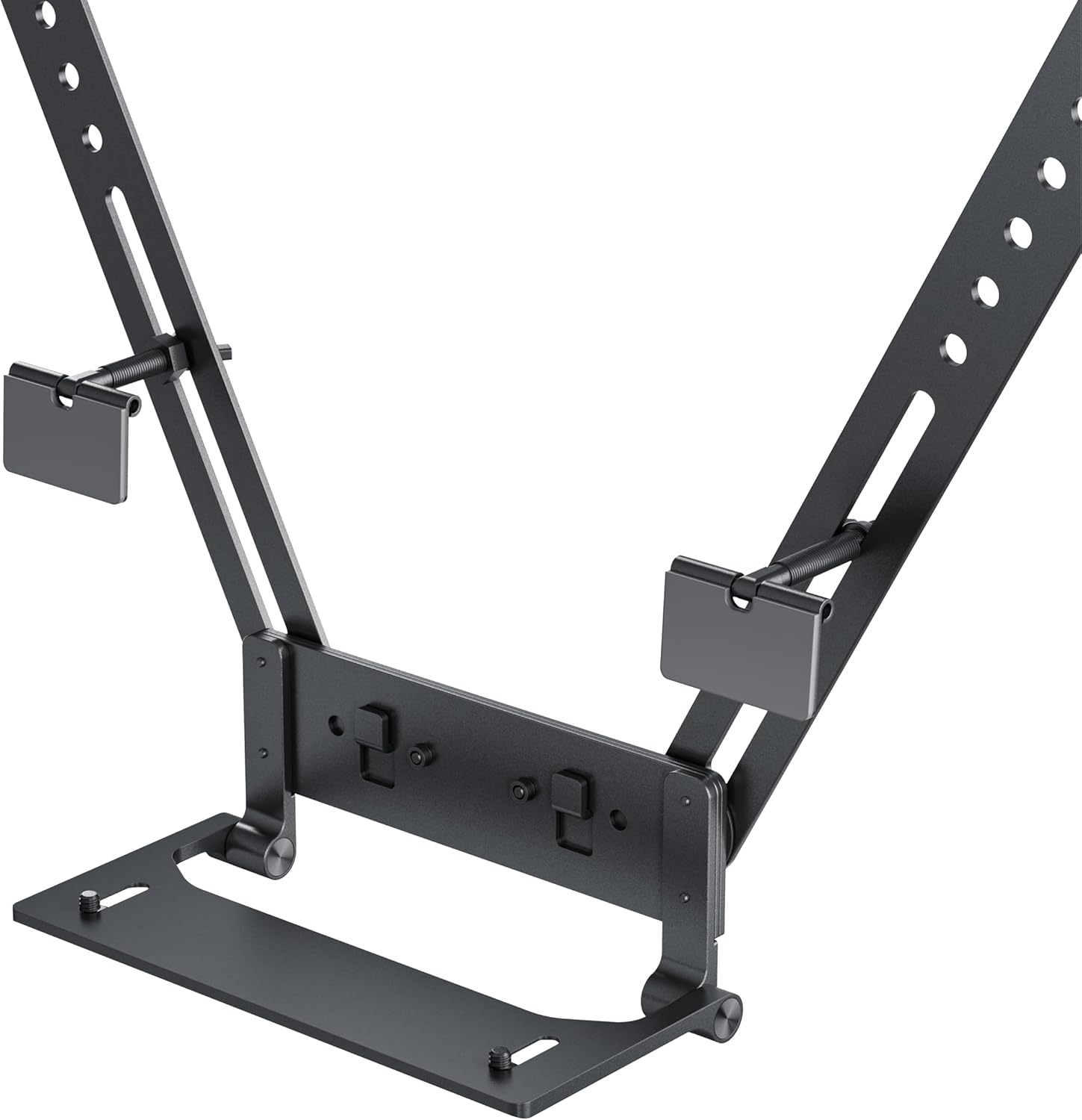

الشكل 2: تفصيلي view of the mount's base and connection points, highlighting the adjustable screws and VESA compatibility.

المميزات الرئيسية:

• Mounts your Insta360 Connect above or below your TV.
• VESA-compatible support with multifunctional arm.
• Swivel and depth adjustment for full-room coverage.
• Designed for quick installation and removal.

3. محتويات العبوة

تأكد من وجود كافة المكونات قبل متابعة التثبيت:

• Insta360 Connect TV Mount assembly
• أدوات التثبيت (براغي، حلقات معدنية)
• دليل التعليمات

Figure 3: Individual components of the mount, including the main arms and connection pieces, laid out for assembly.

4. الإعداد والتثبيت

Follow these steps to install your Insta360 Connect TV Mount:

4.1 Attaching to the TV

1. Identify the VESA mounting holes on the back of your television.
2. Align the mount's arms with the VESA holes. The mount can be positioned to place the Insta360 Connect device either above or below the TV.
3. Secure the mount to the TV using the provided screws and washers. Ensure the screws are tightened firmly but do not overtighten.

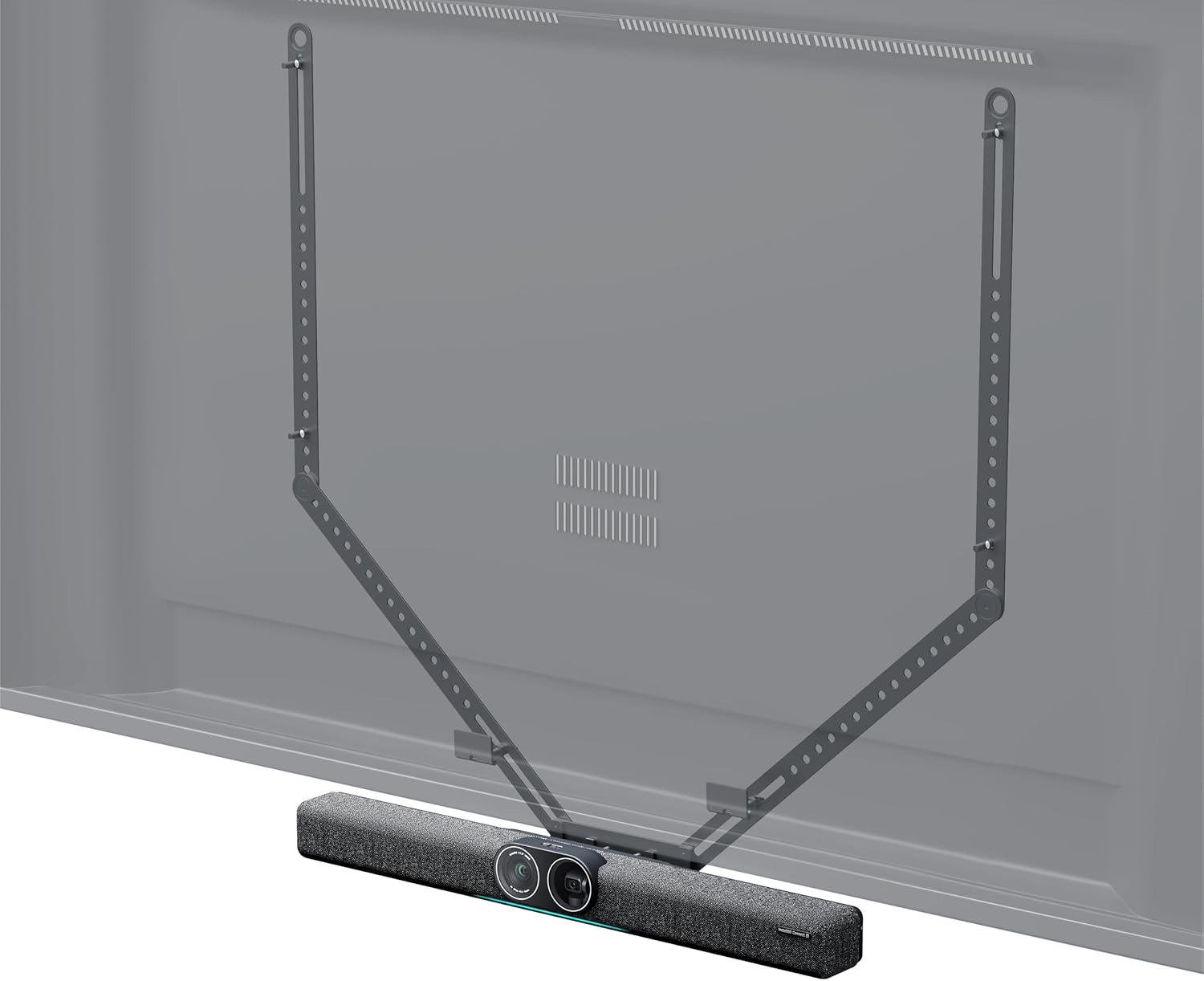

Figure 4: An illustration showing the Insta360 Connect TV Mount positioned above a television, with the device attached.

Figure 5: An illustration showing the Insta360 Connect TV Mount positioned below a television, with the device attached.

4.2 Attaching the Insta360 Connect Device

1. Place your Insta360 Connect device onto the designated platform of the TV mount.
2. Secure the device using its integrated mounting mechanism or any additional fasteners provided with your Insta360 Connect device.

5. التشغيل والتعديلات

The Insta360 Connect TV Mount allows for flexible positioning of your device to achieve optimal room coverage.

5.1 ضبط الدوران

The mount features a swivel mechanism. Gently rotate the mounted device to adjust its horizontal angle for desired room coverage. Ensure the device is stable after adjustment.

5.2 ضبط العمق

The mount offers 50mm (2.0in) depth and 15mm (0.6in) front-to-back adjustment capabilities. Loosen the adjustment screws, slide the device to the desired depth, and then re-tighten the screws to secure its position.

Figure 6: A diagram illustrating the 50mm depth and 15mm front-to-back adjustment capabilities of the mount.

6. الصيانة

To ensure the longevity and proper function of your TV mount, follow these maintenance guidelines:

• تنظيف: Wipe the mount with a soft, dry cloth. Avoid using abrasive cleaners or solvents that may damage the finish.
• تقتيش: افحص جميع البراغي والوصلات دوريًا للتأكد من إحكامها وثباتها. أعد ربطها إذا لزم الأمر.
• تخزين: If storing the mount for an extended period, ensure it is clean and dry, and store it in a cool, dry place away from direct sunlight.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your Insta360 Connect TV Mount, refer to the following common problems and solutions:

• الجبل يشعر بعدم الاستقرار: Ensure all mounting screws attaching the mount to the TV are securely tightened. Verify that the TV's VESA holes are not stripped or damaged.
• Difficulty adjusting swivel or depth: Check if the adjustment screws are sufficiently loosened before attempting to move the mount. If resistance persists, inspect for any obstructions or debris in the mechanism.
• Device not sitting flush: Confirm that the Insta360 Connect device is correctly aligned and secured to the mount's platform according to its own instructions.

8. المواصفات

9. الضمان والدعم

For warranty information and customer support, please refer to the official Insta360 webالموقع الإلكتروني أو تواصل مع خدمة العملاء مباشرةً. احتفظ بإثبات الشراء لطلبات الضمان.
