1. المقدمة
Thank you for choosing the ALUSSO Motion Sensor Outdoor Flood Light. This manual provides essential information for the safe installation, operation, and maintenance of your new security light. Please read these instructions thoroughly before installation and retain them for future reference.
Image: ALUSSO 30W LED Security Light installed on a house, illuminating the front yard.
2. معلومات السلامة
WARNING: RISK OF ELECTRIC SHOCK. Disconnect power at the fuse or circuit breaker before installing or servicing.
- يجب أن يتم تركيب هذا المنتج وفقًا لقواعد التركيب المعمول بها بواسطة شخص على دراية ببناء المنتج وتشغيله والمخاطر المرتبطة به.
- Use only supplied accessories for installation.
- Ensure the balancing mechanism is secure after installation.
- لا تقم بتعديل أو تغيير المنتج.
- لا تقم بالتثبيت بالقرب من المواد القابلة للاشتعال.
- This fixture is Class II safety-rated and does not require a ground wire.
3. محتويات العبوة
تأكد من وجود جميع المكونات وعدم تلفها قبل التثبيت.

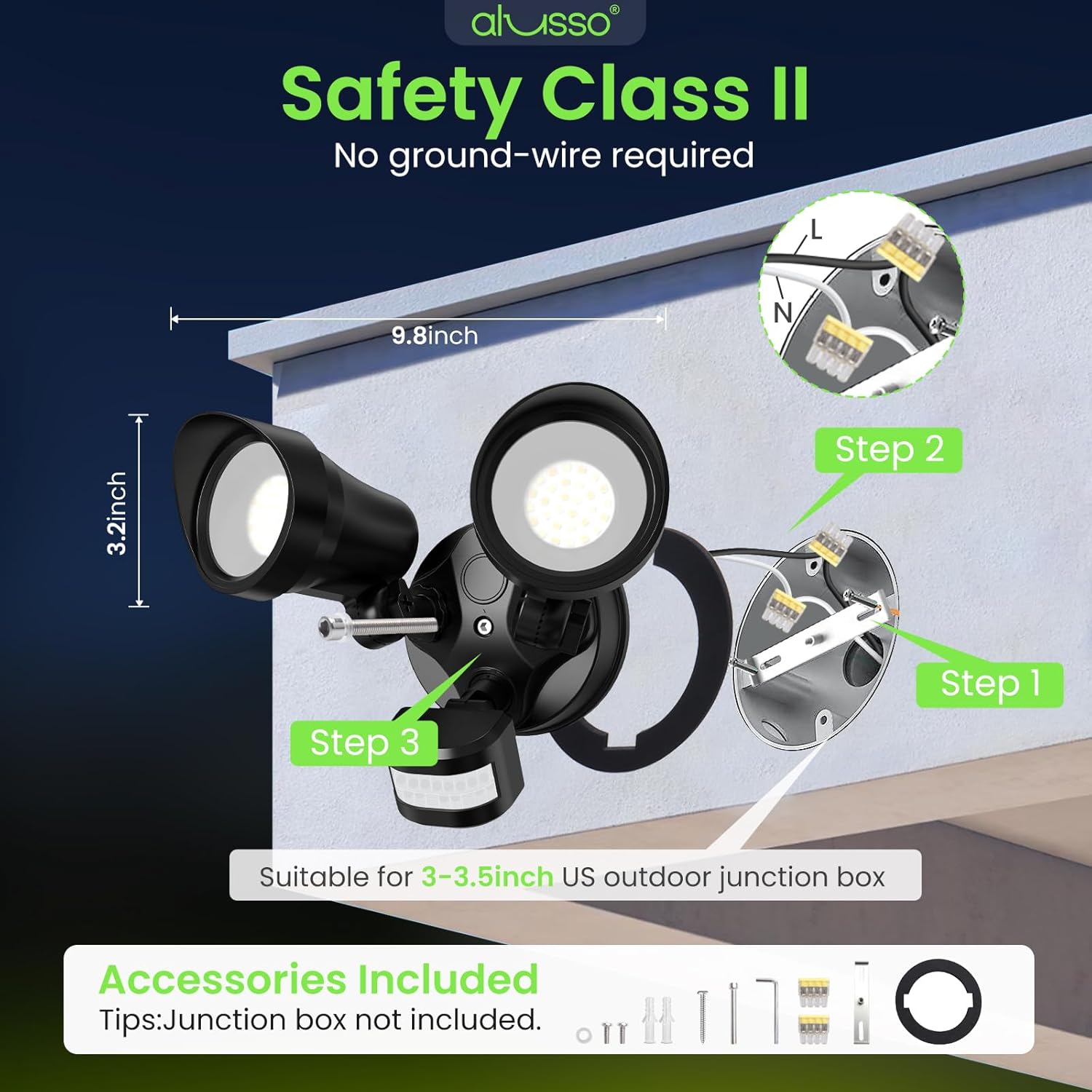

Image: Diagram showing the ALUSSO flood light components and included accessories for installation.
- ALUSSO Motion Sensor Outdoor Flood Light Unit (1)
- قوس التركيب (1)
- Screws and Wall Anchors (Set)
- Wire Connectors (Yellow Quick-Connects) (Set)
- Waterproof Gasket (1)
- دليل التعليمات (1)
- بطاقة الضمان (1)
4. انتهى المنتجview
The ALUSSO WL-YDR-230P is a versatile and durable outdoor security light designed to provide powerful illumination and enhanced safety for your property.
الصورة: أكثر منview of ALUSSO 30W LED Security Light features.
- Power & Brightness: 30W, 3500 Lumens, covering up to 2000 sq. ft.
- Color Temperature (3CCT): Adjustable between 3000K (Warm White), 4000K (Natural White), and 6500K (Daylight).
- Operating Modes (3 Modes): Dusk to Dawn (D2D), Auto (Motion Mode), and On Time (Always On).
- مستشعر الحركة: 150° wide-angle detection with an adjustable range of 1-40 ft.
- رؤوس قابلة للتعديل: Dual adjustable light heads provide a 100° beam angle, allowing precise light direction.
- متانة: IP65 waterproof rating, UV resistant, and cold resistant for all-weather performance.
- أمان: Class II safety-rated, requiring no ground wire.
5. الإعداد والتثبيت
This flood light is designed for hardwired installation. Ensure power is disconnected before proceeding.
- إيقاف تشغيل الطاقة: Locate the circuit breaker controlling the light fixture and turn off the power.
- تحضير الأسلاك: If replacing an existing fixture, carefully remove it. Ensure the existing wires (Live and Neutral) are accessible.
- تثبيت كتيفة التركيب: Attach the provided mounting bracket to your standard 3" or 3.5" round junction box. Use the appropriate screws and anchors for your mounting surface (wall or soffit).
- توصيل الأسلاك: Use the yellow quick-connect terminals to securely connect the light's wires to your household wiring. Connect the white wire from the fixture to the neutral wire, and the black wire from the fixture to the live wire. This is a Class II fixture, so no ground wire connection is needed.
- تثبيت التثبيت: Carefully align the flood light unit with the mounting bracket. Ensure the waterproof gasket is properly seated between the fixture and the mounting surface to prevent moisture ingress. Secure the fixture with the provided screws.
- ضبط رؤوس الضوء: Loosen the wing nuts on the light heads to adjust their angle and direction as needed. Tighten the wing nuts to secure the position.
- ارتفاع التثبيت الموصى به: For optimal sensor performance, install the light at a height of 6.56-9.84 feet (2-3 meters).
Image: Installation steps for the ALUSSO flood light.
Image: Soffit Mounted and Wall Mounted configurations.
6. تعليمات التشغيل
Your ALUSSO flood light offers adjustable settings for optimal performance.
6.1. Color Temperature (CCT) Adjustment
A dip switch located on the back of the light fixture allows you to select the desired color temperature:
Image: 3 CCT options: Warm White (3000K), Natural White (4000K), and Daylight (6500K).
- WW (أبيض دافئ): 3000 كيلو
- NW (Natural White): 4000 كيلو
- CW (Daylight): 6500 كيلو
Note: Adjust the CCT switch before mounting the fixture for easier access.
6.2. اختيار وضع التشغيل
A dip switch on the back of the motion sensor unit allows you to select one of three operating modes:
Image: Three work modes of the ALUSSO flood light.
- D2D Mode (Dusk to Dawn): The light automatically turns on at sunset and turns off at sunrise. The motion sensor is inactive in this mode.
- AUTO Mode (Motion Mode): The light activates when motion is detected within its range. It turns off after a set duration if no further motion is detected.
- ON TIME Mode (Always On): The light is manually controlled via the wall switch. The motion sensor is disabled, and the light remains on until manually switched off.
6.3. Auto Mode Adjustments
When in AUTO Mode, three knobs on the bottom of the motion sensor allow for fine-tuning:
Image: Motion sensor with LUX, SENS, and TIME adjustment knobs.
- LUX (Brightness Sensitivity): Adjusts the ambient light level at which the motion sensor becomes active. Turn towards the sun icon for day and night operation, or towards the moon icon for night-only operation (5-2000 LUX).
- SENS (Detection Range): Controls the sensitivity and detection distance of the motion sensor (1-40 ft).
- الوقت (المدة): Sets how long the light remains on after motion is detected and no further motion is sensed (10 seconds to 10 minutes).
Video: Official ALUSSO product video demonstrating features and modes.
7. الصيانة
To ensure the longevity and optimal performance of your ALUSSO flood light, follow these maintenance guidelines:
- تنظيف: قم بتنظيف التركيبات بشكل دوري باستخدام قطعة قماش ناعمة.amp لا تستخدم المنظفات أو المذيبات الكاشطة، لأنها قد تؤدي إلى إتلاف الطبقة النهائية أو المكونات الكهربائية.
- تقتيش: Regularly inspect the fixture for any signs of damage, loose connections, or wear. Address any issues promptly.
- تنظيف المستشعر: حافظ على عدسة مستشعر الحركة نظيفة وخالية من العوائق (مثل الأوساخ والعناكب)webس) لضمان الكشف الدقيق.
Image: ALUSSO flood light is durable in all weather conditions.
8. استكشاف الأخطاء وإصلاحها
If you experience issues with your flood light, refer to the following common problems and solutions:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الضوء لا يعمل. | No power, incorrect wiring, mode setting. | Check circuit breaker. Verify wiring connections. Ensure correct operating mode is selected. |
| مستشعر الحركة لا يكتشف. | Incorrect SENS/LUX settings, obstructions. | Adjust SENS to maximum. Adjust LUX towards sun icon. Clear any obstructions from sensor's view. |
| يبقى الضوء مضاء بشكل مستمر. | TIME setting too long, continuous motion, D2D mode selected. | Adjust TIME to a shorter duration. Ensure no constant motion in detection zone. Switch to AUTO mode if D2D is not desired. |
| وميض الضوء. | Loose wiring, unstable power. | Check all wire connections for tightness. Consult an electrician if power supply is unstable. |
9. المواصفات
| ميزة | مواصفة |
|---|---|
| اسم الموديل | 30W Flood Lights Outdoor Motion Sensor |
| رقم القطعة | WL-YDR-230P |
| واتtage | 30 واط |
| سطوع | 3500 لومن |
| درجة حرارة اللون | 3000K/4000K/6500K (Adjustable) |
| المجلدtage | 120 فولت (تيار متردد) |
| زاوية كشف الحركة | 150° |
| نطاق كشف الحركة | 1-40 قدمًا (قابل للتعديل) |
| Light Duration (Auto Mode) | 10 seconds - 10 minutes (Adjustable) |
| مستوى مقاومة الماء | IP65 مقاوم للماء |
| الاستخدام الداخلي والخارجي | في الهواء الطلق |
| نوع التثبيت | Hardwired, Wall Mount/Soffit Mount |
| أبعاد المنتج | 9.45 بوصة طول × 6.9 بوصة عرض × 5.12 بوصة ارتفاع |
| وزن العنصر | 1.52 جنيه (0.69 كيلوجرام) |
| متوسط الحياة | 30000 ساعة |
| تصنيف السلامة | ETL Listed, Class II (no ground wire required) |
10. الضمان والدعم
ALUSSO provides a ضمان لمدة 3 سنوات for this product, as indicated on the packaging. Additionally, a 5-year manufacturer's coverage is offered, ensuring repair or replacement for any defects in materials or workmanship under normal use.
For any inquiries, technical support, or warranty claims, please contact ALUSSO customer service:
- بريد إلكتروني: service-support@alussolighting.com
- Webموقع: www.alussolighting.com
