Morpilot Glass Milk Frother HS001 User Manual

1. المقدمة

شكرا لك على الشراءasing the Morpilot Glass Milk Frother HS001. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and retain them for future reference.

2. تعليمات السلامة الهامة

• اقرأ كافة التعليمات قبل استخدام الجهاز.
• لا تغمر الوحدة الكهربائية الأساسية في الماء أو أي سائل آخر.
• تأكد من حجم امدادات الطاقةtagيتطابق مع ملصق التصنيف الموجود على الجهاز.
• احتفظ بالجهاز بعيدًا عن متناول الأطفال.
• لا تقم بتشغيل الجهاز باستخدام سلك أو قابس تالف.
• ضع جهاز صنع رغوة الحليب دائمًا على سطح ثابت ومستوٍ ومقاوم للحرارة.
• لا تلمس الأسطح الساخنة. استخدم المقابض أو الأزرار.
• افصل الجهاز عن المقبس عند عدم استخدامه وقبل التنظيف. اتركه ليبرد قبل تركيب أو خلع الأجزاء وقبل تنظيف الجهاز.
• لا تستخدم المرفقات غير الموصى بها من قبل الشركة المصنعة للجهاز.
• هذا الجهاز مخصص للاستخدام المنزلي فقط.

3. انتهى المنتجview والمكونات

The Morpilot Glass Milk Frother HS001 is designed to create various milk textures for your beverages. It features a detachable glass jug for easy cleaning and a simple one-button operation.

الصورة 1: The Morpilot Glass Milk Frother HS001, showcasing the main unit, detachable glass jug, lid, whisk attachments (frothing and heating), and a cleaning brush. A cup of frothed milk is also visible, illustrating the product's output.

عناصر:

• الوحدة الأساسية الرئيسية: يحتوي على عنصر التسخين ولوحة التحكم.
• إبريق زجاجي: Detachable, with MIN/MAX fill lines for milk.
• غطاء: غطاء شفاف لإبريق الزجاج.
• خفاقة الرغوة: For creating dense or airy milk foam.
• خفاقة التسخين: For heating milk without frothing.
• فرشاة تنظيف: For easy cleaning of the jug and whisks.

4. الإعداد والاستخدام الأول

4.1 فك التعبئة

1. قم بإزالة جميع المكونات بعناية من العبوة.
2. Remove any stickers or promotional materials.

4.2 التنظيف الأولي

1. Wash the glass jug, lid, and whisk attachments with warm soapy water.
2. اشطفيه جيدًا وجففيه تمامًا.
3. امسح الجزء الخارجي من الوحدة الأساسية الرئيسية بالزيتamp القماش. لا تغمر وحدة القاعدة في الماء.

4.3 التجميع

1. Place the desired whisk attachment (frothing or heating) onto the spindle at the bottom of the glass jug. Ensure it is securely seated.
2. Place the glass jug onto the main base unit. Ensure it is properly aligned and stable.
3. قم بتوصيل سلك الطاقة بمأخذ كهربائي مناسب.

5. تعليمات التشغيل

The Morpilot Glass Milk Frother HS001 offers four distinct functions, easily selected with a single button.

الصورة 2: This diagram illustrates the four functions of the Morpilot Milk Frother: Cold Milk Foam, Warm Airy Milk Foam, Warm Dense Milk Foam, and Hot Milk. Each function is depicted with an icon and a corresponding beverage exampليه.

5.1 إضافة الحليب

1. Ensure the correct whisk is installed in the jug.
2. Pour cold milk into the glass jug. Observe the MIN and MAX fill lines.
3. For frothing, do not exceed the lower MAX line (typically 150ml) to prevent overflow.
4. For heating milk without frothing, you can fill up to the upper MAX line (typically 250ml).
5. Place the lid securely on the glass jug.

5.2 اختيار وظيفة

The frother operates with a single power button. Pressing the button cycles through the functions, indicated by the LED light color.

الصورة 3: This image displays four Morpilot Milk Frothers, each illuminated with a different LED color (Red, Blue, Purple, Green) corresponding to its active function: Warm Dense Milk Foam, Cold Milk Foam, Hot Milk, and Warm Airy Milk Foam, respectively.

1. Press the power button once to turn on the frother and select the first function (Red LED).
2. Press the button repeatedly to cycle through the desired functions (Blue, Purple, Green).
3. The frother will automatically start the selected program after a few seconds of inactivity or immediately after the last press.
4. The frother will automatically shut off once the program is complete.

5.3 الصب

Carefully remove the glass jug from the base unit. The design allows for precise pouring, suitable for latte art.

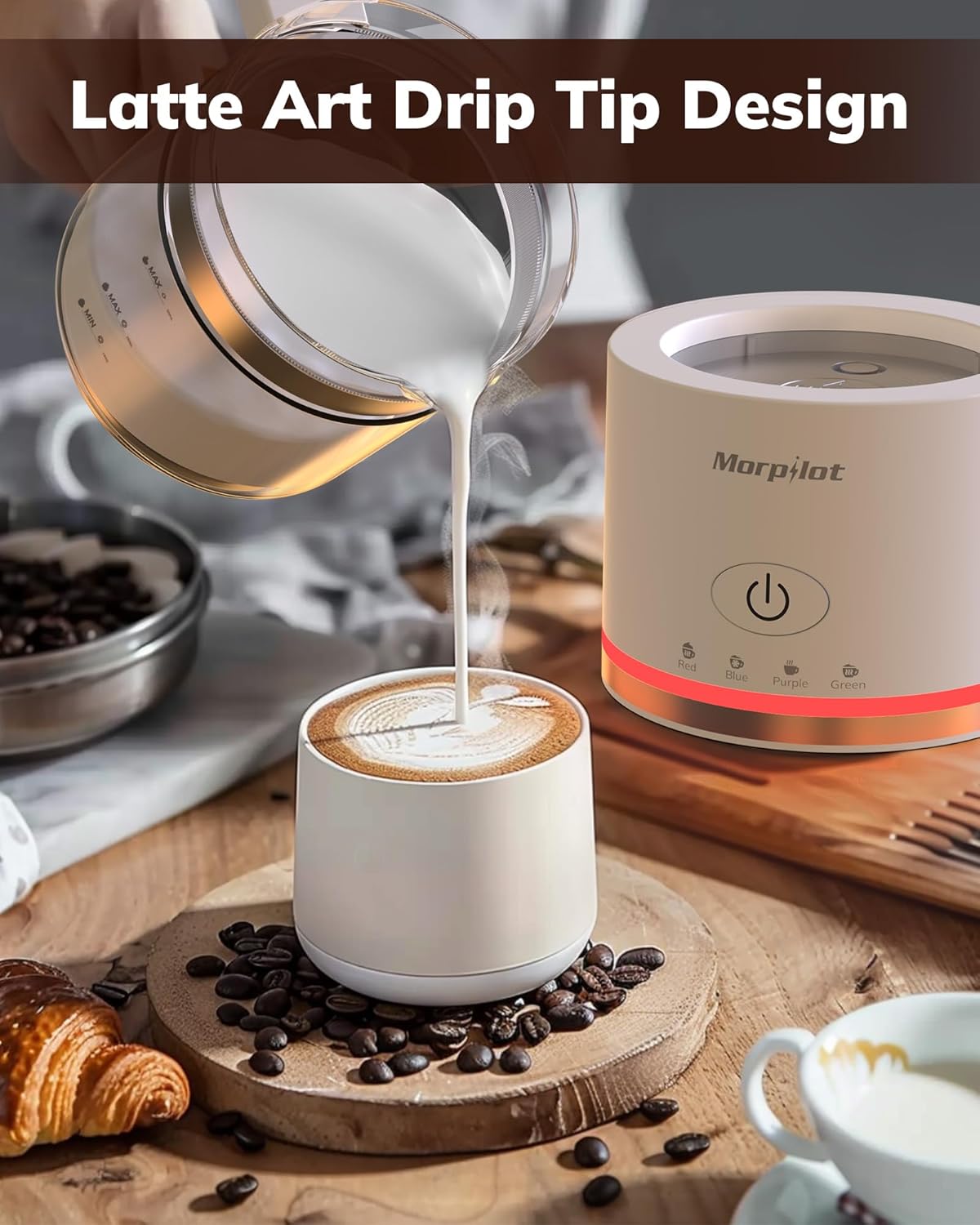

الصورة 4: A hand is shown carefully pouring frothed milk from the Morpilot Glass Milk Frother into a cup, demonstrating its suitability for creating latte art designs.

6. الصيانة والتنظيف

Regular cleaning ensures optimal performance and longevity of your Morpilot Milk Frother.

الصورة 5: The detachable glass jug of the Morpilot Milk Frother is shown being rinsed under running water, highlighting its easy-to-clean design.

1. افصل: افصل الجهاز دائمًا عن مأخذ التيار الكهربائي قبل التنظيف.
2. ترطيب: Allow the frother to cool completely before disassembling or cleaning.
3. إبريق زجاجي وغطاء: The glass jug and lid are detachable and can be washed by hand with warm soapy water. Use the provided cleaning brush to remove any milk residue. Rinse thoroughly and dry completely.
4. Whisk Attachments: Remove the whisk from the jug and clean it with warm soapy water and the cleaning brush.
5. وحدة قاعدة: Wipe the exterior of the main base unit with a soft, damp cloth. Do not immerse the base unit in water or place it under running water. Ensure the electrical contacts are dry before re-use.
6. تخزين: Store the frother in a clean, dry place when not in use.

7. استكشاف الأخطاء وإصلاحها

If you encounter any issues with your Morpilot Glass Milk Frother, please refer to the following common problems and solutions:

• Frother does not start:
  • تأكد من توصيل سلك الطاقة بشكل آمن بمنفذ العمل.
  • Check if the glass jug is correctly placed on the base unit.
  • Press the power button firmly to select a function.
• Milk is not frothing or foam is insufficient:
  • تأكد من تركيب مضرب الرغوة بشكل صحيح.
  • Check that the milk level is between the MIN and the lower MAX frothing line. Overfilling or underfilling can affect frothing.
  • Use cold, fresh milk. Whole milk generally froths best, but other types of milk (e.g., oat, almond) may require specific frothing techniques or brands.
  • Ensure the whisk and jug are clean and free from residue.
• Milk overflows during operation:
  • Do not exceed the MAX fill line for frothing (lower MAX line).
  • Ensure the lid is securely placed on the jug.
• الحليب لا يسخن:
  • Ensure the heating whisk (if applicable) is installed, or the frothing whisk is used with a heating function.
  • Verify that a heating function (Red, Purple, Green LED) has been selected.

إذا استمرت المشكلة بعد التحقق من هذه النقاط، فيرجى الاتصال بدعم العملاء.

8. المواصفات

9. الضمان والدعم

Morpilot products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your product or contact Morpilot customer service through the retailer where the product was purchased. Please have your model number (HS001) and proof of purchase ready when contacting support.
