دليل مستخدم فأرة الألعاب اللاسلكية MCHOSE G3 Ultra

1. المقدمة

The MCHOSE G3 Ultra is a high-performance wireless gaming mouse designed for precision and flexibility. It features a symmetrical design, a 26,000 DPI optical sensor, and tri-mode connectivity (2.4G RF, Bluetooth, and Wired). With an 8KHz polling rate and a lightweight 64g build, it offers responsive and comfortable gaming sessions. The mouse also boasts an extended battery life of up to 130 hours.

Figure 1: MCHOSE G3 Ultra Wireless Gaming Mouse (White)

2. انتهى المنتجview

Familiarize yourself with the components and indicators of your MCHOSE G3 Ultra mouse.

Figure 2: MCHOSE G3 Ultra Component Diagram. Key components include the DPI Indicator Light, DPI Switch, 2.4G Indicator Light, BT1 Indicator Light, BT2 Indicator Light, ON/OFF Switch, and Receiver Organiser.

Figure 3: Underside of the G3 Ultra mouse, showing the optical sensor, ON/OFF switch, and receiver storage compartment.

3. الإعداد

3.1 شحن الماوس

Before first use, fully charge the mouse using the provided USB-C cable. Connect the cable to the mouse's front port and to a USB power source. The DPI indicator light will show charging status.

Figure 4: MCHOSE G3 Ultra mouse being charged via USB-C cable.

3.2 تشغيل/إيقاف التشغيل

Locate the ON/OFF switch on the underside of the mouse (refer to Figure 3). Slide the switch to 'ON' to power on the mouse and to 'OFF' to power it down.

3.3 Connecting the Mouse (Tri-Mode)

The G3 Ultra supports three connection modes: 2.4G RF Wireless, Bluetooth, and Wired USB-C.

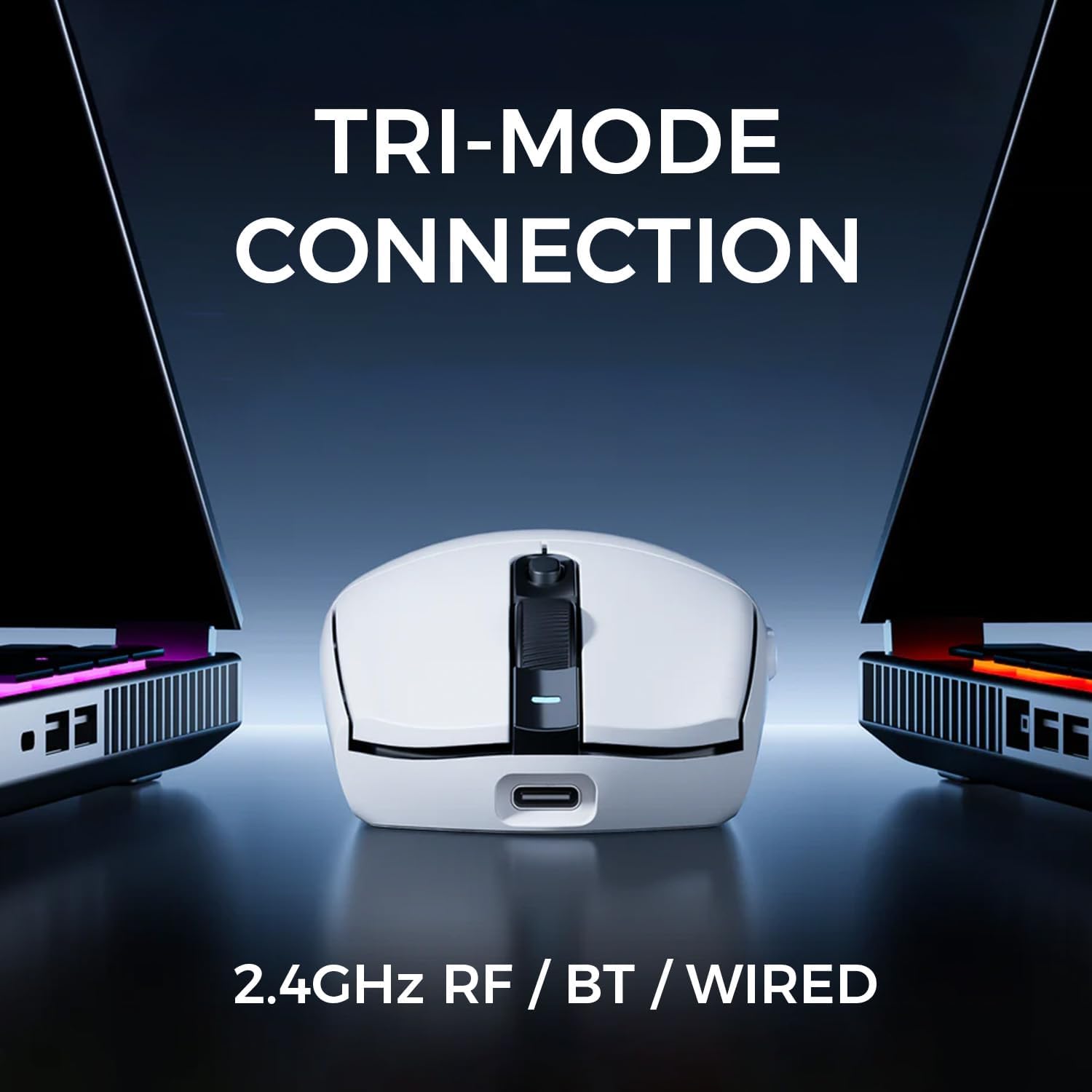

Figure 5: Tri-Mode Connection options: 2.4GHz RF, Bluetooth, and Wired.

3.3.1 اتصال لاسلكي بتردد 2.4 جيجا هرتز

1. Remove the USB receiver from the storage compartment on the underside of the mouse.
2. قم بتوصيل مستقبل USB بمنفذ USB متاح على جهاز الكمبيوتر الخاص بك.
3. Turn on the mouse using the ON/OFF switch. The 2.4G indicator light will illuminate, indicating a successful connection.

3.3.2 اتصال البلوتوث

1. قم بتشغيل الماوس.
2. Press and hold the DPI switch (refer to Figure 2) for 3 seconds to enter Bluetooth pairing mode. The BT1 or BT2 indicator light will flash.
3. On your computer or device, go to Bluetooth settings and search for 'MCHOSE G3 Ultra'.
4. Select the mouse to pair. The indicator light will become solid once connected.
5. To switch between BT1 and BT2 profiles, briefly press the DPI switch.

3.3.3 اتصال سلكي

1. قم بتوصيل كابل USB-C المقدم بالمنفذ الأمامي للفأرة.
2. قم بتوصيل الطرف الآخر من الكابل بمنفذ USB على جهاز الكمبيوتر الخاص بك.
3. سيتحول الماوس تلقائيًا إلى الوضع السلكي ويبدأ الشحن.

4. التشغيل

4.1 ضبط DPI

The MCHOSE G3 Ultra features a dedicated DPI switch (refer to Figure 2) to cycle through different DPI sensitivity levels. Each press of the DPI switch will change the sensitivity, indicated by the DPI indicator light changing color or flashing pattern.

4.2 معدل الاقتراع

The mouse supports an 8KHz polling rate for ultra-fast response times in wireless and wired modes. This high polling rate ensures smooth and precise cursor movement.

Figure 6: The G3 Ultra supports an 8KHz polling rate for enhanced responsiveness.

4.3 وظائف الأزرار

The mouse includes standard left and right click buttons, a scroll wheel, and two side buttons. These buttons are designed with an independent button pressure system for tactile feedback.

الشكل 7: داخلي view highlighting the Independent Button Pressure System for consistent click feel.

4.4 مؤشر حالة البطارية

The DPI indicator light also serves as a battery status indicator. Refer to the product's full software or specific documentation for detailed light patterns indicating battery levels.

5. الصيانة

5.1 التنظيف

To clean your mouse, use a soft, dry, lint-free cloth. For stubborn dirt, slightly dampen the cloth with water. Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the mouse's surface or internal components.

5.2 العناية بالبطارية

To maximize battery life, avoid fully discharging the mouse frequently. Charge the mouse when the battery indicator suggests a low level. Store the mouse in a cool, dry place when not in use for extended periods.

6. استكشاف الأخطاء وإصلاحها

• الفأرة لا تستجيب: Ensure the mouse is powered on. Check the connection mode (2.4G, BT, Wired) and ensure it matches your computer's connection. For 2.4G, ensure the USB receiver is securely plugged in. For Bluetooth, re-pair the device. For wired, check the USB-C cable connection.
• حركة المؤشر غير منتظمة أو بطيئة: Clean the optical sensor on the underside of the mouse. Ensure the mousepad or surface is clean and suitable for optical mouse tracking. Check DPI settings and adjust if necessary.
• الماوس لا يشحن: Ensure the USB-C cable is properly connected to both the mouse and the power source. Try a different USB port or charging adapter.
• مشاكل اتصال البلوتوث: Ensure your device's Bluetooth is enabled. Try removing the mouse from your device's Bluetooth list and re-pairing it. Ensure the mouse is in Bluetooth pairing mode (flashing BT indicator light).

7. المواصفات

8. الضمان والدعم

For warranty information and technical support, please refer to the documentation included with your product or visit the official MCHOSE webموقع. يمكنك أيضًا زيارة MCHOSE Store on Amazon لمزيد من تفاصيل المنتج وموارد الدعم.
