مقدمة
Thank you for choosing the SERPHIX SB-105 Digital Scoreboard. This device is designed to provide clear and versatile scoring and timing for various indoor sports and activities. Please read this manual thoroughly before use to ensure proper operation and to maximize your experience with the product.
Image: The SERPHIX SB-105 Digital Scoreboard displaying scores, accompanied by its remote control.
المنتج انتهىview
المميزات الرئيسية:
- شاشة رقمية كبيرة: 15.2 x 4 x 1.5 inches with 2.7-inch digits for clear visibility.
- سطوع قابل للتعديل: 5 levels of brightness to suit various indoor lighting conditions.
- Variable LED Colors: Scoreboard mode offers 6 color sets; Timer/Clock mode offers 11 LED colors.
- جهاز التحكم عن بعد: Operates effectively up to 40 feet for convenient score and timer management.
- Score Tracking: Records scores for two teams (0-99) and wins/fouls (0-9).
- One-Button Side Switch: Easily swaps scores, foul counts, and LED colors when teams change sides.
- Multi-functional Timer & Clock: Supports 12/24-hour clock, stopwatch, countdown, and count-up functions.
- مزود الطاقة: Supports DC adapter and USB power bank (not battery operated).
- تثبيت: Can be placed on a table or wall-mounted.
Image: The scoreboard's dimensions, highlighting its 15.2-inch length and 2.7-inch digit height, along with a 6-level dimmer illustration.
Image: The scoreboard illustrating its multi-functionality, including score mode, 12/24H clock, stopwatch, countdown, and count-up features.
Image: The 15.2-inch large display, designed for easy viewing from a distance, with an illustration of the 40ft effective remote control range.
محتويات الحزمة:
- Digital Scoreboard (SB-105)
- 96" USB Cable
- محول الطاقة
- جهاز التحكم عن بعد
- دليل التعليمات (هذا المستند)
- Install accessories (M4 Screws*2, Wall Screws*2, Fixed Bracket*2)
الصورة: تفصيلية view of the packing list, including the scoreboard, USB cable, remote control, power adapter, and installation hardware.
تعليمات الإعداد
- أفرغ: قم بإزالة جميع المكونات بعناية من العبوة.
- توصيل الطاقة: Connect the provided 96" USB cable to the scoreboard and then to the power adapter. Plug the power adapter into a standard electrical outlet. Alternatively, connect the USB cable to a compatible USB power bank for portable use.
ملاحظة هامة: The scoreboard must be plugged into a power source to operate; it is not battery-operated. Batteries for the remote control (2xAAA) and a power bank are not included.
- بطاريات جهاز التحكم عن بعد: Insert 2xAAA batteries (not included) into the remote control.
- الموقع:
- استخدام الطاولة: Place the scoreboard on a stable, flat surface.
- التثبيت على الحائط: Use the provided M4 screws, wall screws, and fixed brackets to securely mount the scoreboard on a wall. Ensure the mounting location is suitable for the scoreboard's weight and dimensions.
Image: The scoreboard in various setups, including portable use with a power bank and wall-mounted installation, emphasizing its indoor use recommendation.
تعليمات التشغيل
انتهى التحكم عن بعدview:
The remote control allows for easy management of all scoreboard functions from a distance of up to 40 feet. Point the remote directly at the scoreboard for optimal performance.
Image: The remote control, illustrating its effective range of 40 feet and its ability to track scores (0-99), wins/fouls (0-9), and swap score positions.
ملاحظة هامة: The remote control does not operate on an independent signal. Using multiple scoreboards in the same environment simultaneously may cause interference.
Scoreboard Mode:
- Adjusting Scores: استخدم SCORE + و SCORE - buttons on the remote to increase or decrease scores for each team (0-99).
- Tracking Fouls/Wins: استخدم FOUL + و FOUL - buttons to track fouls or wins for each team (0-9).
- Resetting Scores: اضغط على إعادة ضبط button to quickly clear all scores. Individual scores can also be cleared.
- Switching Sides: اضغط على تبديل button to exchange the positions of scores, foul counts, and LED colors between the two teams. This is useful when teams change sides during a game.
Image: The "Switch Sides" feature, demonstrating how scores, foul counts, and colors are exchanged with a single button press, aiding in accurate scorekeeping during team changes.
Image: The scoreboard tracking scores up to 99 and fouls up to 9, with notes on quick reset and individual score clearing.
Variable LED Colors:
- In scoreboard mode, choose from 6 sets of LED colors to differentiate between teams.
- In timer/clock mode, select from 11 LED colors for display.
- Use the remote control to cycle through the available color options.
Image: Six distinct color schemes available for the scoreboard, such as Red-Blue, Green-Red, and Yellow-Blue, allowing for personalized team identification.
Image: Practical color choices for the scoreboard, showing how colors can be matched to team jerseys for intuitive score display, and how scores and colors swap when teams switch sides.
Timer & Clock Functions:
- وضع الساعة: Displays time in 12-hour or 24-hour format. Seconds can be hidden.
- ساعة التوقيف: يقيس الوقت المنقضي.
- العد التنازلي: Counts down from a set time.
- ابدأ العد: Counts up from zero.
- Use the remote control to switch between modes and adjust settings.

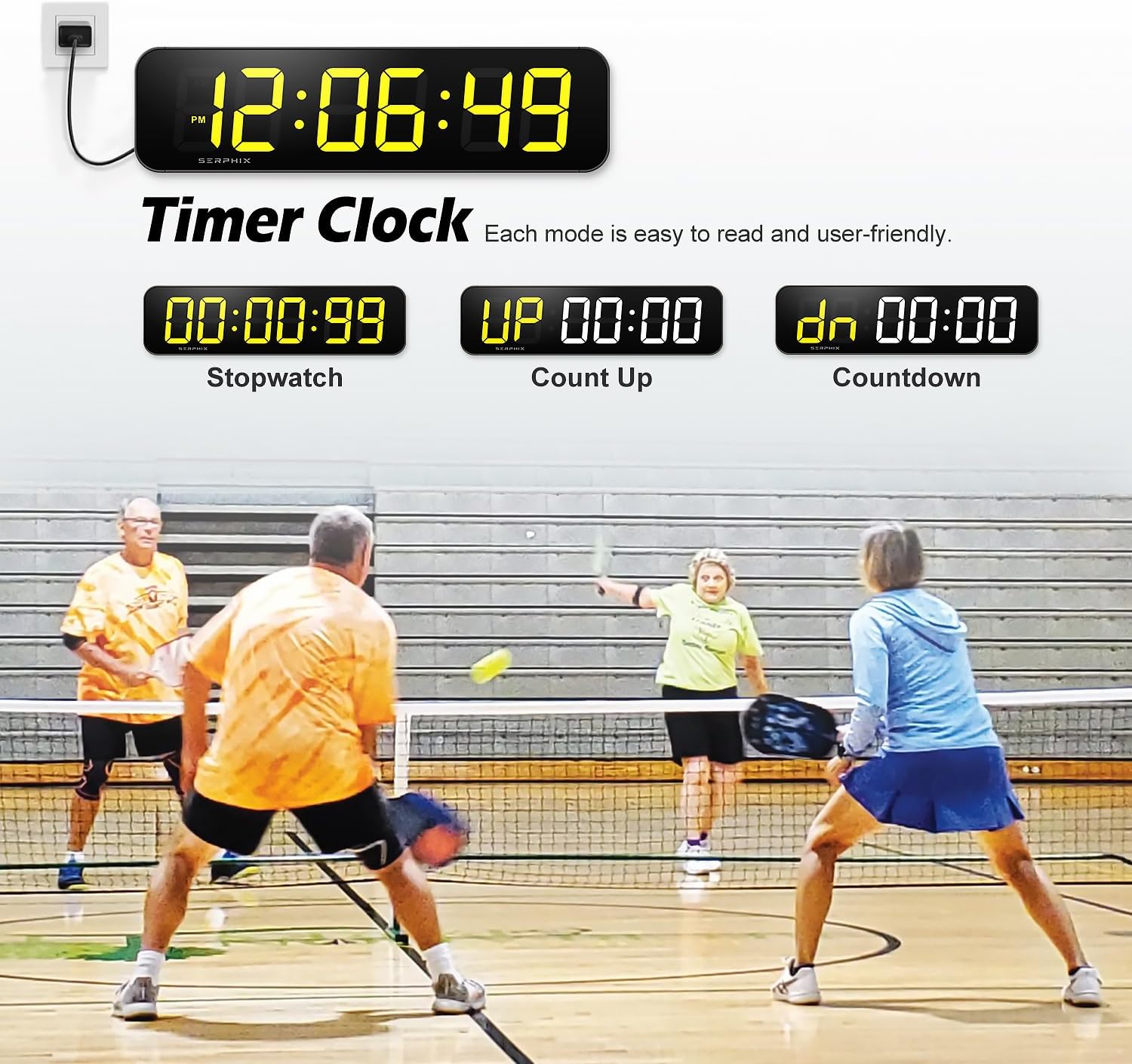

Image: The scoreboard showcasing its timer and clock functions, including current time display, stopwatch, count-up, and countdown modes, all designed for clear readability.
Image: The scoreboard functioning as a large digital clock, offering 11 color options and supporting both 12-hour and 24-hour formats, with the ability to hide seconds.
Image: The scoreboard displaying its Count Up, Count Down, and Stopwatch functions, highlighting that colors can be controlled by zones and each mode is clear and easy to read.
صيانة
- تنظيف: Use a soft, dry cloth to clean the display and exterior. Avoid abrasive cleaners or solvents.
- تخزين: When not in use, store the scoreboard in a dry, cool place away from direct sunlight and extreme temperatures.
- انقطاع التيار الكهربائي: Disconnect the power adapter when the scoreboard will not be used for extended periods.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| Scoreboard does not power on. | لا يوجد طاقة، اتصال فضفاض، محول معيب. | Ensure the power adapter is securely plugged into both the scoreboard and a working electrical outlet. Try a different outlet or USB power bank. |
| جهاز التحكم عن بعد لا يستجيب. | Dead batteries, remote out of range, obstruction, signal interference. | Replace remote batteries (2xAAA). Ensure you are within 40 feet and pointing directly at the scoreboard. Remove any obstructions. Avoid using multiple scoreboards in close proximity. |
| Scores or timer settings are lost after power off. | No memory clock/battery backup. | This model does not have a memory clock for retaining settings when power is disconnected. Settings will need to be re-entered upon powering on. |
| Display is dim or hard to see. | Brightness setting too low, bright ambient light. | Adjust the brightness level using the remote control. Ensure the scoreboard is used in an indoor environment, as LED scores may not be visible in bright outdoor conditions. |
تحديد
| اسم الموديل | إس بي-105 |
| ماركة | سيرفيكس |
| الأبعاد (الطول × العرض × الارتفاع) | 15.2 × 4 × 1.5 بوصة |
| ارتفاع الرقم | 2.7 بوصة |
| مادة | الألومنيوم |
| لون | أسود |
| نطاق التحكم عن بعد | حتى 40 قدم |
| مصدر الطاقة | DC Adapter / USB Power Bank (must be plugged in) |
| الاستخدام الموصى به | للاستخدام الداخلي فقط |
الضمان والدعم
For warranty information regarding your SERPHIX SB-105 Digital Scoreboard, please contact the seller directly. For technical support or further assistance, refer to the contact information provided with your purchase or visit the official SERPHIX store on Amazon: SERPHIX Store.
ملاحظات وتحذيرات هامة
- للاستخدام الداخلي فقط: This scoreboard is designed for indoor use. LED scores may not be visible in bright outdoor environments.
- مصدر الطاقة: The device requires continuous power and is not battery-operated.
- Remote Interference: Avoid using multiple scoreboards with remote controls in the same area to prevent signal interference.
- No Memory Clock: Stored records (like time settings) will be lost if power is disconnected.
