مقدمة
This manual provides detailed instructions for the proper installation, usage, and maintenance of the TOPAZ 637S 2-1/2 inch Steel Connector. This connector is designed for secure termination of Electrical Metallic Tubing (EMT) or Rigid Conduit to an electrical box or enclosure. Please read all instructions carefully before beginning installation to ensure safe and effective use.
المنتج انتهىview
The TOPAZ 637S is a durable steel connector engineered for robust electrical installations. It features a combination design allowing for connection to both EMT and Rigid Conduit. The connector includes set screws for securing EMT and a threaded end for rigid conduit connections, ensuring a reliable and compliant electrical pathway.

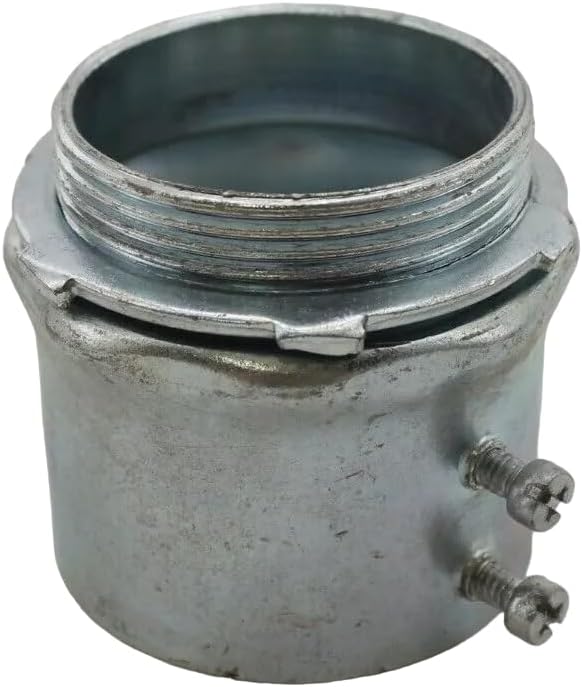

Image: A TOPAZ 637S 2-1/2 inch steel connector. The connector is cylindrical, made of galvanized steel, with two visible set screws on one side and internal threading on the other end.
تعليمات التثبيت
السلامة أولاً: Always ensure power is disconnected at the circuit breaker before performing any electrical work. Wear appropriate personal protective equipment (PPE).
- Prepare Conduit: Cut the EMT or Rigid Conduit to the desired length. Ensure the ends are clean and free of burrs.
- For EMT Connection:
- Insert the EMT into the unthreaded end of the connector body.
- Tighten the two set screws firmly against the EMT using a screwdriver to ensure a secure mechanical and electrical connection.
- For Rigid Conduit Connection:
- Thread the Rigid Conduit into the threaded end of the connector until it is fully engaged and tight.
- Secure to Enclosure: Insert the threaded end of the connector (with conduit attached) through the knockout hole of the electrical box or enclosure.
- Install Locknut: Thread the provided locknut (typically supplied with the electrical box or purchased separately) onto the connector's threaded end from inside the box. Tighten the locknut securely to fasten the connector to the enclosure.
- تحقق من الاتصال: Double-check all connections for tightness and proper alignment before restoring power.
الاستخدام
Once properly installed, the TOPAZ 637S connector provides a secure and continuous pathway for electrical wiring within the conduit system. It is designed for use in dry locations to connect 2-1/2 inch EMT or Rigid Conduit to electrical boxes or other enclosures, ensuring compliance with applicable electrical codes.
العناية والصيانة
The TOPAZ 637S steel connector is designed for long-term durability with minimal maintenance. Periodically inspect the installed connectors for any signs of corrosion, damage, or loosening. Ensure that set screws (for EMT) or threaded connections (for Rigid Conduit) remain tight to maintain electrical continuity and mechanical integrity. Clean the exterior with a dry cloth if necessary. Do not use abrasive cleaners or solvents.
استكشاف الأخطاء وإصلاحها
- Loose Conduit Connection:
If the conduit feels loose within the connector, ensure that the set screws (for EMT) are fully tightened or that the rigid conduit is threaded completely and securely into the connector. Re-tighten as needed.
- Connector Not Securing to Box:
Verify that the locknut is properly threaded onto the connector and tightened against the electrical box. Ensure the knockout hole size matches the connector size (2-1/2 inch).
- تآكل:
While made of steel, prolonged exposure to moisture or harsh environments can lead to corrosion. Ensure the installation environment is suitable for the product. Replace corroded connectors immediately.
المواصفات الفنية
| ميزة | التفاصيل |
|---|---|
| رقم الموديل | 637 ثانية |
| مادة | فُولاَذ |
| مقاس | 2-1/2 بوصة |
| وزن العنصر | 8 أونصات |
| أبعاد المنتج | 3 × 3 × 3 بوصة |
| لون | رمادي |
| الشركة المصنعة | توباز |
معلومات الضمان
Specific warranty details for the TOPAZ 637S connector are typically provided by the point of purchase or the manufacturer. Please retain your proof of purchase. For any warranty claims or inquiries, refer to the documentation provided at the time of purchase or contact the manufacturer directly.
دعم العملاء
For technical assistance, product inquiries, or support, please contact the seller or the manufacturer, TOPAZ, through their official customer service channels. Provide your product model number (637S) and a detailed description of your query for efficient assistance.
