1. المقدمة
This user manual provides detailed instructions for the safe and effective operation of your VOOPOO VMATE MAX Pod Kit. Please read this manual thoroughly before use and retain it for future reference.
The VOOPOO VMATE MAX is a compact and powerful pod system featuring a 1200mAh built-in battery, 30W max output, and a hidden horizon screen. It utilizes the new 3X Upgrade VMATE Top Fill Cartridge designed for enhanced longevity, leakage prevention, and flavor delivery.
2. ماذا يوجد في الصندوق
- 1x VMATE MAX Device
- 1x VMATE 0.4Ω (2 ml) Top Fill Cartridge
- 1x VMATE 0.7Ω Top Fill Cartridge (2 mL)
- 1 × كابل شحن من النوع C
- 1 × دليل المستخدم
Image: Contents of the VOOPOO VMATE MAX Pod Kit packaging, including the device, two cartridges, a USB-C cable, and the user manual.
3. مواصفات المنتج
- بطارية مدمجة بسعة 1200 مللي أمبير في الساعة: Provides extended usage time, supporting up to 3 days of vaping.
- 30W Max Power Output: Delivers dense vapor and a smooth RDL (Restricted Direct Lung) experience.
- Hidden Horizon Screen: Integrates a discreet display for a clean and elegant aesthetic.
- Stepless Airflow Adjustment: Allows precise control over airflow for a customized vaping experience.
- 3X Upgrade VMATE Top Fill Cartridge: Enhanced design for improved longevity, leak resistance, and flavor.
- Top Filling System: يُسهّل عملية إعادة التعبئة.
- الشحن السريع من النوع C: Supports 5V/2A charging for quick battery replenishment.
الصورة: أكثر منview of VOOPOO VMATE MAX features, highlighting the 90 mL lifespan cartridge, hidden screen, 30W power, and 1200mAh battery.
الصورة: مفصلة view of the 3X Upgrade features, including 30W max power output, 1200mAh large battery, and the hidden horizon screen.
4. دليل الإعداد
4.1 شحن الجهاز
Before first use, fully charge the VMATE MAX device. Connect the provided Type-C charging cable to the charging port on the device and the other end to a suitable USB power source (e.g., wall adapter, computer USB port). The hidden screen will indicate charging status. A full charge typically takes approximately 60 minutes with a 5V/2A charger.
4.2 Installing and Filling the Cartridge
- Remove the cartridge from the device.
- Locate the top-fill port on the cartridge. Open the silicone plug.
- Carefully fill the cartridge with your desired e-liquid through the fill port. Do not overfill.
- Securely close the silicone plug.
- Insert the filled cartridge back into the device. Ensure it clicks firmly into place.
- مهم: After filling a new cartridge, wait at least 5-10 minutes before first use to allow the coil to become fully saturated with e-liquid. This prevents dry hits and extends coil life.

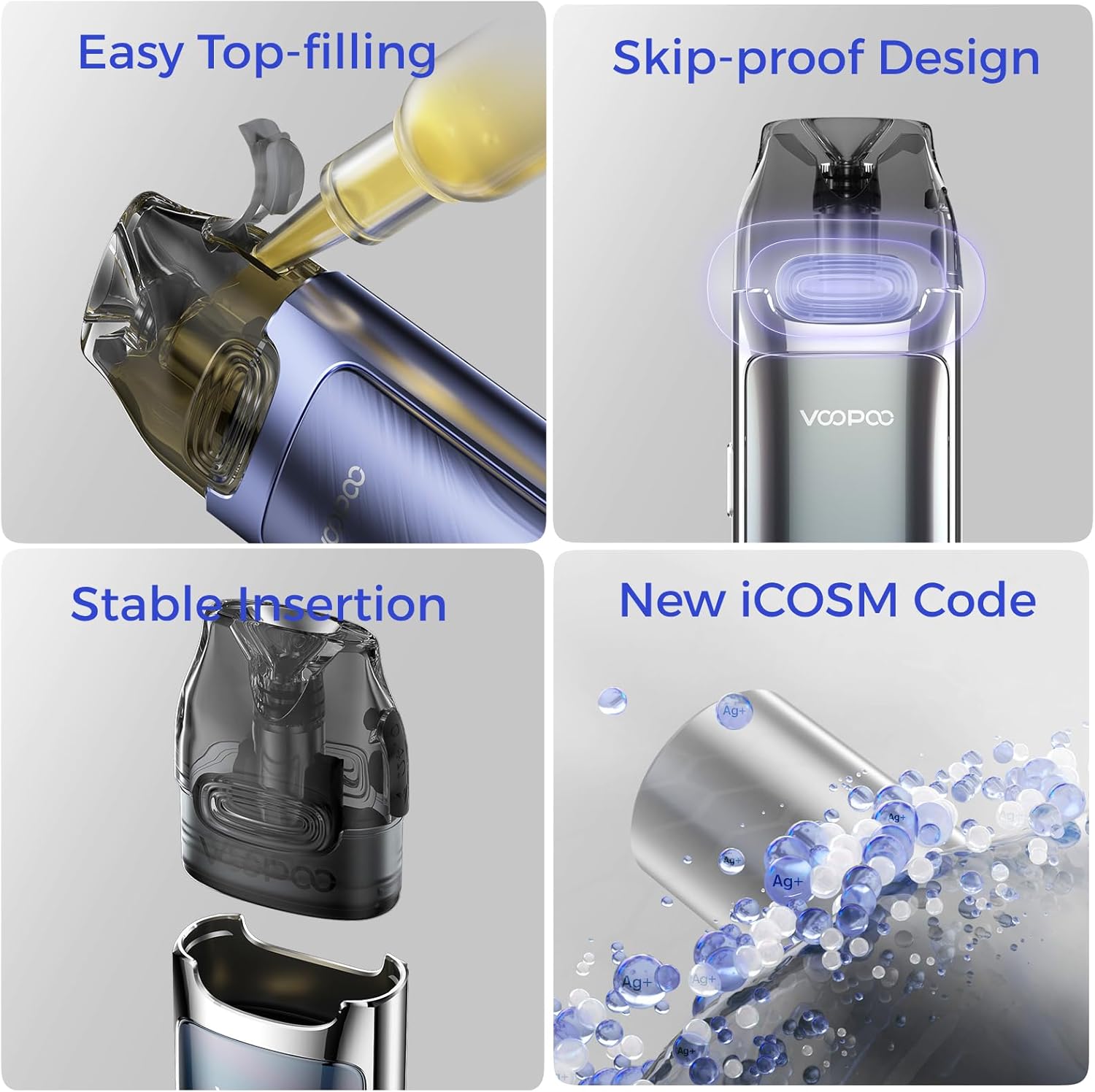

Image: Visual guide demonstrating the easy top-filling method and stable insertion of the VMATE MAX cartridge into the device.
5. تعليمات التشغيل
5.1 تشغيل/إيقاف التشغيل
To power on the device, press the fire button (main button) 5 times rapidly. Repeat the process to power off the device.
5.2 التدخين الإلكتروني
The VMATE MAX is an auto-draw device. Simply inhale from the mouthpiece to activate the device and produce vapor. The device will automatically adjust the wattage based on the installed cartridge and airflow setting.
5.3 تعديل تدفق الهواء
The device features a stepless airflow adjustment slider, usually located on the side of the device. Slide it up or down to increase or decrease the airflow, customizing your draw from a tighter MTL (Mouth-to-Lung) to a looser RDL (Restricted Direct Lung) experience.
5.4 شاشة عرض
The hidden horizon screen displays essential information such as battery level, current wattage, coil resistance, and puff count. The dual 256-color LED lights provide visual feedback during operation and charging.
6. الصيانة
6.1 استبدال الخرطوشة
Replace the cartridge when you notice a burnt taste, reduced vapor production, or a significant change in flavor. To replace, simply pull out the old cartridge and insert a new one after filling it with e-liquid and allowing it to prime.
6.2 التنظيف
Regularly clean the contact points between the cartridge and the device with a dry cotton swab to ensure optimal connection. Wipe down the device exterior with a soft, dry cloth. Avoid using harsh chemicals or abrasives.
6.3 التخزين
يُحفظ الجهاز في مكان بارد وجاف بعيداً عن أشعة الشمس المباشرة ودرجات الحرارة القصوى. يُحفظ بعيداً عن متناول الأطفال والحيوانات الأليفة.
7. استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الجهاز لا يعمل | Low battery; Device is off | Charge the device; Press the fire button 5 times rapidly to turn on. |
| لا يوجد إنتاج للبخار | Cartridge not properly installed; Low e-liquid; Coil burnt out; Dirty contacts | Re-insert cartridge firmly; Refill e-liquid; Replace cartridge; Clean contact points. |
| Leaking from cartridge | Overfilled cartridge; Worn out cartridge; Improper sealing | Do not overfill; Replace cartridge; Ensure silicone plug is securely closed. |
| طعم محروق | Coil not primed; E-liquid level too low; Coil burnt out | Allow new cartridge to prime for 5-10 mins; Refill e-liquid; Replace cartridge. |
8. المواصفات
| ميزة | التفاصيل |
|---|---|
| اسم المنتج | VOOPOO VMATE MAX Pod Kit |
| رقم الموديل | VOOPOOVMATEMAX02 |
| أبعاد | 103 x 29 x 18.7 mm (Device) |
| وزن | 79 g (Device) |
| مادة | Zinc Alloy (Device), PCTG, Silver Ion, Silicone (Cartridge) |
| سعة البطارية | 1200 مللي أمبير (مدمجة) |
| طاقة الإخراج | 5-30 واط |
| حجم الإخراجtage | 3.2-4.2 فولت |
| مدى المقاومة | 0.4-3.0 |
| الشحن | النوع C، 5 فولت/2 أمبير |
| Cartridge Name | VMATE Top Fill Cartridge |
| سعة الخرطوشة | 2 mL (TPD version) |
| مقاومة الخرطوشة | 0.4 أوم، 0.7 أوم |
| Recommended Nicotine | ≤50 mg / Freebase |
Image: Diagram showing the dimensions and key specifications of the VOOPOO VMATE MAX device and cartridge.
9. الضمان والدعم
VOOPOO provides a limited warranty for its products. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, product inquiries, or warranty claims, please contact VOOPOO customer service through their official webالموقع أو بائع التجزئة الذي اشتريت منه المنتج.
تحذير صحي: Please keep this product out of the reach of children. This product is intended for adult users only. Capacity of tank: 2ml. No Nicotine, No E Liquid.
