Ambition Sally

دليل استخدام جهاز المكياج الدائم اللاسلكي "أمبيشن سالي"

Model: Sally

1. انتهى المنتجview

The Ambition Sally Wireless Permanent Makeup Machine is a versatile rotary tattoo pen designed for precision permanent makeup applications such as eyebrows, eyeliner, lips, and small tattoos. Constructed from durable aluminum, this lightweight machine features a custom coreless motor for stable output and low vibration. It offers five adjustable stroke lengths (2.0mm, 2.4mm, 2.8mm, 3.2mm, 3.5mm) and an LED digital display for monitoring voltage, battery life, hertz, and running time. The machine can operate wirelessly with its 1000mAh battery or be connected via an RCA adapter for wired use.

Ambition Sally Wireless Permanent Makeup Machine with extra battery

Image 1.1: The Ambition Sally Wireless Permanent Makeup Machine shown with its detachable battery pack.

2. محتويات العبوة

Upon opening your Ambition Sally Wireless Tattoo Pen package, you should find the following items:

  • 1 Pcs Battery Tattoo Pen
  • 1 Pcs Extra Battery
  • 1 Pcs RCA adapter
  • 1 Pcs USB Fast Charging Data Cable
  • 1 Pcs Storage Box

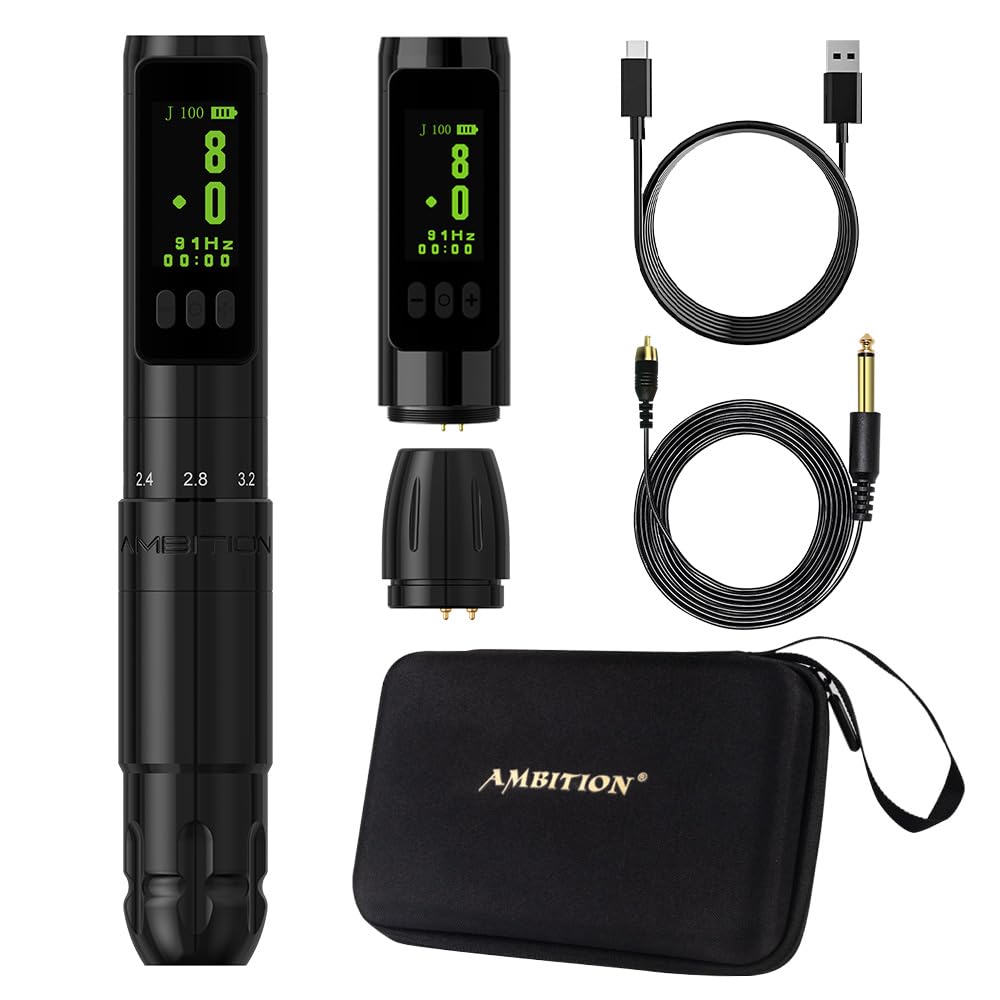

Contents of the Ambition Sally Wireless Permanent Makeup Machine package

Image 2.1: All components included in the Ambition Sally Wireless Permanent Makeup Machine package.

3. المواصفات

Detailed technical specifications for the Ambition Sally Wireless Permanent Makeup Machine:

المعلمةقيمة
وزن108 جرام / 3.8 أونصة
Size (Length x Diameter)141 مم × 22 مم (5.5 بوصة × 0.86 بوصة)
المحركCustom Coreless Motor (17mm x 25mm)
سرعة المحرك12V12500Rpm
عزم الدوران160g.cm
طول الضربة2.0mm, 2.4mm, 2.8mm, 3.2mm, 3.5mm (adjustable)
المجلدtage المدى4-12 فولت
سعة البطارية1000 مللي أمبير
عمر البطارية3-4 Hours (at 5-8V working voltage)
وقت الشاحن1-1.5 Hours (full charge)
قيمة الاهتزاز0.3 متر/ثانية مربعة
ديسيبل37-39 ديسيبل
منفذ الشحنالنوع-C
Ambition Sally Tattoo Machine specifications chart

Image 3.1: Visual representation of the Ambition Sally Tattoo Machine's key specifications.

4. معلومات السلامة

يرجى قراءة والالتزام بإرشادات السلامة التالية:

  • للاستخدام الخارجي فقط.
  • تجنب ملامسة العينين.
  • الابتعاد عن اللهب المكشوف.
  • Always ensure proper sterilization of needles and equipment before use.
  • Consult with a qualified professional for proper training and techniques in permanent makeup application.

5. الإعداد

Follow these steps to set up your Ambition Sally machine:

  1. شحن البطارية: Connect the provided USB Fast Charging Data Cable to the Type-C port on the battery and a 5V/2A charging adapter. The LED display will indicate charging status. A full charge typically takes 1-1.5 hours.
  2. قم بتوصيل البطارية: Align the battery pack with the main body of the machine and twist gently until it is securely connected.
  3. أدخل خرطوشة الإبرة: Twist your compatible tattoo needle cartridge into the machine's grip until it is firmly seated. Ensure the needle is properly aligned.

6. تعليمات التشغيل

6.1 تشغيل/إيقاف التشغيل

  • To power on the machine, press and hold the power button for a few seconds until the LED display illuminates.
  • لإيقاف التشغيل، اضغط مع الاستمرار على زر الطاقة مرة أخرى حتى يتم إيقاف تشغيل الشاشة.

6.2 المجلدtagهـ التعديل

The machine allows for precise voltagالتحكم الإلكتروني:

  • استخدم '+' و '-' buttons on the battery pack to adjust the output voltage.
  • Each press adjusts the voltagبمقدار 0.1 فولت.
  • المجلد الحاليtage is displayed on the LED screen.
Ambition Sally Mini Battery LED display and controls

Image 6.1: Close-up of the battery's LED display showing voltage, hertz, and timing, along with control buttons.

6.3 Stroke Length Adjustment

The Ambition Sally machine offers five adjustable stroke lengths:

  • Rotate the adjustment knob on the machine body to select your desired stroke length: 2.0mm, 2.4mm, 2.8mm, 3.2mm, or 3.5mm.
  • This allows for versatility across different permanent makeup styles and techniques.
Ambition Sally adjustable stroke length mechanism

Image 6.2: The adjustable knob for selecting stroke length on the machine body.

6.4 Startup Modes

The battery features two startup modes:

  • Standard Mode (Display 'S'): For regular operation.
  • Jump Start Mode (Display 'J' at 8V): Provides an initial power boost for certain needle configurations or starting conditions.
  • To switch between modes, quickly double-click the power button.

6.5 Wired Operation

If the battery is depleted or for preference, the machine can be used with the included RCA adapter:

  • Detach the battery pack from the machine.
  • Connect the RCA adapter to the machine's power input.
  • Connect the RCA adapter to a compatible power supply (not included).
Ambition Sally machine in wireless and wired configurations

Image 6.3: The Ambition Sally machine demonstrating both wireless operation with the battery and wired operation using an RCA adapter.

فيديو 6.4: أكثر منview of the Ambition Sally Wireless Permanent Makeup Machine, showcasinج- مميزاته وطريقة عمله.

7. الصيانة

Proper maintenance ensures the longevity and optimal performance of your machine:

  • تنظيف: After each use, carefully wipe down the machine's exterior with a suitable disinfectant wipe. Avoid getting liquids inside the motor housing or battery connections.
  • تعقيم: Ensure all components that come into contact with skin or pigments (e.g., needle cartridges) are single-use and disposed of properly, or sterilized according to professional standards if reusable.
  • تخزين: Store the machine and its accessories in the provided storage box in a clean, dry place away from direct sunlight and extreme temperatures.
  • الشحن: Always use the original charging cable and a compatible 5V/2A adapter to prevent damage to the battery.

8. استكشاف الأخطاء وإصلاحها

If you encounter issues with your Ambition Sally machine, refer to the following common problems and solutions:

مشكلةالسبب المحتملحل
الجهاز لا يعمل.البطارية فارغة أو غير موصولة بشكل صحيح.اشحن البطارية بالكامل. تأكد من تثبيت حزمة البطارية بإحكام في الجهاز.
Inconsistent power or weak performance.Low battery charge, incorrect voltage setting, or faulty needle cartridge.Recharge the battery. Adjust voltage to a higher setting. Replace the needle cartridge.
Machine vibrates excessively or makes unusual noise.Loose components or damaged motor.Ensure all parts are securely fastened. If the issue persists, contact customer support.
LED display is not working.مشكلة في البطارية أو عطل داخلي.Try charging the battery. If the problem continues, contact customer support.

9. الضمان والدعم

Ambition products are designed for quality and performance. For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase or visit the official Ambition webالموقع. احتفظ بإثبات الشراء الخاص بك لتقديم مطالبات الضمان.

Manufacturer: Ambition
