Luxor Multipurpose Storage Utility Cart

مقدمة

Thank you for choosing the Luxor Multipurpose Storage Utility Cart. This durable, 3-shelf cart is designed for versatile use in various environments, including schools, offices, warehouses, shops, garages, and cafes. Its robust construction ensures long-lasting performance and easy mobility.

This manual provides essential information for the proper assembly, operation, and maintenance of your new utility cart. Please read all instructions carefully before beginning assembly or use to ensure safe and efficient operation.

Figure 1: Luxor Multipurpose Storage Utility Cart (Black)

معلومات السلامة

• Always ensure the cart is on a stable, level surface before loading items.
• Do not exceed the maximum weight capacity of 400 pounds (evenly distributed).
• Engage the locking brakes on the casters when the cart needs to remain stationary.
• Keep hands and fingers clear of moving parts, especially during assembly and when adjusting the cart.
• Use appropriate tools for assembly as specified in the instructions. A rubber mallet is highly recommended.
• Do not allow children to play on or around the cart.
• Avoid placing hot items directly on the plastic shelves without adequate protection.

محتويات الحزمة

قبل البدء بالتجميع، تأكد من وجود جميع المكونات وسلامتها. في حال وجود أي أجزاء مفقودة أو تالفة، يُرجى التواصل مع خدمة العملاء.

• 3 x Structural Foam Plastic Shelves (including top shelf with integrated push handle)
• 8 x Plastic Legs/Poles
• 4 x 4-inch Swivel Casters (2 with locking brakes)

Figure 2: Key Components of the Utility Cart

تعليمات التجميع

Assembly of the Luxor Utility Cart is straightforward and typically takes about 10 minutes. A rubber mallet is highly recommended for easier assembly. Some users find that applying a small amount of lubricant (like silicone spray or 3-in-1 oil) to the leg ends can facilitate insertion into the shelves.

1. Attach Casters to Bottom Shelf: Insert the four casters into the designated holes on the underside of the bottom shelf. Ensure the two locking casters are placed on the same side for convenient access. Press firmly until they click into place.
2. Attach First Set of Legs: Insert four plastic legs into the corner holes of the bottom shelf. Use a rubber mallet to gently tap them into place until they are fully seated and secure.
3. Attach Middle Shelf: Align the middle shelf over the top of the four legs. Carefully lower the shelf, ensuring each leg aligns with its corresponding hole. Use a rubber mallet to tap the shelf down evenly on all four corners until it is securely in place.
4. Attach Second Set of Legs: Insert the remaining four plastic legs into the corner holes of the middle shelf. Tap them into place with a rubber mallet.
5. تركيب الرف العلوي: Align the top shelf (with the integrated push handle) over the second set of legs. Carefully lower the shelf, ensuring each leg aligns with its corresponding hole. Use a rubber mallet to tap the shelf down evenly on all four corners until it is securely in place.
6. التحقق من الاستقرار: Once assembled, gently push down on each corner of the top shelf to ensure all connections are tight and the cart is stable.

سمات

• Three Shelf Design: يوفر ample storage and transport space.
• Integral Safety Push Handle: Molded into the top shelf for comfortable and secure maneuvering.
• بناء متين: Legs and shelves are made from injection-molded thermoplastic resin, ensuring they will not scratch, dent, or rust.
• أبعاد سخية: Measures 24"W x 18"D x 34"H, with a 12" shelf clearance for accommodating various items.
• تصميم تطبيقات الجوال: Equipped with 4" swivel casters, two of which include locking brakes for stability.
• قدرة الوزن العالية: Supports up to 400 lbs. (evenly distributed).
• صنع في الولايات المتحدة الأمريكية: Ensures quality manufacturing standards.

Figure 3: Utility Cart in Use

تحديد

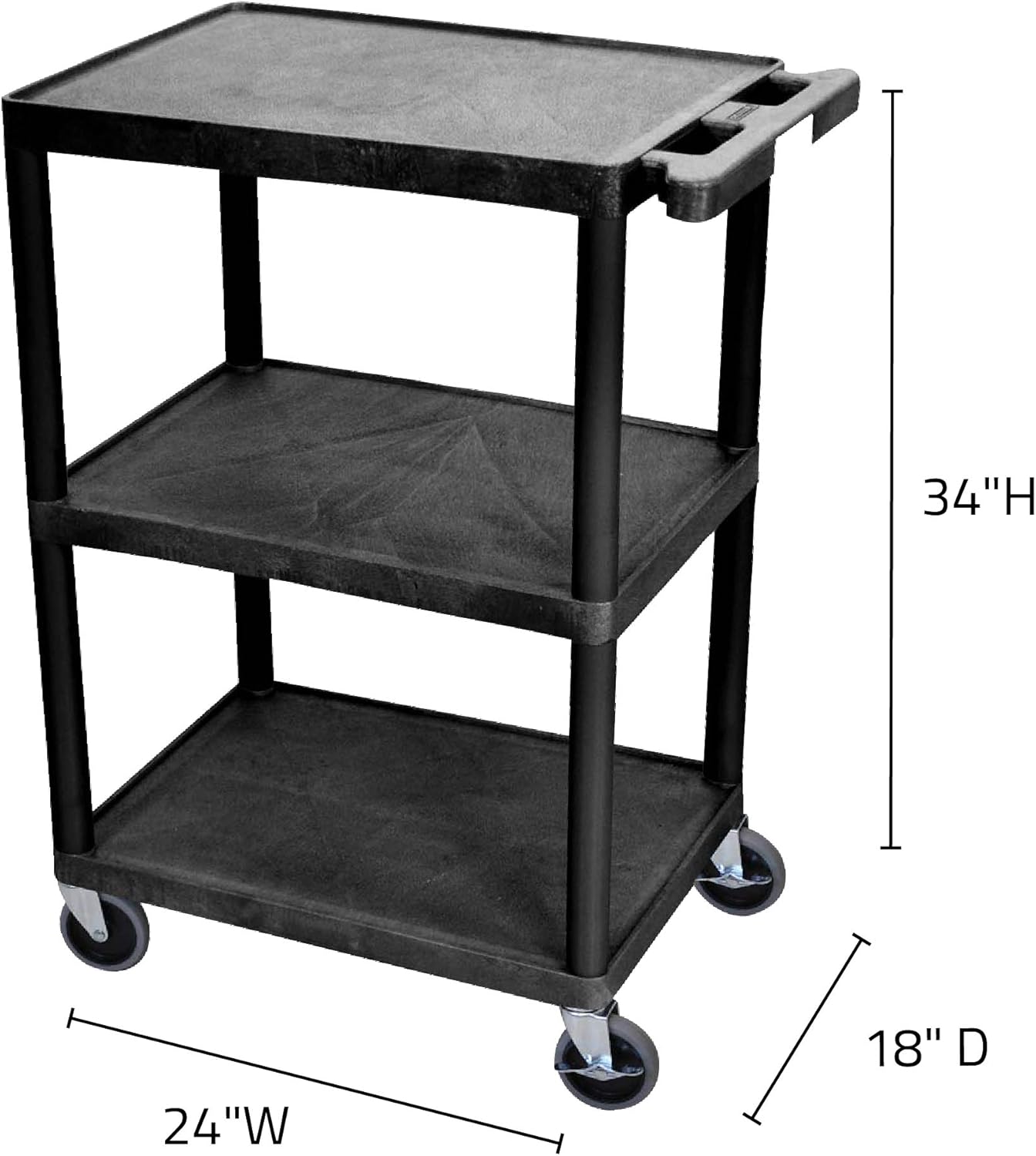

Figure 4: Cart Dimensions

تعليمات التشغيل

• نقل العربة: To move the cart, disengage the locking brakes on the casters. Use the integrated push handle on the top shelf to guide the cart to your desired location.
• تأمين العربة: Once the cart is in position, engage the locking brakes on the two designated casters to prevent unintended movement.
• تحميل العناصر: Place items evenly across the shelves to maintain balance and prevent tipping. The shelves feature a .25" retaining lip to help secure items during transport.
• Unloading Items: Ensure the cart is secured with the brakes engaged before removing items.

صيانة

• تنظيف: The thermoplastic resin shelves and legs can be easily cleaned with a damp cloth and mild soap. Avoid abrasive cleaners that may damage the surface.
• العناية بالعجلات: Periodically check the casters for any debris (e.g., hair, lint) that may impede their movement. Clean as necessary. Lubricate the swivel mechanisms if they become stiff.
• السلامة الهيكلية: Regularly inspect all connections to ensure they remain secure. If any part appears loose, gently tap it back into place with a rubber mallet.

استكشاف الأخطاء وإصلاحها

الضمان والدعم

The Luxor Multipurpose Storage Utility Cart comes with a ضمان مدى الحياةيضمن هذا الضمان موثوقية طويلة الأمد وراحة بال. يغطي هذا الضمان عيوب المواد والتصنيع في ظل الاستخدام العادي.

For warranty claims, technical support, or any questions regarding your product, please contact Luxor customer service. You can typically find contact information on the manufacturer's official webالموقع أو من خلال نقطة الشراء الخاصة بك.

For more information, visit the official Luxor webموقع: www.luxorworkspaces.com
