مقدمة
Thank you for choosing the HOFTRONIC Q-Series 120cm LED Batten. This robust and waterproof LED fixture is designed for easy installation and provides efficient, high-quality illumination. It is suitable for a wide range of environments, including basements, garages, workshops, and warehouses. This manual provides essential information for safe installation, operation, and maintenance of your new LED batten.
The Q-Series LED batten features an integrated light source, eliminating the need for separate LED tubes. Its energy-efficient design consumes only 36 watts while delivering 4320 lumens, offering significant energy savings compared to traditional fluorescent fixtures.
تعليمات السلامة
- السلامة الكهربائية: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations. Ensure the power supply is disconnected before any installation, maintenance, or repair work.
- المجلدtage: This fixture operates on 230 Volts. Verify your power supply matches this requirement.
- التعامل: Handle the fixture with care to avoid damage. Do not drop or subject it to excessive force.
- بيئة: The fixture is rated IP65 for water and dust resistance and IK08 for impact protection, making it suitable for both indoor and outdoor use in demanding environments. However, avoid direct exposure to corrosive chemicals unless specifically designed for such conditions.
- درجة حرارة: Operate the fixture within the specified temperature range of -20°C to +40°C.
- التعديلات: Do not attempt to modify or disassemble the fixture. This will void the warranty and may pose a safety risk.
محتويات الحزمة
تأكد من وجود كافة المكونات قبل البدء في التثبيت:
- HOFTRONIC Q-Series 120cm LED Batten (with integrated LED light source)
- Mounting clips (stainless steel)
- Screws and wall plugs for mounting
- Quick connection clips
تحديد
| مواصفة | قيمة |
|---|---|
| ماركة | هوفترونيك |
| رقم الموديل | 2711559 |
| الأبعاد (الطول × العرض × الارتفاع) | 120 × 5.7 × 4.7 سم |
| وزن | 5 كيلوغرام |
| مادة | البولي كربونات (PC) |
| استهلاك الطاقة | 36 واط |
| التدفق الضوئي | 4320 لومن |
| درجة حرارة اللون | 6500 كلفن (أبيض بارد) |
| المجلدtage | 230 فولت |
| تصنيف IP | IP65 (مقاوم للماء والغبار) |
| تقييم IK | IK08 (Impact Protection) |
| متوسط العمر المتوقع | 25,000 hours (approx. 10 years with average use) |
| المميزات الخاصة | Plug and Play, Quick Mounting, Linkable (up to 20 units), Flicker-free |
للحصول على معلومات مفصلة حول كفاءة الطاقة، يرجى الرجوع إلى قاعدة بيانات EPREL:
Image: Energy efficiency label showing the product's energy class and consumption.
الإعداد والتثبيت
قبل أن تبدأ: تأكد من فصل التيار الكهربائي الرئيسي من قاطع الدائرة.
1. تركيب التركيبات
- Determine the desired mounting location on the ceiling or wall.
- Mark the positions for the mounting clips. Use the fixture itself or measure the distance between the clip attachment points.
- قم بحفر ثقوب في المواضع المحددة وأدخل سدادات الحائط.
- Secure the stainless steel mounting clips to the surface using the provided screws.
- Align the LED batten with the mounted clips and press firmly until it clicks into place.
Image: Illustration of the mounting process, showing drilling, securing clips, and attaching the fixture.
2 الربط الكهربائي
The HOFTRONIC Q-Series LED Batten features a quick connect system for easy wiring.
- Open the quick connect terminal cover at one end of the fixture.
- Connect the live (L), neutral (N), and ground (PE) wires from your power supply to the corresponding terminals. Ensure a secure connection.
- Close the terminal cover securely.
الصورة: مفصلة view of the quick connect mechanism for electrical wiring.
3. Linking Multiple Fixtures (Optional)
Up to 20 Q-Series battens can be linked together using the integrated quick connectors and a suitable connecting cable (min. 5mm / max. 9mm diameter, PG11 cable gland compatible).
- After mounting the first fixture and connecting it to the power supply, prepare the connecting cable.
- Insert one end of the connecting cable into the quick connect port of the first fixture.
- Mount the next fixture and insert the other end of the connecting cable into its quick connect port.
- Repeat for additional fixtures, ensuring all connections are secure.
Image: Illustration demonstrating the linking capability of multiple HOFTRONIC Q-Series fixtures.
Once all fixtures are mounted and wired, restore power to the circuit.
تعليمات التشغيل
The HOFTRONIC Q-Series LED Batten operates immediately upon receiving power. There are no complex controls or settings. Simply switch on the power supply to illuminate the fixture, and switch it off to turn it off.
The fixture provides a diffuse light output, which helps to reduce glare and create a more comfortable lighting environment.
Image: Visual comparison illustrating the diffuse light provided by the HOFTRONIC Q-Series LED Batten.
صيانة
The HOFTRONIC Q-Series LED Batten requires minimal maintenance due to its durable construction and integrated LED technology.
- تنظيف: Disconnect power before cleaning. Wipe the exterior of the fixture with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the polycarbonate material.
- تقتيش: Periodically inspect the fixture for any signs of damage, loose connections, or excessive dirt accumulation. Address any issues promptly.
- لا توجد أجزاء قابلة للصيانة بواسطة المستخدم: مصدر إضاءة LED مدمج ولا يمكن استبداله من قبل المستخدم. لا تحاول فتح الجهاز.
استكشاف الأخطاء وإصلاحها
If you encounter issues with your HOFTRONIC Q-Series LED Batten, refer to the following common troubleshooting steps:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| تركيبات لا تضيء | لا يوجد مصدر للطاقة اتصال الأسلاك فضفاض تركيبات معيبة | تحقق من قاطع الدائرة ومفتاح الحائط. Ensure all electrical connections are secure (power off first). If other solutions fail, contact customer support. |
| ضوء متقطع | مصدر طاقة غير مستقر اتصال الأسلاك فضفاض | التحقق من استقرار مصدر الطاقة. Verify all wiring connections are tight (power off first). |
| انخفاض سطوع | تراكم الأوساخ أو الغبار | Clean the fixture's surface (power off first). |
If the problem persists after attempting these solutions, please contact HOFTRONIC customer support.
الضمان والدعم
HOFTRONIC provides a ضمان لمدة 2 سنوات for this Q-Series LED Batten, covering defects in materials and workmanship under normal use. This warranty period begins from the date of purchase.
The warranty does not cover damage caused by improper installation, misuse, accidents, unauthorized modifications, or natural disasters.
For warranty claims, technical support, or any questions regarding your product, please contact HOFTRONIC customer service through your retailer or the official HOFTRONIC website. Please have your proof of purchase and model number (2711559) ready when contacting support.
تطبيقات المنتج
The HOFTRONIC Q-Series LED Batten is versatile and suitable for a variety of applications, thanks to its robust and waterproof design:
- صناعي: Warehouses, factories, production halls.
- تجاري: Supermarkets, retail spaces, workshops, car repair shops.
- سكني: Garages, basements, utility rooms.
- متخصص: Cold storage rooms, car washes, outdoor covered areas.
الصورة: السابقamples of the LED batten installed in industrial environments such as car washes, large warehouses, and cold storage facilities.
الصورة: السابقamples of the LED batten installed in commercial and residential settings, including supermarkets, workshops, and garages.
أبعاد المنتج
Refer to the diagram below for detailed dimensions of the HOFTRONIC Q-Series LED Batten.

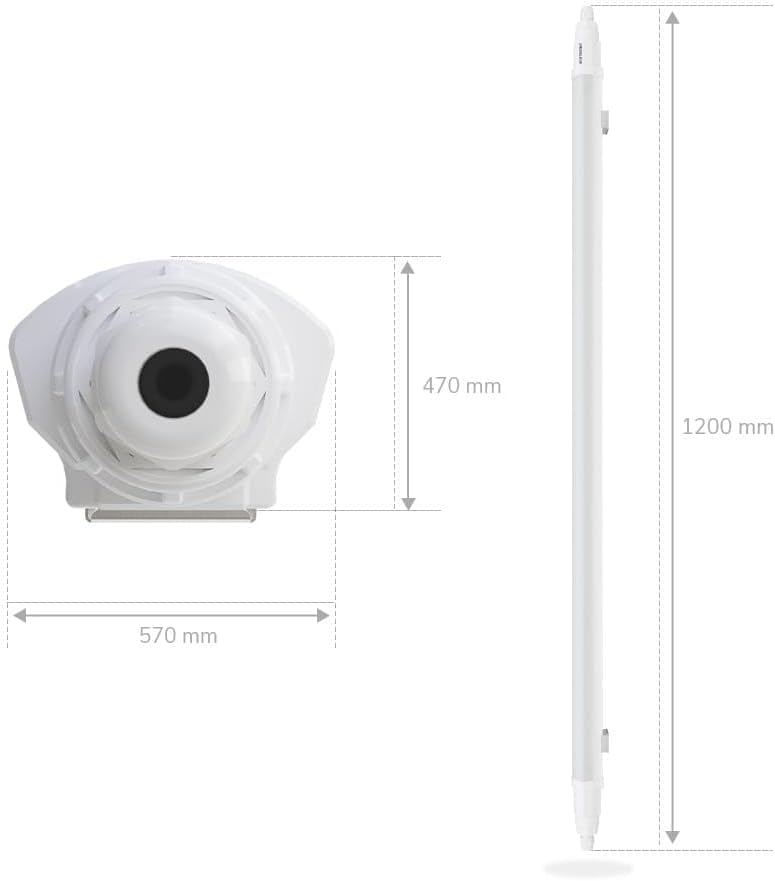

Image: Technical drawing illustrating the length (1200mm) and other key dimensions of the LED batten.
