Formuler Z11Pro User Manual
4K Android 11 Streaming Media Player
1. المقدمة
Welcome to the user manual for your Formuler Z11Pro 4K Android 11 Streaming Media Player. This guide provides essential information to help you set up, operate, maintain, and troubleshoot your device. The Formuler Z11Pro is designed to deliver a high-quality entertainment experience with its powerful hardware and user-friendly Android 11 operating system.
Please read this manual carefully before using your device to ensure optimal performance and longevity.
2. ماذا يوجد في الصندوق
Carefully unpack your Formuler Z11Pro and verify that all the following items are included:
- Formuler Z11 Pro With BT1 Edition Streaming Media Player
- Formuler BT1 Bluetooth Voice Remote Control
- Formuler Luminous Long Remote (IR Smart learning Remote)
- محول الطاقة
- Batteries (2AA for remote)
- Monster HDMI 2X Thicker Cable (6 feet long)
- لوحة مفاتيح لاسلكية صغيرة
- Magnetic Car Air Vent Mount Cell Phone Holder
- Silicone Remote Cover
Figure 2.1: All included components of the Formuler Z11Pro package.
3. انتهى المنتجview
3.1 Formuler Z11Pro Main Unit
The Formuler Z11Pro is a compact and powerful streaming device. Its rear panel features various ports for connectivity.

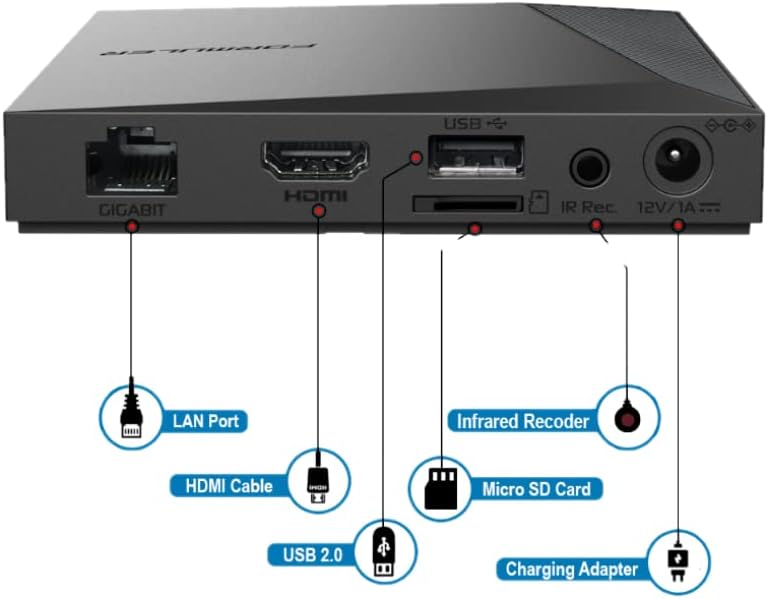

Figure 3.1: Rear ports of the Formuler Z11Pro.
- LAN Port (Gigabit): للاتصال بالإنترنت السلكي.
- منفذ HDMI: Connects to your TV or display for audio and video output.
- منافذ USB 2.0: لتوصيل أجهزة التخزين الخارجية أو الأجهزة الطرفية.
- منفذ كارت الذاكرة الصغيرة: للتخزين القابل للتوسيع.
- IR Rec: Infrared receiver port for external IR extender.
- 12V/1A DC Power Input: Connects to the included power adaptor.
3.2 أجهزة التحكم عن بعد
The package includes two remote controls for versatile navigation and control.
Figure 3.2: Formuler Z11Pro with BT1 Bluetooth Voice Remote Control.
Figure 3.3: Formuler Luminous Long Remote Control.
- BT1 Bluetooth Voice Remote: Offers Bluetooth connectivity for wider range and voice control capabilities.
- Luminous Long Remote: An IR-based remote with smart learning functions, providing traditional button navigation and TV control.
3.3 Wireless Mini Keyboard
A compact wireless keyboard with a touchpad for easy text input and navigation, especially useful for browsing and app usage.
Figure 3.4: Wireless Mini Keyboard (colors may vary).
3.4 Monster HDMI Cable
A high-quality 6-foot HDMI cable for connecting your Formuler Z11Pro to your display, supporting 4K HDR content.
Figure 3.5: Monster HDMI Cable (color of LED light may vary).
3.5 Magnetic Car Air Vent Mount
A convenient accessory for mounting your cell phone in a car, utilizing a magnetic attachment to the air vent.
Figure 3.6: Magnetic Car Air Vent Mount.
4. دليل الإعداد
4.1 توصيل الجهاز
- توصيل كابل اتش دي ام اي: Insert one end of the Monster HDMI cable into the HDMI port on the back of the Formuler Z11Pro and the other end into an available HDMI input on your television or display.
- Connect Power Adaptor: Plug the power adaptor into the DC 12V/1A input port on the Formuler Z11Pro, then plug the adaptor into a wall outlet. The device will automatically power on.
- اتصال الشبكة (اختياري):
- السلكية: For a stable connection, connect an Ethernet cable from your router to the LAN port on the Formuler Z11Pro.
- لاسلكي: If using Wi-Fi, you will configure this during the initial setup process.
4.2 معالج الإعداد الأولي
Upon first boot-up, the device will guide you through an initial setup wizard:
- اختيار اللغة: اختر لغتك المفضلة.
- تكوين شبكة: حدد شبكة الواي فاي الخاصة بك وأدخل كلمة المرور، أو أكد اتصالك السلكي.
- تسجيل الدخول إلى حساب Google: قم بتسجيل الدخول باستخدام حسابك على جوجل للوصول إلى متجر جوجل بلاي وخدمات جوجل الأخرى.
- التاريخ والوقت: اضبط التاريخ والمنطقة الزمنية بشكل صحيح.
- الاقتران عن بعد: Follow on-screen instructions to pair your Bluetooth Voice Remote. Typically, this involves holding specific buttons on the remote near the device.
4.3 Connecting Wireless Mini Keyboard
The wireless mini keyboard connects via a USB dongle. Locate the small USB receiver usually stored in the battery compartment of the keyboard. Plug this receiver into one of the USB ports on the Formuler Z11Pro. The keyboard should automatically connect and be ready for use.
5. تعليمات التشغيل
5.1 الملاحة الأساسية
Use the directional pad (D-pad) and OK button on your remote control to navigate through the Android TV interface. The Back button returns to the previous screen, and the Home button takes you to the main home screen.
5.2 Using Voice Control (BT1 Remote)
Press the dedicated Voice button on your BT1 Bluetooth Voice Remote. Speak clearly into the remote to search for content, open apps, or control playback. For example, say "Open YouTube" or "بحث عن أفلام الحركة.
5.3 إدارة التطبيقات
- تثبيت تطبيقات: Access the Google Play Store from the home screen to download and install new applications.
- إلغاء تثبيت التطبيقات: Go to Settings > Apps, select the app you wish to uninstall, and choose "Uninstall."
- Accessing YouTube: The Formuler Z11Pro comes with YouTube pre-installed. You can find it on your home screen or by using voice control.
5.4 إعدادات الشبكة
To change network settings after initial setup, go to Settings > Network & Internet. Here you can switch between Wi-Fi and Ethernet, connect to new Wi-Fi networks, or view حالة الشبكة.
5.5 إدارة التخزين
The device has 16GB of internal storage. You can expand this using a Micro SD card or by connecting a USB storage device to the USB ports. To manage storage, go to Settings > Storage.
6. الصيانة
- تنظيف: استخدم قطعة قماش ناعمة وجافة لتنظيف الجهاز. لا تستخدم المنظفات السائلة أو البخاخات.
- تحديثات البرامج الثابتة: Periodically check for system updates to ensure your device has the latest features and security patches. Go to Settings > Device Preferences > About > System update.
- تهوية: تأكد من وضع الجهاز في مكان جيد التهوية لمنع ارتفاع درجة حرارته. لا تغطِ فتحات التهوية.
- دورة الطاقة: If the device becomes unresponsive, disconnect the power adaptor for a few seconds and then reconnect it to perform a power cycle.
7. استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد طاقة | Power adaptor not connected or faulty outlet. | Ensure power adaptor is securely connected to the device and a working power outlet. |
| لا توجد إشارة على التلفزيون | Incorrect HDMI input selected on TV; loose HDMI cable. | Check that your TV is set to the correct HDMI input. Ensure the HDMI cable is securely connected at both ends. |
| جهاز التحكم عن بعد لا يستجيب | Low batteries; remote not paired (BT1); IR path blocked (Luminous). | Replace batteries. For BT1, re-pair the remote (refer to Setup Guide). For Luminous, ensure no obstructions between remote and device. |
| مشاكل اتصال Wi-Fi | Incorrect password; router issues; device too far from router. | Verify Wi-Fi password. Restart your router. Move the device closer to the router or use a wired connection. |
| تعطل التطبيق أو تجمده | App error; insufficient memory. | Close and reopen the app. Clear app cache (Settings > Apps > [App Name] > Clear cache). Restart the device. |
8. المواصفات
| ميزة | التفاصيل |
|---|---|
| اسم الموديل | Z11Pro |
| نظام التشغيل | أندرويد 11 |
| كبش | 2 جيجا بايت |
| تخزين | 16 جيجا بايت |
| دقة | 4K |
| الاتصال | Bluetooth, HDMI, IR, Wi-Fi (Dual Band 2x2 Dual Antenna 6th Generation AX wireless), Gigabit LAN (1000M) |
| المميزات الخاصة | Universal Bluetooth Voice Remote Control, Bonus 3 Colour keyboard, YouTube support |
| أبعاد المنتج | 6 × 4 × 8 بوصة |
| وزن العنصر | 2.34 رطل |
9. الضمان والدعم
للحصول على معلومات الضمان والدعم الفني، يرجى الرجوع إلى الوثائق المرفقة مع عملية الشراء أو زيارة موقع Formuler الرسمي. webالموقع. احتفظ بإثبات الشراء الخاص بك لتقديم مطالبات الضمان.
Online resources, FAQs, and contact information for customer support are typically available on the manufacturer's webموقع.
