ALLIANCE LAUNDRY SYSTEMS Timer Bracket (Model 200832) Instruction Manual

1. المقدمة

This manual provides essential information for the proper installation and maintenance of the ALLIANCE LAUNDRY SYSTEMS Timer Bracket, Model 200832. This component is designed as a replacement part for large vault washers and dryers manufactured by Huebsch, Speed Queen, and Alliance Laundry Systems. Please read these instructions carefully before proceeding with installation.

2. معلومات السلامة

تحذير:

• افصل التيار الكهربائي عن الجهاز دائمًا قبل محاولة أي عملية تركيب أو صيانة أو إصلاح. قد يؤدي عدم القيام بذلك إلى إصابة خطيرة أو الوفاة.
• ارتدِ معدات الحماية الشخصية المناسبة، مثل القفازات وحماية العين، أثناء التثبيت.
• إذا لم تكن متأكدًا من أي خطوة، فاستشر فني أجهزة مؤهلًا.
• This part may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning). Handle with care and wash hands after handling.

3. محتويات العبوة

تأكد من وجود جميع العناصر في العبوة:

• 1 x ALLIANCE LAUNDRY SYSTEMS Timer Bracket (Model 200832)

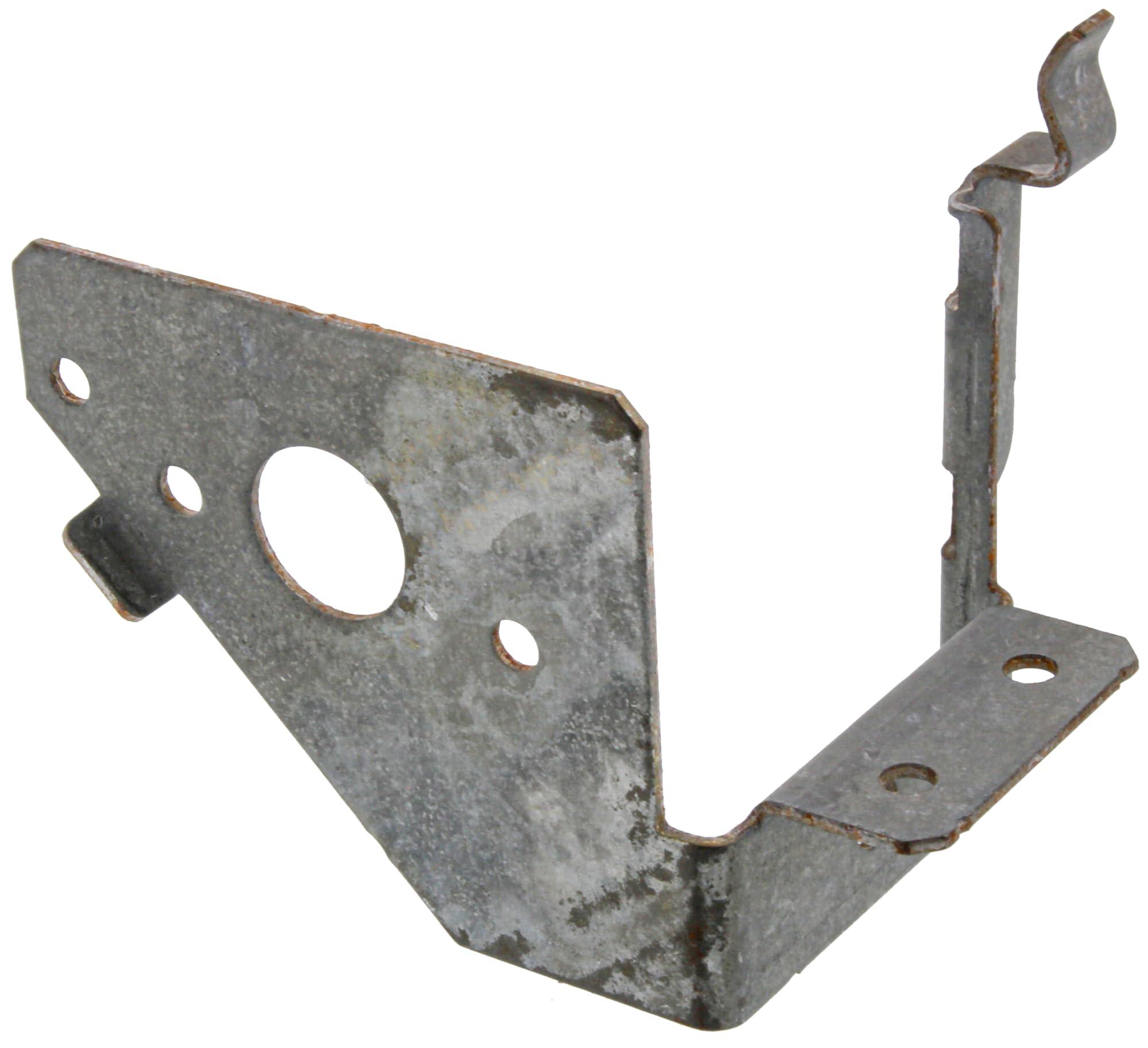

Image showing the ALLIANCE LAUNDRY SYSTEMS Timer Bracket, Model 200832, a replacement part for large vault washers and dryers.

4. تعليمات التثبيت

This timer bracket is a replacement part. Installation typically involves removing the old bracket and securing the new one. Specific steps may vary depending on your appliance model. Refer to your appliance's service manual for detailed instructions.

1. فصل الطاقة: Ensure the washer or dryer is completely disconnected from its power source.
2. Access Timer Area: Depending on your appliance, you may need to remove the control panel, top cover, or front panel to access the timer assembly.
3. Identify Old Bracket: Locate the existing timer bracket. Note how it is attached and any wires or components connected to it. It is recommended to take photos for reference.
4. Remove Old Bracket: Carefully detach any components from the old bracket, then unfasten the screws or clips holding the old bracket in place. Remove the old bracket.
5. تثبيت قوس جديد: Position the new ALLIANCE LAUNDRY SYSTEMS Timer Bracket (Model 200832) in the same location. Secure it using the original fasteners or new ones if provided and compatible.
6. إعادة تركيب المكونات: Reconnect any wires or components that were detached from the old bracket to the new one. Ensure all connections are secure.
7. إعادة تجميع الجهاز: قم بإعادة تركيب أي لوحات أو أغطية تمت إزالتها.
8. اعادة الطاقة: Once fully reassembled, reconnect the appliance to its power source.
9. وظيفة الاختبار: Test the appliance to ensure the timer and other controls function correctly.

5. الوظيفة والغرض

The Timer Bracket (Model 200832) serves to securely hold the timer mechanism within the control panel of compatible large vault washers and dryers. A properly functioning bracket ensures the timer remains stable, allowing for accurate operation and preventing damage to the timer unit or associated wiring due to vibration or movement.

6. الصيانة

This timer bracket is a passive component and requires minimal maintenance. Periodically, during other appliance servicing, inspect the bracket for signs of wear, corrosion, or damage. Ensure all mounting screws remain tight. If any damage is observed, replacement is recommended.

7. استكشاف الأخطاء وإصلاحها

• القوس غير مناسب: Double-check the model number of your appliance and ensure it is compatible with part 200832. Verify that the old bracket was removed completely and that no obstructions are present.
• Timer Malfunction After Installation: Ensure all electrical connections to the timer are secure and correctly reattached. Verify that no wires were pinched or damaged during reassembly. If issues persist, consult a qualified technician.
• Loose Bracket: Ensure all mounting screws are tightened securely. Avoid overtightening, which can strip threads.

8. المواصفات

9. الضمان والدعم

For warranty information or technical support regarding the ALLIANCE LAUNDRY SYSTEMS Timer Bracket (Model 200832), please contact your original point of purchase or the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer Contact: Alliance Laundry Systems

Note: Specific warranty terms may vary.
