GT06A Car GPS Tracker User Manual

1. انتهى المنتجview

The YangDiana GT06A Car GPS Tracker is a versatile device designed for real-time vehicle tracking, anti-theft protection, and comprehensive fleet management. It offers a range of features including live location monitoring, geo-fencing, speed alerts, and remote control capabilities, accessible via mobile applications, web platforms, and SMS commands.

This manual provides detailed instructions for setting up, operating, and maintaining your GT06A GPS Tracker to ensure optimal performance and security.

2. ماذا يوجد في الصندوق

عند فتح العبوة، تأكد من وجود جميع المكونات التالية:

• 1 x GT06 GPS SMS GPRS Vehicle Tracker Unit
• 1 x GPS Sensor
• شنومكس x التتابع
• 1 x SOS Cable
• 1 × كابل مكبر الصوت
• 1 × كابل الطاقة
• 1 x Bilingual User Manual (English)
• Additional cables for microphone, panic button, and door open alarm (as shown in product images)

Image: All components included in the GT06A GPS Tracker package, laid out on a white surface. This includes the main tracker unit, various cables, a relay, and the user manual.

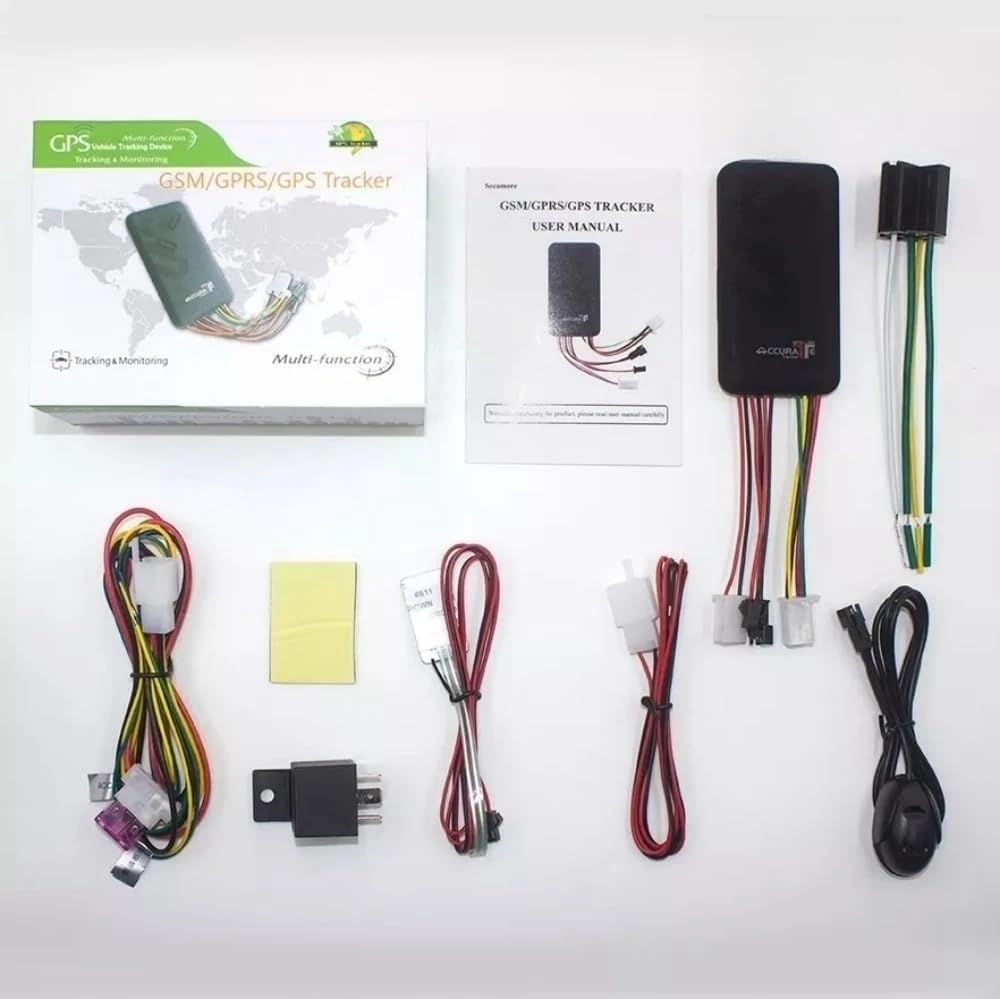

Image: Another perspective of the GT06A GPS Tracker package contents, showing the main unit, cables, relay, and user manual.

3. الإعداد والتثبيت

Proper installation is crucial for the optimal performance of your GT06A GPS Tracker. It is recommended to have this device installed by a qualified professional.

3.1 إدخال بطاقة SIM

1. Locate the SIM card slot on the GT06A tracker unit.
2. Insert a standard-sized SIM card into the designated slot. Ensure the SIM card has an active data plan for GPRS communication.
3. After inserting the SIM card, use the provided tool (or a similar thin object) to push the SIM card firmly into place until it clicks and is secured.
4. أغلق غطاء فتحة بطاقة SIM بإحكام.

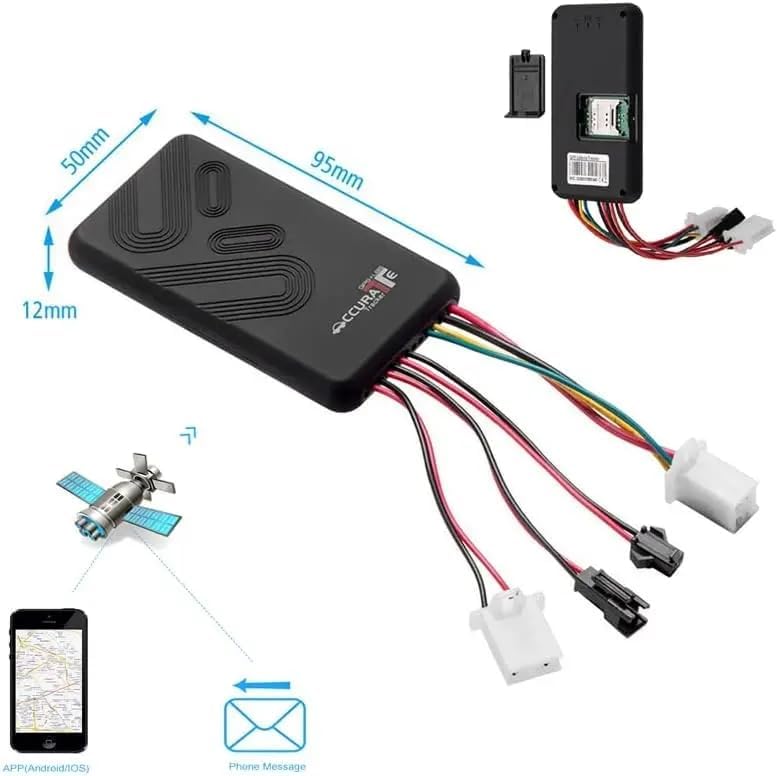

Image: This image illustrates the dimensions of the GT06A tracker and highlights the location of the SIM card slot, indicating where to insert the SIM card.

3.2 الأسلاك والتوصيلات

The GT06A tracker requires connection to your vehicle's power supply and other components for full functionality. Refer to the wiring diagram below and consult a professional if unsure.

• سلك الطاقة: Connect the power cable to the vehicle's 9V-36V power supply. The tracker has a wide voltage input range, making it compatible with various car models.
• تناوب: Connect the relay for remote engine cut-off functionality.
• زر الاستغاثة: Connect the SOS cable to the panic button for emergency alerts.
• ميكروفون: Connect the microphone for voice monitoring.
• المتحدث: Connect the speaker for two-way communication (if supported by your model).
• إنذار فتح الباب: Connect the wire for door open alarm functionality.

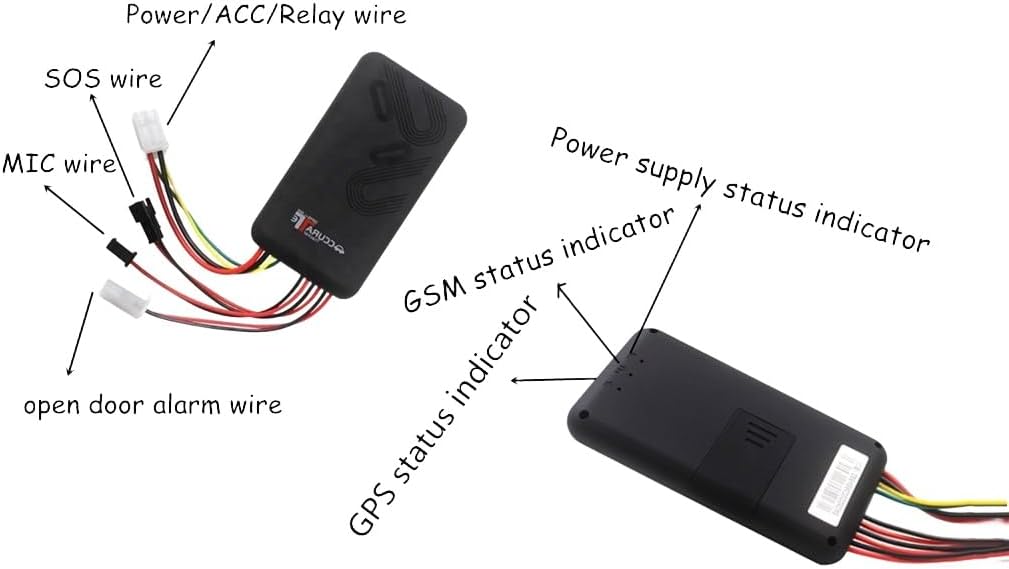

الصورة: تفصيلية view of the GT06A tracker showing various wires and their corresponding functions, such as Power/ACC/Relay, SOS, MIC, and Open Door Alarm. It also indicates the location of the Power Supply, GSM, and GPS status indicators.

Image: The GT06A GPS Tracker unit with its wiring harness, shown alongside a smartphone displaying the real-time tracking application interface, including a map with location details.

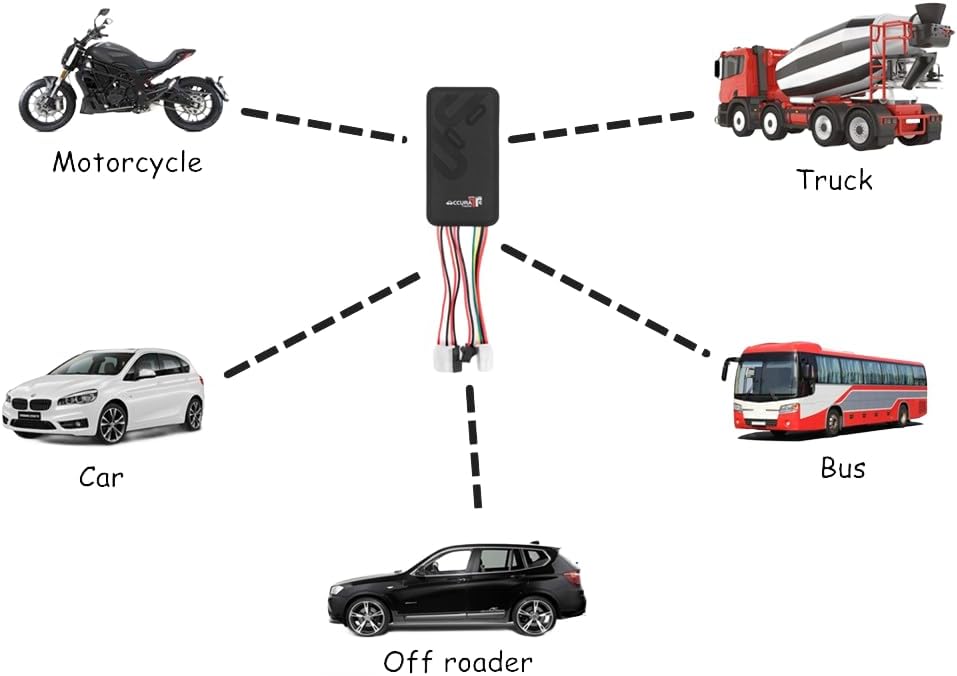

Image: An illustration demonstrating the GT06A GPS Tracker's compatibility with different vehicle types, including motorcycles, cars, trucks, buses, and off-roaders.

4. تعليمات التشغيل

The GT06A tracker offers multiple ways to monitor and control your vehicle.

4.1 Mobile App and Web منصة

Download the official Android/iOS app or access the web platform for comprehensive tracking and management features.

• التتبع في الوقت الحقيقي: View your vehicle's current location on a map.
• History Tracking: Review past routes and stops.
• Geo-Fence: Set up virtual boundaries and receive alerts when the vehicle enters or exits these areas.
• جهاز التحكم عن بعد: Arm/disarm the alarm, or remotely cut off the engine (if connected).
• Mileage Calculation: Access odometer readings.

Image: Four screenshots of the mobile application interface, showing features such as Mileage Statistics, Device Icon Set, Accurate Position display, and the ability to view أجهزة متعددة في وقت واحد.

4.2 أوامر الرسائل النصية القصيرة

You can send specific SMS commands to the tracker's SIM card number to perform various actions and receive location information.

• Location Query: Send a command to receive a Google Maps URL of the vehicle's current location.
• الذراع / نزع السلاح: Remotely arm or disarm the vehicle alarm.
• Engine Cut-off: Send an SMS to safely cut off the engine (requires proper relay connection).
• إنذار الاستغاثة: In an emergency, pressing the SOS button will send an alert to pre-configured numbers.

4.3 وظائف إنذار

The GT06A tracker includes several alarm features for enhanced security:

• إنذار الاهتزاز: Triggers if the vehicle experiences unusual vibrations.
• إنذار فتح الباب: Alerts if a door is opened without authorization.
• إنذار الحركة: Notifies if the vehicle moves from its parked location.
• Ignition On Alarm: Alerts when the vehicle's ignition is turned on.
• إنذار انقطاع التيار الكهربائي: Notifies if the main power supply to the tracker is disconnected.
• إنذار السياج الجغرافي: Alerts when the vehicle enters or exits a predefined geographical area.
• إنذار السرعة الزائدة: Triggers if the vehicle exceeds a set speed limit (1-255 km/h).

Image: This image visually represents the anti-theft capabilities of the GT06A tracker, showing a car with an alarm light and scenarios involving unauthorized access, emphasizing the device's security features.

5. الصيانة

To ensure the longevity and reliable operation of your GT06A GPS Tracker, follow these maintenance guidelines:

• الفحوصات الدورية: قم بفحص جميع توصيلات الكابلات بشكل دوري للتأكد من أنها آمنة وخالية من التلف.
• نظافة: حافظ على نظافة جهازك وخلوه من الغبار والأوساخ. استخدم قطعة قماش ناعمة وجافة للتنظيف.
• الظروف البيئية: Avoid exposing the tracker to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture. Refer to specifications for operating temperature and humidity ranges.
• تحديثات البرامج: Ensure your mobile application and tracker firmware (if applicable) are updated to the latest versions for improved performance and new features.
• حالة بطاقة SIM: Verify that the SIM card has sufficient credit and an active data plan to maintain continuous tracking and communication.

6. استكشاف الأخطاء وإصلاحها

If you encounter issues with your GT06A GPS Tracker, refer to the following common problems and solutions:

في حالة وجود مشكلات مستمرة، يرجى الاتصال بدعم العملاء.

7. المواصفات

8. الضمان والدعم

For information regarding product warranty, please refer to the warranty card included in your product packaging or contact the manufacturer directly. The manufacturer of this product is Yangtongjixies.

For technical support, troubleshooting assistance beyond this manual, or inquiries about product features, please contact YangDiana customer service through their official channels. You can often find contact information on the product packaging, the official brand webالموقع الإلكتروني، أو من خلال بائع التجزئة الذي تم شراء المنتج منه.

قم بزيارة YangDiana Store لمزيد من المعلومات.
