دليل مستخدم أعمدة نقل الحركة لسيارات التحكم عن بعد من تي بيست (P88013)

1. المقدمة

This manual provides essential information for the installation, operation, and maintenance of your Tbest RC Car Drive Shafts, model P88013. These drive shafts are designed as upgrade or replacement parts for 9300-9304 series 1/18 high-speed remote control cars. Please read this manual thoroughly to ensure proper use and to maximize the lifespan of your product.

2. انتهى المنتجview

2.1. الميزات الرئيسية

• الجودة الممتازة: Crafted from high-strength alloy materials for durability and robust performance.
• تصميم فعال: Engineered to minimize energy loss and enhance overall vehicle performance.
• تناسب الدقة: Manufactured with high precision to ensure compatibility with original models, facilitating seamless installation.
• Performance Boost: Designed to upgrade your model car's performance and enhance driving experience.
• أنيق وخفيف الوزن: Features an exquisite appearance and lightweight construction for easy installation and use.

2.2. محتويات العبوة

تتضمن الحزمة العناصر التالية:

• 4 x Tbest RC Drive Shafts (Model P88013)

Image 1: Four Tbest RC Car Drive Shafts included in the package. These are silver-colored metal components with ball joints at each end.

3. دليل التثبيت

The Tbest RC Car Drive Shafts are designed for direct replacement in compatible 9300-9304 series 1/18 high-speed RC cars. Basic mechanical skills and appropriate tools (e.g., small screwdrivers, pliers) are required for installation.

1. تحضير: Ensure your RC car is powered off and the battery is disconnected. Place the car on a clean, stable surface.
2. Access the Drive Shafts: Depending on your specific RC car model, you may need to remove wheels, suspension components, or parts of the chassis to access the existing drive shafts. Refer to your RC car's original manual for detailed disassembly instructions.
3. Remove Old Drive Shafts: Carefully detach the old drive shafts from the differential and wheel hub assemblies. Note the orientation and connection points for reassembly.
4. Install New Drive Shafts: Insert the new Tbest drive shafts into position. Ensure the ball joints are securely seated in both the differential output and the wheel hub. The shafts should move freely without binding.
5. إعادة التجميع: Reattach any components removed in step 2, ensuring all screws and fasteners are tightened appropriately. Do not overtighten.
6. وظيفة الاختبار: After reassembly, manually rotate the wheels to check for smooth operation and ensure the drive shafts are properly engaged.

Image 2: The four drive shafts positioned alongside the underside of an RC car chassis, illustrating their intended placement.

Image 3: A set of four drive shafts in the foreground, with a red and black 1/18 scale RC car visible in the blurred background, indicating the product's application.

4. التشغيل

Once installed, the Tbest RC Car Drive Shafts function as a critical component of your RC car's drivetrain, transmitting power from the differential to the wheels. They are designed to withstand the stresses of high-speed operation and off-road conditions. No specific operational steps are required beyond ensuring correct installation and regular maintenance.

5. الصيانة

Regular maintenance helps prolong the life and performance of your drive shafts and RC car.

• تقتيش: Periodically inspect the drive shafts for signs of wear, bending, or damage, especially after heavy use or impacts.
• تنظيف: Keep the drive shafts and surrounding components free from dirt, dust, and debris. A soft brush or compressed air can be used for cleaning.
• تشحيم: While these drive shafts are generally low-maintenance, applying a small amount of RC-specific grease to the ball joints can reduce friction and wear.
• تخزين: When not in use, store your RC car and spare parts in a clean, dry environment away from extreme temperatures.

6. استكشاف الأخطاء وإصلاحها

If you encounter issues after installing the drive shafts, consider the following:

6.1. Drive Shafts Do Not Fit

• التحقق من التوافق: Ensure your RC car is indeed a 9300-9304 series 1/18 model. These drive shafts are specifically designed for this series.
• تحقق من الأبعاد: The product's middle length is approximately 4.7cm (1.9 inches) and total length is approximately 5.5cm (2.2 inches). Carefully measure your existing drive shafts or the required space to confirm compatibility.
• الجزء غير الصحيح: Double-check the product packaging and part number (P88013) to ensure you received the correct item.

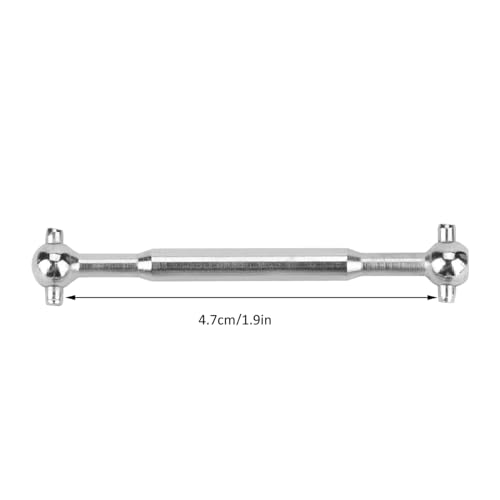

Image 4: A single drive shaft with a measurement overlay indicating its middle length as 4.7cm/1.9in, crucial for verifying fitment.

6.2. Binding or Restricted Movement

• Improper Seating: Ensure the ball joints are fully seated in both the differential and wheel hub.
• العوائق: Check for any debris or other components that might be interfering with the drive shaft's movement.
• إحكام الربط الزائد: Ensure that surrounding screws or fasteners are not overtightened, which could cause binding.

7. المواصفات

8. الضمان والدعم

For warranty information or technical support regarding your Tbest RC Car Drive Shafts, please refer to the retailer or the official Tbest customer service channels. Keep your purchase receipt as proof of purchase.

لمزيد من المساعدة، يمكنك زيارة Tbest Store on Amazon.
