Beghelli BS100 Reg HV M1280 4K LED Ceiling Light User Manual

1. المقدمة

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Beghelli BS100 Reg HV M1280 4K LED Ceiling Light. This high-luminous flux, IP65-rated waterproof ceiling light features an anti-glare micro-structured screen and an adjustable power system with 4 luminous flux steps, allowing adaptation to various lighting needs. Please read this manual thoroughly before installation and retain it for future reference.

2. تعليمات السلامة

• السلامة الكهربائية: يجب أن يتم إجراء التثبيت بواسطة كهربائي مؤهل وفقًا لجميع القوانين الكهربائية المحلية والوطنية.
• انقطاع التيار الكهربائي: افصل دائمًا الطاقة عن قاطع الدائرة قبل تثبيت أو صيانة أو تنظيف التركيبات.
• المجلدtagالتوافق ه: ضمان حجم العرضtage matches the fixture's requirements (2.3E+2 Volts AC).
• الظروف البيئية: This fixture is IP65 rated, suitable for damp and dusty environments. Do not submerge or expose to extreme conditions beyond its rating.
• التعامل: Handle the fixture with care to avoid damage to the housing or internal components.

3. محتويات العبوة

تأكد من أن جميع المكونات موجودة وغير تالفة عند فك العبوة:

• Beghelli BS100 Reg HV M1280 4K LED Ceiling Light fixture
• أجهزة التثبيت (المسامير، المراسي)
• دليل المستخدم

Note: A separate converter may be required depending on your specific installation needs and must be ordered separately.

4. انتهى المنتجview

The Beghelli BS100 Reg HV M1280 4K is a modern, high-performance LED ceiling light designed for various indoor and outdoor applications, including living rooms. Its robust construction features a polycarbonate shade and a polyurethane sealing gasket with technopolymer hooks, ensuring durability and an IP65 waterproof rating.

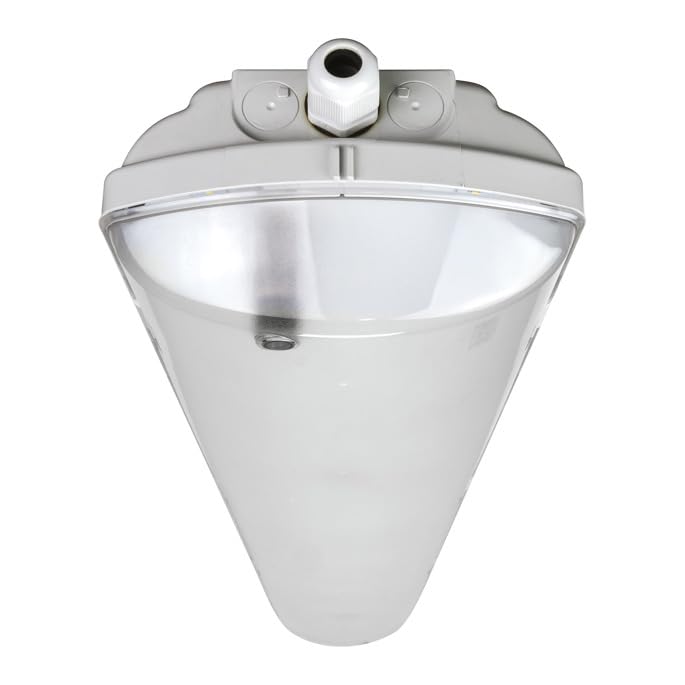

أمام view of the Beghelli BS100 Reg HV M1280 4K LED Ceiling Light, showcasing its robust, white polycarbonate housing and clear, micro-structured anti-glare diffuser. The top features a sealed cable entry point for electrical connections.

المميزات الرئيسية:

• نموذج: BS100 Reg HV M1280 4K
• التدفق الضوئي: 4000 لومن
• قوة: 72 واط
• حماية الدخول: IP65 (Waterproof and dust-tight)
• الناشر: Anti-glare micro-structured screen
• Adjustable Luminous Flux: 4 خطوات
• التركيب: Suitable for ceiling and wall installation

5. التثبيت

This fixture can be mounted on ceilings or walls. Professional installation is strongly recommended.

5.1 التثبيت المسبق

1. فصل الطاقة: Turn off the main power supply at the circuit breaker before beginning any installation work.
2. أفرغ: Carefully remove the fixture from its packaging and inspect for any damage.
3. الأدوات المطلوبة: Gather necessary tools such as a drill, screwdriver, wire strippers, and safety glasses.

5.2 التركيب

1. العلامة: Hold the fixture in the desired mounting location and mark the positions for drilling holes.
2. حفر: Drill pilot holes at the marked positions. Insert appropriate wall anchors if necessary.
3. تركيبات آمنة: Attach the fixture securely to the ceiling or wall using the provided mounting hardware.

5.3 الأسلاك

1. الوصول إلى حجرة الأسلاك: Open the wiring compartment on the fixture.
2. توصيل الأسلاك: Connect the electrical supply wires to the fixture's terminals according to standard wiring practices (Live, Neutral, Earth). Ensure all connections are secure.
3. Seal Entry: Ensure the cable entry point is properly sealed to maintain the IP65 rating.
4. إغلاق المقصورة: Close the wiring compartment securely.

5.4 Luminous Flux Adjustment

The fixture features a power system adjustable in 4 luminous flux steps. Consult the internal wiring diagram or specific instructions provided with the fixture for details on how to select the desired luminous output before final installation and sealing.

6. التشغيل

Once installed and power is restored, the Beghelli BS100 Reg HV M1280 4K LED Ceiling Light operates via a standard wall switch connected to its electrical supply. Simply toggle the switch to turn the light on or off.

7. الصيانة

The Beghelli BS100 Reg HV M1280 4K LED Ceiling Light requires minimal maintenance.

• تنظيف: نظف الجزء الخارجي من الجهاز بشكل دوري بقطعة قماش ناعمة.amp cloth. Do not use abrasive cleaners or solvents, as these may damage the polycarbonate material.
• تقتيش: افحص الجهاز بانتظام بحثًا عن أي علامات تلف أو وصلات مفكوكة أو تآكل. في حال وجود أي مشكلة، افصل التيار الكهربائي واستشر فني كهرباء مؤهل.
• المصابيح: The integrated LED light sources are designed for long life and are not user-replaceable.

8. استكشاف الأخطاء وإصلاحها

If you encounter issues with your Beghelli BS100 Reg HV M1280 4K LED Ceiling Light, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact a qualified electrician or Beghelli customer support.

9. المواصفات

10. الضمان والدعم

Warranty information for the Beghelli BS100 Reg HV M1280 4K LED Ceiling Light is typically provided at the point of purchase or can be found on the official Beghelli webيرجى الاحتفاظ بإثبات الشراء الخاص بك للمطالبة بالضمان.

For technical support, spare parts availability, or further assistance, please contact your retailer or refer to the manufacturer's official contact channels. Information regarding spare parts availability and software updates is not available in this document.
