This manual provides essential information for the installation, operation, and maintenance of your Franke OID 611-78 Orion Tectonite sink. Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of your product. Keep this manual for future reference.

2. انتهى المنتجview

The Franke OID 611-78 Orion is a durable kitchen sink crafted from Tectonite material, designed for integrated installation. It features a single compartment with a reversible drainer, offering flexibility for various kitchen layouts.

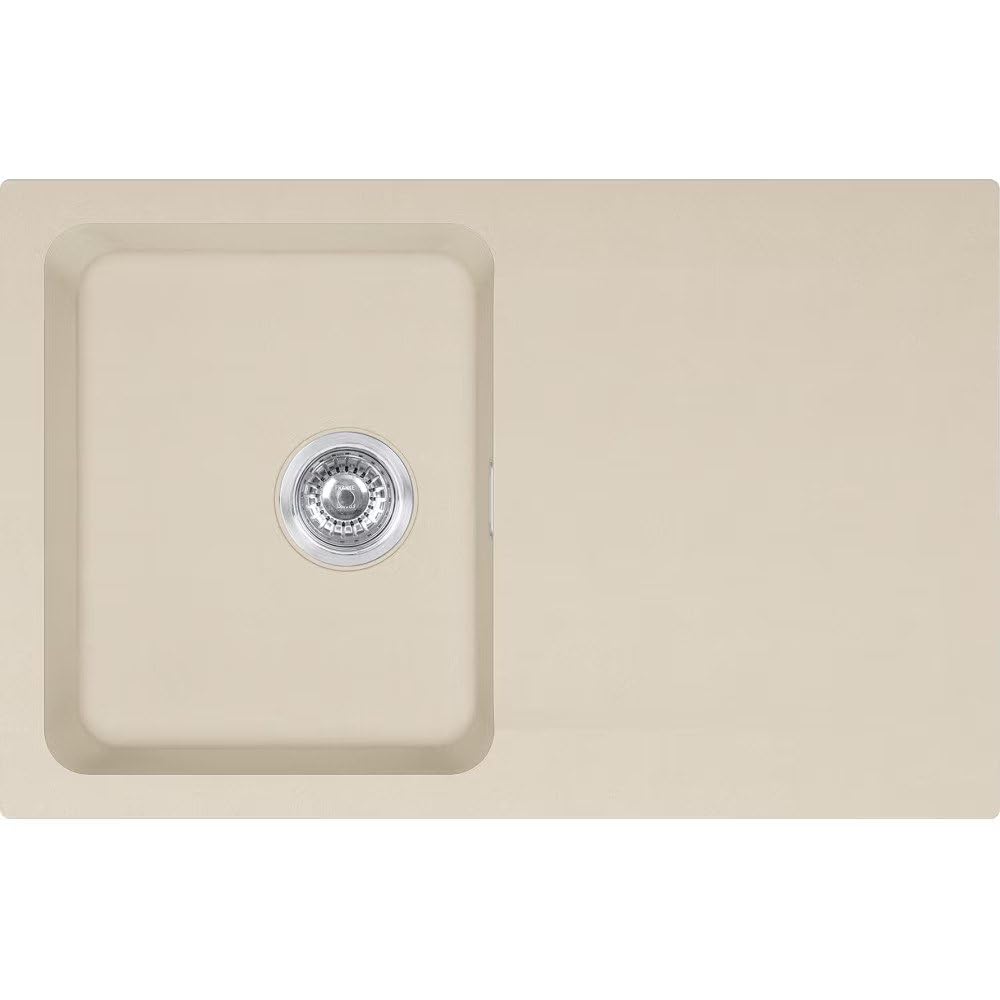

الشكل 1: Franke OID 611-78 Orion Tectonite Sink. This image displays the overall design of the sink, highlighting its single bowl and integrated drainer area, suitable for various kitchen configurations.

المميزات الرئيسية:

• مادة: تكتونيت
• نوع الحوض: مع مصفاة
• عدد المقصورات: 1
• طريقة التثبيت: مدمج
• الصرف الصحي: 3 1/2" outlet
• قابلة للعكس: Yes, the drainer can be oriented on either side.
• اضغط على ثقوب: 2 pre-drilled holes for faucet and accessories.
• نوع الصرف: سدادة
• سيفون: متضمن
• لون: البيج

3. الإعداد والتثبيت

The Franke OID 611-78 Orion sink is designed for integrated installation. Professional installation is recommended to ensure proper fit and sealing.

متطلبات التثبيت:

• Minimum Base Cabinet Width: 45 سم
• أبعاد القطع:
  • Left-to-Right: 760 mm
  • Front-to-Back: 480 mm

خطوات التثبيت (إرشادات عامة):

1. تحضير سطح العمل: Ensure the countertop is clean, dry, and has the correct cutout dimensions (760 mm x 480 mm).
2. وضع الحوض: Carefully place the sink into the cutout. The sink is reversible, allowing you to choose the drainer orientation.
3. تأمين الحوض: Use the provided clips and fasteners to secure the sink to the underside of the countertop, ensuring a tight and stable fit.
4. تركيب الصنبور والملحقات: Mount your chosen faucet and any other accessories (e.g., soap dispenser) into the two pre-drilled tap holes.
5. توصيل السباكة: Install the included siphon and connect it to the 3 1/2" drain outlet. Connect the siphon to your household drainage system. Ensure all connections are watertight.
6. حواف الختم: Apply a suitable silicone sealant around the perimeter of the sink where it meets the countertop to prevent water ingress.
7. اختبار التسريبات: Run water into the sink and check all plumbing connections for any leaks.

4. تعليمات التشغيل

The Franke OID 611-78 Orion sink is designed for standard kitchen use. Its Tectonite material is highly resistant to impacts, scratches, and heat, making it suitable for daily tasks.

• الاستخدام العام: Use the sink for washing dishes, preparing food, and other typical kitchen activities.
• Drainer Functionality: The reversible drainer provides a convenient area for drying dishes or preparing food.
• Plug Operation: The included plug allows for filling the sink with water when needed. Ensure the plug is properly seated to prevent leaks.

5. الصيانة

Proper care will help maintain the appearance and performance of your Franke OID 611-78 Orion Tectonite sink.

التنظيف اليومي:

• Clean the sink regularly with a soft cloth or sponge and mild dish soap.
• Rinse thoroughly with clean water after cleaning to remove all soap residue.
• Wipe the sink dry to prevent water spots, especially in hard water areas.

إزالة البقع:

• For stubborn stains, use a non-abrasive cream cleaner specifically designed for composite sinks.
• Avoid using harsh chemicals, abrasive pads, or steel wool, as these can damage the Tectonite surface.
• Promptly clean up spills of highly pigmented liquids (e.g., coffee, tea, red wine) to prevent staining.

الإجراءات الوقائية:

• Avoid dropping heavy or sharp objects into the sink, which could cause chips or cracks.
• Do not place extremely hot pots or pans directly onto the sink surface without protection, although Tectonite is heat resistant, extreme thermal shock should be avoided.
• Ensure the drain is kept clear of food debris to prevent blockages.

6. استكشاف الأخطاء وإصلاحها

يتناول هذا القسم المشكلات الشائعة التي قد تواجهها مع حوض المطبخ.

Water Drains Slowly:

• التحقق من وجود انسدادات: The most common cause is a blockage in the drain or siphon. Remove the plug and check for food debris or other obstructions.
• Clean Siphon: If the blockage is deeper, the siphon may need to be disassembled and cleaned. Refer to plumbing guidelines or consult a professional.

Leaks Around the Sink Edge:

• Check Sealant: The silicone sealant around the sink edge may have deteriorated or been improperly applied. Reapply sealant if necessary.
• Tighten Clips: Ensure the mounting clips underneath the countertop are securely tightened.

Leaks from Plumbing Connections:

• تشديد الاتصالات: Check all connections on the siphon and waste pipes. Gently tighten any loose fittings.
• Inspect Washers/Gaskets: Worn or improperly seated washers/gaskets can cause leaks. Replace if damaged.

If you are unable to resolve an issue, please contact a qualified plumber or Franke customer support.

7. المواصفات

8. الضمان والدعم

Specific warranty details for the Franke OID 611-78 Orion sink are not provided within this document. For information regarding warranty coverage, claims, or technical support, please refer to the official Franke website or contact Franke customer service directly. Ensure you have your model number (OID 611-78) and proof of purchase available when contacting support.
