PURPLE LEAF 13 FT Square Cantilever Patio Umbrella Instruction Manual

1. المقدمة

Thank you for choosing the PURPLE LEAF 13 FT Square Cantilever Patio Umbrella. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new outdoor umbrella. Please read all instructions carefully before use and retain this manual for future reference.

2. معلومات السلامة

• Always close the umbrella during strong winds, heavy rain, or other severe weather conditions to prevent damage or injury.
• Ensure the base is adequately weighted. A weighted base (not included, search WK4500) is crucial for stability. Pebbles or rocks are also not included.
• Do not attempt to assemble or disassemble the umbrella alone. Two people are recommended for safe handling.
• Keep children and pets away from the umbrella during operation.
• تجنب وضع المظلة بالقرب من اللهب المكشوف أو مصادر الحرارة.
• Regularly inspect all parts for wear and tear. Replace damaged components immediately.

3. محتويات العبوة

Your PURPLE LEAF 13 FT Square Cantilever Patio Umbrella package includes the following components:

• Umbrella Canopy (Grey, 240 GSM Polyester Fabric)
• Main Pole (Powder-coated aluminum, 4" diameter)
• Cantilever Arm with Crank System and Handle
• 8 Heavy-Duty Ribs (All-aluminum)
• Cross Base (Aluminum, for mounting or use with weighted base)
• Assembly Hardware (Bolts, washers, tools)

Note: A weighted base is NOT included and must be purchased separately for proper stability.

4. الإعداد والتجميع

Follow these steps to assemble your patio umbrella. It is recommended to have two people for assembly.

1. تحضير القاعدة: Place the aluminum cross base on a flat, stable surface. If using a separate weighted base (recommended), ensure it is filled with sand and/or water according to its instructions.
2. قم بتثبيت العمود الرئيسي: Secure the main pole to the cross base using the provided hardware. Ensure all bolts are tightened securely.
3. Install the Cantilever Arm: Carefully attach the cantilever arm assembly to the top of the main pole. Align the holes and insert the connecting pins or bolts, securing them firmly.
4. تركيب المظلة: With assistance, lift the umbrella canopy assembly and slide it onto the cantilever arm. Ensure it clicks into place or is secured with the designated locking mechanism.
5. Secure Ribs (if detachable): If the ribs are not pre-attached, connect them to the canopy and the central hub, ensuring each is securely fastened.

Image: The fully assembled PURPLE LEAF 13 FT Square Cantilever Patio Umbrella providing shade over an outdoor seating area.

Image: Detail of the robust 4-inch diameter aluminum pole, designed for stability.

Image: Comparison illustrating the heavier, more stable weighted base tube design of the PURPLE LEAF umbrella.

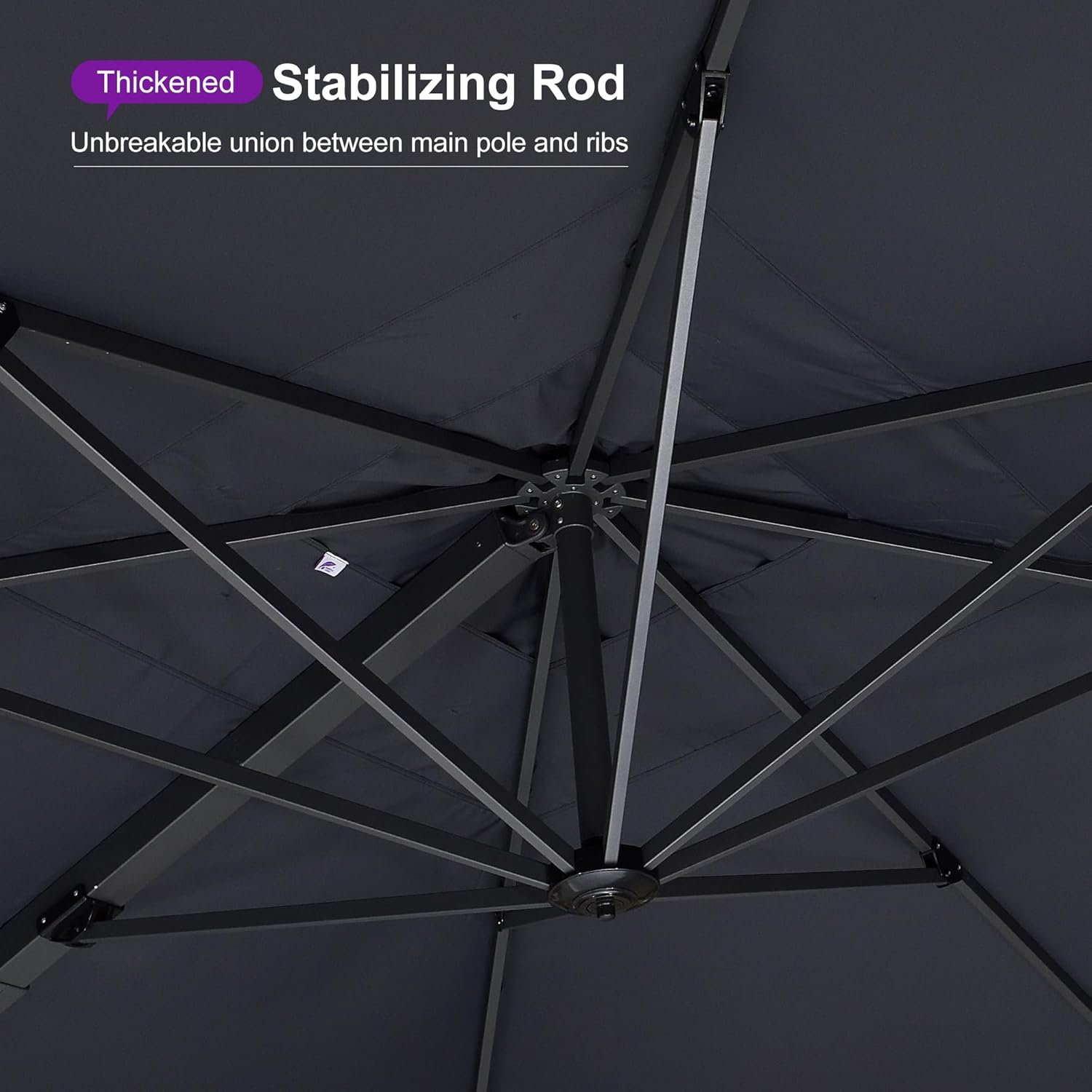

صورة: View of the canopy's internal structure, highlighting the thickened stabilizing rod for enhanced durability.

فيديو الجمعية

5. تعليمات التشغيل

Your PURPLE LEAF patio umbrella is designed for ease of use with multiple adjustment features.

فتح وإغلاق المظلة

Use the easy-grip crank handle located on the main pole to effortlessly open or collapse the umbrella canopy.

1. ل يفتح: Turn the crank handle clockwise until the canopy is fully extended.
2. ل يغلق: Turn the crank handle counter-clockwise until the canopy is fully collapsed. Secure the folded canopy with the integrated Velcro strap.

Image: The easy-grip handle and crank system for opening and closing the umbrella.

دوران 360 درجة

The umbrella features a 360-degree rotation mechanism for optimal shade positioning. This is 3X easier than traditional foot pedals.

1. Locate the rotation pedal at the base of the main pole.
2. Step on the pedal to unlock the rotation mechanism.
3. Gently rotate the umbrella canopy to your desired position.
4. Release the pedal to lock the umbrella in place.

Image: Visual representation of the umbrella's 360-degree rotation capability.

ضبط الارتفاع والزاوية

Adjust the height and angle of the canopy to achieve perfect shading throughout the day.

1. Locate the adjustment handle on the cantilever arm.
2. Squeeze the handle to release the lock.
3. Slide the arm up or down to adjust the height.
4. Tilt the canopy to your preferred angle (5 height and angle options available).
5. Release the handle to lock the position.

Image: Diagram illustrating the five adjustable height and angle settings of the umbrella.

مقاطع الفيديو العملية

6. الصيانة

Proper care will extend the life and appearance of your umbrella.

• تنظيف المظلة: Clean the 240 GSM yarn-dyed polyester fabric with mild soap and water. Rinse thoroughly and allow to air dry completely before folding or storing. Do not use harsh chemicals.
• العناية بالإطار: The powder-coated aluminum frame is rustproof. Wipe clean with a damp قماش. تجنب المنظفات الكاشطة.
• تخزين: When not in use for extended periods or during off-season, close the umbrella, secure it with the Velcro strap, and cover it with a protective umbrella cover (not included). Store in a dry, sheltered area.
• تقتيش: Periodically check all bolts, screws, and moving parts to ensure they are tight and functioning correctly.

Image: Detail of the high-quality 240 GSM polyester fabric, emphasizing its UV resistance and water-repellent properties.

7. استكشاف الأخطاء وإصلاحها

8. المواصفات

• أبعاد المنتج: 156 × 156 × 106.31 بوصة
• وزن السلعة: 98.8 رطل
• ماركة: ورقة أرجوانية
• لون: رمادي
• شكل: مربع
• مادة المظلة: 240 GSM Yarn Dyed Polyester Fabric
• مادة الإطار: ألومنيوم مطلي بالمسحوق
• قطر القطب: 4 بوصة
• المميزات الخاصة: UV Resistant, Water Repellent, 3 Years Fadeless, 360-degree Rotation, 5-Level Height/Angle Adjustment
• الشركة المصنعة: ورقة أرجوانية
• ASIN: B0CKXJT83G

9. الضمان والدعم

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official PURPLE LEAF website. You can also contact PURPLE LEAF customer service through your retailer for assistance.

للحصول على دعم إضافي، قم بزيارة PURPLE LEAF Store on Amazon.
