دليل مستخدم سكوتر سيركوتر رابتور برو الكهربائي

1. انتهى المنتجview

The Circooter Raptor Pro is a high-performance electric scooter designed for both off-road exploration and daily commuting. It features dual motors, a long-range battery, and a comprehensive lighting system for enhanced safety and visibility.

Image: Circooter Raptor Pro Electric Scooter, showcasing its sleek design, included storage bag, and dual chargers.

2. الإعداد

2.1 فك الصندوق والتجميع

Carefully remove all components from the packaging. The scooter comes partially assembled. Follow these steps to complete the setup:

1. Lift the handlebar stem into the upright position until it clicks securely into place.
2. Secure the handlebar assembly by tightening the locking mechanism.
3. Connect any loose cables from the handlebar to the main stem, ensuring they are properly seated.
4. Attach any accessories, such as the storage bag, to the designated areas.

2.2 الشحن الأولي

Before first use, fully charge the scooter's battery. The Raptor Pro includes two chargers and dual charging ports to reduce charging time.

• Locate the charging ports on the scooter's deck.
• Plug the chargers into a standard power outlet.
• Connect the charging cables to the scooter's charging ports.
• The charging indicator on the charger will change color (typically red to green) when fully charged.

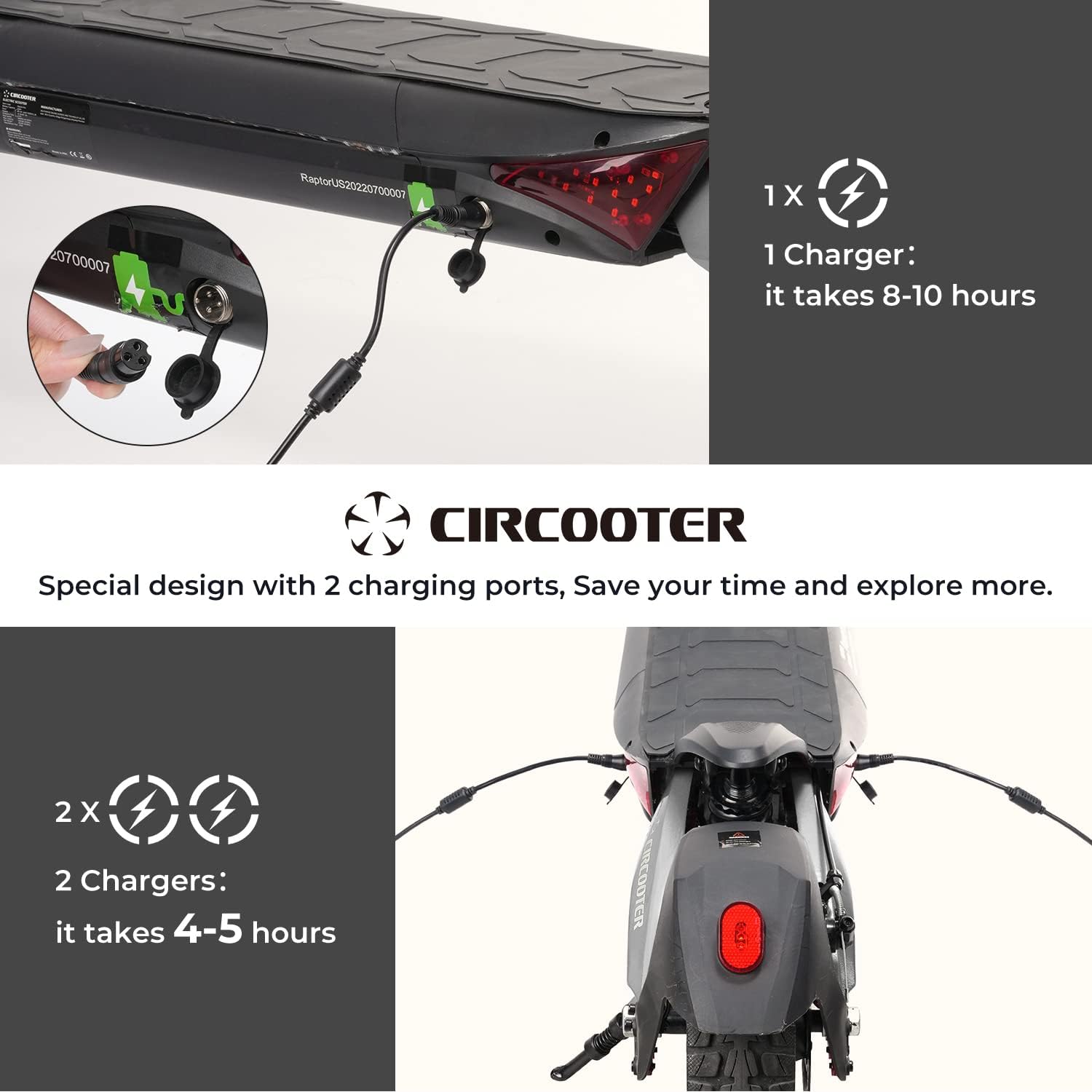

Image: Close-up of the Circooter Raptor Pro's dual charging ports, illustrating the use of two chargers for faster charging (4-5 hours).

3. تعليمات التشغيل

3.1 عناصر التحكم والعرض

The scooter features an intuitive control panel and a clear display to monitor your ride.

• زر الطاقة: يقوم بتشغيل/إيقاف تشغيل السكوتر.
• زر الوضع: Cycles through different riding modes (ECO, Standard, Turbo).
• زر المصباح الأمامي: Activates the dual headlights and side moonlights.
• زر القرن: يُطلق صوت البوق.
• إشارات الانعطاف: Front and rear turn signals are integrated into the deck for visibility.
• عرض: Shows speed, battery level, trip mileage, and temperature.

Image: The Circooter Raptor Pro's comprehensive 360-degree lighting system, including dual headlights, side moonlights, and integrated turn signals.

3.2 أوضاع الركوب

The Raptor Pro offers multiple riding modes to suit different terrains and preferences:

• نمط الصدى: Maximizes battery range, suitable for casual rides.
• الوضع القياسي: أداء متوازن للاستخدام اليومي.
• وضعية التوربو: Unleashes full power for maximum speed (up to 28 MPH) and acceleration.

3.3 اتصال التطبيق

Connect your Raptor Pro scooter to your smartphone via the dedicated app for additional controls and ride data.

• Monitor single and total mileage.
• Lock/unlock the scooter for security.
• Control headlights and cruise mode.
• Adjust start mode (push-start vs. immediate throttle).

Video: A detailed product introduction, demonstrating the scooter's features and app connectivity.

4. الصيانة

4.1 العناية العامة

• Regularly inspect tires for wear and proper inflation (though solid tires reduce this need).
• حافظ على نظافة السكوتر وخاليًا من الأوساخ والحطام.
• افحص جميع البراغي والمسامير بشكل دوري للتأكد من إحكام ربطها.

4.2 العناية بالبطارية

• Always use the original chargers provided.
• تجنب تفريغ البطارية بالكامل قبل إعادة شحنها.
• Store the scooter in a cool, dry place when not in use, and ensure the battery is partially charged (around 50-70%) for long-term storage.

Image: The Circooter Raptor Pro demonstrating its IPX4 waterproof rating, indicating resistance to water splashes from any direction.

5. استكشاف الأخطاء وإصلاحها

If you encounter issues with your Circooter Raptor Pro, please refer to the following common solutions:

• السكوتر لا يعمل: Ensure the battery is charged and the power button is pressed firmly. Check all cable connections.
• Loss of power/speed: This may indicate a low battery. Recharge the scooter fully. Performance may also decrease in extreme temperatures or on steep inclines.
• مشاكل الفرامل: Check brake cables for proper tension. Ensure brake pads are not excessively worn.
• مشاكل الاتصال بالتطبيق: Ensure Bluetooth is enabled on your device and the scooter is powered on. Try restarting both the app and the scooter.

في حالة وجود مشكلات مستمرة، يرجى الاتصال بدعم العملاء.

Video: A detailed riding experience video, which may offer insights into common operational scenarios and performance.

6. المواصفات

7. الضمان والدعم

7.1 معلومات الضمان

Circooter offers a limited warranty for the Raptor Pro Electric Scooter:

• 12 months and 365 days for various accessories (e.g., rear fender, throttle, disc brake).
• 180 days for motor & battery.

يرجى الاحتفاظ بإثبات الشراء الخاص بك لمطالبات الضمان.

7.2 دعم العملاء

For any inquiries, technical assistance, or warranty claims, please contact Circooter customer support:

• بريد إلكتروني: hello@circooter.com
• Seller: CIRCOOTER DIRECT
