1. Introduction to the Minelab X-TERRA Pro
The Minelab X-TERRA Pro is an advanced treasure detector designed for both novice and experienced users. It features PRO-SWITCH (Switchable Frequency Technology), allowing operation at 5, 8, 10, or 15 kHz to adapt to various detecting environments. This detector is fully IP68 waterproof up to 5 meters (16 feet), making it suitable for land and shallow water use. Key features include multiple audio modes, a control pod flashlight, and handgrip vibration for enhanced user experience.
This manual provides detailed instructions for setting up, operating, and maintaining your X-TERRA Pro detector to ensure optimal performance and longevity.

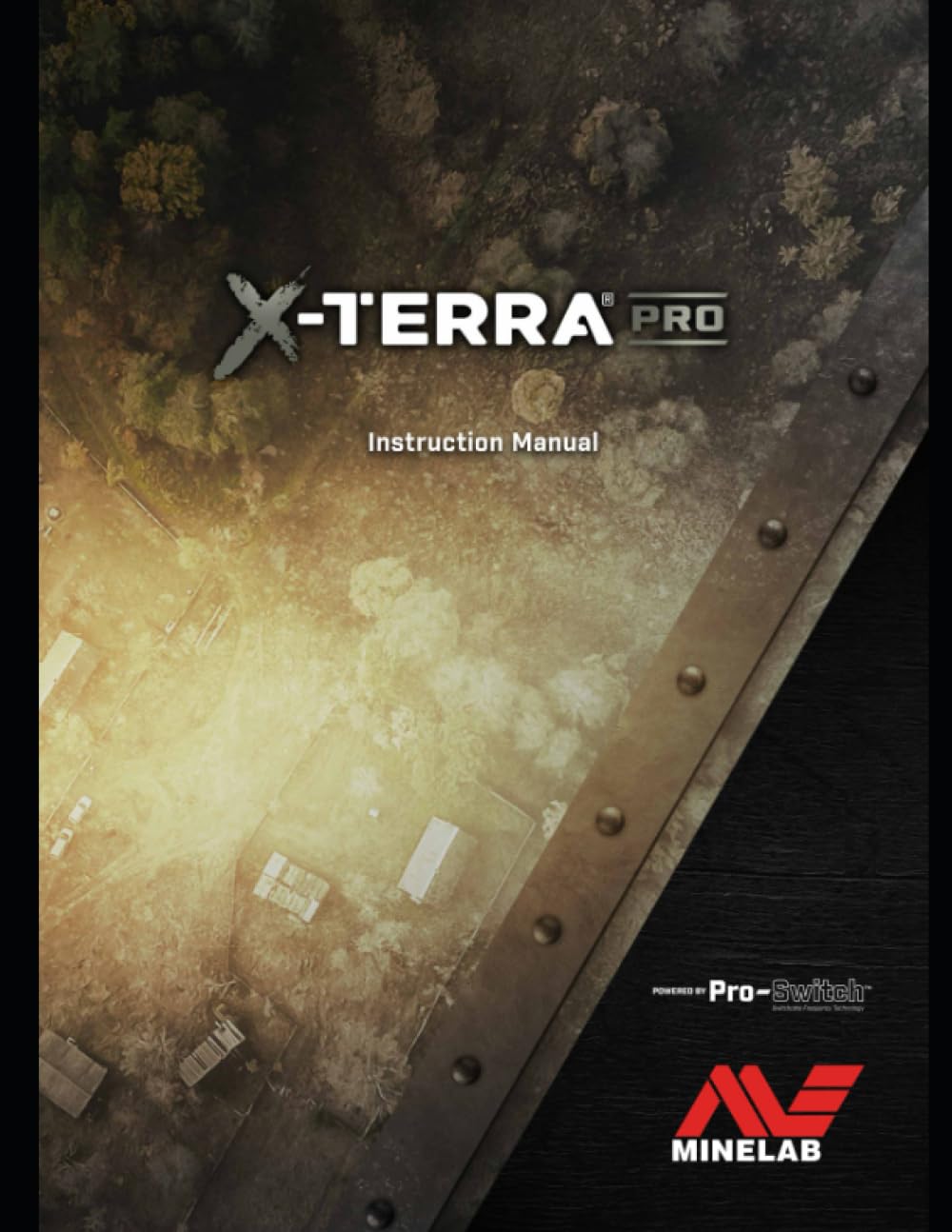

Figure 1.1: Cover of the Minelab X-TERRA Pro Instruction Manual. This image displays the product's branding and title.
2. معلومات السلامة
Always observe the following safety precautions when using your Minelab X-TERRA Pro metal detector:
- تصنيف مقاومة الماء: The detector is waterproof to 5 meters (16 feet). Ensure all seals and caps are securely fastened before submerging the device. Do not exceed the specified depth.
- سلامة البطارية: Use only recommended batteries. Do not mix old and new batteries, or different types of batteries. Dispose of batteries according to local regulations.
- وعي بيئي: انتبه لما يحيط بك. تجنب استخدام أجهزة الكشف في المناطق الخطرة مثل مواقع البناء النشطة، والمناطق العسكرية، أو المناطق التي تحتوي على ذخائر غير منفجرة.
- Digging Safety: Always use appropriate digging tools and exercise caution when excavating targets. Be mindful of underground utilities and property boundaries.
- أطفال: احتفظ بالجهاز بعيدًا عن متناول الأطفال الصغار.
3. محتويات العبوة
Verify that all items are present in your Minelab X-TERRA Pro package:
- X-TERRA Pro Control Unit
- V12X™ 12" Double-D Elliptical Coil with Skidplate
- 3-Piece Shaft System
- كابل شحن USB
- دليل البدء السريع
- بطاقة الضمان
Note: Specific contents may vary by region or package.
4. الإعداد والتجميع
4.1. Assembling the Detector
- Attach the Coil: Secure the search coil to the lower shaft using the provided bolt and washers. Ensure it is snug but not overtightened.
- توصيل أقسام العمود: Assemble the middle and upper shaft sections. The control unit attaches to the upper shaft.
- وحدة التحكم في التركيب: Slide the control unit onto the upper shaft and secure it with the locking mechanism.
- Wrap Coil Cable: Carefully wrap the coil cable around the shaft, ensuring it is not too tight or loose, and plug it into the control unit's coil connector. Secure the connector cap.
Product image of assembled detector would be embedded here if available.
4.2. شحن البطارية
The X-TERRA Pro features an internal rechargeable Lithium-Ion battery. Before first use, fully charge the detector.
- Connect the supplied USB charging cable to the charging port on the control unit.
- Plug the other end into a USB power adapter (not supplied) or a computer USB port.
- سيُظهر مؤشر البطارية على الشاشة حالة الشحن. يستغرق الشحن الكامل عادةً حوالي 4-6 ساعات.
4.3. التشغيل الأولي
اضغط مع الاستمرار على زر التشغيل (⏻) for approximately 2 seconds to turn on the detector. The display will illuminate, and the detector will perform a brief self-test.
5. Operating the Minelab X-TERRA Pro
5.1. Search Modes
The X-TERRA Pro offers three primary search modes optimized for different environments:
- حديقة: مثالي للمناطق التي تكثر فيها النفايات مثل الحدائق والبيئات الحضرية.
- مجال: Suitable for open fields, agricultural land, and general relic hunting.
- شاطئ: Optimized for wet sand and saltwater conditions, minimizing false signals from mineralization.
To select a search mode, press the وضع button and navigate using the arrow keys. Confirm your selection by pressing the يدخل زر.
5.2. PRO-SWITCH (Switchable Frequency Technology)
PRO-SWITCH allows you to change the operating frequency of your detector to suit different targets and ground conditions. Available frequencies are 5 kHz, 8 kHz, 10 kHz, and 15 kHz.
- Lower Frequencies (5 kHz, 8 kHz): Generally better for deeper, larger targets and highly mineralized ground.
- Higher Frequencies (10 kHz, 15 kHz): More sensitive to smaller, shallower targets like small coins and jewelry.
To change the frequency, press the تكرار button and use the arrow keys to select your desired frequency. Press يدخل للتأكيد.
5.3. ضبط الإعدادات
The X-TERRA Pro offers various adjustable settings to fine-tune your detecting experience:
- حساسية: Controls the detector's responsiveness to targets. Increase for deeper detection, decrease to reduce ground noise.
- مقدار: يضبط مستوى إخراج الصوت.
- تمييز: Allows you to reject unwanted trash targets (e.g., iron).
- التوازن الأرضي: Calibrates the detector to the ground mineralization, reducing false signals. Automatic and manual options are available.
- أوضاع الصوت: Select from 5 different audio modes to customize target tones.
Refer to the on-screen menu for detailed adjustments. Use the arrow keys to navigate and يدخل to select/confirm.
A video demonstrating the control panel and settings adjustment would be embedded here if available.
6. الصيانة والعناية
6.1. التنظيف
- After each use, wipe down the control unit and shaft with a damp قطعة قماش.
- Rinse the search coil and lower shaft with fresh water if used in saltwater or muddy conditions. Ensure the coil connector is sealed.
- Do not use abrasive cleaners or solvents, as these can damage the detector's finish and seals.
6.2. التخزين
- قم بتخزين جهاز الكشف في مكان بارد وجاف بعيدًا عن أشعة الشمس المباشرة ودرجات الحرارة القصوى.
- في حالة التخزين لفترة طويلة، تأكد من شحن البطارية جزئيًا (حوالي 50٪) لإطالة عمرها الافتراضي.
- Avoid placing heavy objects on the detector.
7. استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد طاقة | Battery discharged; Power button not pressed correctly. | Charge the battery; Press and hold the Power button for 2 seconds. |
| إشارات خاطئة مفرطة | High sensitivity; Improper ground balance; Electromagnetic interference. | Reduce sensitivity; Perform ground balance; Move away from power lines or other electronics. |
| No target response | Coil not connected; Discrimination too high; Sensitivity too low. | Check coil connection; Lower discrimination; Increase sensitivity. |
| العرض لا يعمل | Extreme temperature; Software glitch. | Allow unit to return to normal operating temperature; Perform a factory reset (refer to advanced settings). |
8. المواصفات الفنية
- ترددات التشغيل: 5 kHz, 8 kHz, 10 kHz, 15 kHz (PRO-SWITCH)
- أوضاع البحث: بارك، الميدان، الشاطئ
- تصنيف مقاومة الماء: IP68 (up to 5 meters / 16 feet)
- مخرج الصوت: Built-in speaker, 3.5mm headphone jack, wireless audio compatible
- عرض: شاشة LCD ذات إضاءة خلفية
- بطارية: Internal rechargeable Lithium-Ion
- وزن: Approximately 1.2 kg (2.6 lbs) (depending on coil)
- الطول (ممتد): حوالي 145 سم (57 بوصة)
- الطول (مُصغّر): حوالي 63 سم (25 بوصة)
9. الضمان والدعم
The Minelab X-TERRA Pro comes with a standard manufacturer's warranty. Please refer to the included warranty card for specific terms, conditions, and duration applicable to your region.
For technical support, service, or warranty claims, please contact Minelab customer service or visit the official Minelab webالموقع. احتفظ بإثبات الشراء للتحقق من الضمان.
Minelab Official Webموقع: www.minelab.com
