JONES CLOCKS JDRAG277LW

JONES CLOCKS Bee Wall Clock (Model JDRAG277LW)

دليل التعليمات

1. المقدمة

This manual provides essential information for the setup, operation, and maintenance of your JONES CLOCKS Bee Wall Clock, Model JDRAG277LW. This 10-inch wall clock features a classic yet contemporary design with a stylish honeybee illustration on a pale cream dial, housed in a modern case with metal hands.

JONES CLOCKS Bee Wall Clock, front view

الصورة 1.1: الجبهة view of the JONES CLOCKS Bee Wall Clock.

Diagram of JONES CLOCKS Bee Wall Clock features: modern case, decorative bee dial, glass lens, metal hands

Image 1.2: Key features of the Bee Wall Clock, including the modern case, decorative bee dial, glass lens, and metal hands.

2. محتويات العبوة

يرجى التأكد من وجود جميع العناصر في الحزمة الخاصة بك:

  • 1 x JONES CLOCKS Bee Wall Clock (Model JDRAG277LW)
  • دليل التعليمات (هذا المستند)

ملاحظة: يلزم وجود بطارية AA واحدة للتشغيل وهي غير مضمنة في العبوة.

3. الإعداد

3.1. تركيب البطارية

  1. حدد مكان حجرة البطارية على الجزء الخلفي من الساعة.
  2. Insert one (1) new, high-quality alkaline AA battery, ensuring correct polarity (+/-).
  3. أغلق غطاء حجرة البطارية جيدًا.

WARNING: Do not slide the battery underneath the spring terminals, as this can cause a short circuit. Do not use rechargeable or lithium batteries.

Back of JONES CLOCKS Bee Wall Clock showing battery compartment and hanging slot

الصورة 3.1: خلفي view of the clock, highlighting the battery compartment and wall mounting slot.

3.2. ضبط الوقت

  1. Locate the adjustment wheel on the back of the clock mechanism.
  2. Gently turn the adjustment wheel to move the clock hands to the correct time.

3.3. التثبيت على الحائط

  1. Select a suitable location indoors, away from direct sunlight, high humidity, or intense heat sources.
  2. Ensure an adequate wall fixing (e.g., screw, nail, or wall anchor) is used, considering the type of wall material and the weight of the clock (approximately 530 grams / 1.17 pounds).
  3. Hang the clock securely using the keyhole slot on the back.

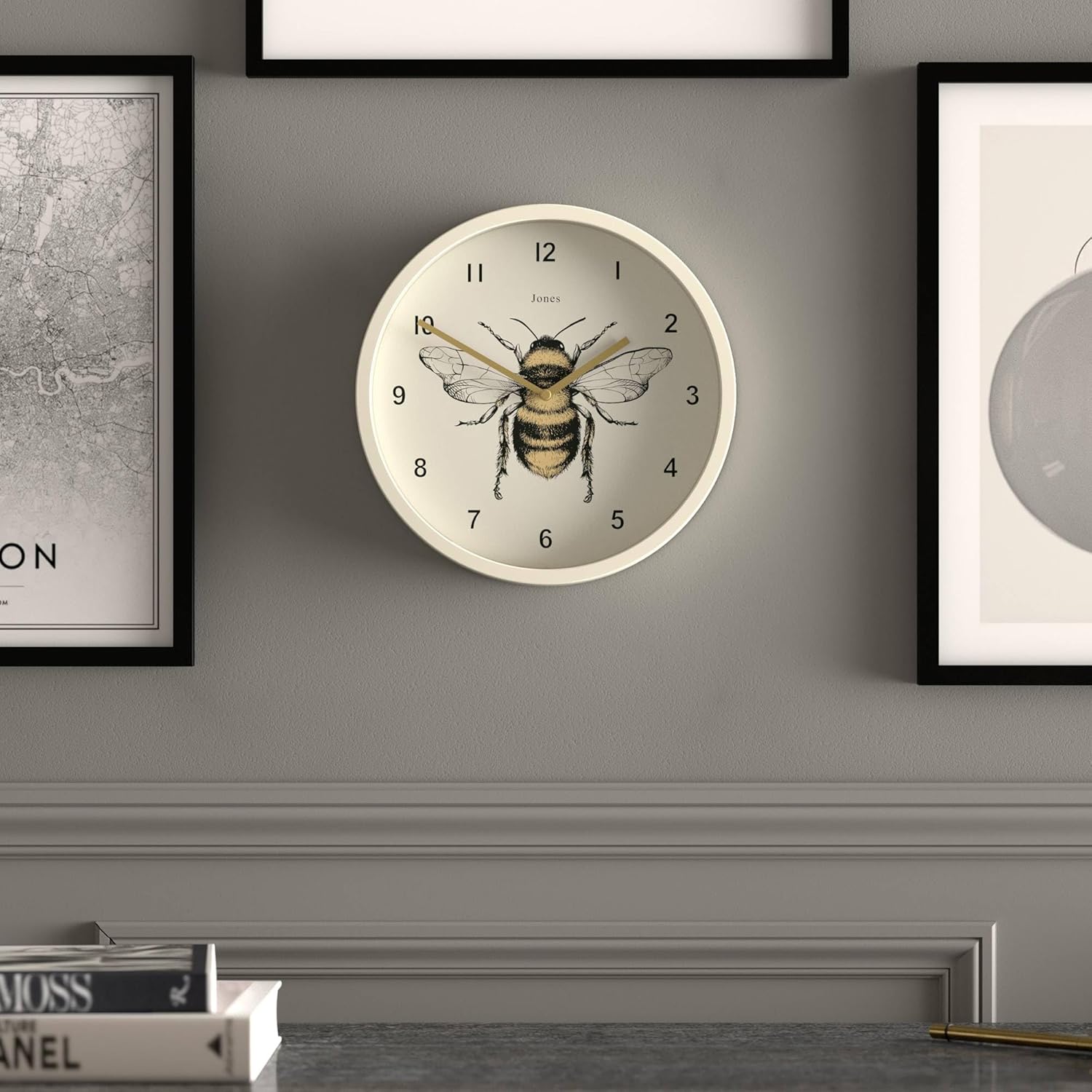

JONES CLOCKS Bee Wall Clock mounted on a grey wall above a desk

الصورة 3.2: مثالampجزء من الساعة المثبتة على الحائط.

4. تشغيل الساعة

Your JONES CLOCKS Bee Wall Clock uses an accurate and reliable quartz step movement. Once the battery is installed and the time is set, the clock will begin keeping time. The movement produces a faint ticking sound.

5. الصيانة

5.1. التنظيف

For cleaning, we recommend a light dusting with a soft, clean, and dry cloth only. The use of liquids and cleaning agents may damage the finish of your clock.

5.2. استبدال البطارية

When the clock begins to lose time or stops, it is an indication that the battery needs to be replaced. Follow the battery installation steps (Section 3.1) to replace the AA battery with a new, high-quality alkaline battery.

6. استكشاف الأخطاء وإصلاحها

  • Clock not working or losing time: Ensure a new, high-quality alkaline AA battery is correctly installed with proper polarity. Old or poor-quality batteries are a common cause of malfunction.
  • Hands are loose or clock stops: Verify the clock is not exposed to high humidity, intense heat, or direct sunlight, as these conditions can cause damage.

If issues persist after following these steps, please refer to the Warranty and Support section.

7. المواصفات

ميزةالتفاصيل
رقم الموديلJDRAG277LW
الأبعاد (القطر × العمق)25 سم × 4 سم (10 بوصات × 1.5 بوصات)
وزنحوالي 530 جرام (1.17 رطل)
مصدر الطاقة1 x AA Alkaline Battery (not included)
نوع الحركةQuartz Step Movement
نوع العرضالتناظرية
موادأكريليك، معدن، بلاستيك
الاستخدام الداخلي والخارجيداخلي فقط
Diagram showing dimensions of the JONES CLOCKS Bee Wall Clock: 25cm (9 3/4 inches) diameter and 4cm (1 1/2 inches) depth

الصورة 7.1: أبعاد المنتج.

8. احتياطات السلامة

  • This clock is designed for domestic and light commercial indoor use only. It is not suitable for outdoor environments.
  • Avoid placing the clock in environments with high humidity, intense heat, or direct exposure to sunlight (e.g., conservatories, summer rooms, greenhouses, window sills, or near heat sources like cookers, radiators, fires, or wood burners). Such conditions can cause melting, corrosion, warping, discoloration, or malfunction of the clock and its components.
  • Damage resulting from exposure to these environments/conditions is not covered under warranty, and no exchanges or repairs will be provided.

9. الضمان والدعم

9.1. Manufacturer's Guarantee

Your new JONES CLOCKS Bee Wall Clock comes with a 12-month guarantee from the date of purchase. This guarantee covers mechanical and material failures. It does not cover damage caused by tampering, battery leakage, or improper use as outlined in the safety precautions.

In the unlikely event that your clock develops a fault covered by the guarantee, please return it to the retailer from whom you purchased it.

9.2. معلومات الاتصال

JONES CLOCKS is a division of Newgate World Ltd.

Newgate World Ltd.
3 جلوفيرز ميدو، أوسويستري،
SY10 8NH، المملكة المتحدة

ممثل الاتحاد الأوروبي المعتمد:
Comply Express Lda.
StartUp Madeira - EV 141 - Campلنا دا بنتيدا ،
9020 105 فونشال

Webموقع: newgateworld.com
