دليل تعليمات جهاز تسوية الطوربيد المغناطيسي VEVOR DL405

1. انتهى المنتجview

The VEVOR Magnetic Torpedo Level, Model DL405, is a versatile measuring tool designed for precision in various applications, including plumbing and woodworking. It features a durable aluminum alloy construction, a high-definition LED backlit screen, and a gravity sensor for automatic screen rotation.

المميزات الرئيسية:

• High-Definition LCD Backlight Digital Screen: Provides clear measurement data even in low-light conditions.
• استشعار الجاذبية: Automatically rotates the screen for convenient viewing when the device is flipped. Includes an audible beep for vertical and horizontal positions.
• Sturdy & Durable Aluminum Construction: Made from high-quality, rust-resistant, and wear-resistant aluminum for long-lasting use.
• 0-360 Degree Measurement: Offers a full range of measurement (4x90 degrees) with 0.05-degree precision for accurate horizontal and vertical positioning.
• Memory Recording & Holding Function: Stores the last 8 angle measurements and allows transfer of target values to other work areas.
• امتصاص مغناطيسي قوي: Integrated magnets for easy attachment to metal surfaces.

The VEVOR Magnetic Torpedo Level DL405 is presented with its protective carrying bag, highlighting its portability and readiness for various job sites.

This image illustrates the core benefits of the VEVOR DL405, showcasing its robust build and advanced features for precise leveling tasks.

2. الإعداد

تركيب البطارية:

The VEVOR DL405 requires batteries for operation. Ensure correct polarity during installation.

1. Locate the battery compartment cover on the underside of the level.
2. Use a screwdriver to loosen the screw and remove the battery cover.
3. Insert two batteries, ensuring the proper positive (+) and negative (-) polarities are aligned.
4. أعد تركيب غطاء البطارية وأحكم ربط المسمار بإحكام.

ملحوظة: When the low battery icon appears on the display, it indicates that the battery is low and should be replaced.

This video provides a comprehensive guide on battery installation and other operational aspects of a similar digital level, which can be applied to the VEVOR DL405.

3. تعليمات التشغيل

تشغيل/إيقاف التشغيل:

• To turn on, short press the تشغيل/إيقاف button. A brief buzzer sound will confirm activation.
• لإيقاف التشغيل، اضغط مع الاستمرار على تشغيل/إيقاف اضغط على الزر لمدة 3 ثوانٍ تقريبًا.

وحدة التبديل:

• اضغط لفترة قصيرة على وضع button to cycle through available measurement units: degrees (°), percent (%), mm/m, in/ft (fraction), and in/ft (decimal).

Reference Measurement Mode:

• اضغط لفترة قصيرة على مرجع button to enter or exit the reference measurement mode.
• When in reference mode, the 'S' icon will flash on the display, and the current position will be set as 0 degrees. All subsequent measurements will be relative to this set position.

وظيفة الانتظار:

• اضغط لفترة قصيرة على يمسك button to freeze the current measurement value on the display. The 'H' icon will be displayed.
• اضغط على يمسك button again to exit the hold function and resume live measurements.

موجه الجرس:

• Short press the buzzer button (often integrated with ON/OFF or a dedicated button) to turn the audible buzzer on or off. When active, a buzzer icon will appear on the display.
• The buzzer provides a continuous beep at 0° and 90° for precise alignment. A fast beep indicates angles between 0°-1° or 89°-90°.

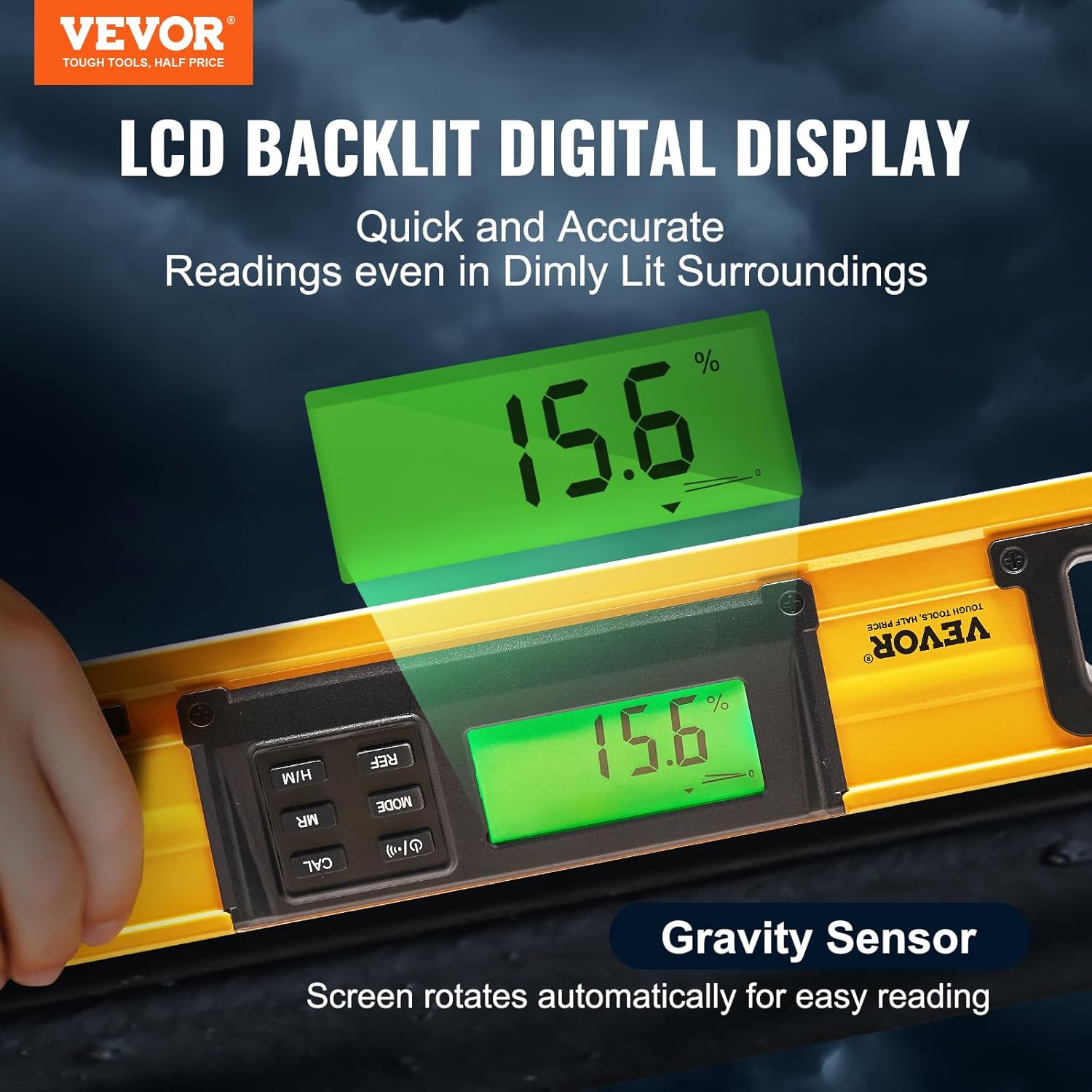

This image highlights the clear LCD display and the automatic screen rotation feature, which enhances usability in various orientations.

This visual demonstrates the level's capability for comprehensive angle measurement, crucial for diverse construction and DIY projects.

The image emphasizes the traditional bubble vials, providing a clear visual reference for leveling alongside the digital display.

This video provides a visual guide to the core functionalities of a digital level, offering practical insights into its use for various tasks.

4. المعايرة

If you notice a significant deviation in accuracy, calibrate the level using the following steps:

1. Turn off the digital level.
2. Place the level on a flat and smooth surface.
3. أثناء إيقاف تشغيل الجهاز ، اضغط مع الاستمرار على يمسك زر.
4. بينما لا يزال عقد يمسكاضغط على تشغيل/إيقاف button until the LCD display shows "CAL".
5. The screen will then display the current measured angle. Keep the level still for a short period, then press the يمسك button. "CAL1" will briefly display.
6. In the same location, rotate the level 180 degrees.
7. اضغط على يمسك button again. "CAL2" will briefly display.
8. Once "CAL2" disappears, the calibration is complete.

ملحوظة: To cancel calibration at any point, turn off the digital level.

5. الصيانة

العناية العامة:

• حافظ على نظافة الجهاز وجفافه. امسحه بقطعة قماش ناعمة.amp قطعة قماش.
• Avoid exposing the level to extreme temperatures or direct sunlight for prolonged periods.
• Store the level in its provided carrying bag when not in use to protect it from dust and damage.

استبدال البطارية:

Refer to the "Setup" section for detailed instructions on battery installation and replacement. It is recommended to remove batteries for long-term storage to prevent leakage.

This image demonstrates the level's durability and resistance to environmental factors, emphasizing its suitability for outdoor use.

6. استكشاف الأخطاء وإصلاحها

• الشاشة لا تعمل: تحقق من تركيب البطارية وتأكد من عدم نفاذ شحنها. استبدلها إذا لزم الأمر.
• قراءات غير دقيقة: Perform a calibration as described in the "Calibration" section. Ensure the surface is stable and free from vibrations.
• "ERR" message on display: This may occur if the level is lying flat at approximately 30 degrees. Adjust the level to a different angle or re-calibrate if the error persists.
• Buzzer not working: Check if the buzzer function is enabled (refer to "Buzzer Prompt" in Operating Instructions).

7. المواصفات

This image provides a quick reference for the physical and technical attributes of the level.

8. الضمان والدعم

For warranty information, technical support, or service inquiries, please contact VEVOR customer service through their official website or the retailer where the product was purchased. Keep your purchase receipt and product model number (DL405) handy for faster assistance.
