1. المقدمة
Thank you for choosing the MONDAWE 12 Inch Thermostatic Shower System. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read it thoroughly before installation and keep it for future reference.

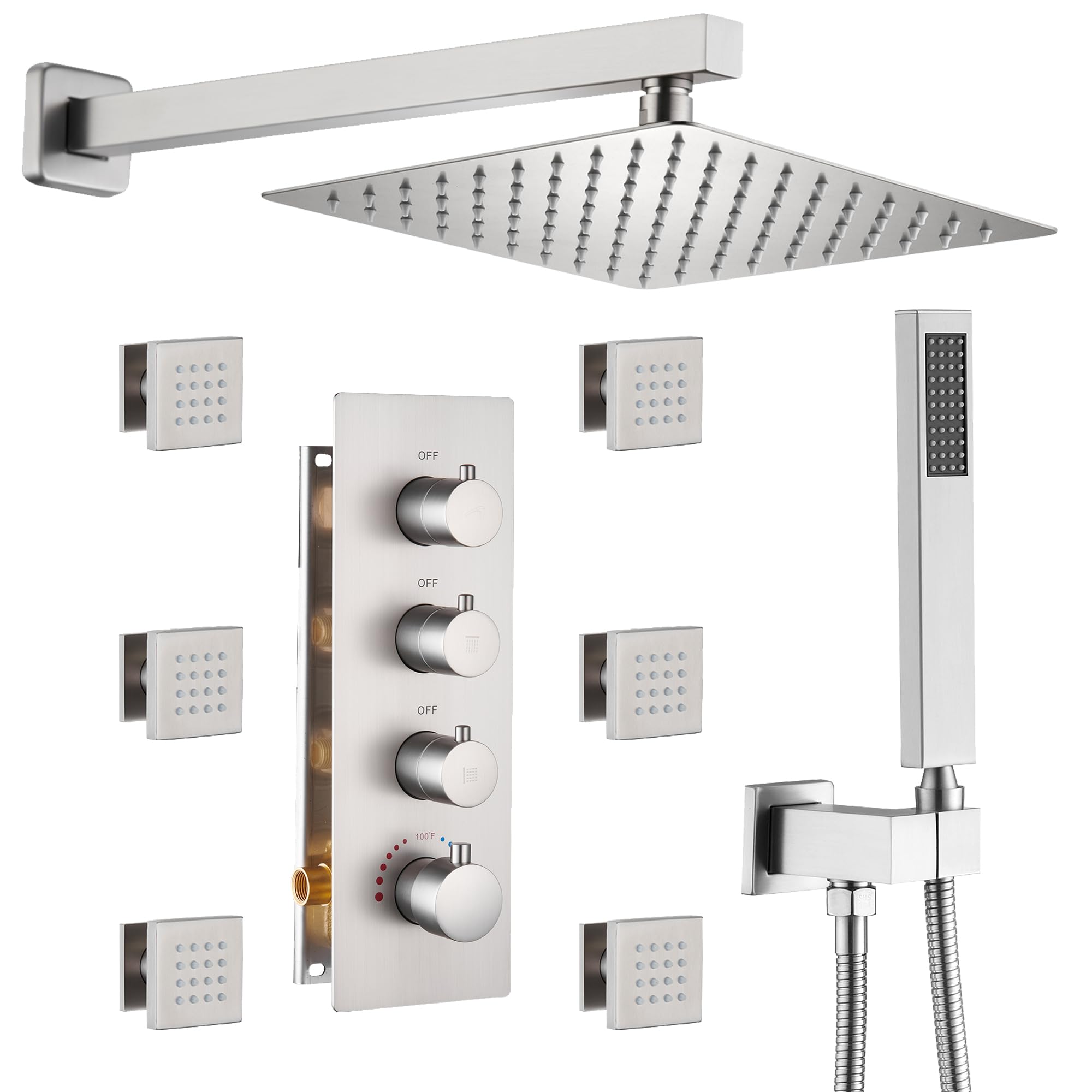

This high-quality shower system features a 12-inch rainfall shower head, a handheld spray, and six adjustable body jets, all controlled by a thermostatic valve for consistent water temperature and enhanced safety. The brushed nickel finish offers a modern aesthetic, complementing various bathroom designs.
2. معلومات السلامة
- قم دائمًا بإيقاف تشغيل مصدر المياه الرئيسي قبل البدء في أي تركيب أو صيانة.
- تأكد من إحكام جميع وصلات السباكة لمنع التسربات.
- The thermostatic valve is designed to prevent scalding by maintaining a consistent temperature. Do not tamper with the factory-set temperature limit without understanding the risks.
- ارتدِ معدات الوقاية الشخصية المناسبة أثناء التركيب، بما في ذلك نظارات السلامة والقفازات.
- إذا كنت غير متأكد من أي جزء من عملية التركيب، فاستشر سباكًا مؤهلًا.
3. محتويات العبوة
Verify that all components are present and undamaged before installation. If any parts are missing or damaged, please contact customer service.
- 12" Shower Head
- 6 pcs Massage Body Jets
- 6 pcs Cover Plate
- دش محمول باليد
- جسم صمام ترموستاتي
- Valve Panel
- حامل دش يدوي
- 59" Shower Hose
- الذراع دش
- معدات التركيب
- دليل المستخدم
4. المواصفات
| ميزة | وصف |
|---|---|
| ماركة | مونداوي |
| رقم الموديل | WF6310-12BN-WM |
| لون | نيكل مصقول |
| مادة | النحاس الأصفر، الفولاذ المقاوم للصدأ، الزنك |
| نوع التشطيب | مصقول بالفرشاة |
| عدد المقابض | 1 |
| نوع التركيب | حامل الحائط |
| حجم الرأس | 12 بوصة |
| وزن العنصر | 24.3 رطل |
| أبعاد المنتج | 20.47 × 18.11 × 7.48 بوصة |
5. التثبيت والإعداد
Professional installation is recommended. Ensure you have all necessary tools and materials before starting. The system uses American standard 1/2 inch NPT threads.
5.1 تركيب الصمام الحراري
The thermostatic valve body must be installed correctly within the wall. The installation depth is crucial for proper function and aesthetic finish. The face of the plasterguard should be flush with the finished wall line.
5.2 تركيب رأس الدش ونفاثات الجسم
Install the 12-inch rainfall shower head and the 6 body jets according to the provided plumbing diagrams. Ensure all connections are sealed with Teflon tape to prevent leaks. The body jets can be rotated 360 degrees for customized water flow.
5.3 Handheld Shower Installation
Connect the handheld shower to the shower hose and secure it to the wall-mounted holder. Ensure the hose is properly connected to the thermostatic valve outlet.
6. التشغيل
The MONDAWE shower system offers three distinct functions: rainfall shower, handheld spray, and body jets. These functions can be used separately or simultaneously.
6.1 التحكم الحراري بالثرموستاتي
The thermostatic valve allows you to set your desired water temperature, which will remain constant regardless of pressure fluctuations. The valve can be locked at 38°C (100°F) to prevent accidental scalding, making it safe for children and the elderly.
6.2 اختيار الوظيفة
Use the single lever shower diverter to effortlessly switch between the rainfall shower head, body jets, or handheld spray. All functions can be activated simultaneously for a comprehensive shower experience.
7. الصيانة
- تنظيف: Clean the shower system regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed nickel finish.
- صيانة الفوهة: The silicone nozzles on the shower head and handheld spray are designed for easy cleaning. Simply rub them with your finger to dislodge any mineral buildup.
- صمام حراري: Periodically check the thermostatic valve for proper function. If you notice inconsistent temperatures, it may require professional inspection.
8. استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| انخفاض ضغط المياه | Clogged nozzles or water supply issues. | Clean shower head and handheld nozzles. Check main water supply pressure. |
| درجة حرارة الماء غير ثابتة | Thermostatic valve malfunction or imbalanced hot/cold water supply. | Ensure hot and cold water supplies are balanced. If problem persists, consult a plumber. |
| تسريبات من جهات اتصال | Loose connections or insufficient Teflon tape. | Turn off water supply, tighten connections, and reapply Teflon tape if necessary. |
9. الضمان والدعم
The MONDAWE 12 Inch Thermostatic Shower System comes with a ضمان محدود لمدة عامين. This warranty covers manufacturing defects and material flaws under normal use and service.
For warranty claims, technical assistance, or any questions regarding your product, please contact MONDAWE customer service. Provide your model number (WF6310-12BN-WM) and purchase date for faster service.
