1. المقدمة
Thank you for choosing the Eridanus One Piece Toilet. This modern, elongated toilet is designed for comfort and efficiency, featuring an ADA-compliant 17-inch chair height seat and a powerful, quiet dual flush system. Its sleek, one-piece design simplifies cleaning and adds elegance to any bathroom.
المميزات الرئيسية:
- Ceramic One-Piece Design: Combines tank and bowl into a seamless unit for easy cleaning and a modern aesthetic.
- Elongated Bowl with Soft-Closing Seat: Provides added comfort and prevents slamming.
- ADA Compliant 17" Chair Height: Offers comfortable seating for a wide range of users.
- Water-Saving Dual Flush: High-performance vortex flushing with 1.1/1.6 GPF options, certified by WaterSense, cUPC, and CEC, saving up to 16,500 gallons of water annually.
- سهولة التركيب: Designed for a 12-inch rough-in, fitting most standard bathroom layouts.
- Fully Skirted Trapway: Enhances appearance and simplifies exterior cleaning.
2. معلومات السلامة
Please read this entire manual thoroughly before installation and use. Failure to follow these instructions could result in personal injury or property damage.
- وزن المنتج: The toilet weighs approximately 114 pounds. Due to its weight, two people are required for safe lifting and handling to avoid personal injuries or accidental damage to the item.
- المواد الهشة: This product is made of ceramic and is fragile. Handle with extreme care during unpacking and installation to prevent chipping or cracking.
- معدات السلامة: Always wear appropriate safety equipment, including gloves and eye protection, during installation.
- التثبيت الاحترافي: It is recommended that this product be installed by a licensed professional to ensure proper function and compliance with local plumbing codes.
- إمدادات المياه: تأكد من إيقاف تشغيل مصدر المياه الرئيسي قبل البدء في أي أعمال تركيب أو صيانة.
3. ما هو المشمول
The Eridanus One Piece Toilet comes with all necessary components for installation, except for the water supply line.
الشكل 3.1: المكونات المضمنة
- One-Piece Compact Toilet
- مقعد مرحاض سهل الإغلاق
- Fill Valve Kit (pre-assembled)
- غطاء الخزان
- براغي المتصاعدة
- حشية حلقة الشمع
- أغطية الغطاء
4. المواصفات
الشكل 4.1: أبعاد المنتج
Figure 4.2: Technical Specifications and Rough-in
| يصف | قيمة |
|---|---|
| الشركة المصنعة | إريدانوس |
| رقم القطعة | ERI-1T302 |
| وزن العنصر | 114 رطل |
| أبعاد المنتج | 28.75 × 14 × 28 بوصة |
| بلد المنشأ | الصين |
| رقم موديل العنصر | إم جيه-76 |
| لون | Solid Black (Note: Product is white, specification might be for a variant) |
| أسلوب | Dual Flush-17" Seat Height |
| مادة | سيراميك |
| شكل | بيضاوي |
| طريقة التثبيت | الطابق الخيالة |
| كمية حزمة العنصر | 1 |
| تاريخ أول توفر | 23 مايو 2023 |
5. الإعداد والتثبيت
5.1 قائمة التحقق من التثبيت المسبق
- Inspect the toilet for any damage incurred during transit.
- اتبع جميع قواعد السباكة والبناء وفقًا لمتطلبات ولايتك والمحلية.
- Confirm the item received will fit in the intended location and that plumbing fixtures are located where legally required before installation begins.
- Ensure you have all necessary tools and components as listed in Section 3 and 5.2.
5.2 الأدوات المطلوبة
- Wax Ring Gasket (included)
- وجع
- Mounting Bolt Kit (included)
- Side Cover Set (included)
- مفك البراغي
- Water Supply Line (NOT included)
5.3 خطوات التثبيت
للحصول على دليل مرئي، يرجى الرجوع إلى فيديو التثبيت الرسمي أدناه.
Video 5.1: Eridanus One Piece Toilet General Installation Guide. This video provides a step-by-step visual walkthrough of the toilet installation process.
- Prepare Floor Flange: Lock the mounting bolts into position on the floor flange.
- ضع حلقة الشمع: Apply the wax ring gasket evenly around the rear of the trapway on the bottom of the toilet.
- وضع المرحاض: Carefully position the toilet onto the floor flange, ensuring the bolts align with the holes.
- مرحاض آمن: Install the washers and nuts onto the mounting bolts and tighten them to secure the toilet to the floor.
- ربط إمدادات المياه: Connect the water supply line (not included) to the fill valve at the back of the toilet. Ensure a tight, leak-free connection.
- Assemble Cover Caps: Assemble the side cover caps to conceal the mounting bolts.
- Install Seat Hinges: Install the seat hinges onto the toilet bowl.
- Attach Seat Cover: Align the pre-drilled holes on the seat with the hinges and press down to secure.
- اضبط المقعد: Adjust the seat to align properly with the bowl.
- Flush Test: Turn on the water supply and perform a flush test to check for leaks and proper operation.
6. تعليمات التشغيل
6.1 Dual Flush System
The Eridanus One Piece Toilet features a water-efficient dual flush system, allowing you to choose between a partial flush for liquid waste and a full flush for solid waste, conserving water with every use.
Figure 6.1: Dual Flush Buttons
- شطف جزئي (1.1 جالون لكل شطفة): Press the smaller button on the tank lid for liquid waste. This uses less water.
- تدفق كامل (1.6 جالون لكل تدفق): Press the larger button on the tank lid for solid waste. This provides a powerful flush for thorough cleaning.
6.2 Soft-Closing Seat
The toilet is equipped with a soft-closing seat and lid, designed to close slowly and quietly, preventing accidental slamming and reducing noise.
Figure 6.2: Soft-Closing Seat Mechanism
Video 6.1: Eridanus One-Piece Compact Toilet ERI-1T302 Overview. This video highlights key features including the soft-close seat, dual flush, and hidden trapway.
7. الصيانة والتنظيف
7.1 التنظيف العام
The Eridanus One Piece Toilet is crafted from high-quality ceramic with a smooth, easy-to-wipe surface and a fully skirted trapway, making cleaning simple.
- Use a soft cloth or sponge with mild, non-abrasive cleaning agents.
- Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the ceramic finish.
- Regular cleaning will help maintain the toilet's pristine appearance and hygiene.
7.2 مقعد سريع الفك لسهولة التنظيف
The soft-closing seat features a quick-release mechanism for convenient removal, allowing for thorough cleaning of the toilet bowl and seat hinges.

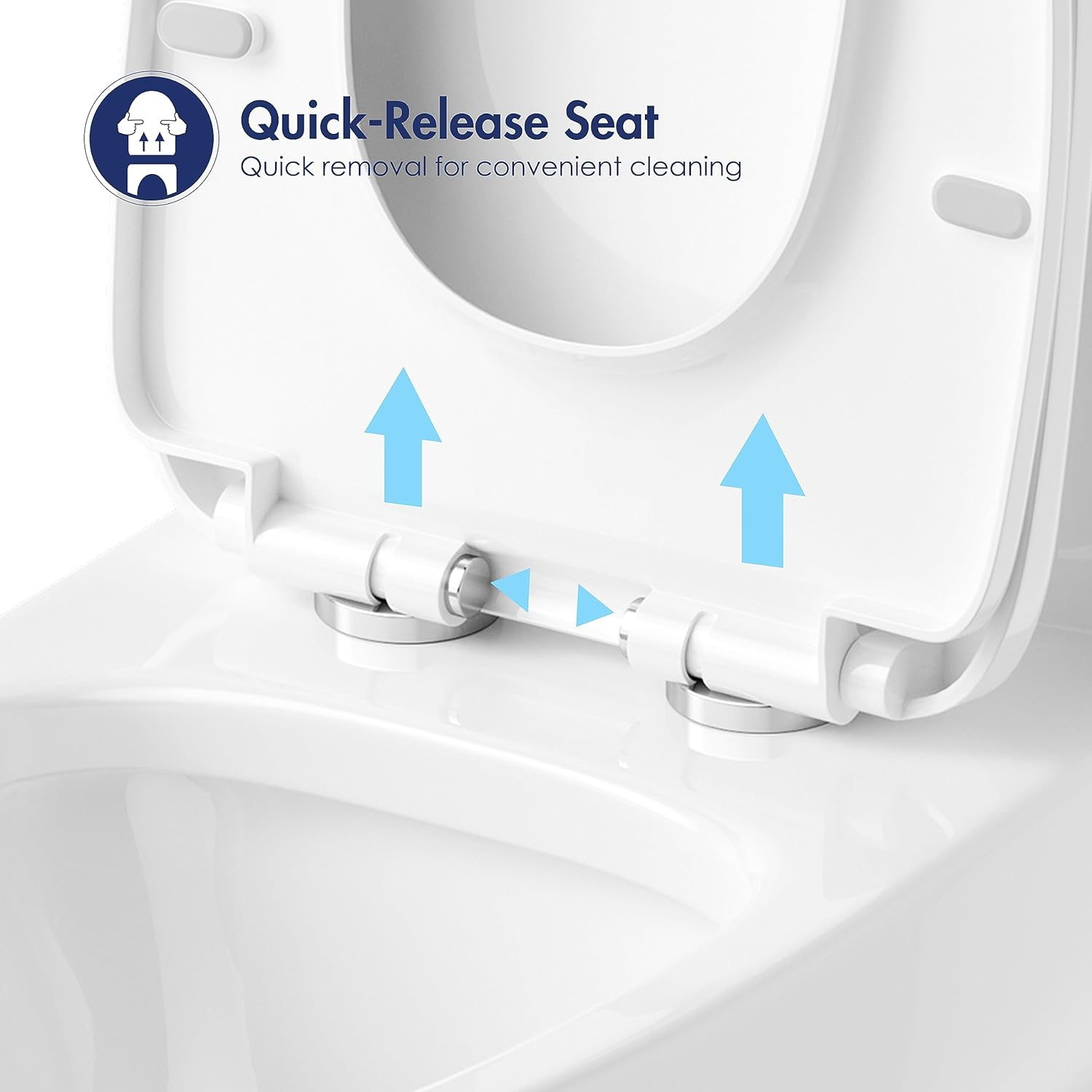

Figure 7.1: Quick-Release Seat
To remove the seat:
- Locate the quick-release buttons near the seat hinges.
- Press the buttons and gently pull the seat upwards to detach it from the hinges.
- Clean the seat and hinges separately.
- To reattach, align the seat with the hinges and press down until it clicks into place.
8. استكشاف الأخطاء وإصلاحها
If you encounter any issues with your Eridanus One Piece Toilet, please refer to the following common troubleshooting tips. For complex problems, it is recommended to contact a qualified plumber.
8.1 المشكلات والحلول الشائعة
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا تعمل المراحيض أو يكون تدفق الماء ضعيفًا. | انخفاض مستوى الماء في الخزان، انسداد في مجرى التصريف، عطل في صمام التدفق. | Check water supply valve is fully open. Ensure water level in tank is at the fill line. Clear any obstructions in the bowl or trapway. Inspect flush valve for proper operation. |
| المرحاض يعمل باستمرار | Flapper not sealing properly, fill valve issue, float ball misalignment. | Check the flapper for debris or wear and ensure it seals completely. Adjust the float ball to the correct water level. Inspect the fill valve for any malfunctions. |
| Leaks around the base of the toilet | Loose mounting bolts, damaged wax ring, cracked toilet base. | Tighten mounting bolts (do not overtighten). If the wax ring is damaged, it will need to be replaced. Inspect the ceramic for cracks; if cracked, the toilet may need replacement. |
| إعادة تعبئة الخزان ببطء | Partially closed water supply valve, clogged fill valve. | Ensure the water supply valve is fully open. Check the fill valve for any mineral buildup or debris that might be restricting water flow. |
If these solutions do not resolve the issue, please contact Eridanus Customer Support or a qualified plumbing professional.
9. الضمان والدعم
Eridanus is committed to providing high-quality products and excellent customer service.
- الإرجاعات: هذا المنتج مؤهل لإرجاع سهل خلال 30 يومًا. يُرجى مراجعة سياسة الإرجاع الخاصة بمنصة الشراء الخاصة بك للاطلاع على التعليمات المفصلة.
- دعم العملاء: For any questions, concerns, or assistance with your Eridanus toilet, please contact our customer support team. Contact information can typically be found on your purchase receipt or the Eridanus brand store page.
