1. المقدمة
The Hoymiles HM-600N is a 2-in-1 microinverter designed to connect up to two solar panels, optimizing the photovoltaic (PV) energy production of your installation. This microinverter features a maximum DC voltage of 60V, classifying it as PV Rapid Shutdown Equipment. It complies with NEC-2017 and NEC-2020 Article 690.12, as well as CEC-2021 Sec 64-218, ensuring safety and regulatory adherence for solar energy systems.
Image 1.1: The Hoymiles HM-600N Microinverter, a compact device designed for converting DC power from solar panels into AC power for grid connection.
2. معلومات السلامة
يرجى قراءة جميع التعليمات والتحذيرات بعناية قبل التركيب والتشغيل. قد يؤدي عدم اتباع هذه التعليمات إلى صدمة كهربائية أو حريق أو إصابة خطيرة. احتفظ بهذا الدليل للرجوع إليه مستقبلاً.
- يجب أن يتم التثبيت بواسطة موظفين مؤهلين.
- Do not attempt to repair the microinverter yourself. Contact qualified service personnel.
- تأكد من أن جميع التوصيلات الكهربائية آمنة ومعزولة بشكل صحيح.
- Disconnect all power sources before servicing or installing the microinverter.
- ارتدِ معدات الحماية الشخصية المناسبة أثناء التثبيت.
- The microinverter is designed for outdoor use but should be protected from direct exposure to extreme weather conditions where possible.
3. محتويات العبوة
Verify that all components are present and undamaged upon opening the package. The standard package for the HM-600N microinverter typically includes:
- Hoymiles HM-600N Microinverter unit
- قوس التثبيت (مثبت مسبقًا أو منفصل)
- Necessary connectors for DC input and AC output
- دليل المستخدم (هذا المستند)

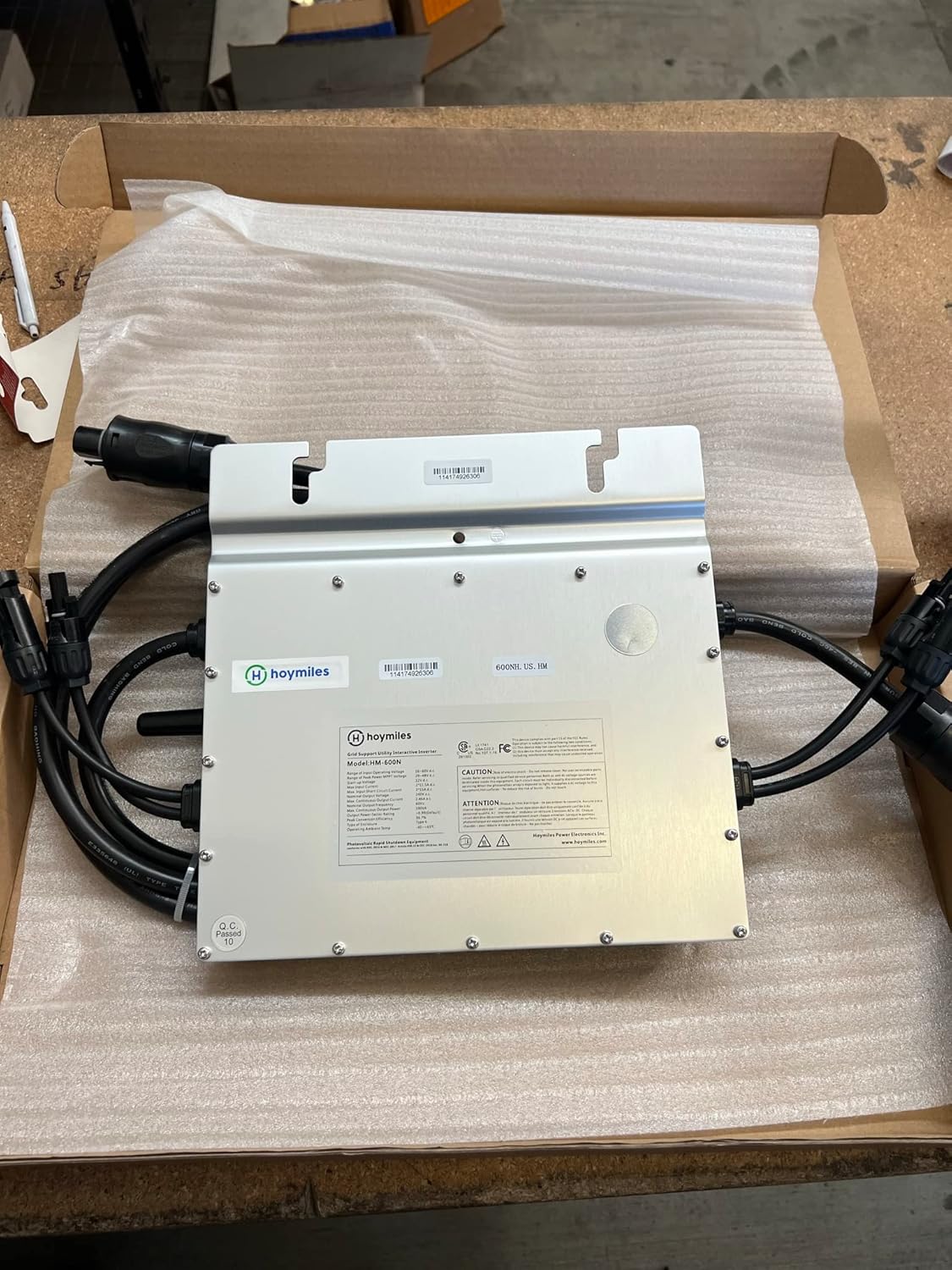

الصورة 3.1: الأعلى view of the Hoymiles HM-600N Microinverter as it appears within its protective packaging, showing the main unit and attached cables.
الصورة 3.2: الأسفل view of the Hoymiles HM-600N Microinverter within its packaging, highlighting the underside of the unit and cable routing.
Image 3.3: The shipping box for the Hoymiles HM-600N Microinverter, displaying product labels and handling instructions.
4. الإعداد والتثبيت
The HM-600N microinverter is designed for easy installation, often described as 'plug and play'. Follow these steps for proper setup:
4.1 Mounting the Microinverter
- Choose a suitable location under the PV module, ensuring adequate ventilation and protection from direct sunlight or extreme weather.
- Attach the microinverter to the PV module racking system using the integrated mounting bracket. Ensure it is securely fastened.
عدد 4.2 توصيلات كهربائية
- مدخل العاصمة: Connect the DC cables from up to two solar panels to the corresponding DC input ports on the microinverter. Ensure correct polarity (+ to + and - to -).
- خرج التيار المتردد: Connect the AC output cable of the microinverter to the AC branch circuit. For multiple microinverters, daisy-chain them according to local electrical codes and the system design.
- التأريض: Ensure the microinverter is properly grounded as per local electrical regulations.
The HM-600N is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218, which may require specific wiring practices for rapid shutdown functionality.

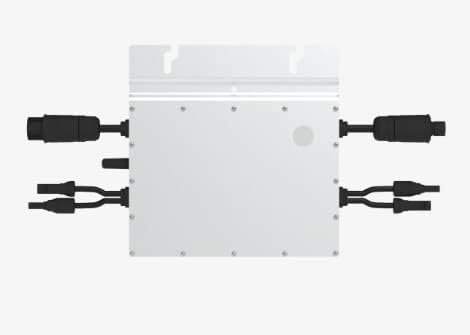

الصورة 4.1: الجانب أ view of the Hoymiles HM-600N Microinverter, illustrating the various cable connection points for DC input and AC output.

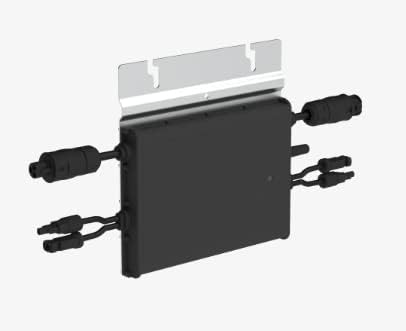

Image 4.2: An angled perspective of the Hoymiles HM-600N Microinverter, providing a comprehensive view of its design and connection interfaces.
5. تعليمات التشغيل
Once installed and connected, the Hoymiles HM-600N microinverter operates automatically. It will begin converting DC power from your solar panels into AC power for your home or the grid as soon as sufficient sunlight is available.
- عملية تلقائية: The microinverter automatically starts and stops based on the availability of DC power from the solar panels and the presence of grid power.
- يراقب: For detailed performance monitoring, a Hoymiles DTU (Data Transfer Unit) and S-Miles Cloud platform are typically used (sold separately). These allow you to track energy production, system status, and troubleshoot remotely.
6. الصيانة
The Hoymiles HM-600N microinverter is designed for minimal maintenance. However, periodic checks can help ensure optimal performance and longevity:
- التفتيش البصري: Periodically inspect the microinverter and all cables for any signs of damage, corrosion, or loose connections.
- تنظيف: If necessary, gently clean the exterior of the microinverter with a soft, damp cloth. Do not use harsh chemicals or abrasive materials. Ensure the unit is de-energized before cleaning.
- تهوية: Ensure that the area around the microinverter remains clear to allow for proper airflow and heat dissipation.
7. استكشاف الأخطاء وإصلاحها
If your microinverter is not performing as expected, consider the following common issues:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد مخرج للطاقة | No sunlight; DC input disconnected; AC output disconnected; Grid outage | Wait for sunlight; Check DC connections; Check AC connections and circuit breaker; Verify grid power is active |
| انخفاض انتاج الطاقة | Shading on panels; Dirty panels; Faulty panel; High ambient temperature | Clear shading; Clean panels; Inspect panels; Ensure proper ventilation |
| Indicator light off/abnormal | No power to microinverter; Internal fault | Check all connections; If problem persists, contact Hoymiles support |
For issues not listed or if solutions do not resolve the problem, please contact Hoymiles technical support.
8. المواصفات الفنية
Detailed specifications for the Hoymiles HM-600N Microinverter:
| المعلمة | قيمة |
|---|---|
| اسم الموديل | HM-600N |
| أبعاد | 250 × 170 × 28 ملم |
| ذروة انتاج الطاقة | 600 فولت أمبير |
| أقصى طاقة إخراج مستمرة | 590 فولت أمبير |
| Commonly Used Module Power | 240W to 405W+ |
| الحد الأقصى لتيار الإدخال | 2 × 11.5 أمبير |
| الأعلى. حجم الإدخالtage | 60 فولت |
| عدد الوحدات المتصلة | 2 |
| MPPT المجلدtage المدى | 16 فولت–60 فولت |
| عدد مراكز خدمات الطاقة | 2 |
| مصدر الطاقة | تعمل بالطاقة الشمسية |
| لون | فضي |
9. الضمان والدعم
Hoymiles products are manufactured to high-quality standards and come with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Hoymiles webموقع.
For technical support, service, or any inquiries regarding your HM-600N microinverter, please contact Hoymiles customer service through their official channels. Provide your product model number (HM-600N) and serial number when seeking support to expedite assistance.
