دليل استخدام شاحن أنكيلو اللاسلكي القابل للطي المغناطيسي 3 في 1

1. انتهى المنتجview

The Ankilo 3 in 1 Magnetic Foldable Wireless Charger is designed to simultaneously charge up to three devices: a cell phone, headphones, and a smartwatch. Its compact and foldable design makes it suitable for both home and travel use, reducing cable clutter and providing a convenient charging solution.

Image: The Ankilo 3 in 1 Magnetic Foldable Wireless Charger in its fully unfolded state, showing the three distinct charging pads for a phone, earbuds, and smartwatch.

2. تعليمات الإعداد

1. توصيل الطاقة: Connect the provided Type-C to Type-C data cable to the charger and plug the other end into an 18W (or higher) fast charging adapter (not included). Ensure the adapter provides sufficient power for optimal performance, especially when charging three devices simultaneously.
2. Unfolding the Charger: Gently unfold the charger to its desired configuration. It can be laid flat or folded into a triangular stand for phone viewعمل.
3. الموقع: ضع الشاحن على سطح ثابت ومستوٍ.

Image: The Ankilo wireless charger shown in its compact, folded state, demonstrating its portability and ease of storage in a pocket or bag.

3. تعليمات التشغيل

أجهزة الشحن:

• الهاتف المحمول: Place your compatible iPhone 12/13/14/15 series device onto the designated phone charging pad. The magnetic suction will firmly hold the device in place. The charger can be folded 180° to act as a phone stand, allowing for horizontal viewing or vertical chatting while charging.
• سماعات الأذن: Place your Qi-enabled wireless charging earbuds (e.g., AirPods Pro, AirPods 2/3 Wireless Charging Version) onto the central charging pad.
• ساعة ذكية: Place your compatible Apple Watch (Series 2-9, Ultra, Ultra 2) onto the dedicated smartwatch charging module.

Image: The charger configured as a phone stand, with an iPhone and Apple Watch charging. It also highlights items that may interfere with magnetic adsorption, such as magnets, metal cases, credit cards, and metal rings.

مؤشر الضوء العرض:

The phone charging module features an indicator light to show the charging status:

• الضوء الأخضر: يشير إلى وضع الاستعداد.
• Blue Breathing Light: يشير إلى الشحن النشط.
• Alternating Blue and Green Lights: Indicates foreign object detection. Remove any foreign objects from the charging surface.

A light button is provided to manually turn off the light display at any time, which is useful for undisturbed sleep.

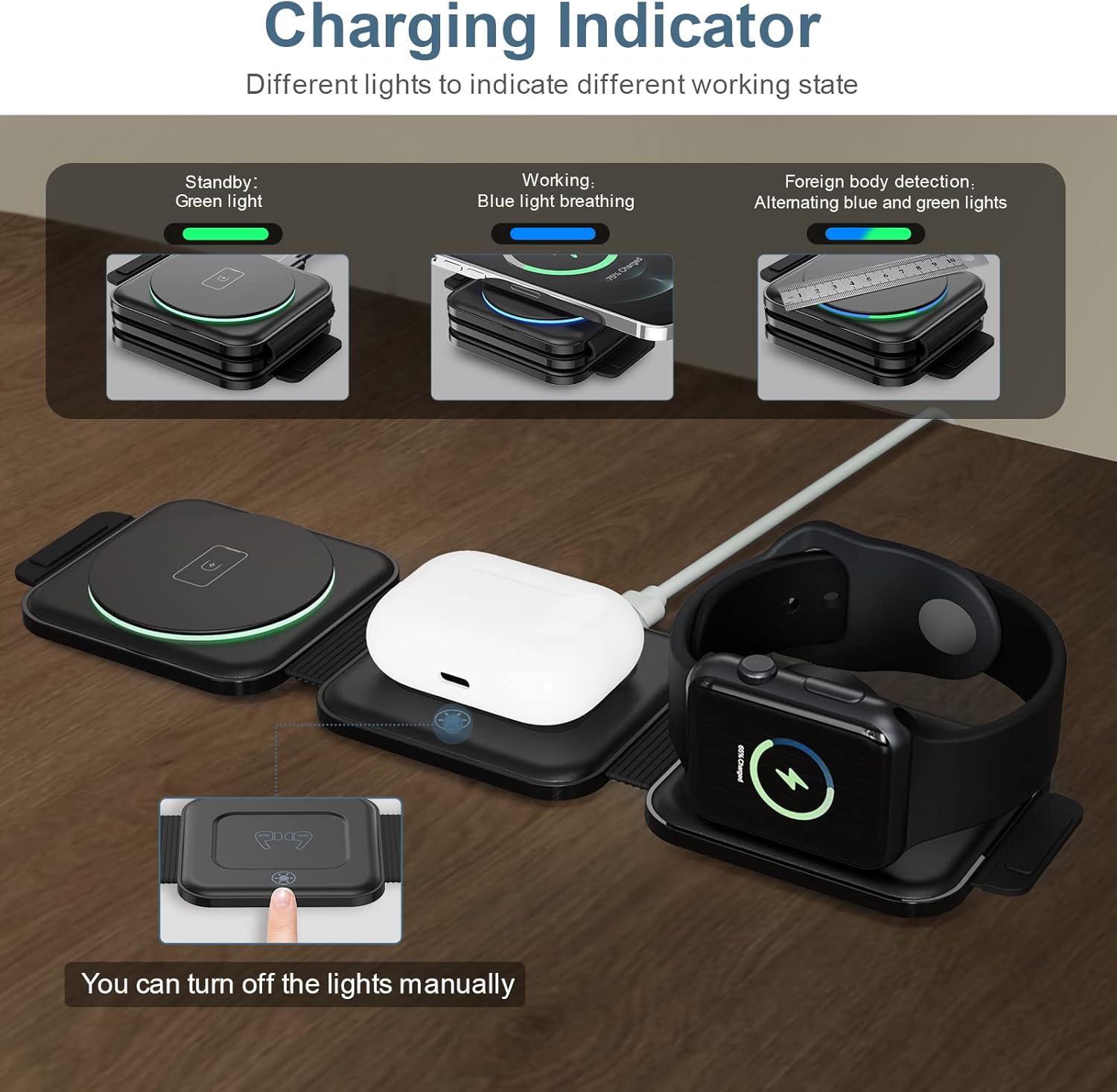

Image: A visual representation of the charging indicator light states: green for standby, blue breathing for working, and alternating blue/green for foreign object detection. A finger is shown pressing the light button to turn off the lights.

4. التوافق

The Ankilo 3 in 1 Wireless Charger offers wide compatibility with various devices:

• للآيفون: iPhone 15 series, iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPhone 14 Pro Max, iPhone 13, iPhone 13 Pro, iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 12 mini.
• لساعة Apple Watch: Apple Watch Series 2, 3, 4, 5, SE, 6, 7, 8, 9, Ultra, Ultra 2.
• لأجهزة AirPods: AirPods Pro, AirPods 2/3 (Wireless Charging Version), and other Qi-enabled wireless earbuds.
• Other Qi-enabled Devices: Compatible with all other Qi wireless-enabled devices.

Important Notes on Compatibility:

• iPhone 15 Pro/Max may not be triangularly supported due to the enlarged camera position.
• Not supported for Samsung Watch.
• Not supported for AirPods 1 (which do not have wireless charging).
• For optimal magnetic adsorption, ensure phone cases are 5mm or thinner and do not contain magnets, metal, or credit cards.

5. حماية السلامة

This charger incorporates multi-functional smart shunt technology with a built-in smart chip to ensure a safe charging experience. It provides comprehensive protection against:

• أكثر من المجلدtagهـ- الحماية: يمنع الضرر الناتج عن الحجم الزائدtage.
• حماية من التيار الزائد: وسائل الحماية من التدفق الزائد للتيار الكهربائي.
• حماية ماس كهربائى: Protects against electrical shorts.
• التحكم في درجة الحرارة: Manages heat to prevent overheating.
• كشف الأجسام الأجنبية: Detects and prevents charging when foreign metallic objects are on the charging surface.

الصورة: انفجار view diagram highlighting the internal components and various safety protection mechanisms, including overcharge, overvoltagهـ، الحماية من التيار الزائد ودرجة الحرارة.

6. الصيانة

• Keep the charging surface clean and free of dust or debris to ensure efficient charging.
• Avoid exposing the charger to extreme temperatures, direct sunlight, or high humidity.
• لا تقم بتفكيك الجهاز أو محاولة إصلاحه بنفسك. اتصل بدعم العملاء للحصول على المساعدة.
• قم بتخزين الشاحن في مكان بارد وجاف عند عدم استخدامه.

7. استكشاف الأخطاء وإصلاحها

إذا استمرت المشكلة بعد تجربة هذه الحلول، فيرجى الاتصال بدعم العملاء.

8. مواصفات المنتج

9. ماذا يوجد في الصندوق

• 1 x 3 in 1 Foldable Wireless Charger
• 1 x Type-C to Type-C Data Cable
• 1 × دليل التعليمات

10. الضمان والدعم

Ankilo provides دعم لمدة 12 شهرًا لهذا المنتج من تاريخ الشراء.

For any questions, technical assistance, or warranty claims, please contact our customer support team:

• بريد إلكتروني: support@ankilo.com (example email, as no specific email is provided)
• Webموقع: www.ankilo.com (السابقample website, as no specific website is provided)

Please have your model number (CP257B-AK) and purchase details ready when contacting support.
