This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Goodman 60,000 BTU 4 Ton 80% AFUE Natural Gas Furnace (GMVC80 Series). Please read this manual thoroughly before installation or operation.
الصورة 1: الجبهة view of the Goodman 60,000 BTU 4 Ton 80% AFUE Natural Gas Furnace.
The Goodman GMVC80 Series furnace is a two-stage, variable-speed natural gas furnace designed for reliable and energy-efficient heating. It features a premium heat exchanger to deliver consistent comfort and energy savings. This unit is R32 NEW REFRIGERANT compliant.
تتضمن الميزات الرئيسية ما يلي:
- كفاءة الطاقة: Operates at 80% AFUE, ensuring 80% of consumed gas directly heats your home.
- التثبيت المرن: Supports both upflow and horizontal configurations, suitable for various home layouts including attics and basements.
- بناء متين: Designed with durable metal flue venting for long-lasting performance.
- Variable Speed Blower: Provides enhanced comfort and quiet operation.
الإعداد والتثبيت
Proper installation is crucial for the safe and efficient operation of your furnace. Installation must be performed by a qualified HVAC technician in compliance with all local and state codes, as well as national standards.
خيارات التوجيه
This furnace is designed for flexible installation in either upflow (vertical) or horizontal configurations.
Image 2: Diagram illustrating the airflow path in an upflow (vertical) furnace installation. Cool air enters from the side or bottom, is heated, and warm air is released from the top.
Upflow (Vertical) Installation: In an upflow system, the heat exchanger is positioned at the top of the unit. Cool air is drawn in from the side or bottom, heated, and then released as warm air from the top. This configuration is commonly used in basement installations due to natural convection.
Image 3: Diagram illustrating the airflow path in a horizontal (right/left) furnace installation. Air flows horizontally through the unit.
التثبيت الأفقي: When installing horizontally, typically in attics or crawl spaces, ensure unobstructed airflow from one side to the other. This configuration is versatile and adaptable to airflow in either right or left directions, promoting even heating and preventing cold spots.
LP Conversion Kit (Optional)
This furnace is designed for natural gas. If propane is required, an optional LP conversion kit (LPM-06) is available. Conversion must be performed by a qualified technician.
Image 4: Components of an LP conversion kit, used to adapt the furnace for propane fuel.
تعليمات التشغيل
Your Goodman furnace is controlled by a thermostat. For optimal performance and comfort, ensure your thermostat is properly installed and programmed.
التشغيل الأساسي
- تشغيل الطاقة: Ensure the electrical power switch to the furnace is in the 'ON' position.
- توريد الغاز: Verify that the gas supply valve to the furnace is open.
- إعداد الترموستات: Set your thermostat to the desired temperature and 'HEAT' mode. For two-stage operation, the thermostat will automatically cycle between stages based on heating demand.
- تشغيل مروحة: The fan can be set to 'AUTO' (runs only when heating) or 'ON' (runs continuously). 'AUTO' is generally recommended for energy efficiency.
If the furnace fails to ignite or operate, refer to the Troubleshooting section or contact a qualified technician.
صيانة
Regular maintenance is essential to ensure the longevity, efficiency, and safe operation of your furnace. Always disconnect power to the furnace before performing any maintenance.
استبدال الفلتر
- Inspect the air filter monthly.
- Replace or clean the filter every 1-3 months, or more frequently if you have pets or allergies. A dirty filter restricts airflow, reducing efficiency and potentially damaging the unit.
التفتيش المهني السنوي
It is highly recommended to have your furnace inspected and serviced annually by a qualified HVAC technician. This inspection typically includes:
- Checking and cleaning the burner assembly.
- Inspecting the heat exchanger for cracks or damage.
- Verifying proper gas pressure and ignition.
- Lubricating moving parts as needed.
- Testing safety controls and electrical connections.
- Checking flue venting for obstructions or leaks.
استكشاف الأخطاء وإصلاحها
قبل الاتصال للخدمة، راجعview هذه القضايا والحلول الشائعة:
- لا حرارة:
- Check if the thermostat is set to 'HEAT' and the desired temperature is above the room temperature.
- Ensure the furnace power switch is 'ON'.
- Verify the gas supply valve is open.
- Check your home's circuit breaker for a tripped breaker.
- حرارة غير كافية:
- Replace a dirty air filter.
- تأكد من أن جميع فتحات تهوية الهواء الداخل والخارج مفتوحة وغير مسدودة.
- Furnace Cycles On and Off Frequently (Short Cycling):
- Check for a dirty air filter.
- Ensure proper thermostat placement away from heat sources or drafts.
- ضوضاء غير عادية:
- Squealing could indicate a worn blower motor belt.
- Rattling might be loose panels or ductwork.
For persistent issues or any concerns regarding gas or electrical components, contact a qualified HVAC technician immediately.
تحديد
Detailed specifications for the Goodman GMVC800604BN furnace:
Image 5: The Goodman furnace displaying its key dimensions: 34.50 inches height, 17.50 inches width, and 28.75 inches depth.

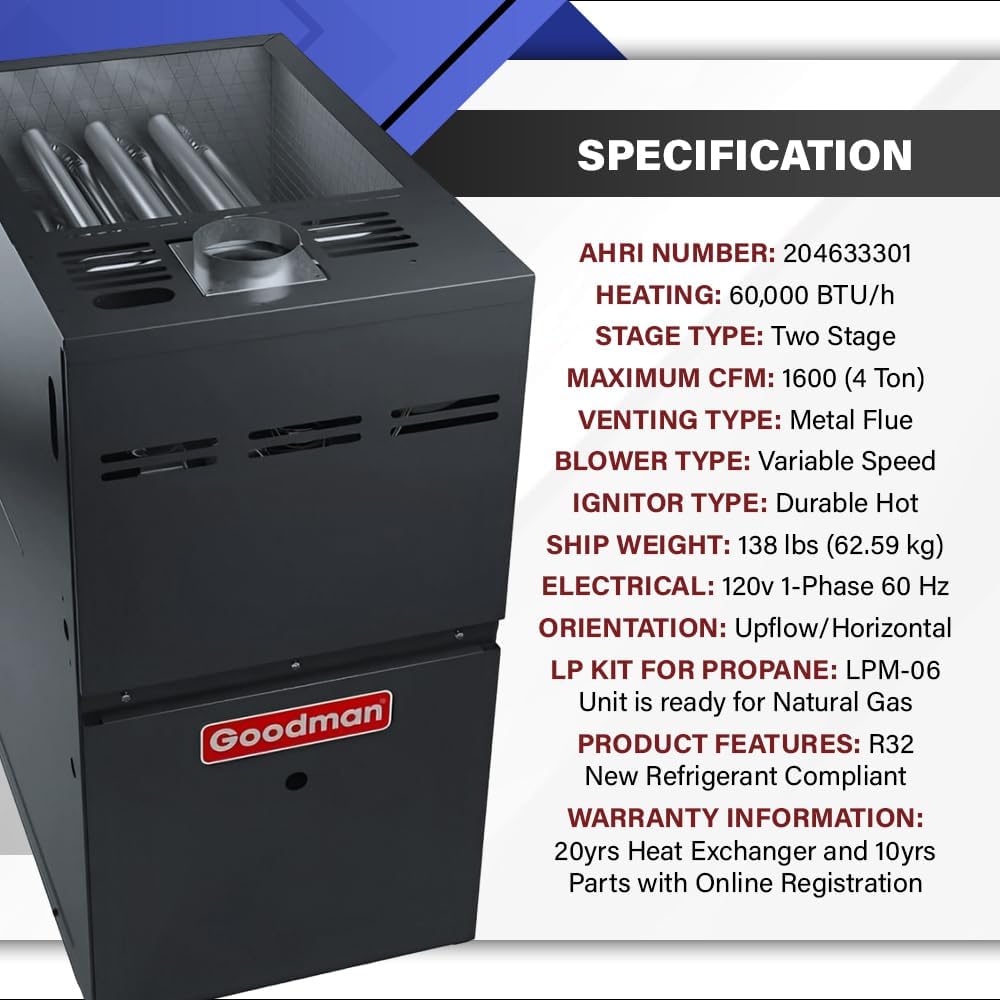

Image 6: A detailed list of specifications for the Goodman furnace, including AHRI number, heating capacity, stage type, and warranty information.
| مواصفة | قيمة |
|---|---|
| رقم الموديل | GMVC800604BN |
| ماركة | 1HVAC (Goodman) |
| سعة التدفئة | 60,000 وحدة حرارية بريطانية/ساعة |
| الحمولة الاسمية | 4 طن |
| كفاءة AFUE | 80% |
| Stagيو تايب | اثنان سtage |
| منفاخ نوع | سرعة متغيرة |
| توجيه | تدفق صاعد/أفقي |
| نوع التنفيس | Metal Flue |
| Ignitor Type | Durable Hot Surface |
| كهربائي | 120V 1-Phase 60 Hz |
| أبعاد المنتج (الارتفاع × العرض × العمق) | 34.5 بوصة × 17.5 بوصة × 28.75 بوصة |
| وزن السفينة | 138 رطل (62.59 كجم) |
| Refrigerant Compliance | R32 New Refrigerant Compliant |
| رمز المنتج الموحد | 663051617728 |
Energy Guide Information
Image 7: The Energy Guide label for the Goodman furnace, showing its efficiency rating and estimated annual operating cost.
The actual efficiency of this furnace can vary depending on the type of air handler or blower installed by your contractor, as well as high-quality components that enhance heating performance and overall energy efficiency.
معلومات الضمان
Your Goodman furnace is backed by a comprehensive warranty. To ensure full coverage, timely online registration is required at no additional charge. Failure to register online will result in default warranty terms.
- Lifetime Heat Exchanger Warranty: With online registration.
- 10-Year Unit Replacement Warranty: With online registration.
- ضمان قطع الغيار لمدة 10 سنوات: With online registration.
Default Warranty (without online registration):
- 20-Year Heat Exchanger Warranty.
- 5-Year Parts Warranty.
تذكيرات هامة:
- Installation must comply with all local and state codes to maintain warranty coverage.
- This furnace DOES NOT comply with California Low NOx and Ultra-Low NOx regulations.
يدعم
For technical assistance, warranty claims, or professional service, please contact your installing HVAC contractor or the manufacturer's authorized service provider. Always provide your model number (GMVC800604BN) and serial number when seeking support.
It is recommended to keep this manual in a safe and accessible place for future reference.
