CDN Digital Probe Cooking Thermometer DTTC-W User Manual

مقدمة

The CDN Digital Probe Cooking, Cooling Thermometer, Smoker Oven Grill Candy Deep Frying, Multifunctional Thermometer/Timer/Clock (Model DTTC-W) is a versatile tool designed to assist in precise temperature monitoring for various cooking and cooling applications. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

معلومات السلامة

• Always handle the stainless steel probe with care as it can become very hot during use. Use oven mitts or heat-resistant gloves when removing the probe from hot food or ovens.
• Do not immerse the main thermometer unit in water or any other liquid. The unit is not waterproof. Clean only the probe and cable.
• Ensure the probe cable is not pinched or damaged by oven doors or grill grates, as this can affect accuracy and damage the cable.
• احتفظ بالجهاز بعيدًا عن متناول الأطفال.
• لا تستخدم الترمومتر في فرن الميكروويف.
• Only use the specified battery type (1 AAA).

عناصر

Your CDN DTTC-W package includes the following components:

• Digital Thermometer/Timer/Clock Unit
• Stainless Steel Probe with High-Heat Sensor Cable
• مشبك الوعاء
• 1 بطارية AAA (مضمنة)

Image: The CDN Digital Probe Thermometer DTTC-W unit, showing the main display, control buttons, the stainless steel probe, and the pot clip.

يثبت

1. تركيب البطارية:

   Locate the battery compartment on the back of the main unit. Open the compartment cover and insert one AAA battery, ensuring correct polarity (+/-). Close the cover securely.
2. اتصال التحقيق:

   Insert the plug of the stainless steel probe cable into the jack located on the side of the main unit. Ensure it is fully inserted for proper connection.



   الصورة: لقطة مقربة view of the stainless steel probe and its high-heat sensor cable, ready for connection to the main unit.

3. وضع الوحدة:

   The DTTC-W offers two mounting options:

   • ظهر مغناطيسي: The unit has magnetic strips on its back, allowing it to be securely attached to metal surfaces like a refrigerator door or oven exterior.
   • Fold-out Stand: A hinge allows the unit to sit upright on a countertop or stovetop for easy viewعمل.

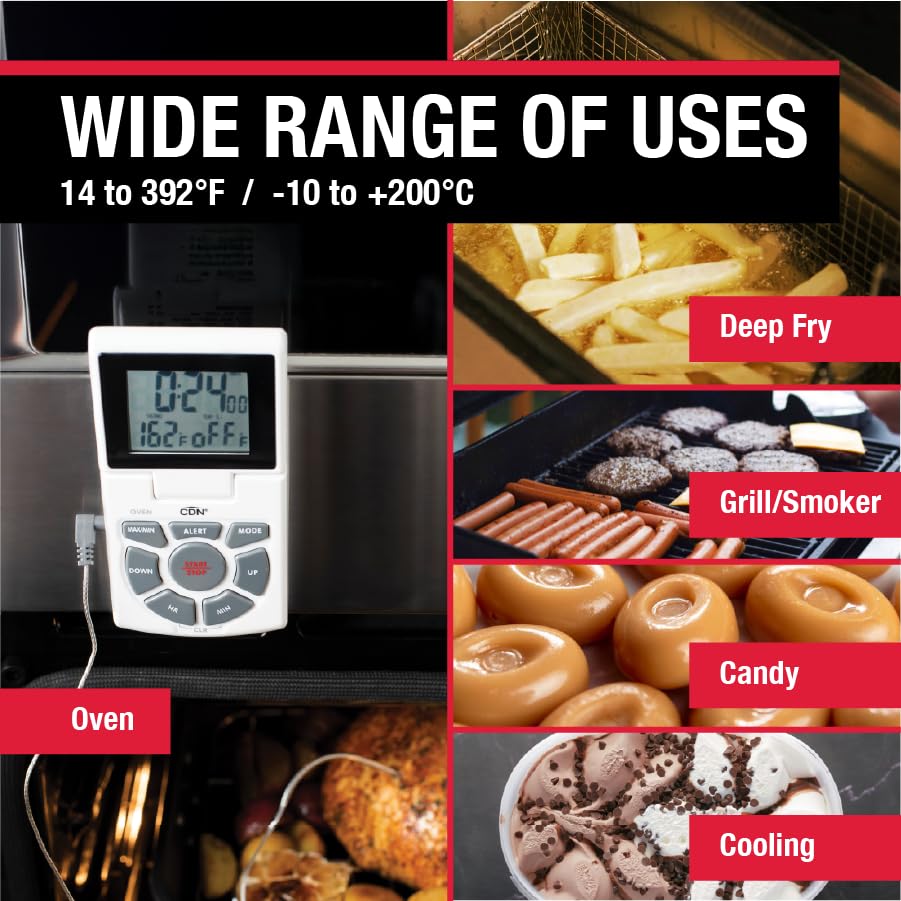

   Image: The thermometer unit attached to an oven door via its magnetic back, demonstrating the magnetic mounting option.



   Image: The thermometer unit standing upright on a countertop using its integrated fold-out stand.

تعليمات التشغيل

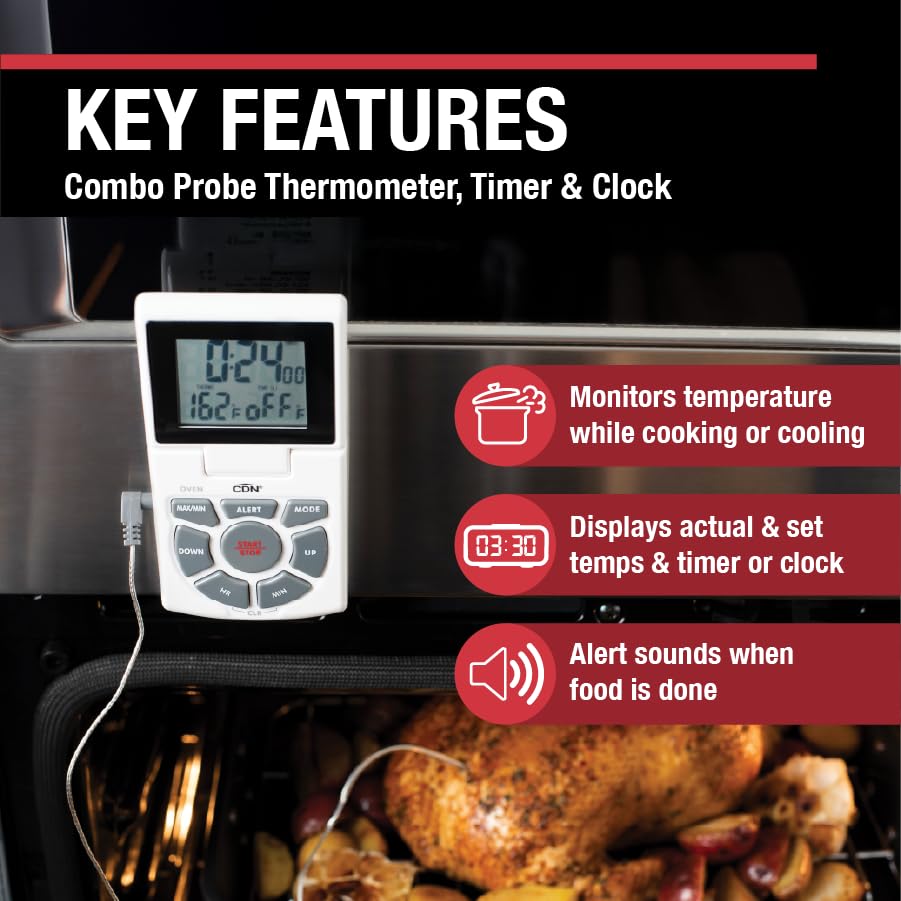

The DTTC-W features a clear LED screen displaying time, current food temperature, and set temperature. Buttons are clearly marked for ease of use.

أساليب عملها:

اضغط على وضع button to cycle through the three main modes: Thermometer, Timer, and Clock.

1. Thermometer Mode:

• قياس الحرارة: Insert the stainless steel probe into the thickest part of the food, avoiding bone or gristle. The current internal temperature will be displayed on the screen.
• Setting Temperature Alert:
  1. اضغط على يُحذًِر button. The set temperature will flash.
  2. استخدم UP و تحت أزرار لضبط درجة الحرارة المستهدفة المطلوبة.
  3. يضعط يُحذًِر مرة أخرى لتأكيد الإعداد.
  4. When the food reaches the set temperature, an alarm will sound. Press any button to silence the alarm.
• Fahrenheit/Celsius Selection: Use the switch on the back of the unit to toggle between Fahrenheit (°F) and Celsius (°C) temperature scales.
• Using the Pot Clip: For deep frying or candy making, attach the pot clip to the side of your saucepan. Insert the probe through the clip, ensuring the probe tip is submerged in the liquid but not touching the bottom of the pan.


  Image: The pot clip securely attached to the rim of a saucepan, holding the probe in place for accurate temperature monitoring during cooking.

2. Timer Mode:

• ضبط مؤقت العد التنازلي:
  1. اضغط على HR و مين أزرار لضبط وقت العد التنازلي المطلوب.
  2. يضعط البدء/التوقف لبدء العد التنازلي.
  3. للتوقف مؤقتًا، اضغط على البدء/التوقف مرة أخرى. اضغط مرة أخرى للاستئناف.
  4. لمسح المؤقت، اضغط على سي إل آر.
  5. An alarm will sound when the timer reaches zero. Press any button to silence.
• مؤقت العد التصاعدي:

  From Timer mode, ensure the timer is set to 0:00. Press البدء/التوقف to begin counting up. Press البدء/التوقف to pause/resume, and سي إل آر لإعادة الضبط.

3. Clock Mode:

• ضبط الساعة:
  1. In Clock mode, press and hold the وضع اضغط على الزر حتى تومض أرقام الساعة.
  2. استخدم HR و مين buttons to set the hour and minute respectively.
  3. يضعط وضع لتأكيد كل إعداد.
  4. The clock displays 12-hour or 24-hour time.

Image: The thermometer probe accurately measuring the internal temperature of a chicken roasting inside an oven.

Image: The thermometer probe inserted into chicken breasts cooking on a grill, demonstrating its use for outdoor cooking.

صيانة

• تنظيف:

  The stainless steel probe and cable can be cleaned with a damp cloth and mild detergent. Rinse thoroughly and dry immediately. The main unit should be wiped clean with a damp cloth only. Do not immerse the main unit in water.



  Image: The thermometer unit and probe resting on a wooden cutting board, illustrating the ease of access for cleaning after use.
• استبدال البطارية: Replace the AAA battery when the display dims or the unit stops functioning correctly.
• تخزين: Store the thermometer in a clean, dry place when not in use. Avoid extreme temperatures or direct sunlight.

استكشاف الأخطاء وإصلاحها

تحديد

• نطاق القياس: 14 to 392°F / -10 to +200°C
• نطاق الموقت: Up to 24 hours by hr/min
• طول المجس: 5.5 بوصة (14.0 سم)
• طول كابل الاستشعار: 3 قدم (91.4 سم)
• Sensor Cable Heat Resistance: تصل إلى 600 درجة فهرنهايت / 315 درجة مئوية
• مصدر الطاقة: 1 x 1.5V AAA IEC LR03 Alkaline Battery (included)
• نوع العرض: شاشات الكريستال السائل الرقمية
• خيارات التركيب: Magnetic back, Fold-out stand
• مواد: Stainless Steel probe, Plastic unit casing
• أبعاد المنتج: 10.5 × 6 × 1.3 بوصات؛ 4 أونصة (تقريبًا)

ضمان

The CDN Digital Probe Cooking Thermometer (DTTC-W) is covered by a two-year warranty against defects in materials and workmanship from the date of purchase. This warranty does not cover damage resulting from misuse, abuse, accident, or unauthorized alteration or repair. Please retain your proof of purchase for warranty claims.

يدعم

For technical assistance, warranty claims, or general inquiries, please contact CDN Customer Service. Refer to the official CDN webالموقع للحصول على أحدث معلومات الاتصال.

Webموقع: www.cdn-timeandtemp.com
