Zendure ZDSBV4600

دليل مستخدم محطة الطاقة المحمولة زيندور سوبر بيس 5

Model: ZDSBV4600

مقدمة

This manual provides essential instructions for the safe and efficient use of your Zendure SuperBase V portable power station. Please read this manual thoroughly before operating the device and retain it for future reference.

The Zendure SuperBase V is a versatile portable power station designed for home backup, emergency power, RV use, and off-grid applications. It features dual 120V/240V output, a 3800W AC output, and a 4.6KWh LiFePO4 battery, expandable up to 46KWh with additional satellite batteries.

تعليمات السلامة الهامة

Always follow basic safety precautions when using electrical products to reduce the risk of fire, electric shock, and personal injury. This includes, but is not limited to:

  • لا تقم بفك أو إصلاح أو تعديل الوحدة.
  • أبقِ الوحدة بعيداً عن مصادر الحرارة وأشعة الشمس المباشرة والمواد القابلة للاشتعال.
  • لا تعرض الوحدة للماء أو السوائل الأخرى.
  • تأكد من التهوية المناسبة أثناء الاستخدام والشحن.
  • استخدم فقط الملحقات وكابلات الشحن المعتمدة.
  • يحفظ بعيدًا عن متناول الأطفال.
  • في حالة نشوب حريق، استخدم طفاية حريق البودرة الجافة.

محتويات الحزمة

عند فتح الصندوق، تأكد من تضمين جميع العناصر التالية:

  • Zendure SuperBase V Portable Power Station
  • Satellite Battery Cable (if applicable)
  • 1.5m AC Charging Cable
  • 1.5m Car Charging Cable
  • دليل المستخدم (هذا المستند)
  • الحقيبة التبعي
Zendure SuperBase V Portable Power Station
Figure 1: Zendure SuperBase V Portable Power Station. This image shows the main unit with its display panel and various output ports.

يثبت

التوظيف الأولي

Place the SuperBase V on a stable, flat surface in a well-ventilated area. Ensure there is adequate space around the unit for heat dissipation. The unit is designed for portability with integrated wheels and an extendable handle.

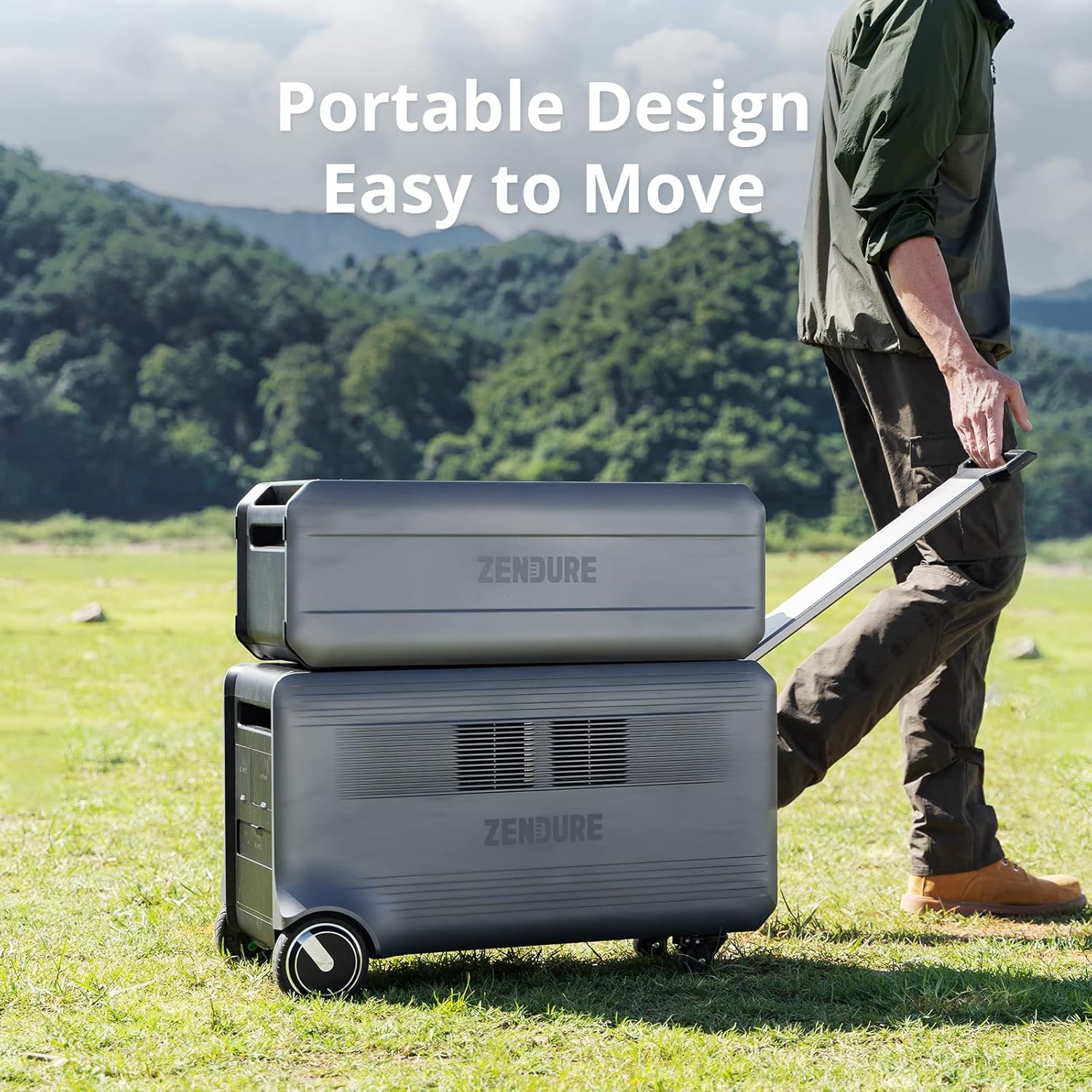

Zendure SuperBase V Portable Design
Figure 2: Portable design of the SuperBase V, showing its wheels and extendable handle for easy movement.

Connecting Satellite Batteries (Optional)

The SuperBase V can be expanded with additional satellite batteries to increase its total capacity from 4.6KWh up to 46KWh. Connect satellite batteries using the provided Satellite Battery Cable to the designated battery port on the main unit. Refer to the satellite battery manual for specific connection instructions.

الاستخدام الأول والشحن

Before first use, it is recommended to fully charge the SuperBase V. The unit supports multiple charging methods:

  • الشحن بالتيار المتردد: Connect the provided AC cable to a standard wall outlet (120V or 240V). The unit can draw up to 3600W AC input at 240V, allowing a full charge in approximately 2 hours.
  • الشحن بالطاقة الشمسية: Connect compatible solar panels to the XT90 input port. The unit supports up to 3000W solar input.
  • شاحن السيارة الكهربائية: The unit can be charged via an EV charger, supporting up to 3600W input.
  • شحن السيارة: Use the provided car charging cable to charge from a vehicle's 12V outlet.
Zendure SuperBase V Charging Methods
Figure 3: Illustration of various charging methods for the SuperBase V, including AC, solar, and car charging.
Zendure SuperBase V Multiple Charging Options
Figure 4: Visual representation of the SuperBase V's diverse charging capabilities, including AC grid, solar, and EV charging.

تعليمات التشغيل

تشغيل/إيقاف التشغيل

Press and hold the main power button on the front panel to turn the unit on or off. The display will illuminate, showing battery status, input/output wattage, and other operational information.

توصيل الأجهزة

The SuperBase V offers 16 output ports, including AC outlets, USB-A, USB-C, DC5521, Anderson, Car Outlet, and a TT-30 port for RVs. Connect your devices to the appropriate ports. Ensure the total power draw does not exceed the unit's 3800W AC output capacity.

Zendure SuperBase V Port Diagram
Figure 5: Detailed diagram illustrating all input and output ports on the Zendure SuperBase V.

حجم مزدوجtage Output (120V/240V)

The SuperBase V supports both 120V and 240V operation, making it compatible with a wide range of household and high-voltage appliances. When two units are connected, they can provide up to 7,600W of power.

Zendure SuperBase V Dual Voltagالوضع الإلكتروني
Figure 6: The SuperBase V operating in a kitchen environment, demonstrating its capability to power various appliances with dual voltagالإخراج الإلكتروني.

وظيفة مصدر الطاقة غير المنقطع (UPS)

The SuperBase V features an online UPS function. When a 120V device is connected directly to one of the two 5-20 ports at the bottom of the unit, the backup power switches on in 0ms. For other connections, the switchover time is 13ms. This protects sensitive electronics from data loss or damage during power outagإِسْ

Zendure SuperBase V 0ms UPS Function
Figure 7: Various applications benefiting from the 0ms UPS function, including desktop computers, refrigerators, and medical equipment.

تطبيق الهاتف المحمول والتحكم الصوتي

Manage your SuperBase V in real-time using the Zendure app via Wi-Fi or Bluetooth. The unit also supports voice control with Alexa or Google Home for convenient operation.

Zendure SuperBase V Voice Control and App
Figure 8: A smartphone displaying the Zendure app interface, demonstrating real-time management and voice control capabilities.

صيانة

تنظيف

Regularly clean the exterior of the SuperBase V with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure ventilation openings are free from dust and debris.

تخزين

When storing the unit for extended periods, ensure it is charged to approximately 50-80% and stored in a cool, dry place away from direct sunlight and extreme temperatures. Recharge the unit every 3-6 months to maintain battery health.

استكشاف الأخطاء وإصلاحها

If you encounter issues with your SuperBase V, consider the following basic troubleshooting steps:

  • الوحدة لا تعمل: Ensure the battery is charged. Connect to an AC outlet and attempt to power on.
  • لا يوجد إخراج من المنافذ: Check if the specific output section (AC, DC, USB) is enabled. Verify that the connected device is functioning correctly and its power draw does not exceed the port's or unit's maximum capacity.
  • مشاكل الشحن: Confirm that charging cables are securely connected and the power source is active. Check for any error messages on the display.
  • حماية من التحميل الزائد: If the unit shuts down due to overload, disconnect some devices and restart the unit.
  • تحديثات البرامج الثابتة: Ensure your unit's firmware is up to date via the Zendure app. Exercise caution during firmware updates and follow all instructions precisely to avoid potential issues.

For persistent issues or advanced troubleshooting, please contact Zendure customer support.

تحديد

نموذجZDSBV4600
ماركةزندور
نوع البطاريةبطاريات ليثيوم بوليمر
سعة4.6KWh (Expandable up to 46KWh)
مخرج التيار المتردد3800W (Dual 120V/240V), 7600W (with 2 units)
وقت تحويل نظام UPS0ms (direct 120V 5-20 ports), 13ms (other)
الحد الأقصى لقوة الإدخال6600W (AC + Solar/EV charger with satellite battery)
مدخل التيار المترددUp to 3600W (240V)
مدخلات الطاقة الشمسيةحتى 3000 وات
EV Charger Inputحتى 3600 وات
منافذ الإخراج
  • 1x Andersen: 12.6V, 30A, 378W Max
  • 1x Car Outlet: 12.6V, 10A, 126W Max
  • USB-C(3)/(4): 5-12V, 20W Max each
  • USB-C(1)/(2): 5-20V, 100W Max each
  • USB-A(1)(2): 5V, 2.4A, 12W total
  • 1x 6-20: 240VAC, 16A
  • 1x TT-30: 120VAC, 30A
  • 4x 5-20: 120VAC, 15A
  • 2x DC5521: 12.6V, 3A
الأبعاد (الطول × العرض × الارتفاع)28.74 بوصة × 13.62 بوصة × 17.4 بوصة
وزن127 رطل
درجة حرارة التشغيل(Information not provided)
درجة حرارة الشحن(Information not provided)
Zendure SuperBase V Dimensions
الشكل 9: الأبعادview of the Zendure SuperBase V unit.

الضمان والدعم

معلومات الضمان

The Zendure SuperBase V comes with a standard 3-year warranty. Users who download the Zendure app and register as a Zendure member can extend this warranty by an additional 2 years, totaling a 5-year warranty period. Please retain your proof of purchase for warranty claims.

دعم العملاء

For technical assistance, warranty claims, or any questions regarding your Zendure SuperBase V, please contact Zendure customer service. Contact information can typically be found on the official Zendure website or within the Zendure app.
