Raynic CR1019 8.7-Inch Digital Alarm Clock User Manual

مقدمة

This manual provides detailed instructions for the operation and maintenance of your Raynic CR1019 8.7-inch Digital Alarm Clock. Please read this manual thoroughly before use to ensure proper functionality and to maximize your product experience. This device features a large LED display, dual alarms, USB and Type-C charging ports, temperature and humidity display, and adjustable brightness and volume.

محتويات الحزمة

• Raynic CR1019 Digital Alarm Clock
• محول طاقة (كهربائي سلكي)
• دليل المستخدم

المنتج انتهىview

The Raynic CR1019 Digital Alarm Clock is designed for ease of use and includes multiple features for convenience. The front panel displays time, date, day of the week, temperature, and humidity. The top panel features control buttons for various settings.

الشكل 1: أمام view of the Raynic CR1019 Digital Alarm Clock displaying time, date, temperature, and humidity, with a smartphone connected for charging.

الشكل 2: زيادةview of the Raynic Digital Alarm Clock highlighting its large LED display, dual alarms, USB/Type-C charging, snooze, 12/24H/DST, temperature/humidity, adjustable brightness, and volume.

يثبت

1. توصيل الطاقة

1. Connect the provided power adapter to the DC IN port on the back of the alarm clock.
2. Plug the adapter into a standard electrical outlet. The display will illuminate.

2. تركيب نظام احتياطي للبطارية (اختياري)

The clock requires 2 AAA batteries (not included) for battery backup. These batteries are only used to remember time and alarm settings during a power outage and do not power the display.

الشكل 3: مؤخرة view of the alarm clock with the battery compartment open, showing where to insert two AAA batteries for backup.

1. حدد مكان حجرة البطارية على الجزء الخلفي من الساعة.
2. افتح غطاء حجرة البطارية.
3. أدخل 2 بطاريات AAA، مع التأكد من القطبية الصحيحة (+/-).
4. أغلق غطاء حجرة البطارية.

تعليمات التشغيل

1. ضبط الوقت والتاريخ

Refer to the specific buttons on the top of the clock for time and date adjustments. Typically, a 'SET' or 'TIME SET' button is used to enter setting mode, and '+' / '-' buttons adjust values.

2. إعدادات منبه مزدوجة

The clock supports two independent alarms with four mode options: Weekdays (Mon-Fri), Weekends (Sat-Sun), Everyday (Mon-Sun), and One Time.

الشكل 4: Illustration of dual alarm functionality, allowing two separate wake-up times for different users or purposes.

1. اضغط على زر "ALARM 1" أو "ALARM 2" لتحديد المنبه المطلوب.
2. Use the adjustment buttons to set the alarm time.
3. Select the alarm mode (Weekdays, Weekends, Everyday, One Time) using the mode selection button.
4. قم بتأكيد الإعدادات لتفعيل المنبه.

3. تعديل السطوع

The display brightness can be adjusted to 5 levels (L1 to L5) to suit your preference, especially for light-sensitive individuals.

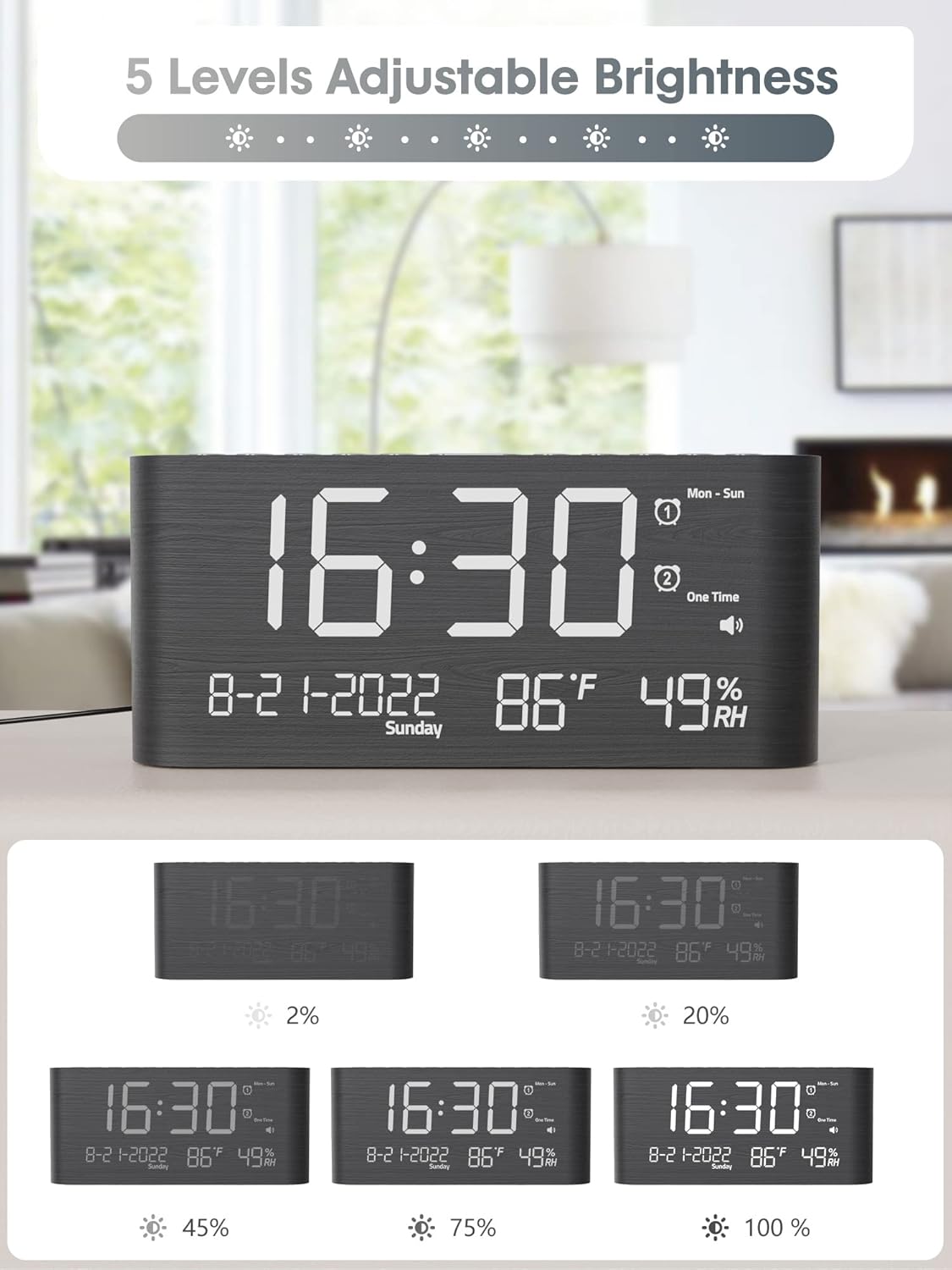

الشكل 5: Visual representation of the 5 adjustable brightness levels of the clock display.

1. Press the 'DIMMER' or 'BRIGHTNESS' button repeatedly to cycle through the 5 brightness levels.
2. حدد السطوع المطلوب.

4. ضبط مستوى الصوت

The alarm volume can be set to 5 levels, ranging from 0dB to 120dB, with a gradual ascending tone.

الشكل 6: Depiction of the 5 adjustable volume levels for the alarm, suitable for various sleeping preferences.

1. During alarm setting or when the alarm is sounding, use the 'VOLUME' or adjustment buttons to change the volume level.

5. 12H/24H/DST Switchable

You can switch between 12-hour and 24-hour time formats, and activate Daylight Saving Time (DST).

الشكل 7: Illustration of switching between 12-hour, 24-hour, and Daylight Saving Time (DST) display modes.

1. Press the '12/24H' button to toggle between 12-hour and 24-hour formats.
2. Press the 'DST' button to activate or deactivate Daylight Saving Time.

6. وظيفة الغفوة

When the alarm sounds, press the 'SNOOZE' button to temporarily silence the alarm for 9 minutes.

الشكل 8: Demonstrating the 9-minute snooze function by pressing the snooze button on the clock.

7. USB and Type-C Charging Ports

The clock includes both USB and Type-C charging ports for convenient charging of external devices.

الشكل 9: The back of the alarm clock with a smartphone and smartwatch charging simultaneously via the integrated USB and Type-C ports.

1. قم بتوصيل كابل شحن جهازك بمنفذ USB-A أو Type-C الموجود في الجزء الخلفي من الساعة.
2. تأكد من بدء شحن جهازك.

8. عرض درجة الحرارة والرطوبة

The clock displays accurate indoor temperature and humidity readings.

الشكل 10: The clock displaying current temperature and humidity, indicating its function for health care monitoring.

1. The temperature and humidity are displayed automatically on the screen.
2. To switch between Celsius and Fahrenheit, refer to the specific button (often combined with time/date settings).

صيانة

• تنظيف: امسح الساعة بقطعة قماش ناعمة وجافة. لا تستخدم المنظفات الكاشطة أو المذيبات.
• الموقع: Place the clock on a stable, flat surface. Avoid direct sunlight, extreme temperatures, and high humidity.
• قوة: استخدم دائمًا محول الطاقة المرفق.

استكشاف الأخطاء وإصلاحها

• العرض فارغ:
  Ensure the power adapter is securely connected to both the clock and a working electrical outlet. If using battery backup, remember it only saves settings, it does not power the display.
• لا يصدر صوت الإنذار:
  Check if the alarm is activated and set to the correct time and mode. Verify the alarm volume is not set to 0dB.
• الوقت غير صحيح:
  Re-enter the time and date settings. Ensure 12H/24H format and DST settings are correct for your region.
• Devices not charging via USB/Type-C:
  Ensure the clock is powered on. Check the charging cables and the devices themselves. Try a different port or cable.

تحديد

الضمان والدعم

Raynic products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Raynic webموقع. احتفظ بإيصال الشراء الخاص بك لمطالبات الضمان.
